Mono Crystal Electronic Grade CVD Diamond Plate for Radiation Detector
- Category: >>>
- Supplier: Chenguang Machinery & Electric Equipment Co. Ltd.
Share on (60674961028):
Product Overview
Description

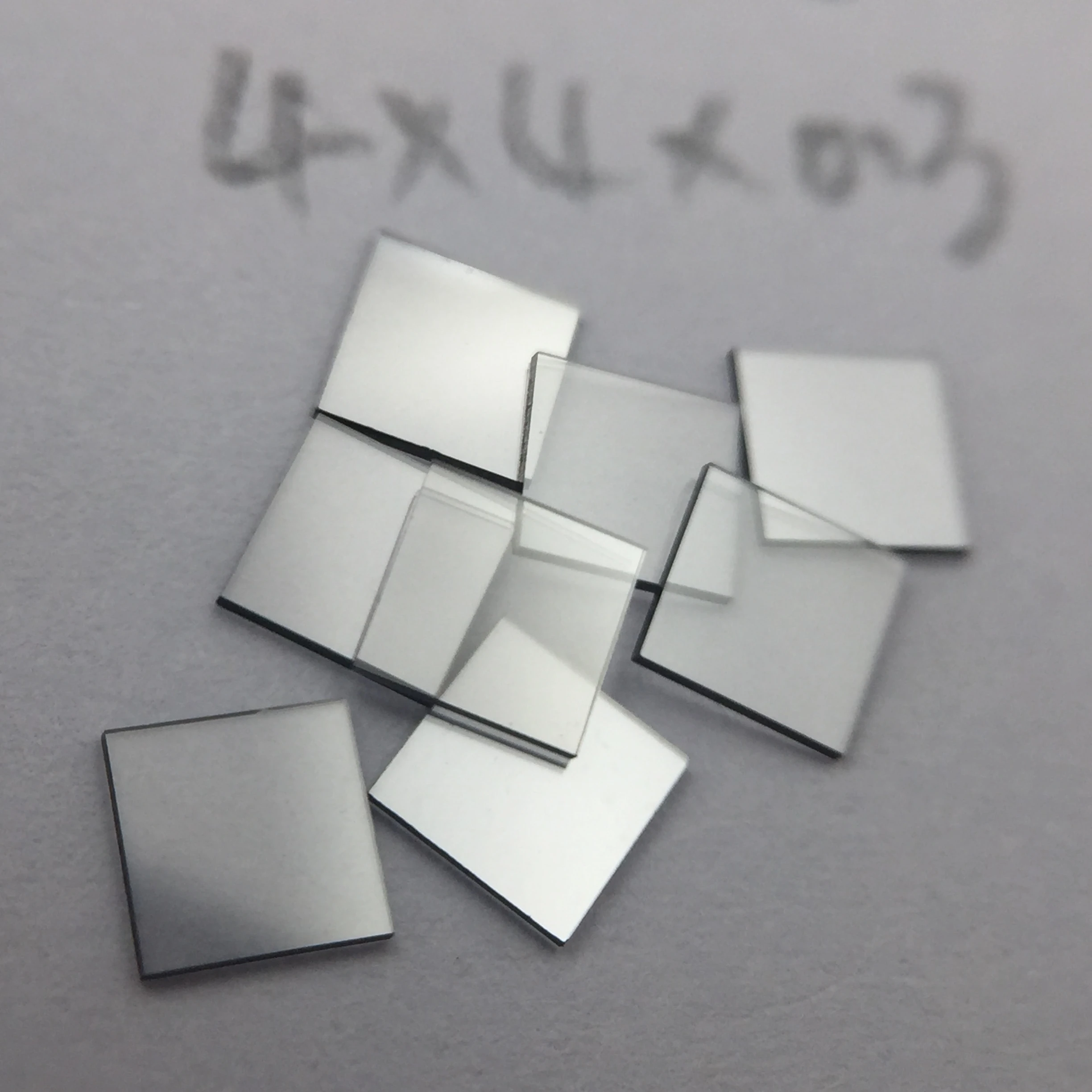

Mono Crystal Electronic Grade CVD Diamond Plate for Radiation Detector
Description:

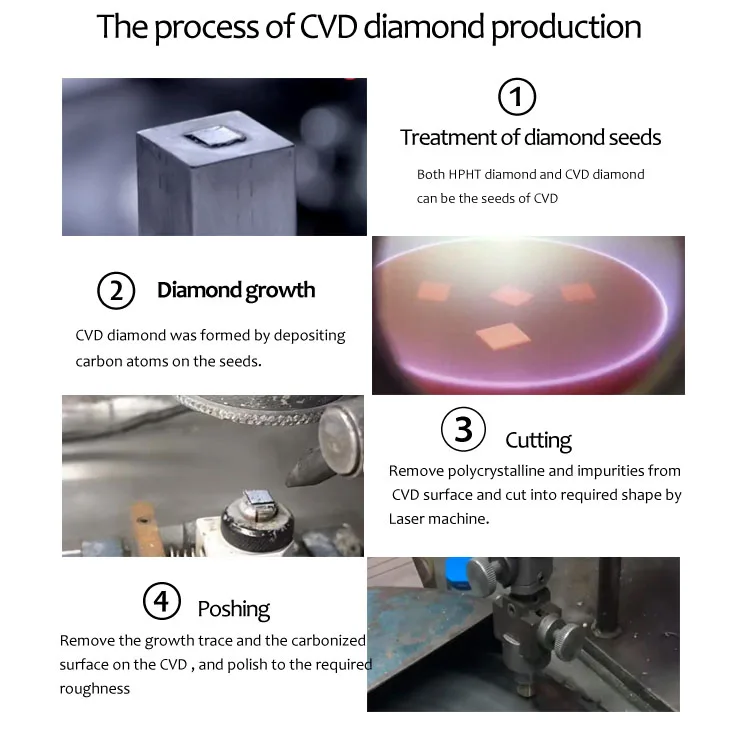

The CVD diamond produced by DC arc plasma jet system is light yellow-green and translucent.
It is the pure diamond with polycrystalline structure, without any metal and non-metallic agglomerant.
It has high transmission, high thermal conductivity and especially high abrasion resistance. It is the best replacement of natural diamond and synthetic diamond.
It is used for the processing environments where extreme high abradability and reat dissipation is required.
Features:
1. With Excellent Thermal Properities
2. Adopted the high quality fine size CVD Diamond
3. First Class Quality
4. Optical,thermal accoustical ,electronics and mechanical stability
5. High Purity,Isotropy easy to make big size film materials superiority
6. CVD has higher wearability than PCD and other diamond materials
Application field:
1.Electrochemical
2.Optical Thermal
3.thermal grade application
4.Making Wheel Dresser,die Blank...

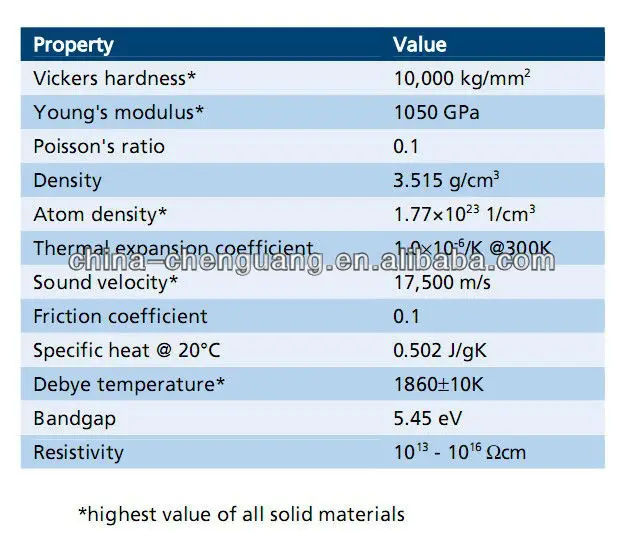

The thermal conductivity of diamond is 1000~2000 w/m.k, which is the highest among all the materials. It is 3 to 5 times than that of copper. Meanwhile, diamond has a small thermal expansion coefficient. So it can largely improve the radiating efficiency by depositing diamond films on common heat sink materials such as Cu and Mo. High-power laser diodes and MCMs (multi-chip three-dimensional assembly technology) are the two main thermal application fields of CVD diamond films.
In this field, the performance of existing heat sink materials can not compete to that of diamond films. The thermal conductivity of the moderate heat sink diamond films can achieve 2-3 times than that of Cu in the room temperature, which is much higher than those of the materials used at present such as AlN, Cu-W alloy, Al2O3 and BeO. It is only inferior to the nature Ⅱa and the Ⅰb synthesized under high pressure high-quality single crystal diamond

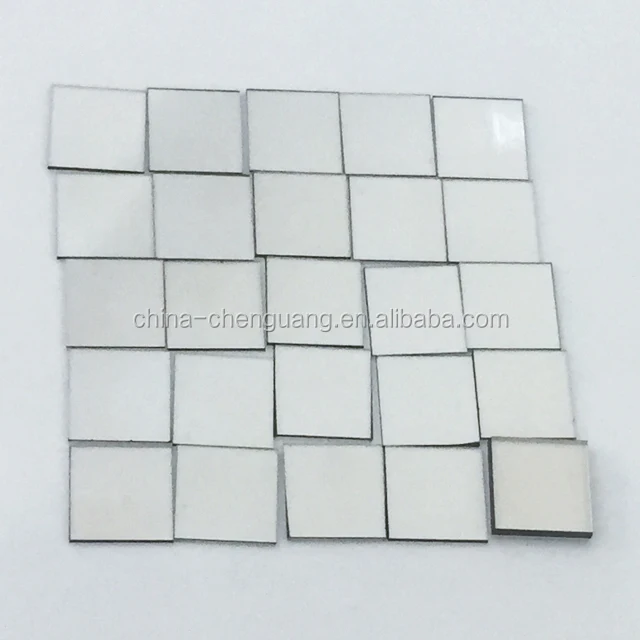

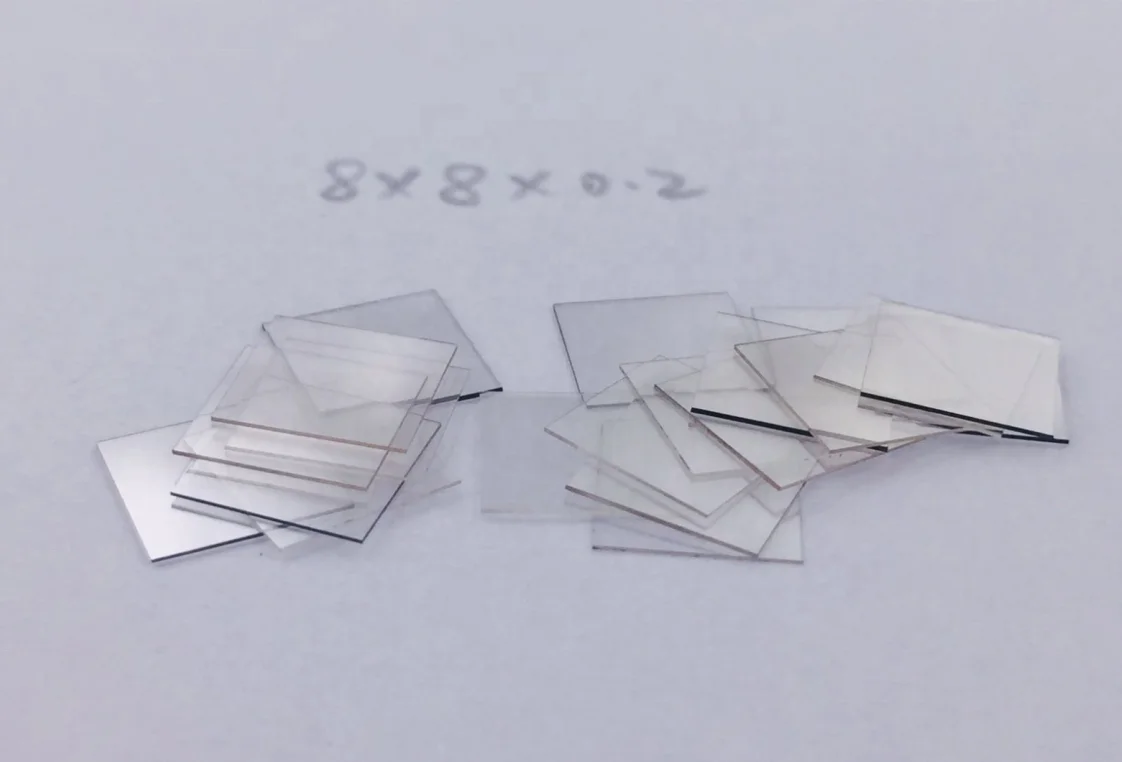

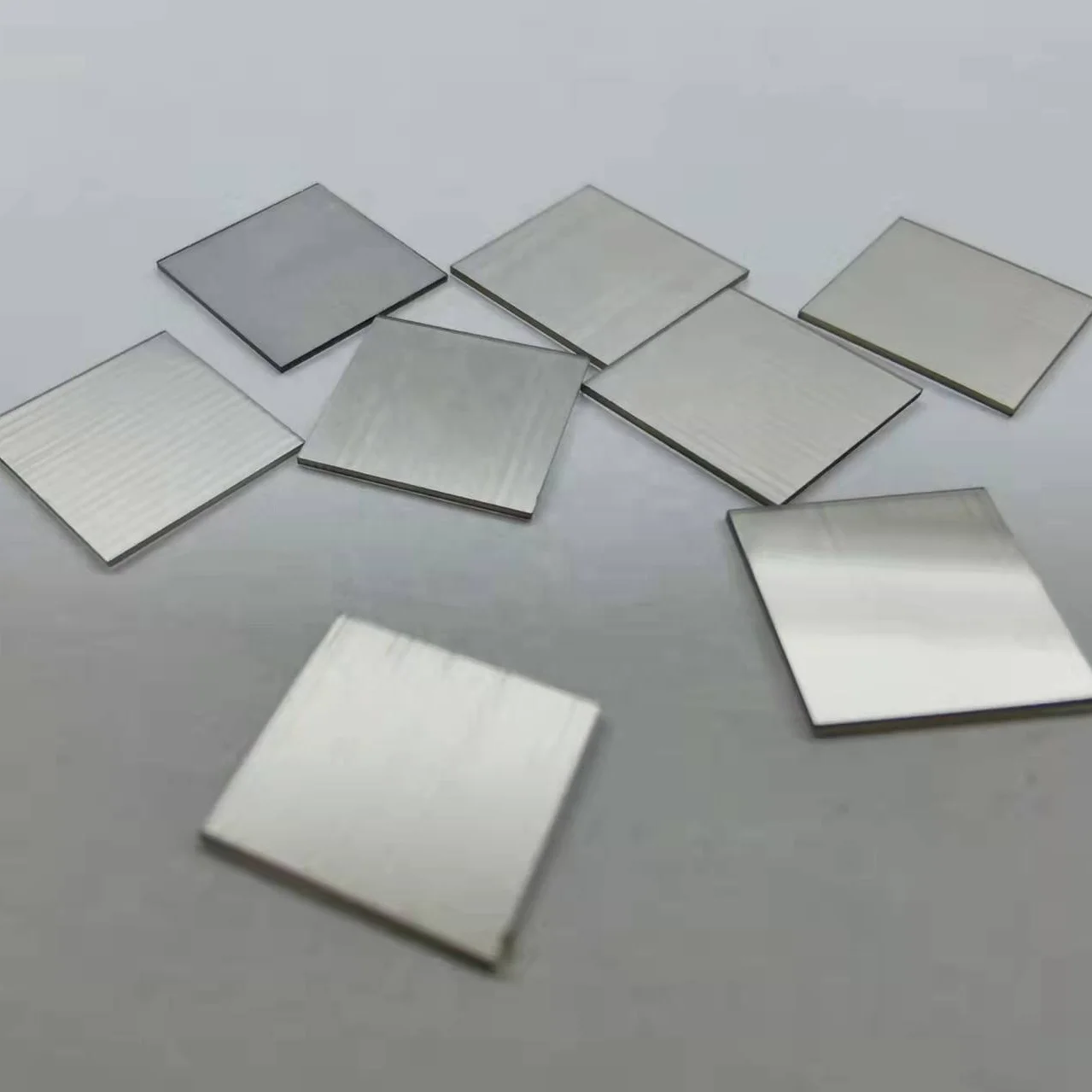

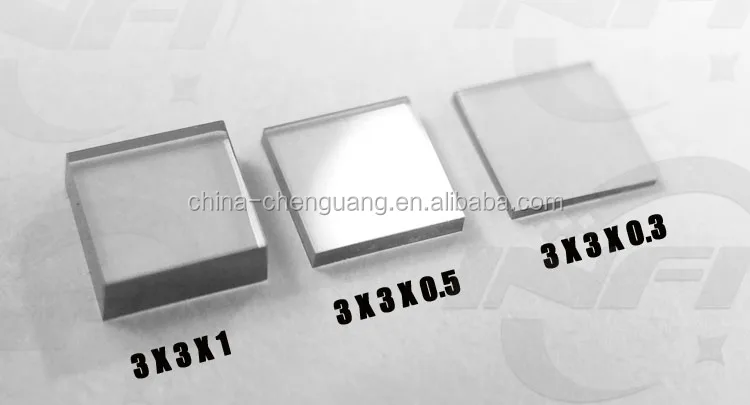

Size of CVD diamond plates:

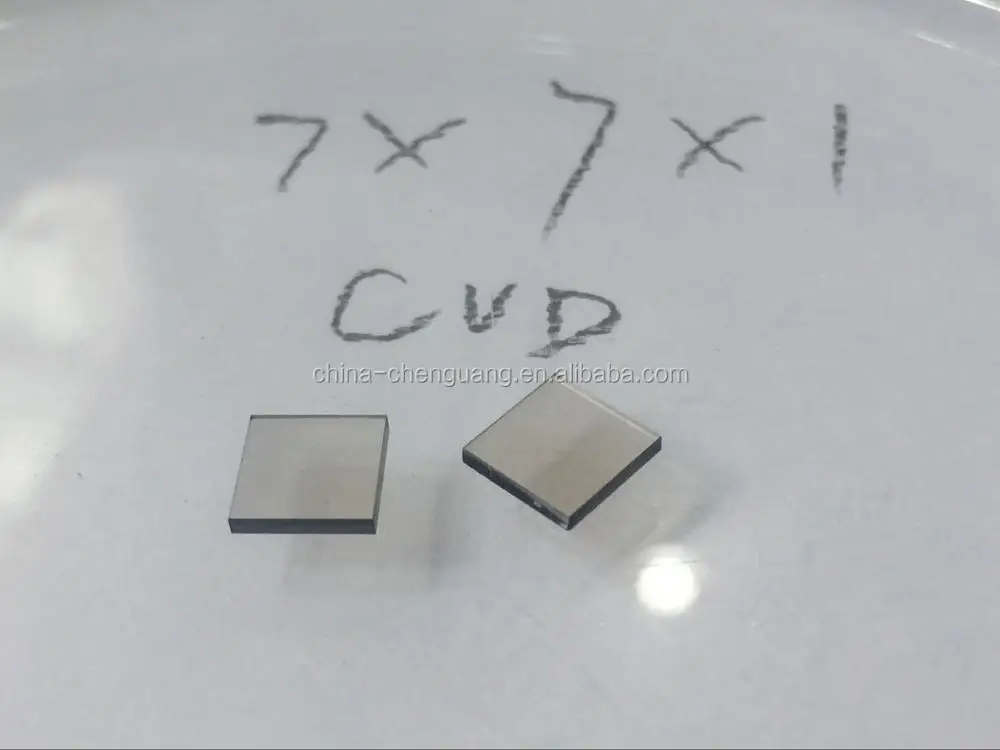

1*1*1mm , 2*2*1mm , 3*3*1mm , 4*4*1mm , 5*5*1mm , 6*6*1mm,
7*7*1mm , 8*8*1mm ,9*9*1mm ,10*10*1mm ,11*11*1mm ,12*12*1mm
Thickness of diamond plates:from 0.5mm to 3mm
Shape of diamond plates: Round shape, Square shape, rectangle, hexangle shapes etc
Customized shape and size are available!
Application
a, cutting tools for non-ferrous and non-metallic materials.
b, dressers for wheel dressing
b, dressers for wheel dressing
c, a variety of speciallity knives
d, burnishing tools, cutting tools
e, wear parts
f, wire drawing dies
g, seeds for cvd diamond
h, optical window
i, gem
Advantages
1.Large size(up to 12 * 12 * 3 mm)
2.Hardness and high mechanical stability
3. Scratch proof and wear resistance.
4.Wide spectral transparency UV to THz
5.High Strength and Great Thermal Stability

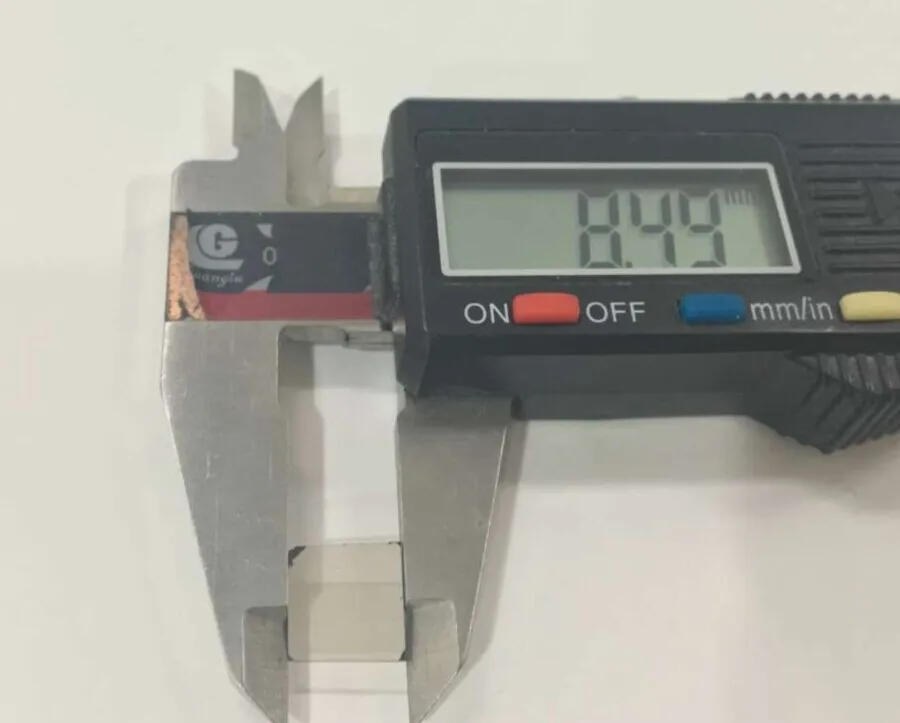

6.White Color (from brown to colorless)
7.Other quality index could reach the international standard.

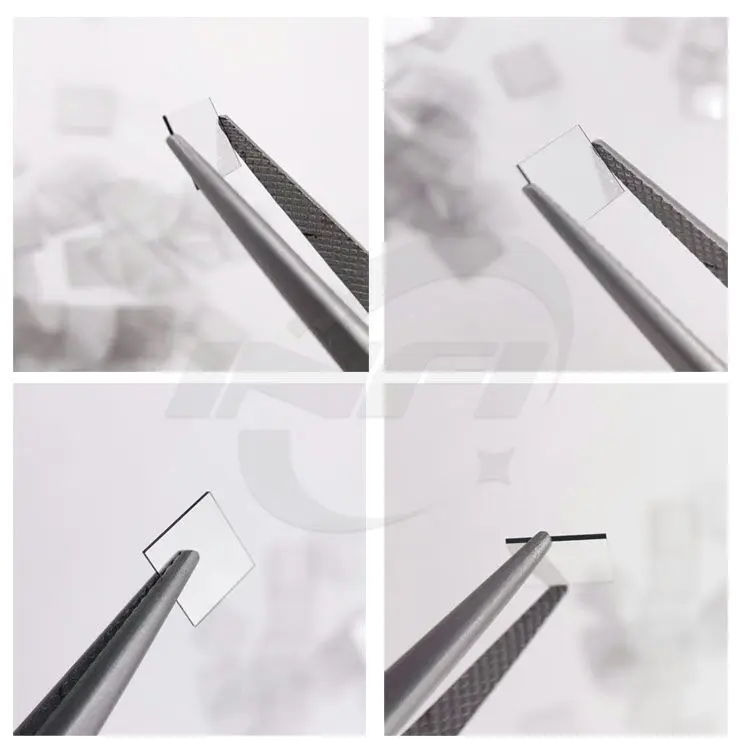

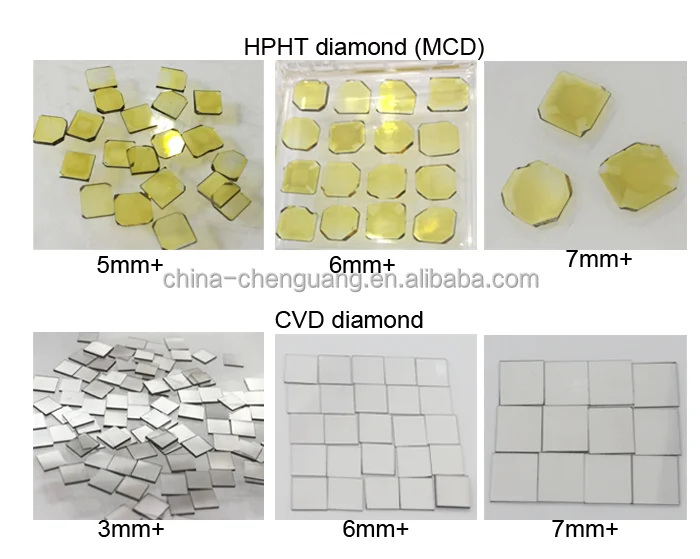

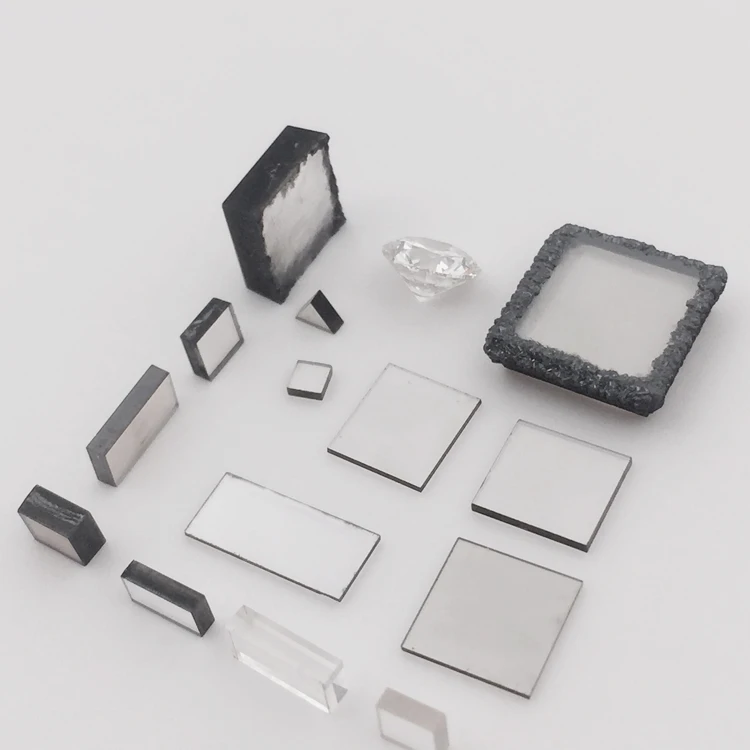

Detailed Images
Ask for Quotation
How to ask for quotation?
1, please kindly tel us the APPLICATION of your diamond plate
2, please kindly tell us your request on SHAPE and SIZE
Packing & Delivery
Package: small plastic bag and carton
Delivery time: usually 3-7 days after the confirmation of the deposit
Transportation: DHL, TNT, Fedex or as you request.
MOQ: 10 pieces
