Chemical mineral inorganic fertilizer powder dry mechanical pressure double roller hydraulic briquetting hydraulic press

Product Overview

Description

  Hydraulic pressure auger compactor applications

We are small factory but dedicated in only roller compactor for granulating & briquetting powders

Hydraulic pressure auger compactor (takes FGD gypsum for instance)

Type Item	SG-360B	SG-500B	SG-600B	SG-650B
Roller dia. (mm)	Φ360	Φ504	Φ600	650
Effective width (mm)	180	300	310	330
Roller rotating speed  (r/min)	16 to 22	14 to 20	12 to 18	10 to 16
Power of feeder (kw)	7.5	11	11	15
Pre-pressure of accumulator (Mpa)	5 to 6	6 to 10	8 to 10	8 to 12
Max. pressure rate  (kN/cm)	55	55	55	55
Briquette's size and shape(mm)	On request	On request	On request	On request
Briquette output (kg/h)	3,000 to 5,000	6,000 to 8,000	8,000 to 10,000	10,000 to 12,000
Power of compacting machine (kw)	30	75	90	110
Installed capacity (kw)	42	88	104	129
Dimension (l*w*h) (mm)	1,850*1,5000*1,650	3,650*2,250*2,500	3,660*2,450*2,700	4,000*2,600*3,300
Weight of feeder and compacting machine (kg)	6,000	15,000	20,000	25,000
Production time(d)	30	45	60	60

Hydraulic pressure auger compactor (A type produces small angular (irregular) granules)

Difference of Hydraulic pressure auger compactor type A and type B.

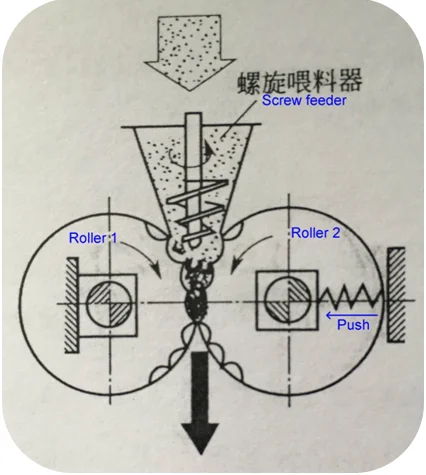

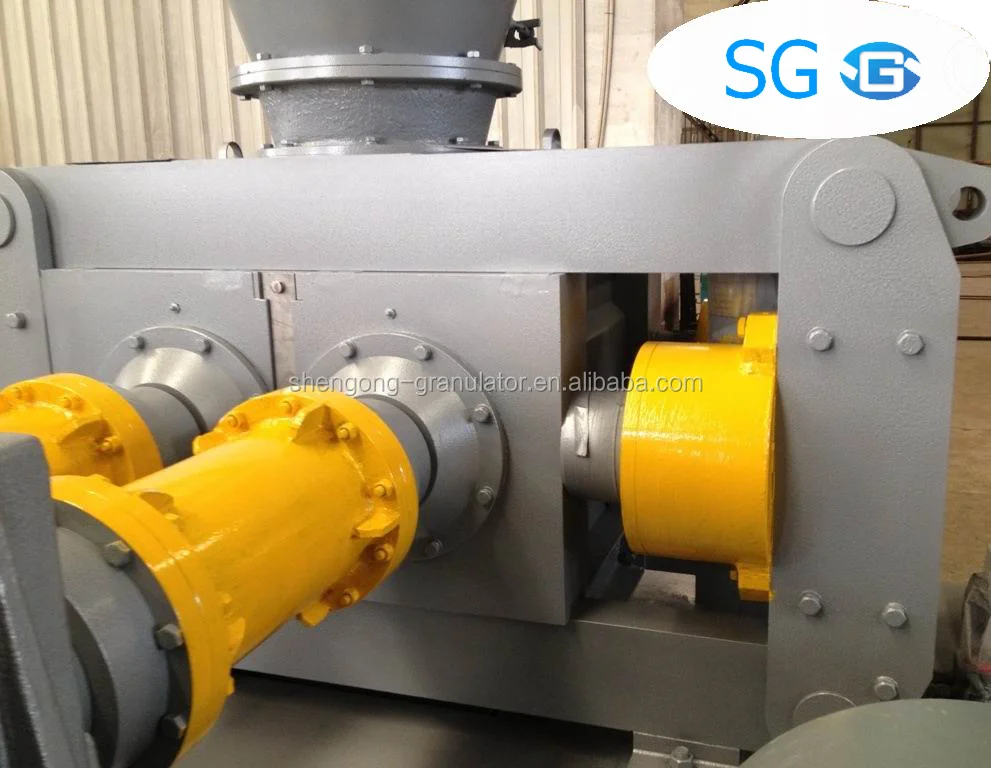

  Hydraulic pressure compactor consists of screw feeder (auger) and double roller compactor

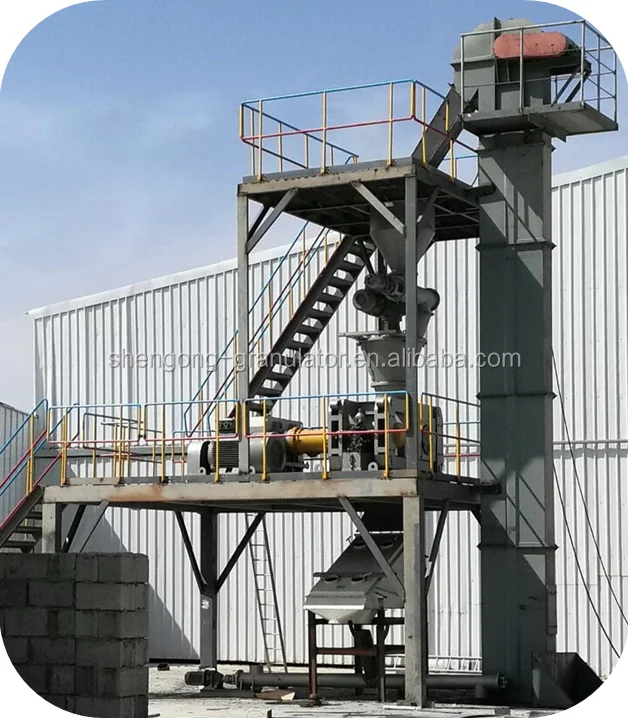

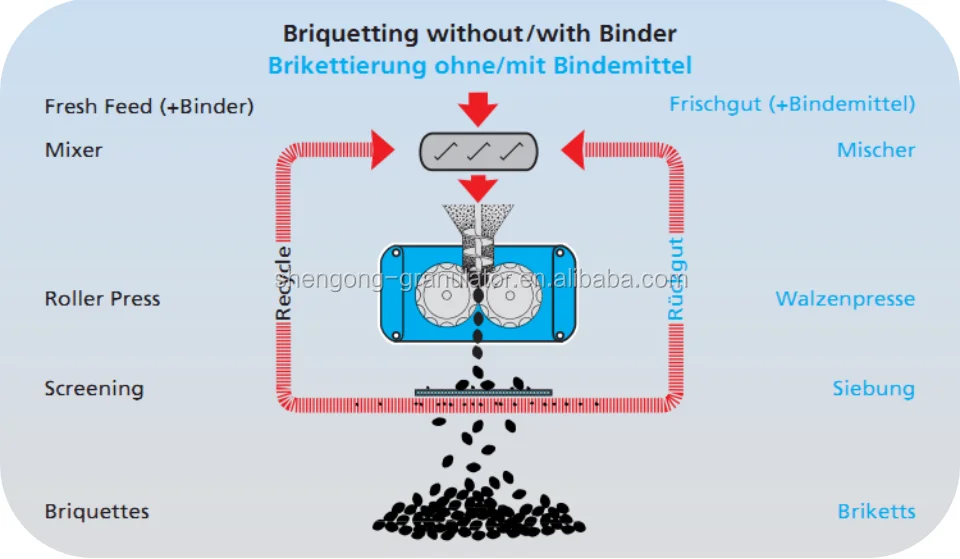

Hydraulic pressure auger compactor's peripheral equipments

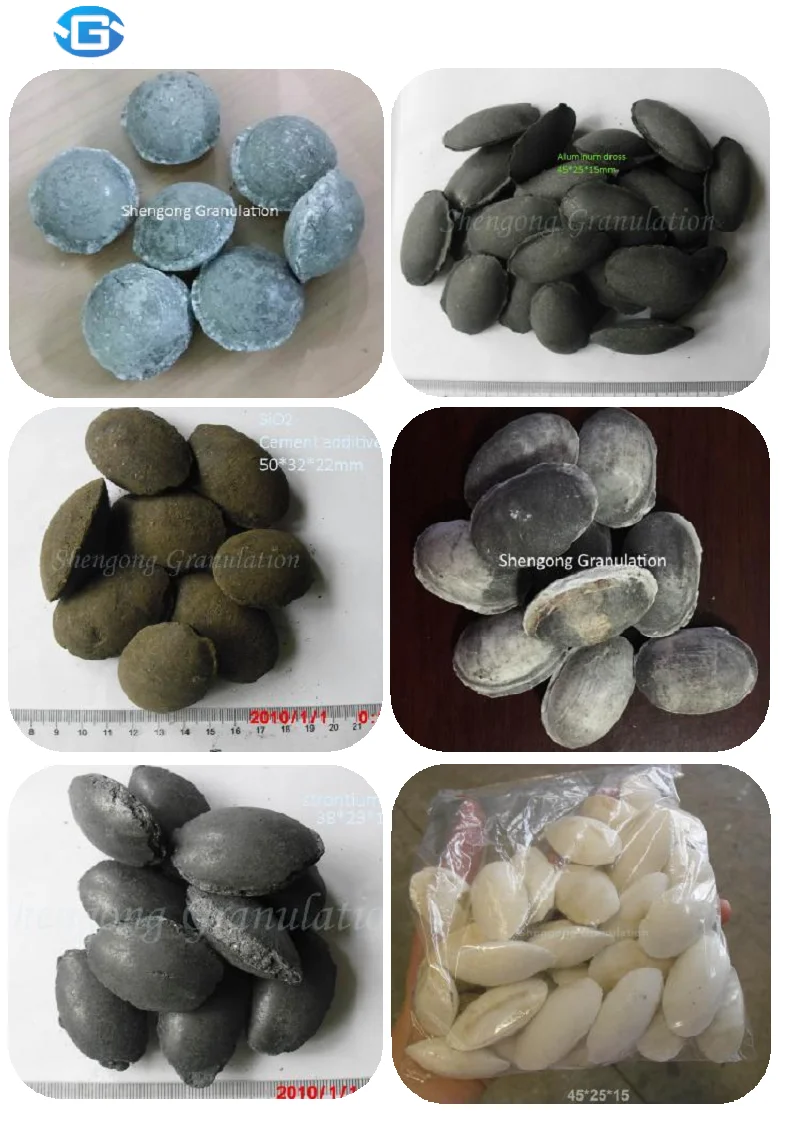

Briquette vairable shapes

Briquette and its rollers



Hydraulic pressure auger compactor and its peripheral equipments are being loaded in one 40ft. container
