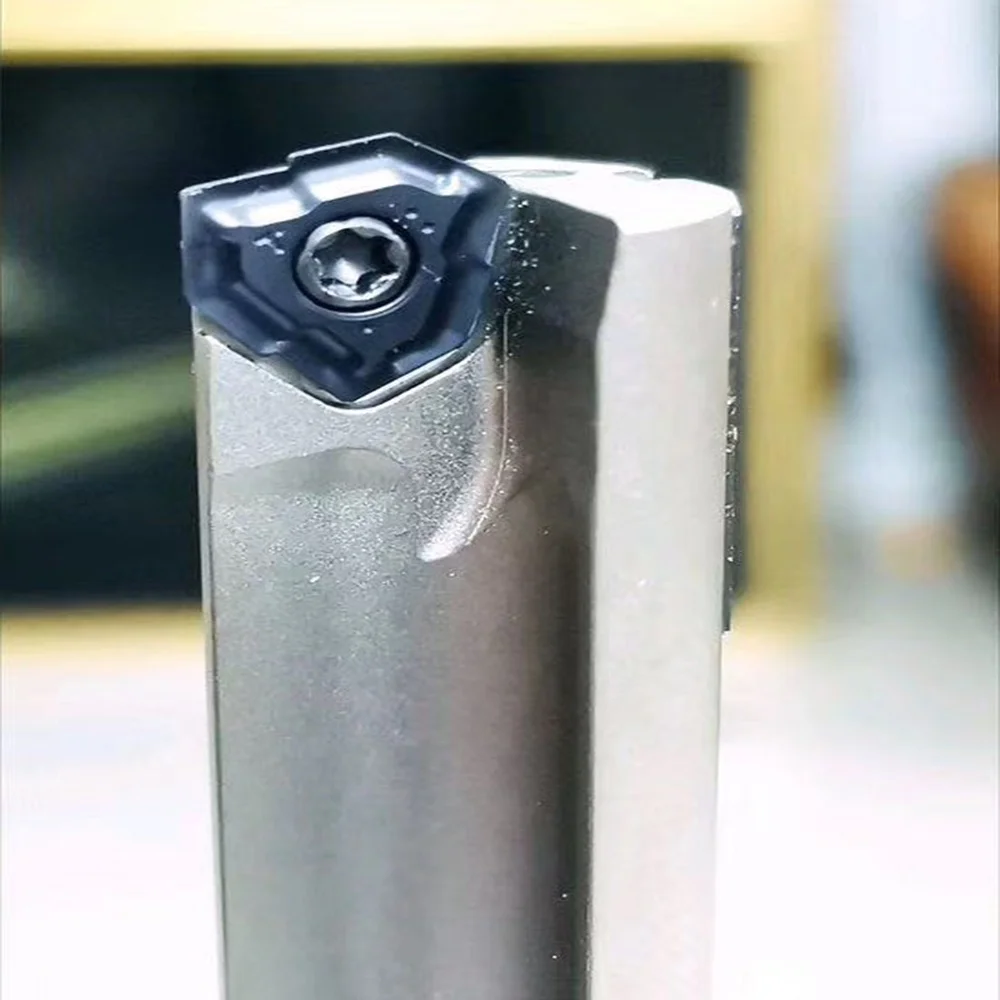

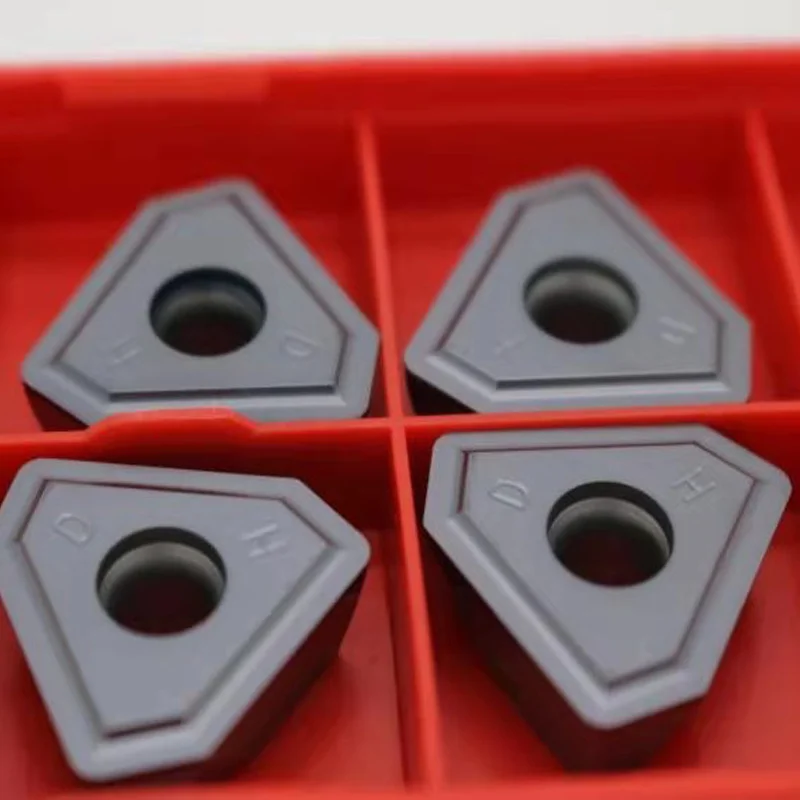

iscar TOGT gun drill deep hole drilling insert

Product Overview

Description

 iscar TOGT gun drill deep hole drilling insert



Main Application;

1.Stainless steel.

2. Steel.

3.Quenched steel,chilled steel; hardened steel.

4. Heat-resisted alloy.

5. Cast iron.

6. Aluminium,non ferrous metal.
7.Titanium alloy.

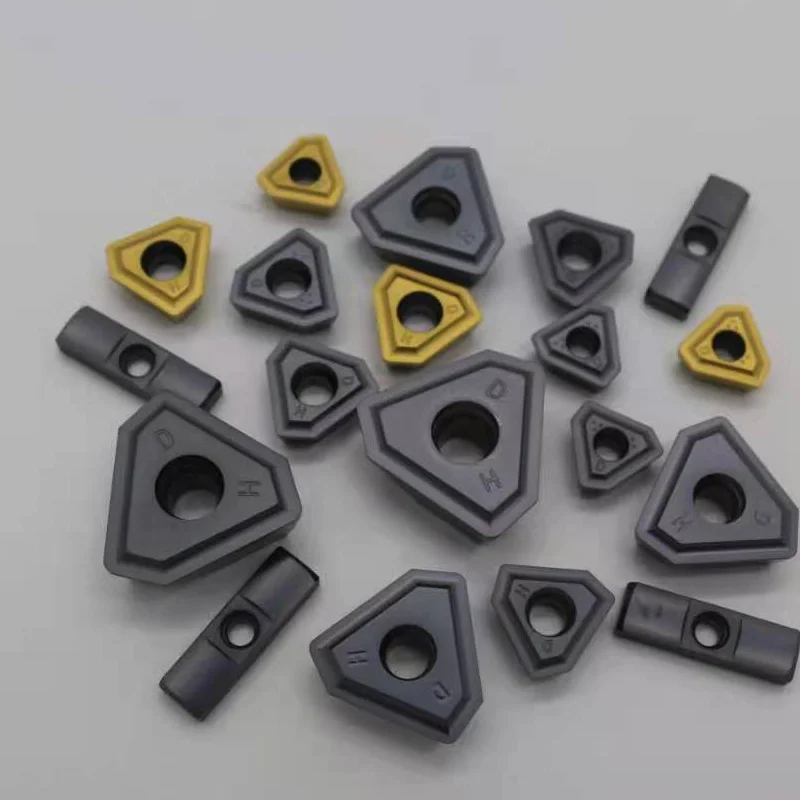

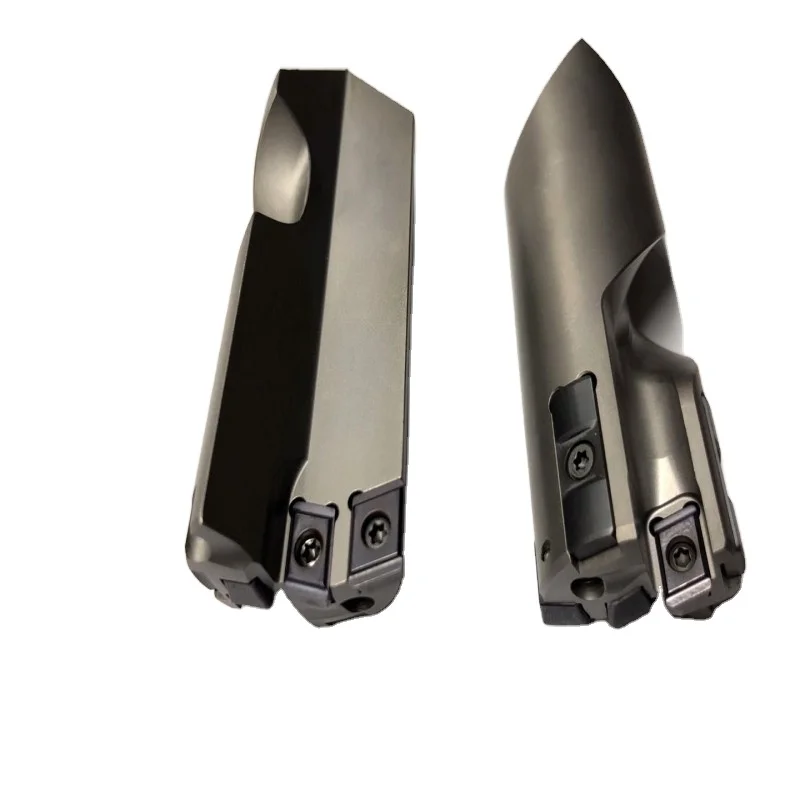

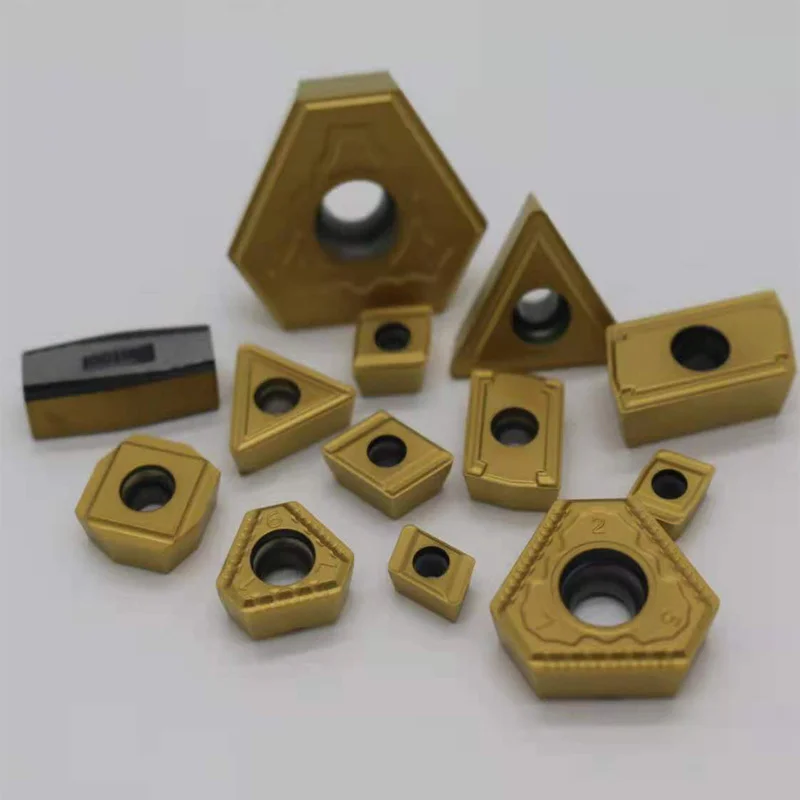

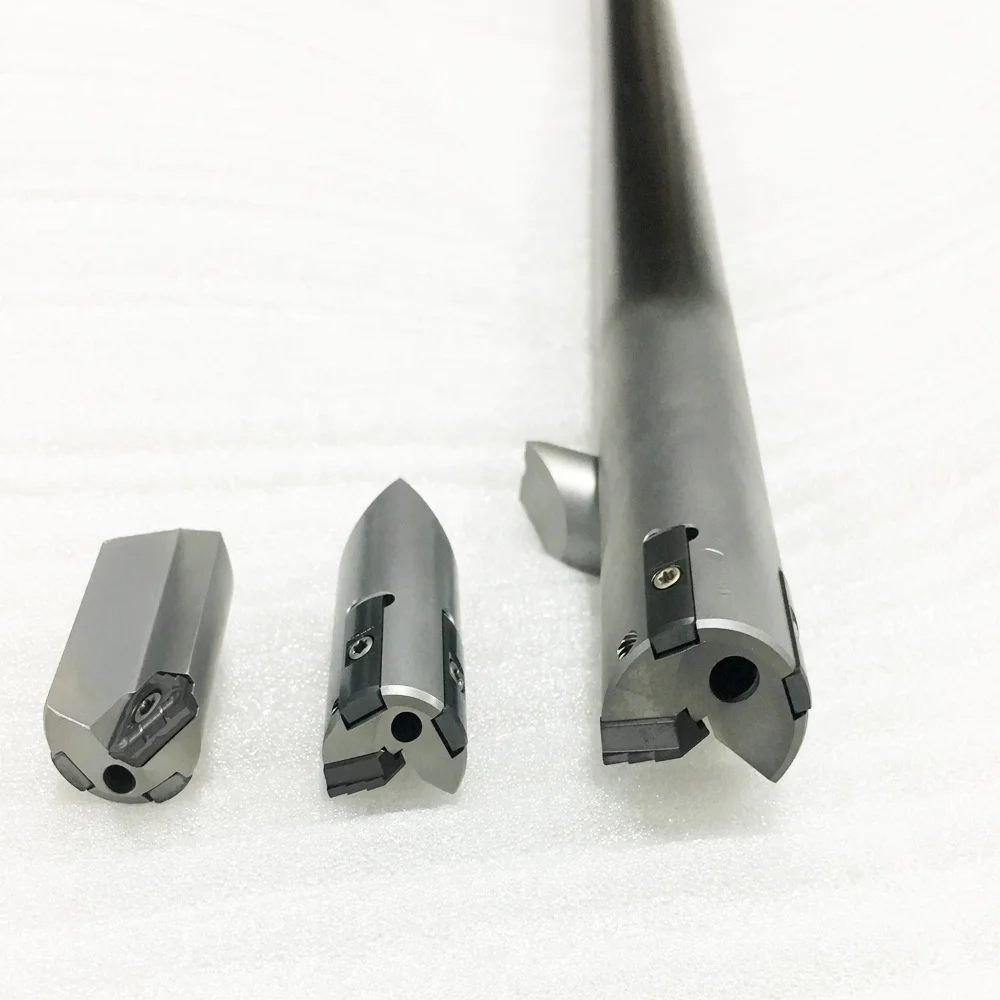

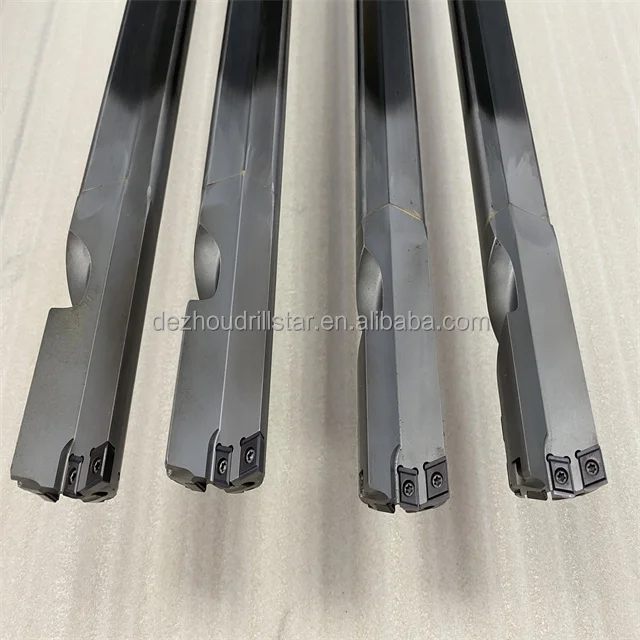

Indexable gun drill and insert pad
Diameter	Insert type	pad	insert screw	pad screw
11.52	060204R	GP04-055	M2.5x4.5	M2x3.7
12.02	060204R	GP04-055	M2.5x4.5	M2x3.7
12.52-13.52	060204R	GP04-055	M2.5x5	M2x3.7
14.02-15.52	070304R	GP05-060	M2.5x5	M2.2x4.5
16.02-17.52	080305R	GP05-075	M2.5x6	M2.2x4.5
18.02-18.52	090305R	GP06-085	M2.5x6	M2.5x5
19.02-19.52	090305R	GP06-085	M2.5x6	M2.5x6
20.02-20.52	100305R	GP06-085	M3x7	M2.5x6
21.02-21.52	100305R	GP06-100	M3x7	M2.5x6
22.02-24.52	110405R	GP06-100	M3.5x9	M2.5x6
25.02-25.52	120405R	GP06	M4x10	M2.5x6
26.02-27.52	120405R	GP06	M4x10	M2.5x6
28.02-29.02	120405R	GP06	M4x10	M2.5x6
29.52	130408R	GP06	M4x10	M2.5x6
30.02-32.02	130408R	GP07	M5x11	M3x6.5
30.02-31.02	NPHT070404R NPMT060404R NPMT060408L	GP07	M2.5x6.5	M3x6.5
32.02	NPHT070404R NPMT060404R NPMT060408L	GP07	M2.5x6.5	M3x6.5
33.02	NPHT070404R NPMT060404R NPMT060408L	GP07	M2.5x6.5	M3x6.5
34.02	NPHT070404R NPMT060404R NPMT060408L	GP07	M2.5x6.5	M3x6.5
35.02	NPHT070404R NPMT060404R NPMT080408L	GP07	M2.5x6.5	M3x6.5
36.02	NPHT070404R NPMT060404R NPMT080408L	GP07	M2.5x6.5	M3x6.5
37.02	NPHT070404R NPMT060404R NPMT080408L	GP07	M2.5x6.5	M3x6.5
38.02	NPHT090404R NPMT060404R NPMT080408L	GP07	M2.5x6.5	M3x6.5
39.02	NPHT090404R NPMT060404R NPMT080408L	GP08	M2.5x6.5	M3x8
40.02	NPHT090404R NPMT060404R NPMT080408L	GP08	M2.5x6.5	M3x8
41.02	NPHT090404R NPMT 080404R NPMT 080408L	GP08	M2.5x6.5	M3x8
42.02	NPHT090404R NPMT 080404R NPMT 080408L	GP08	M2.5x6.5	M3x8
43.02	NPHT090404R NPMT 080404R NPMT 080408L	GP08	M2.5x6.5	M3x8
44.02	NPHT090404R NPMT 080404R NPMT 090408L	GP08	M2.5x6.5	M3x8
45.02	NPHT090404R NPMT 080404R NPMT 090408L	GPS-10	M2.5x6.5	M3.5x9
46.02	NPHT090404R NPMT 080404R NPMT 080408L	GPS-10	M2.5x6.5	M3.5x9
47.02	NPHT 110404R NPMT 080404R NPMT 090408L	GPS-10	M2.5x6.5	M3.5x9
48.02	NPHT 110404R NPMT 080404R NPMT 090408L	GPS-10	M2.5x6.5	M3.5x9
49.02	NPHT 110404R NPMT 080404R NPMT 090408L	GPS-10	M2.5x6.5	M3.5x9
50.02	NPHT 110404R NPMT 080404R NPMT 090408L	GPS-10	M2.5x6.5	M3.5x9
