SG II 60 hydraulic copper tube end forming machine

Product Overview

Description

SG-II-60 hydraulic copper tube end forming machine, square tube reducing machine, pipe end forming machine



Application: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. Microcomputer controller with English or any other language



Main specification

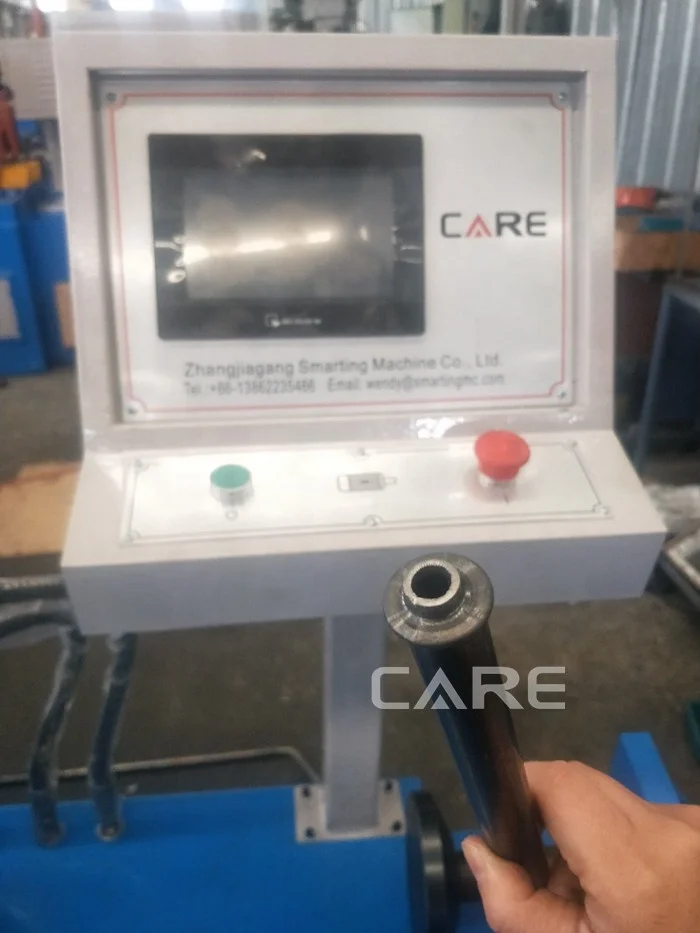

1) PLC Control Unit: Easy Operation and Maintenance

2) Suitable for the shrinking of various metal pipes with different material and different shape

3) Equipped with emergency stop device. Both manual and automatic operations are available

4) Shrinking stroke 100mm. The max. workpiece length is 450mm, with no minimum workpiece length

5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds



Technical parameter

Type	SG-40	SG-60	SG-80	SG-100
Max tube(mm)	φ40*2.0	φ60*2.0	φ80*3.0	φ100*3.5
Max processing length(mm)	110	130	150	180
Oil pressure(Mpa)	14	14	14	14
Working speed	100mm in3-4/s	100mm in3-4/s	100mm in3-4/s	100mm in3-4/s
Size(cm)	180*45*120	200*50*130	290*70*140	300*75*150
Weight(kg)	600	950	1600	1800
Remark	1.The max processing length can according to customers requirement.

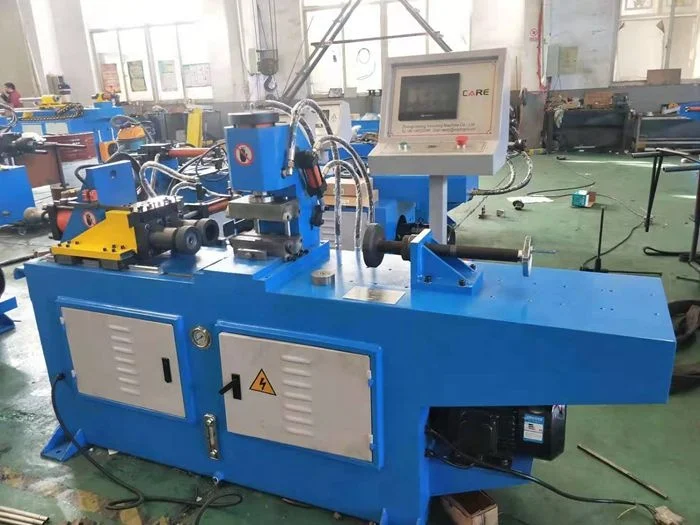

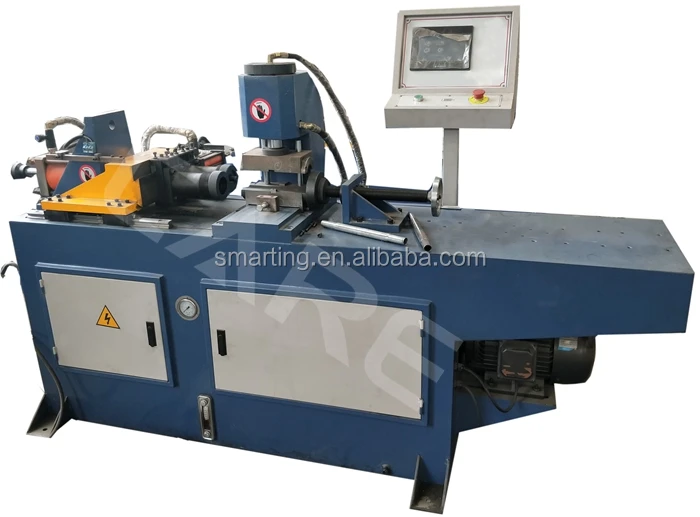

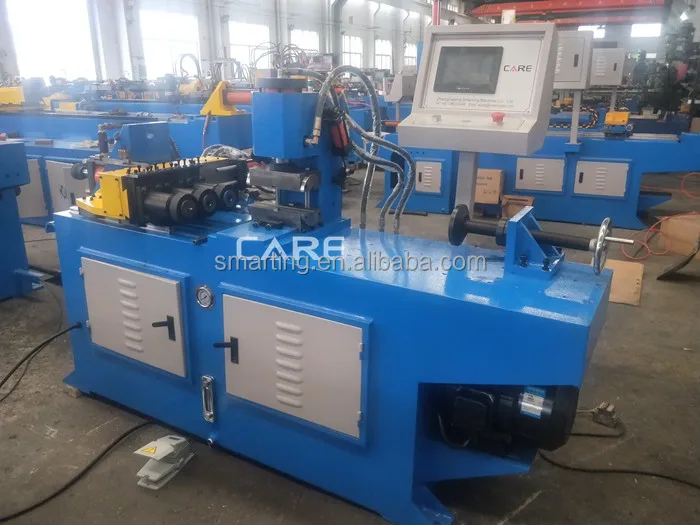

Machine photo

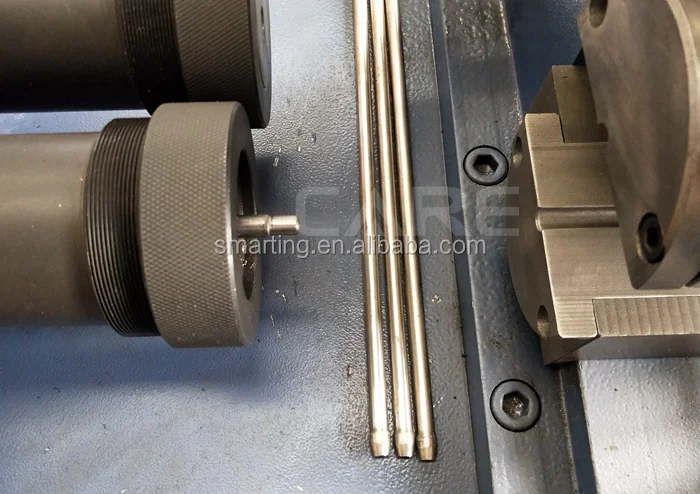

Main parts

Pipe samples



To know more information, please contact us at any time.
