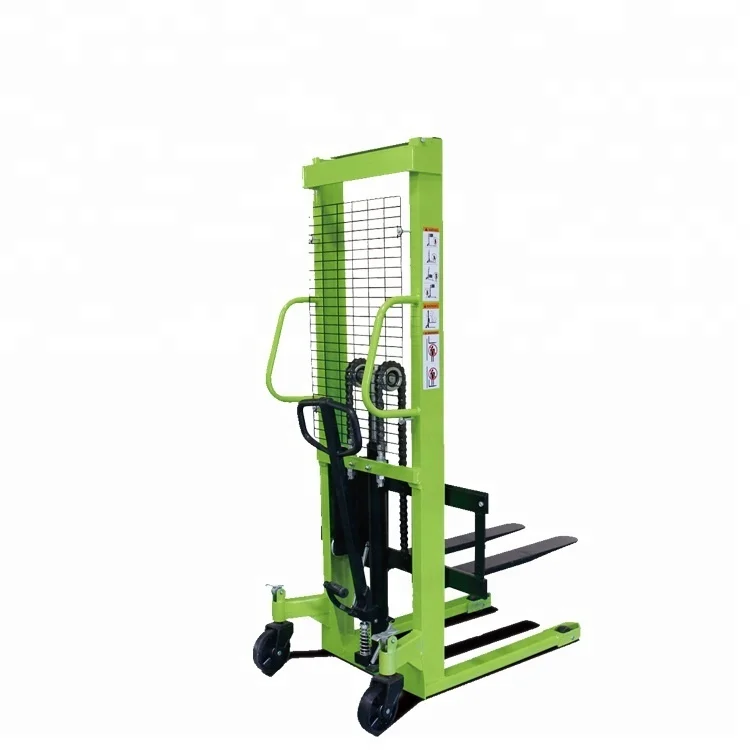

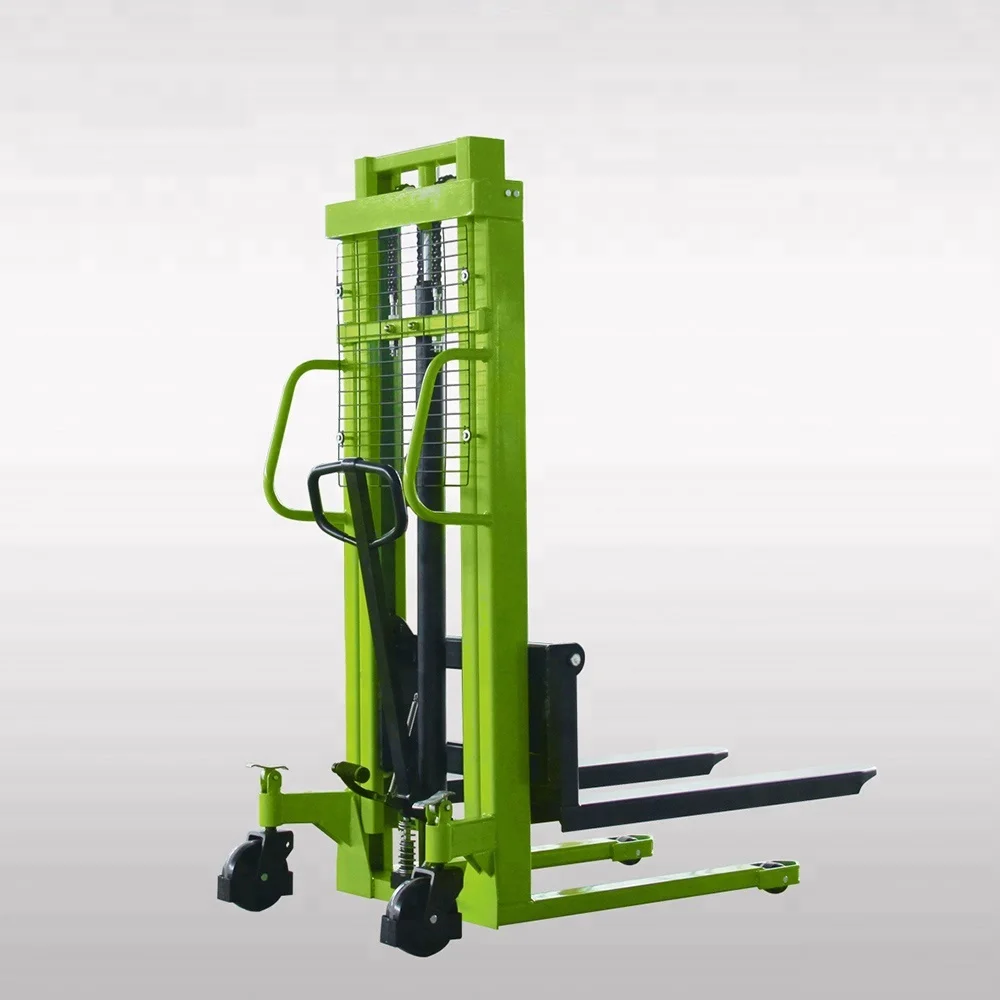

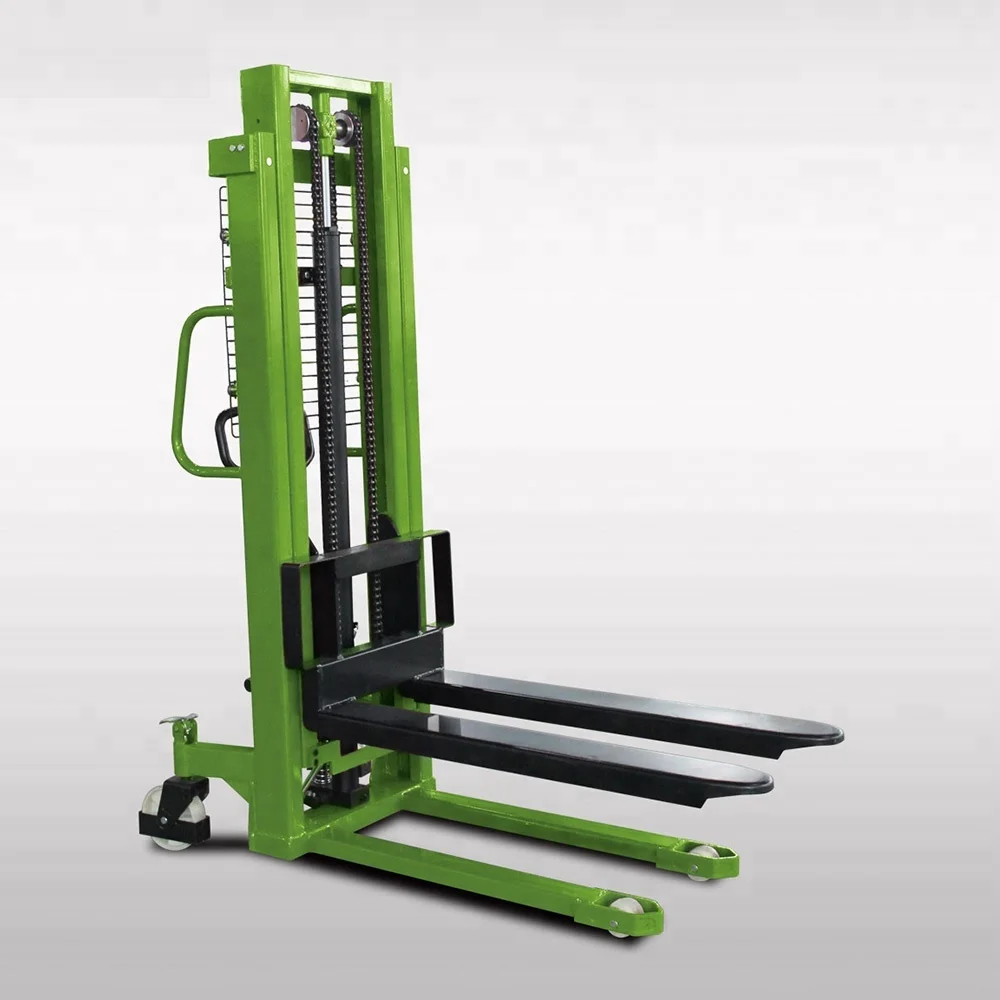

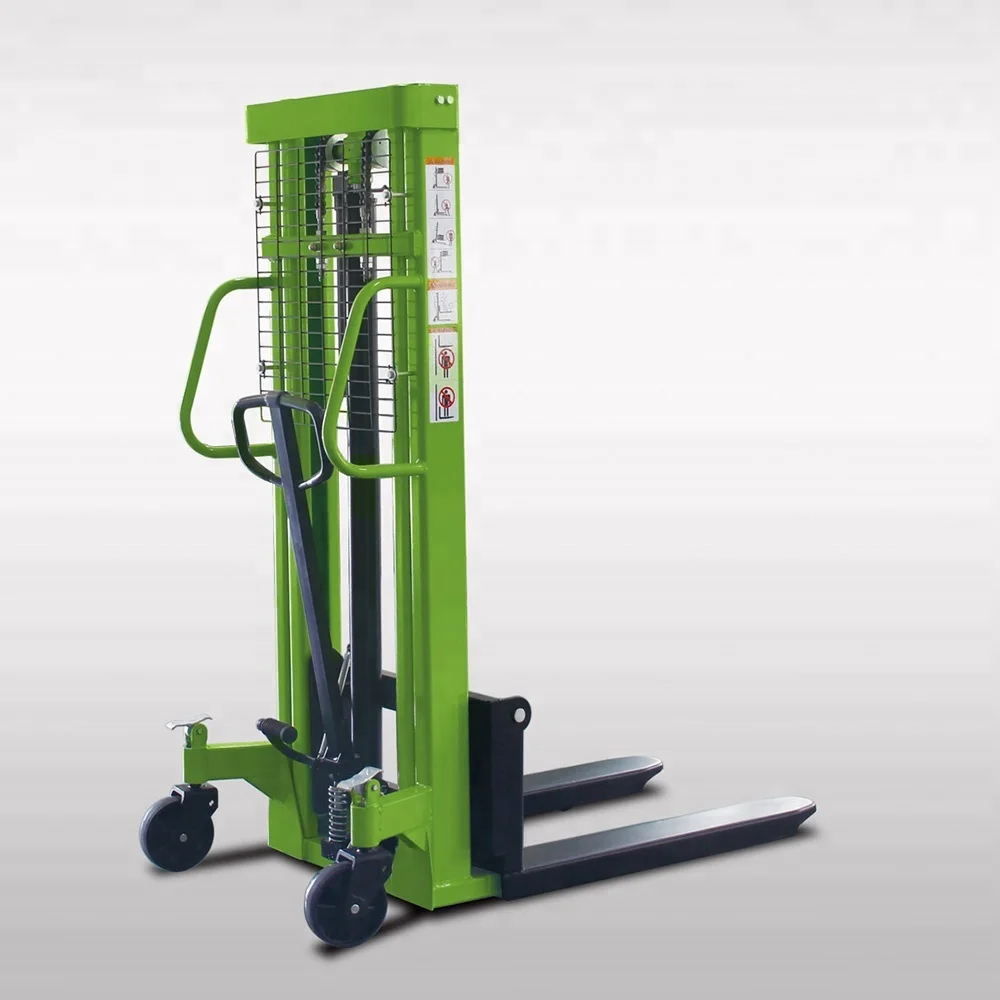

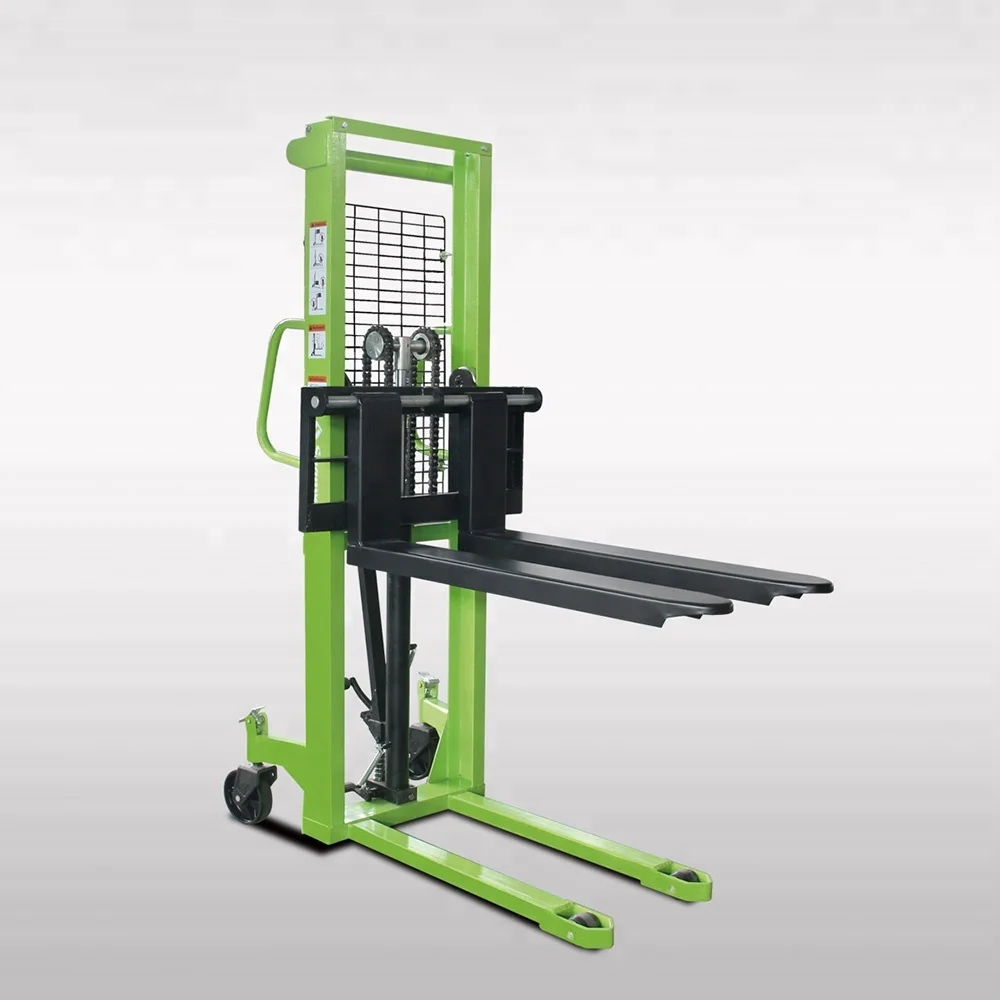

SAMCY Stacker 24 Months Long Warranty Manual Hydraulic Stacker

Product Overview

Description

Model			SYG 1016		SYG 1516	SYG 2016
Capacity		Q(kg)	1000		1500	2000
Load center		C(mm)	400		400	400
Min.Fork Height		H1(mm)	90		90	90
Max.Fork Height		H2(mm)	1600		1600	1600
Overall Height		H(mm)	1980		2080	2080
Fork Length		L(mm)	1375		1430	1430
Fork Length		L1(mm)	900		900	900
Overall Width		E(mm)	1000		1000	1000
Adjustable Size of Fork		mm	220-940		220-940	240-940
Loading Wheel		mm	Φ80×60		Φ80×60	Φ80×60
Steering Wheel		mm	Φ180×50		Φ180×50	Φ180×50
Turning Radius		mm	1400		1400	1400
Material of Mast			C Steel		C Steel	C Steel
Material of Wheel			Nylon/PU		Nylon/PU	Nylon/PU









Trade Terms	EXW, FOB, CFR, CIF or others
MOQ	1 Set
Port	Shanghai Port, Ningbo Port or others
Shipment	Ocean or Air transportation, International Express
Payment Terms	LC D/A D/P T/T Western Union Money Gram
Payment Condition	30% before Prodution, 70% after Delivery Upon BL
Supply Capacity	10,000 Sets per Year
Delivery Time	40 days after confirming the order
Service	OEM/ODM
