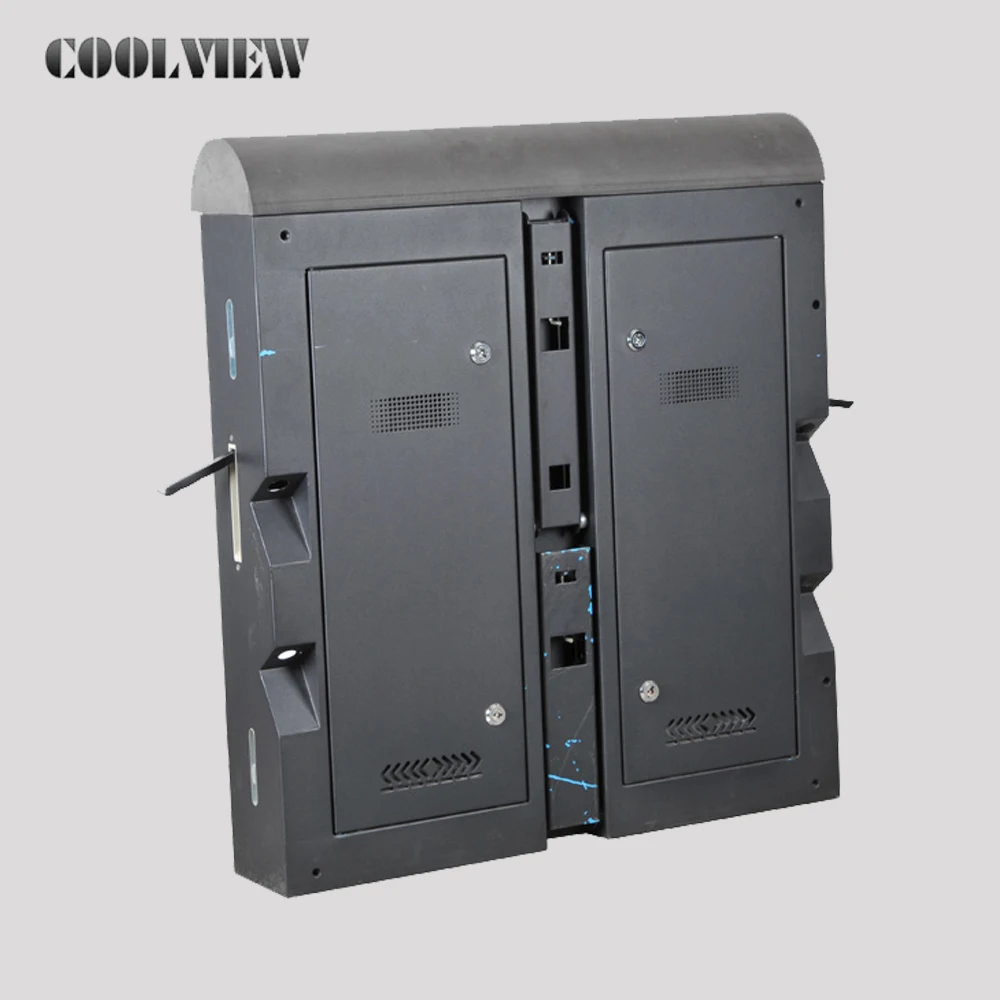

P16 sports arena events outdoor giant large soccer football stadium perimeter led screen display
- Category: >>>
- Supplier: Shenzhen Coolview Display Technology Co. Ltd.
Share on (60675111752):
Product Overview
Description
Product Description
soccer football stadium perimeter led screen display
model | P16 | |
Pixel unit module | Pixel pitch(mm) | 16 |
Pixel density (dots/sqm) | 3906 | |
LED type | DIP 346 | |
Module size(mm) | W256×h256 | |
Pixel composing | RGB full color | |
Pixel unit screen | screen size(mm) | based on customer need |
module Resolution (nits) | 16*16 | |
Cabinet structure | Water-proof | |
installation | fixed on the back | |
screen material | Steel/Aluminum Cabinets | |
Protect degree | IP65 front ,IP54 rear | |
Display parameters | Viewing distance(m) | 7~105 |
brightness(cd/sqm) | 8500 cd/sqm or 8500 nits or more | |
Power consumption (w/sqm) | Max 1000W/sqm ,can be custom make 500W max | |
Driving IC | Static MBI Brand Driver | |
Refresh rate(HZ) | ≥2000- 3000 | |
Viewing angel(c) | H70 V130 | |
System working voltage | 88-132VAC176-264VAC 47-63HZ | |
Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc |
Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | |
Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | |
Gray | 65536 | |
Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | |
Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | |
Average No Failure Time | 20000 hours | |
Life span | 100,000 hours | |
Out-of Control rate | 0.0001 | |
To floor drain current | Less than 3.5MA | |
Control system | Synchronized | |
Operating Environment Temperature | -20°C—65°C Optional | |
1Aluminum or Steel cabients for different price .
2. available to be energy-saving type , Max 500W/m² power consumption
3. Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also three display mode as VGA+VIDE and VGA. ,interfaces for Sound signal and vedio signal.
4.High Contrast:4000:1,which is a very high level to ensure a vivid image of our LED screen system.
5. SMD and DIP choosable.
6.Clear image quality even in direct,full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's
investment.
7.Long-term Brightness:8500-nit brightness capacity throughout product lifetime of the LED display
8.Easy Installation & Using:easy & simple installation interface and user friendly software to ensure the user friendly interface
of the LED screen sytem

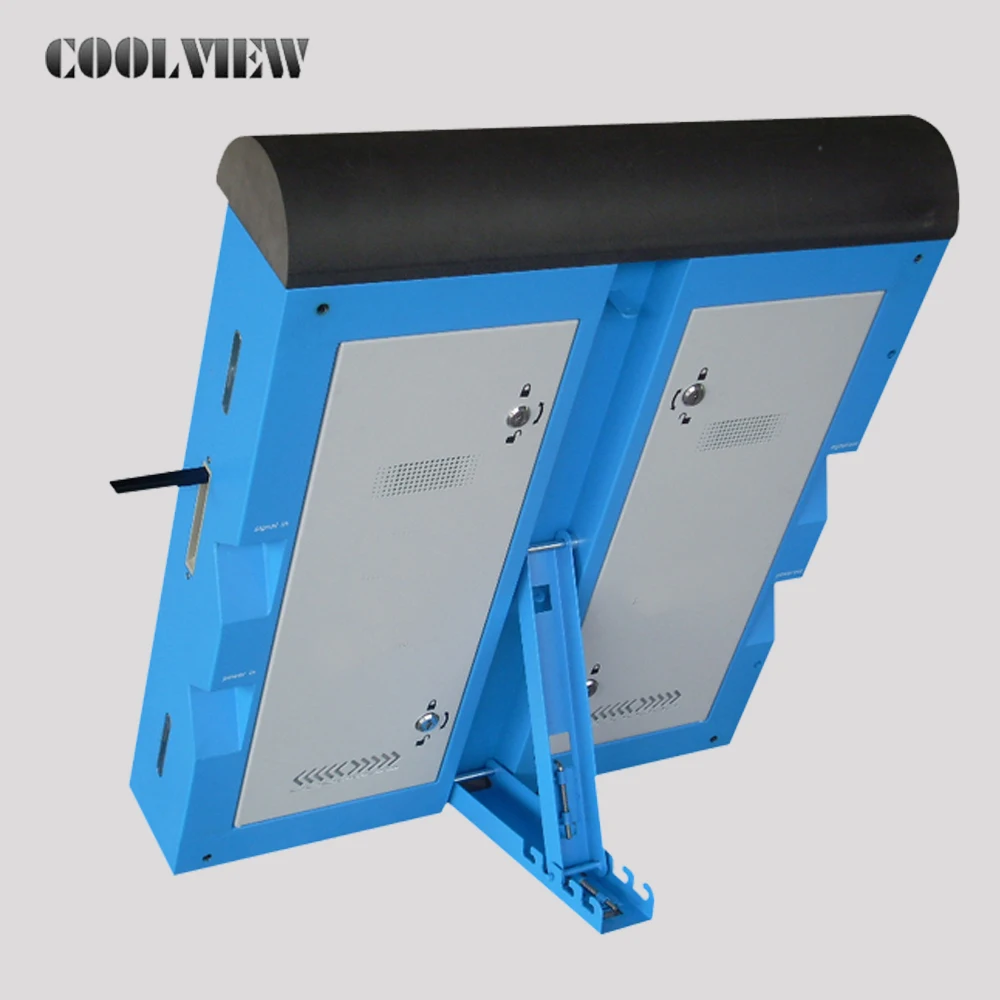

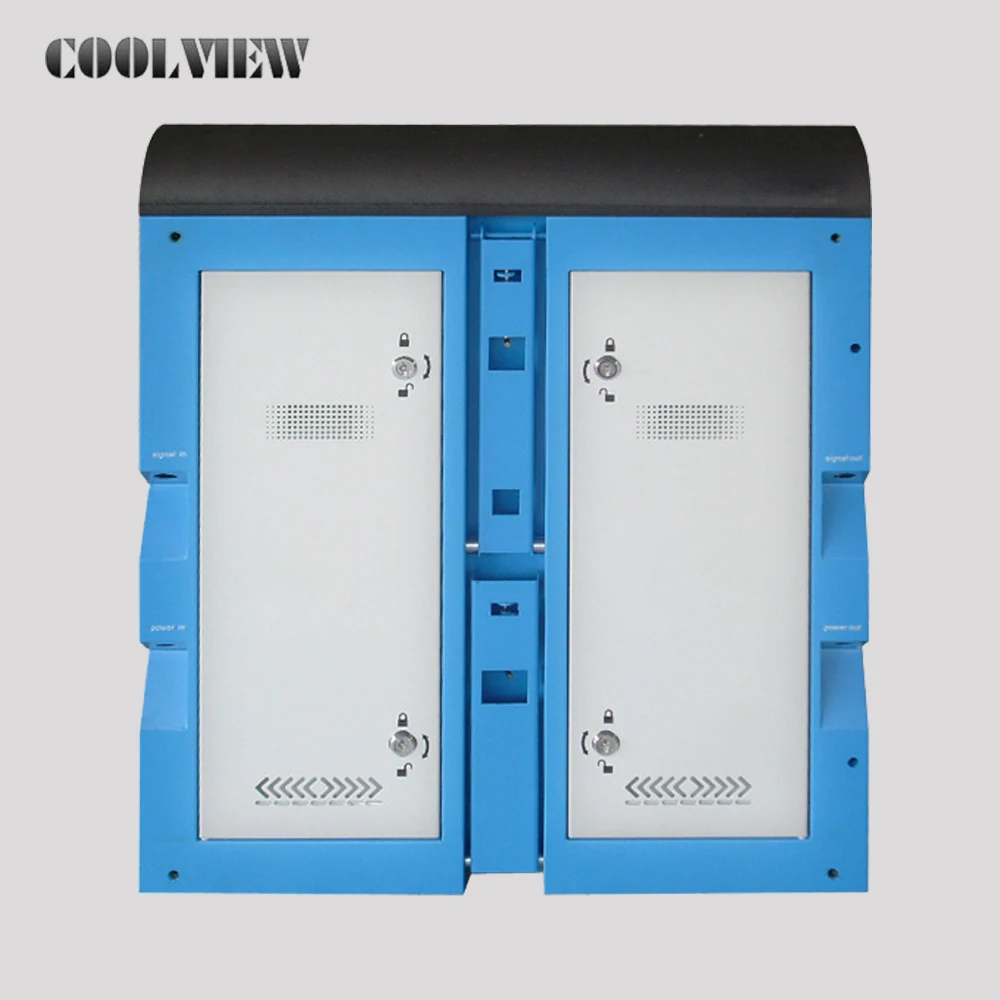

9.Convenient Servicing:Front and rear cabinet access and rear led flexible make the maintance work very convenient and low
cost to help you concentrate more time and energy on your main maketing promotion business.
Exhibition
Our Services
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special engineer service for big project, such as stadium, exhibitions, squares and so on.
Packaging & Shipping

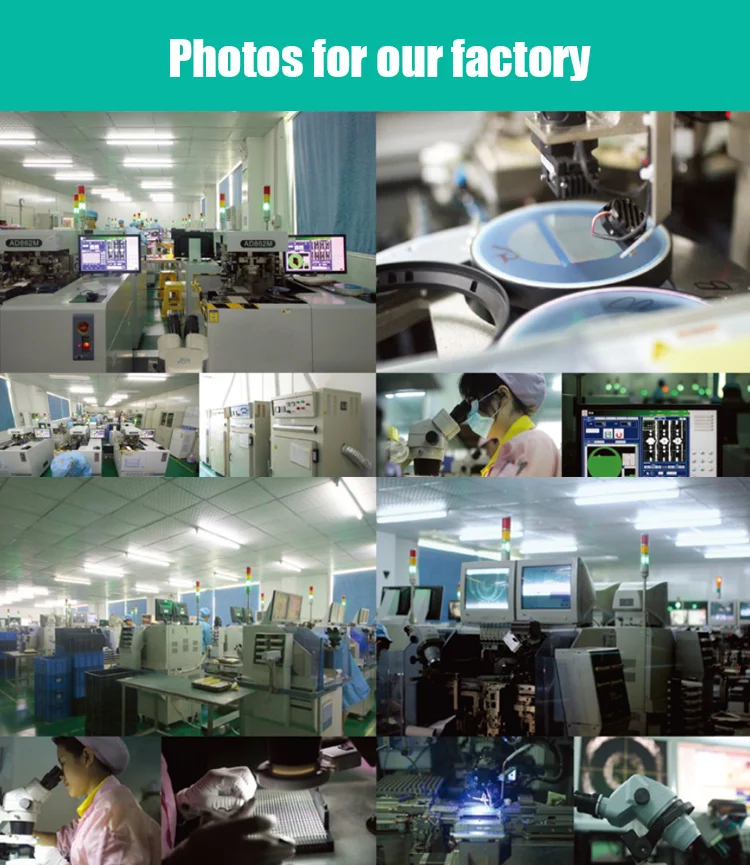

Company Information
FAQ
1. Why choose Coolview company?
We have 5 years experience in this field,we know how to choose products, and keep the good quality,and we can get much lower price than other supplier with more good quality.
2.What is the after-sale service of Coolview company?
During warranty with full spare partes and if after warranty, we also provide life long support, on time products service servey. Our spare parts is more than other factory in this market, same cost,
customer get get more good service .
3.What is the delivery time for Coolview?
Most standard products has stock, other custom manufacture can be 20-35 days, the more time for custom products,we have more time for confirm all the details in manufacture.
4. How to make sure customer get good quality ?
We can accept trade assurance in alibaba for protect you get good quality products.
5.Can accept L/C?
We can accpet L/C.welcome talk detail with us.
6.Can i visit your factory ?
Welcome to visit ,you can find my contact information in this page .
7. If i broad the market ,can i be your agents ?
Yes,we want to build relationship with all local powerful distributer.Our service is good for support you do long time local service to win customer.Our price and quality can give our customer more profit.
