Product Overview
Description
Product Description
Features:

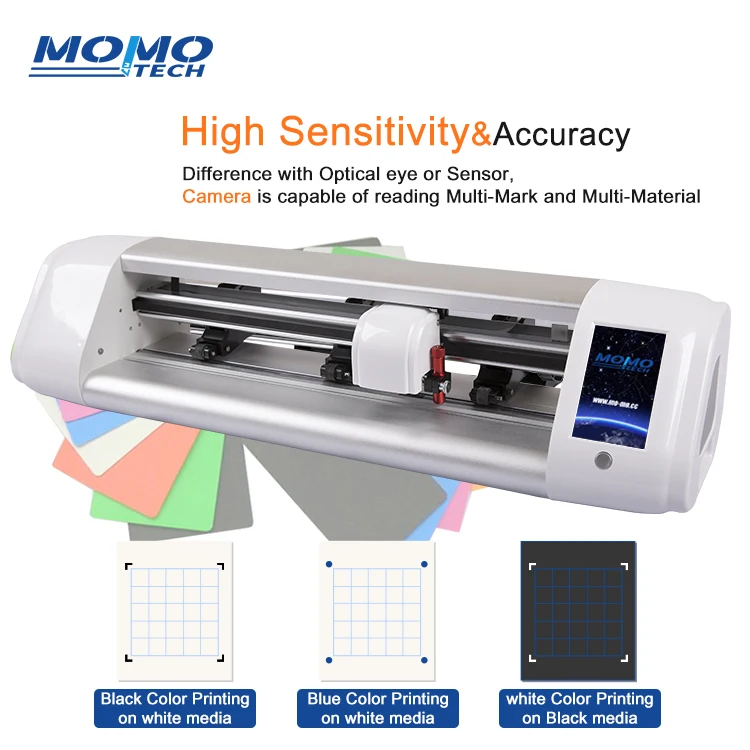

1. Camera can identify any shape and any color Mark Point,

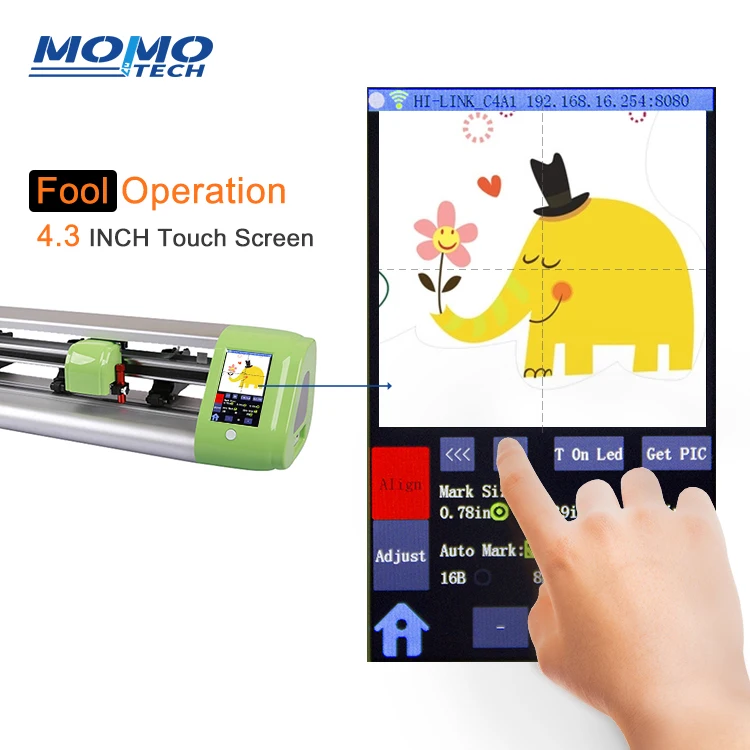

2. 4.3 Large Touch Screen for visualized fine-funing operation
3. Auto Contour Cutting, High accuracy

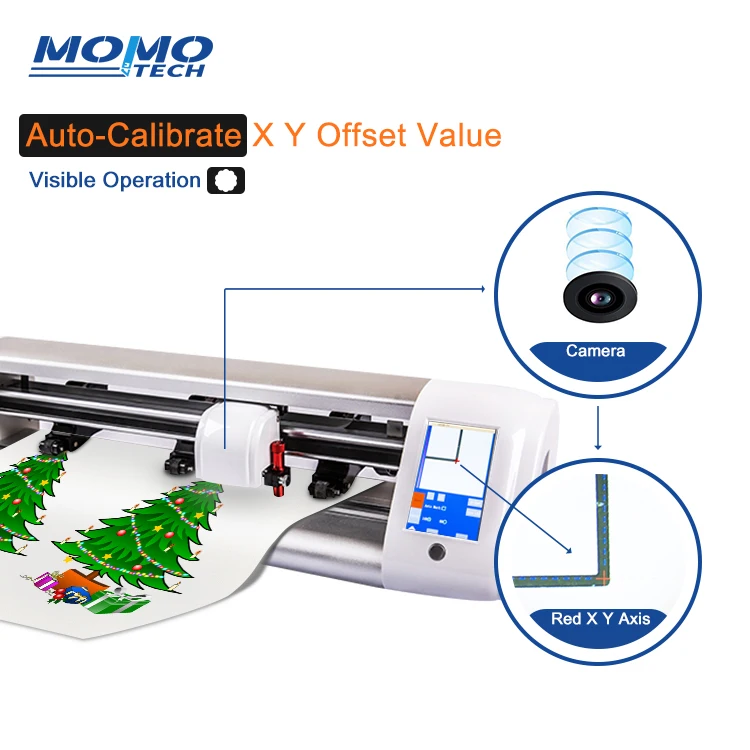

4. Auto Calibrating, Auto Repeat Cutting
5. Real USB( NO USB Driver), U Disk Connection
6. Adjust Cutting Force or Cutting Speed during work time
7. 32-bit ARM7 CPU, 8M Cache Memory,
8. One-Key Remote Upgrading
9. 160 Setting adjustable, Cutting Force 800g Max,
10. Alumimum alloy Housing & High Precision Steel Axes
11. Colorful LED light bar design

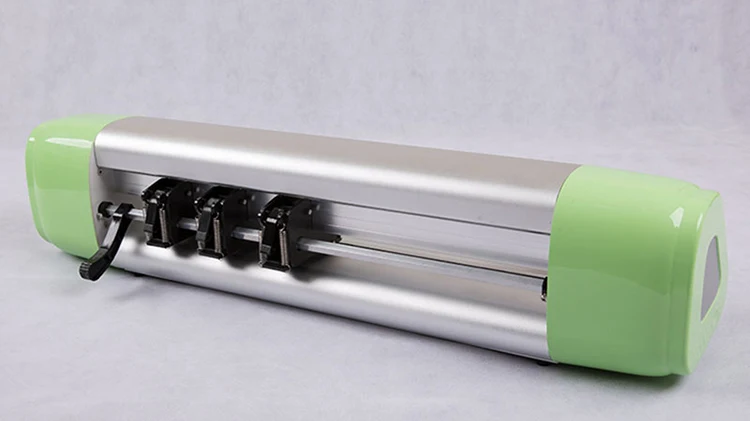

12. Feed material way: steel roller+pinchwheel
13. English/Italian/Spanish/Japanese/Portuguese/Finnish/French/German.
Tech Data
| Model | MM-CAH16 (16 inch Basic version cutting plotter) |
| Acceptable media width | 500mm |
| Max cutting width | 410mm |
| 16 inch | |
| Camera | Support |
| Contour cutting function | Fast ,automatically and high precision contour cut by using camera. |
| Operation | 4.3" TFT LCD Large touch screen |
| Interface | HD large screen full-color APP information function display |

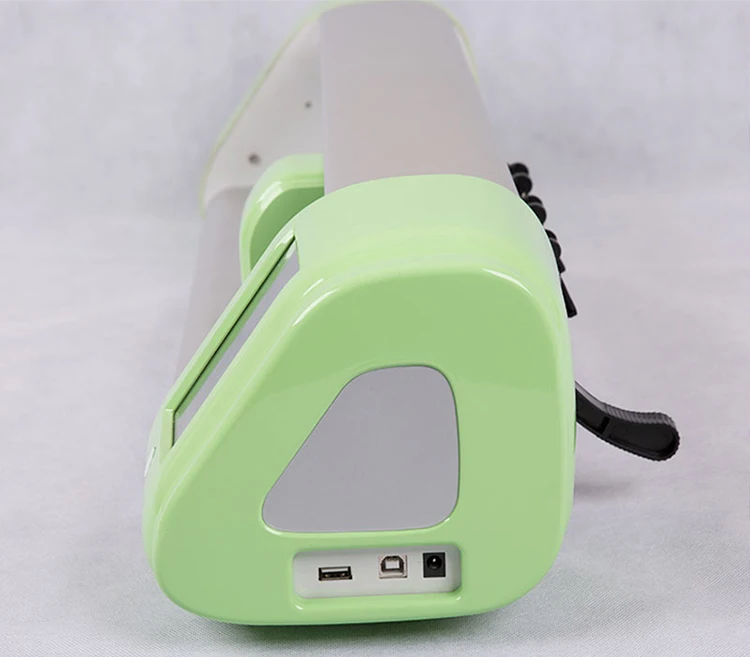

| Connector | Real USB, U Disk |
| Contour cutting &calibration | Easy use and high precision calibrate |
| Mainboard | 32bit ARM cortex M4 MCU,8M memory. Support remote and one key update. |
| Location mode | Bound system. set origin freely |
| Driver | Digital DC stepper motor,microstep driving |
| Command | HP-GL, DMPL |
| Max moving speed | 750mm/s |
| Max cutting speed | 600mm/s |
| Max cutting thickness | 1mm |
| Force | Single head: 50g~800g ( 160 setting adjustable ) |
| Cutting precision | < ±0.1mm |
| Repeat precision | 0.082 mm |
| Power supply | DC24V 3A(AC100~240V/50Hz~60Hz 24V 3A) |
| Working environment | +5℃~ +45℃,relative humidity 30%~70% |
| Support Type | Desktop |
| Color | Silver-green/silver-white/black-red(optional) |
| Bracket | Optional |
| Size | 720*165*10mm |
| Packing G/N weight | 9.0 / 6.9kg |
| Software | SignMaster / Flexi / Signcut / CorelDRAW driver Optional |
| Operation system | Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10 |
| MAC OSX10.2.8 or above |
