2019 Candy pharmaceutical tablet polishing candied peanut caramelized nuts sugar coating machine
- Category: >>>
- Supplier: Taizhou Telang Machinery Equipment Co. Ltd.
Share on (60675150651):
Product Overview
Description
Product Description
2019 Candy pharmaceutical tablet polishing candied peanut caramelized nuts sugar coating machine
♦ Introduction :
| This coating pan machine is mainly used for sugar coating & polishing of tablet / pill in pharmaceutical industry, and also for shaping ball, mini-pill, pellet , mixing and polishing in the industry of food, chemicals, etc. |
♦ Application:
| For example, Chocolate coating & polishing, peanut coating & flavoring, making tapioca pearl & sweet dumpline, ball-rolling for dyring agent / chemical filling / Al(OH)3 ball / porcelain ball, etc. |
♦ Technical Data:
| Model | BY200 | BY300 | BY400 | BY600 | BY800 | BY1000 | BY1250 | BY1500 |
| Dia of sugarcoating dish (mm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1250 | 1500 |
| Production capacity (kg/time) | 1 | 2 | 5 | 15 | 30-50 | 50-70 | 80-150 | 300-400 |
| Rotation speed(r/min) | 46 | 46 | 46 | 36 | 36 | 32 | 28 | 26 |
| Power of motor(KW) | 0.37 | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 3 | 5.5 |
| Power of fan(W) | 75 | 75 | 75 | 75 | 120 | 120 | 180 | 370 |
| Power of heat(KW) | 1.2 | 1.2 | 1.2 | 2 | 2 | 3 | 5 | 6 |
| Overall size(mm) | 500*350 *700 | 500*350 *700 | 550*400 *800 | 800*600 *900 | 1000*800 *1430 | 1100*1000 *1560 | 1250*1200 *1820 | 1500*1500 *1980 |
| Weight(kg) | 36 | 37 | 38 | 85 | 205 | 220 | 350 | 600 |
♦ Machine Structure:
Usually consisting of main body, worm gear case, coating pan,heating device, air blower, and electrical controlling as VFD etc, and different kinds of spraying system for different usage, etc.
♦ Customization supported: Irregular shape & size of pan, VFD, automatical charging and discharging, temperature controlling, different kinds of spraying gun, dedusting cabinet, cooling system, etc.
Product Show
Product Usage

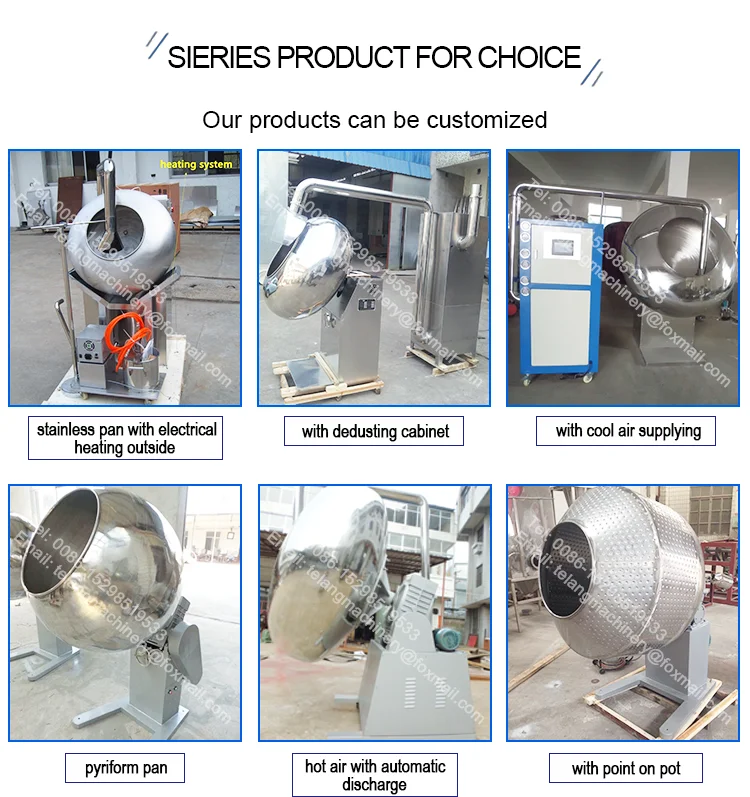

Sieries Product For
Package & Delivery
♦ Package: wrapped with plastic film, packed inside the wooden case, and fixed with sea-worthy pallet ♦ Delivery: By sea / air / courier would be suppored according to buyer's location, just tell us where you wanna send and when you wanna get, the best solution would be suggested. |
Company Profile
FAQ
1. How to choose proper machine, equipment
Please reply us the following items,
-what is the product you would produce, size, shape, special requirement, etc.
- the production capacity, how much kilogram per hour or per day
- power supply, such as Voltage, Hz, and Phase.
Normally, there is 220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase
Our technical engineer would suggest the proper model with necssary information for your reference. And also would provide the production line & workshop design as per your request.
2. Quality Assurance
- Before shipment, every set of machine would be strictly inspected according to QC, to ensure the quality.
- There would be quality certificate along with machine delivered.
- Easily wear and tear parts would be shipped with machine.
- Real-time video checking for machine manufacturing process would be supplied if you like.
- Spot checking and testing would be preferred and suggested, if you like to pay visiting to our workshop.
- We would arrange your visiting well on the phone & in the email.
3. After sale service.
- We supply operation training for workers, and sport installation would be supplied for production line and workshop design.
- Regular inquiry in the email would be supplied for machine running and usual maintenance.
- 100% quality guaranteed, because we would be there all the time for your inquiry.
