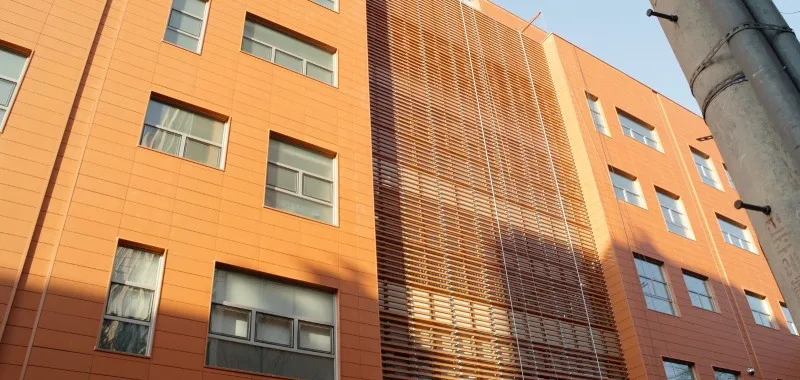

Foshan terracotta louver for facade wall
- Category: >>>
- Supplier: Foshan X&Y Terracotta Panel Manufacturing Co. Ltd.
Share on (60675207975):
Product Overview
Description

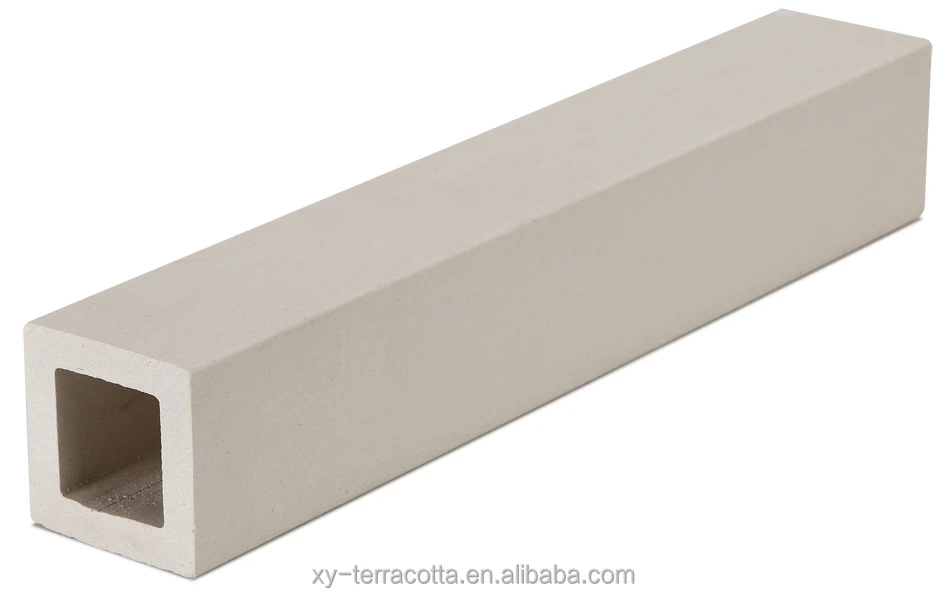

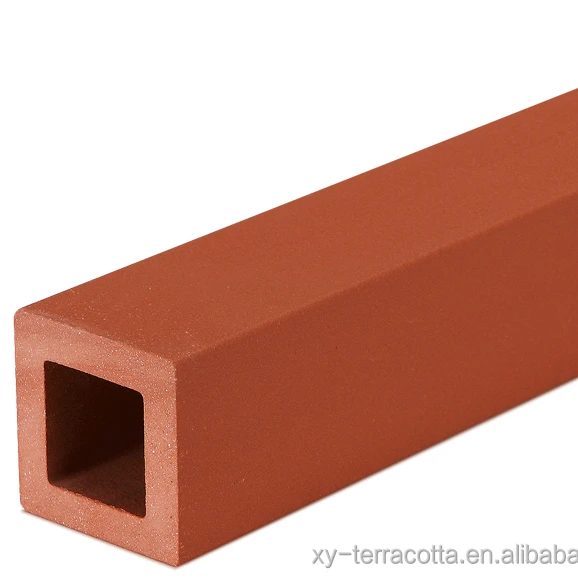

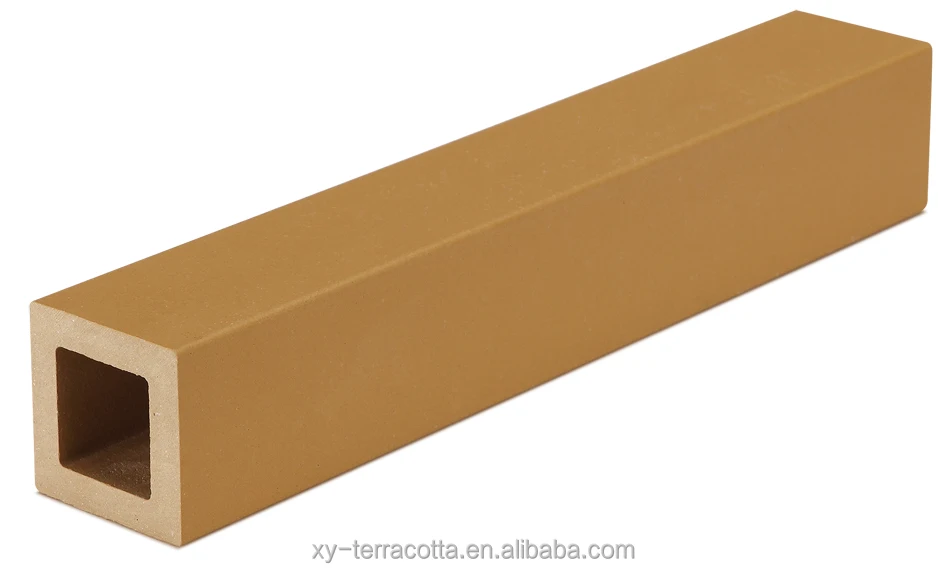

Dry-Hanging Terracotta Louver/ Stick/ Baguette
Raw material: Natural Clay
Structure : Hollow
Usage: Decoration for Exterior & Interior, decoration with facade curtain walls etc.
Application:
Commercial Building/ Hospital / Hotel / Airport / Subway/Residential Area/ School /Municipal Building/ Theaters / Renovation of Antique Building etc.
Remark:Terracotta Panel HS Code: 69049000, NO European Anti-Dumping Tax
Normal Sizes:
*Available Size:40/50/60/70/80 * 50/100/120/150/200/300mm
*Available Length for louver:1000mm/1200mm, longest can be 1800mm
*The length has custom-made according to the request.
*OEM and ODM are welcome
Various Colors:
*Red: Bright Red, Coral Red, Burgundy Red, Coffee
*Gray : Light Gray, Great Wall Gray, Deep Gray , Dark Gray
*Yellow : Ivory , Wheat Yellow, Maize Yellow, Orange Yellow
Bright Red, Coral Red are natural colors, which are much ECONOMICAL!

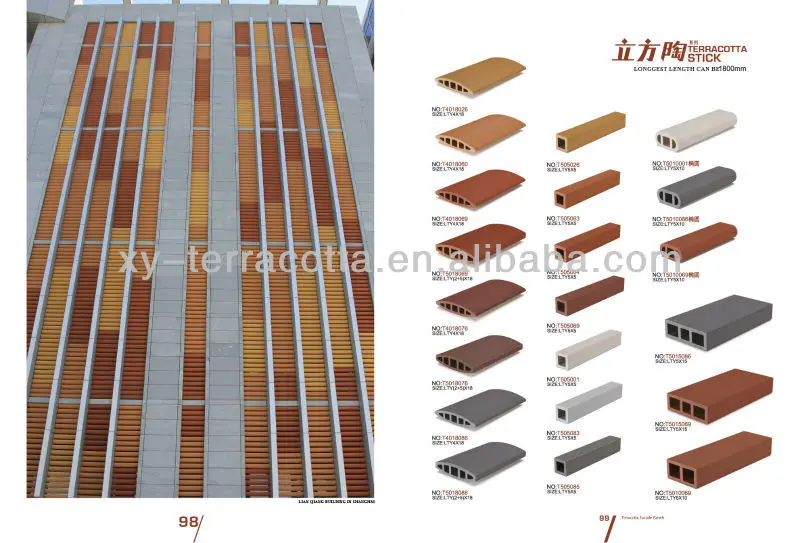

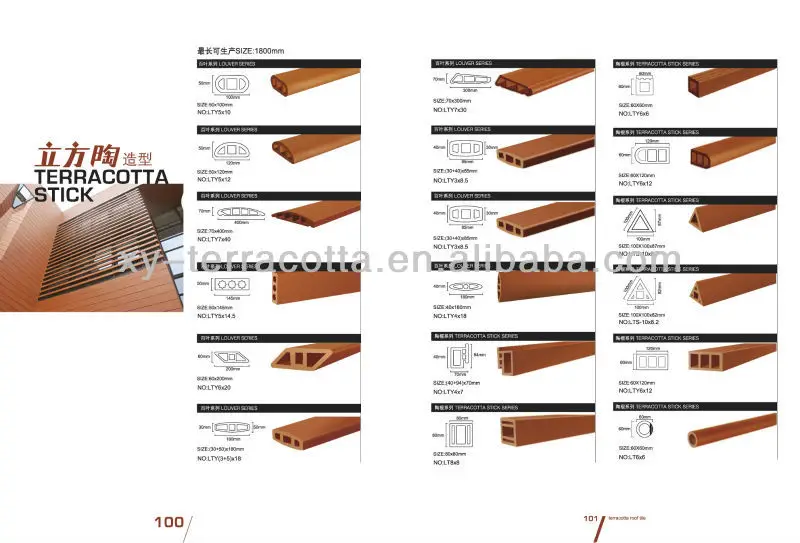

Various Shapes:
Characteristics:
*Color non-fading
*Eco-Friendly
*Wind-Resistant
*Fireproof & anti-freezing
*No-static and no-radiational product
*Non of the Light pollution
*Light weight
*Self-cleaning

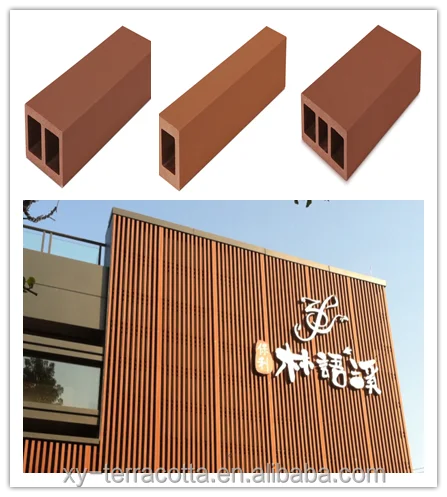

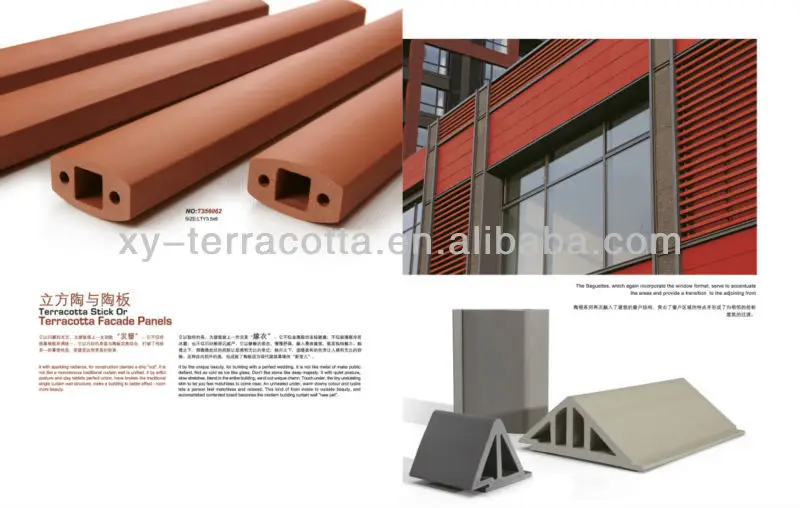

Products Combination in Projects
1) gradient colors combination (eg. bright red & coral red louvers)
2) light & dark colors combination (eg. ivory & great wall grey louvers)
3) different colors combination (eg. red& yellow & ivory & grey louvers)
4) different products combination (eg. panels & louvers)

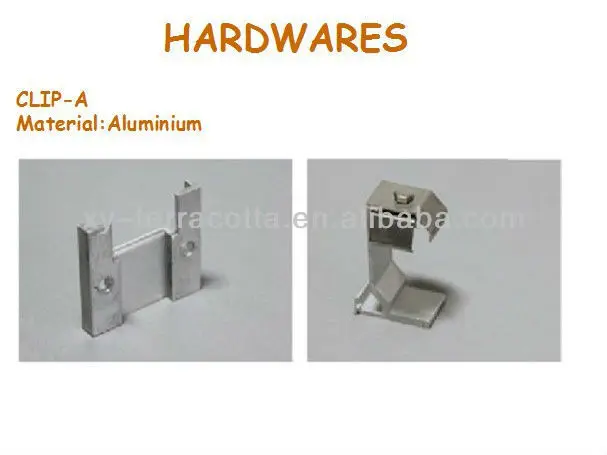

Easy Installation & Main Components

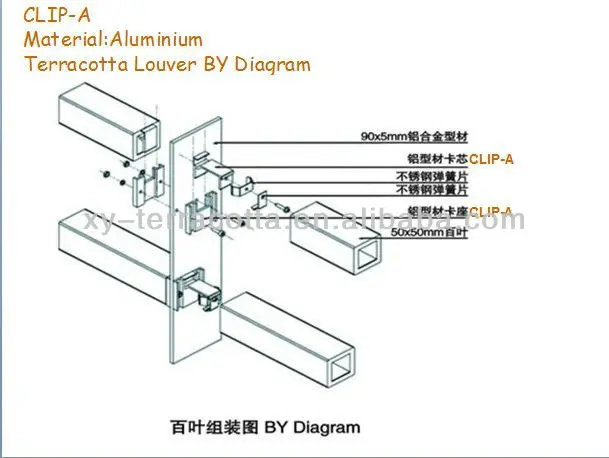

CHOICE A :

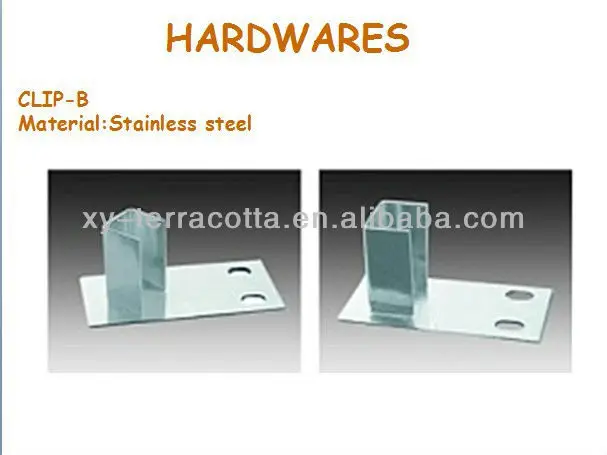

CHOICE B :
TERRACOTTA lOUVER(TERRACOTTA STICK/TERRACOTTA BAGUETTE)
Technical Parameter :
| Inspection Items: | Technical Parameter | Reference Standards |
| (Thickness:18mm) | ||
| Size error | with in±1% , max is within±2mm | |
| Thickness error | within ±8% | |
| Side straighth and right angle | within±% | |
| Frost resistence | No crack in -60C | |
| Anti-pollution | Grade-3 | |
| Anti-corrosion | Grade UA | |
| Wind pressure test | 9kPa | |
| Water Absorption Rate | 6≤average value≤10% | JC/T 1080-2008 |
| Fire-proofing | Grade A1 | |
| Noise-isolated | 7-10dB | |
| Dry Weight | 31.00kg/m2 | ---- |
| Freezing Resistance | No Crack or Flake after 100 times test in -30°C~30°C | JC/T 1080-2008 |
| Q/JHTJ001-2009 | ||
| Breakage Strength | ≥2.98KN | JC/T 1080-2008 |
| Rupture Modulus | ≥14MPa | JC/T 1080-2008 |
| Poisson Ratio | 0.33 | ISO17561 |
| Modulus of Elasticity | 0.305x105 | ISO17561 |
| Fire Resisting Property | A Degree | JC/T 1080-2008 |
| Low Concentration Acid and Alkali Resistance | UA Degree | GB/T4100-2006 |
| High Concentration Acid and Alkali Resistance | ULA Degree | GB/T4100-2006 |
| Radio-Activity | AI Degree | GB6566-2001 |
| Seismic Behavior | ≥10 | GB/T18575, GB5011 |
| Wind Load | Positive Pressure: 5.0KPa | GB/T21086-2007 |
| Negative Pressure: 5.0KPa | ||
| Sound Proof | Reduce Noise more than 9db | ---- |
| Thermal Shock Resistance | No crack or explode after 10 times test | JC/T 1080-2008 |
| Bending Strength | 13.5MPa | GB/T4741 |
| Density | 2.0--2.4g/cm3 | ---- |
| Expansibility | 0.02mm/m | GB/T4100-2006 |
| Coefficient of Heat Conductivity | 0.264W/m.K | JC/T 1080-2008 |
| Surface Quality | No Flaw when see from 1 meter away | JC/T 1080-2008 |
| Plane Deformation | Fifth Degree | GB/T21086-2007 |
| Capacity | ||
| Hanging Strength | average value≥3000N | GB/T9966.7-2001 |
| Stain Resistance | 3 Degree | GB/T4100-2006 |
| Linear Thermal Expansion | 5.8x10-6C-1 | GB/T4100-2006 |

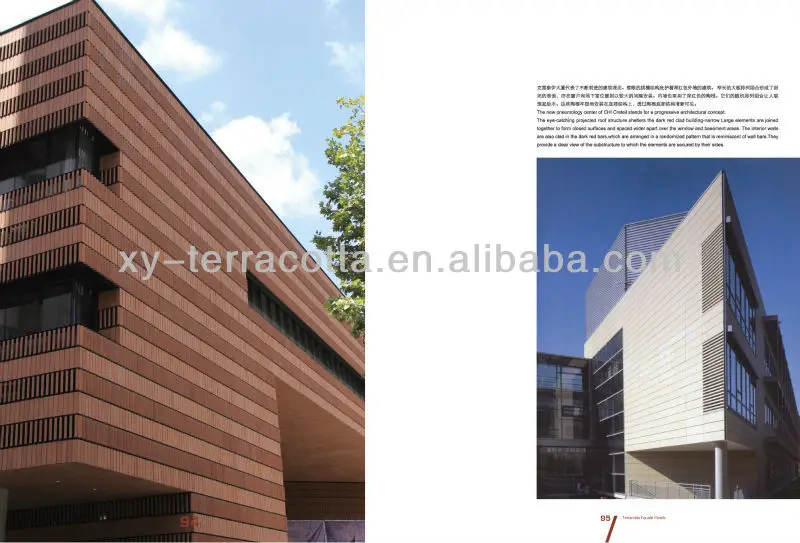

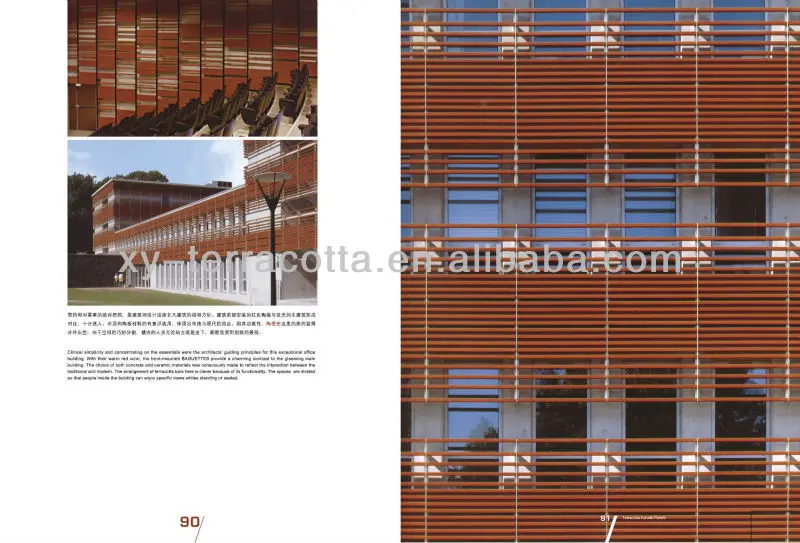

Some of OUR Projects Reference
Company Superiority
X & Y Terracotta Panel Manuacturing Co., Ltd

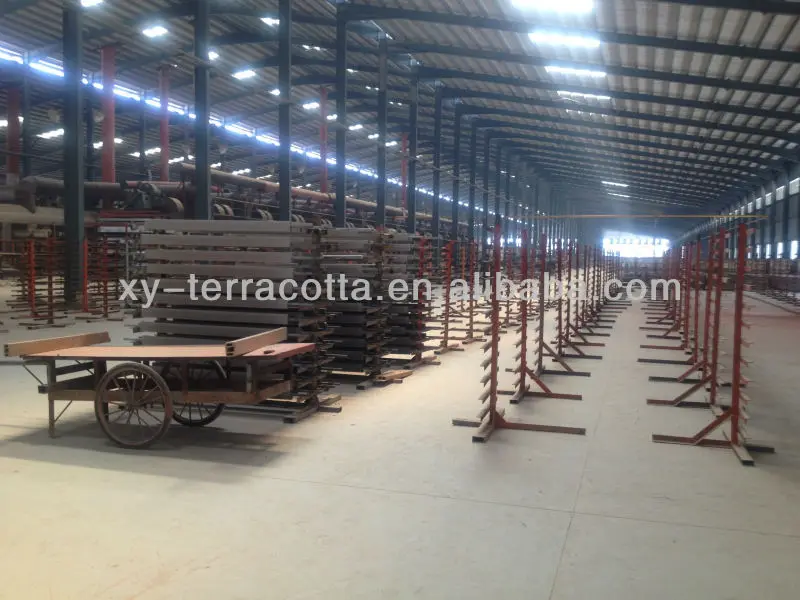

Our terracotta plant is located in Fujian Province covering an area of 200,000 SQM
Showroom has an area of 3000 m2 in Guangdong Province.
1) Domestic longest roller kilns in 260 meters keep products in good stability.

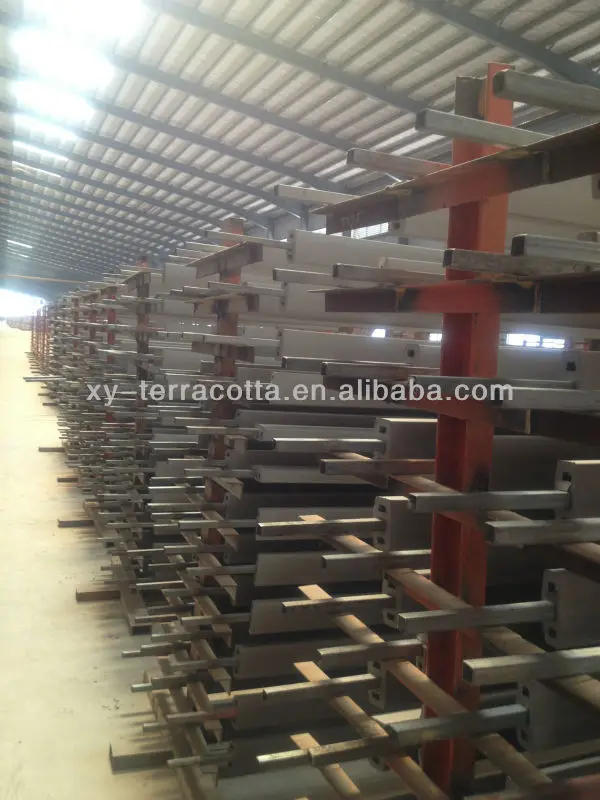

2) 80,000 m2 open stockyard and 150,000 tons capacity indoor storage can meet continuous large production needs for 6 months.
3) Automatic production lines with imported molding machines assure louver/stick/ baguettequality.
What we can do for you:
1) Terracotta louver/stick/ baguette Products
2) Full Sets of Fixing Accessories/Installation Elements
3) Technical Consultation
4) Intallation Instruction
5) After Sales Service
