Product Overview
Description
Product Description
1.The brief introduction of doritos/tortilla/corn chips snack food machine/maker / production line :
automatic doritos tortilla corn chips making machine are made from corn powder, which are cut and then fried.
The main raw materials are corn powder, vegetable oil, salt and water. Although usually made of yellow corn(as pictured), they can also be made of white, or red corn. After frying and flavoring, we get very crunchy triangle or other shapes chips which are popular with both children and adult.2. Raw Materials:corn flour, wheat flour and other grains as rawmaterials
3. Products: All shapes of Doritos, shapes like round, triangle, hexagon etc. The size of products can be changed according to clients’ requirements.
4. Capacity: 120-150 KG/H, 220-250 KG/H

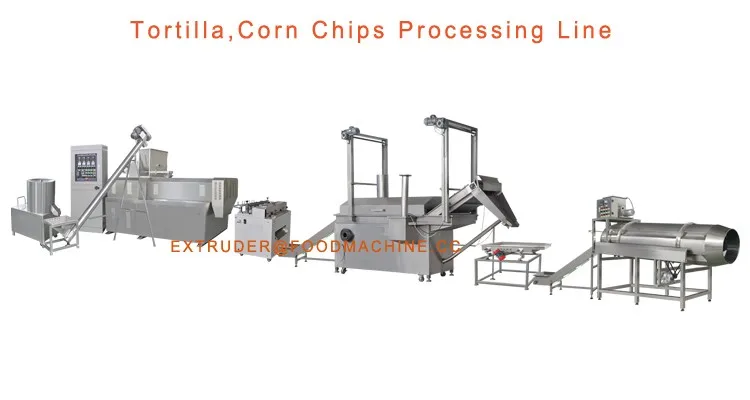

5.Flow chart: Flour Mixer---Screw Conveyer----screw Extruder---Roller Cutting Machine---Hoister---Separate Drum---Vibrate Feeder---Continuous Fryer---Vibrate De-oil Machine---Flavoring
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries7. Machines Materials: All the machines are made by stainless steel.
8.The brief description of Doritos/tortilla/corn chips snack food machine/maker/ production line:
Mode | SLG65 | SLG70 |
Capacity | 120-150KG/H | 220-250KG/H |
Power | 70KW | 100KW |
Dimension | 18000×2000×2500mm | 20000×2000×2500mm |
Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, we have professional engineer making nice quality machines in short time, also have special after sales service team work working 24H*7days to help you slove any kinds of problems, so with us your money in safe, your business safe.

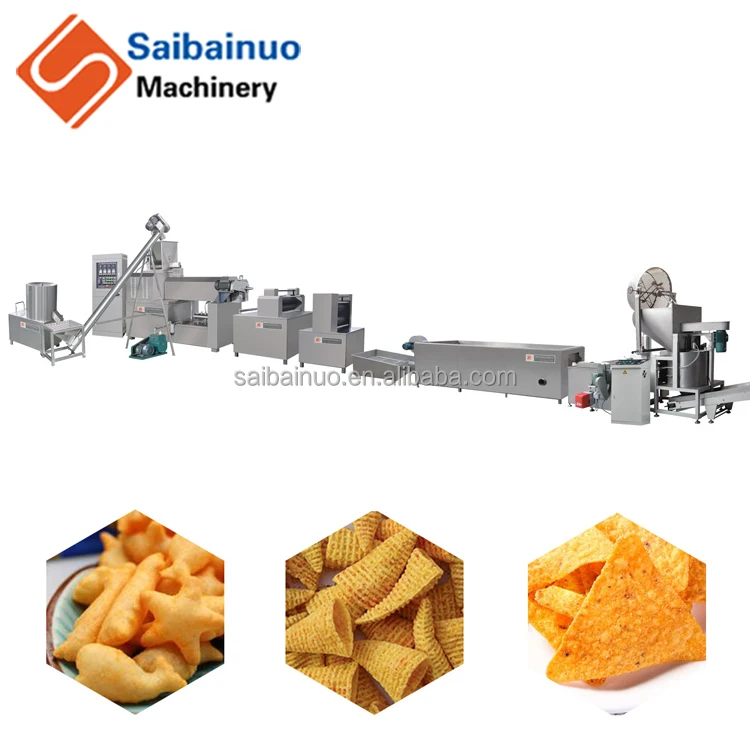

This is our 250kg/h dorito chips production line in our factory.
Fryer in our factory.
the inside structure of our twin screw extruder.
Detailed Images
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter:\tΦ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feed machine of extruder without leaking, dust and pollution; feed quantity is even and stable.
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 30kg per loading (5-6 minutes per loading)
Functions:
Mix powder raw material with water
Features:
1. stainless steel material(1.5mm).
2.High speed can mix material better than other slow mixer.

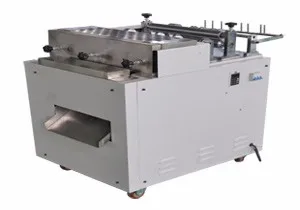

Name: pulling and cutting machine
Dimension(m): 1.2×0.7×1.2
Total power: 1.5kw
Main Motor Power:0.75KW
Function:
Pull the food and cut them into different size Chips
Features:
The pulling speed and the cutting speed can be adjusted.
Name: hositer
Dimension(m): 2.0×0.5×1.5
Motor Power:0.37KW
Function:
elevator conveys the food from the discharge-port of oven to the feed-charge port of oven
Features:
No leaking material and pollution
PVC conveyor belt
Can design different height to suitable for different machine.
Certifications

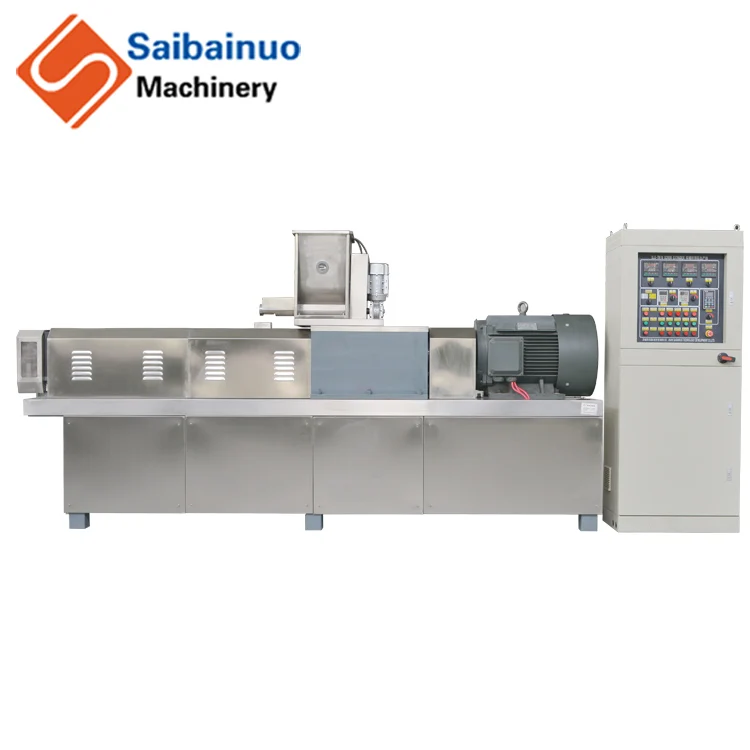

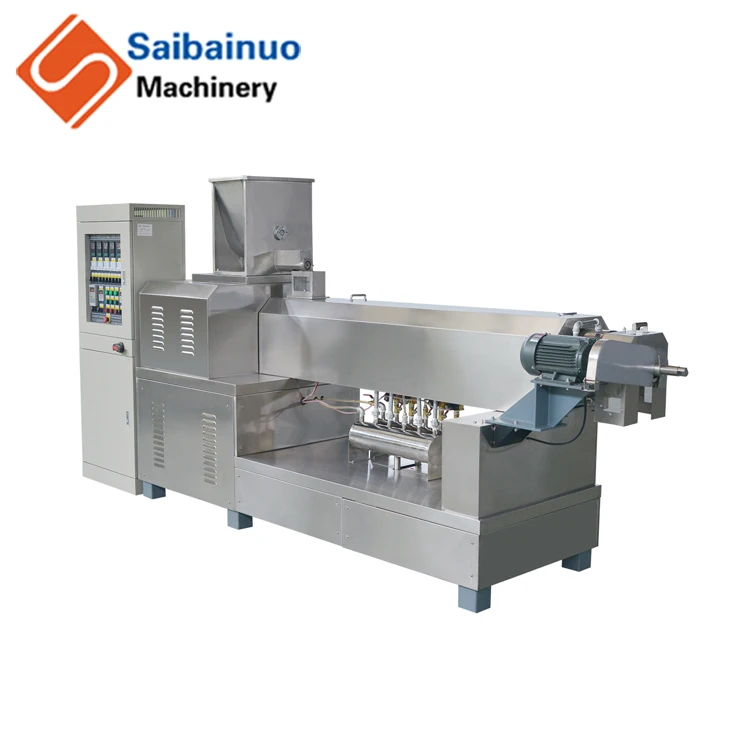

Name: twin screw extruder
Dimension(m): 2.6×1.0×1.3
Total power: 37kw
Main Motor Power:22KW
Cutting motor: 1.5kw
Heating power:10kw
Extruder diameter:Φ65 mm
Function:
Extrude and cook raw material into different size and shapes
Features:
Screw material is 38CrMoAl with nitriding treatment, the hardness is
60HRC.. The barrel also use good material, hardness is 55HRC.
The gear box has forced lubrication system.
All motors can be adjusted the speed by Inverter.
The Extruder can change different molds to produce different Shapes product.
Our Service
Before sale services:
1.Provide the free consultation of the equipment.2.Provide the standard device and the flow chart.
3. According to the clients’ special requirement, offering the reasonable plan and free design helping to select the equipment.
Services during the sales:
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Welcome to visit our factory or the domestic clients’ factory.
3.Inspect the machine before leaving the factory.
After sale services:
1.Oversea install and debug the equipment.
2.Train the first-line operator.
3.Provide the basic formula.
Packing & Delivery
Packaging & Shipping:
1).packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finaly pack them with wooden case.
2)Customer's requirement is available.
3).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.
