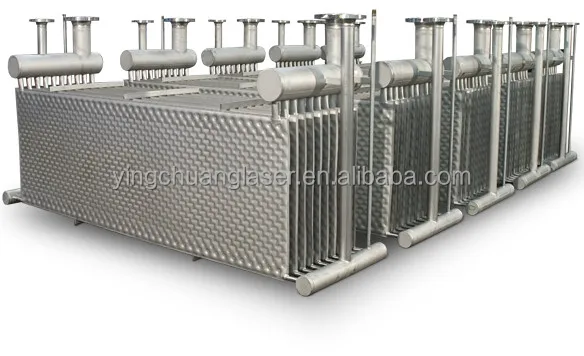

High Efficiency Laser Welding Plate Heat Exchanger Pasteurizer

Product Overview

Description

High Efficiency Laser Welding Plate Heat Exchanger Pasteurizer

Description of plate heat exchanger pasteurizer

Item No.	Size (L x W x T) (MM)	Material (Stainless Steel)	Max Working Temperature  (°C)	Max Pressure (MPa)	Heat Transfer Area  (M² / PC)	Weight  (KG/ PC)
YC-152501-304	1500x2500 (1.0x2)	304	600	2	7.5	60
YC-151501-304	1500x1500 (1.0x2)	304	600	2	4.5	36
YC-122401-304	1200x2400 (1.0x2)	304	600	2	5.8	46
YC-062001-304	600x2000 (1.0x2)	304	600	2	2.4	19
YC-152501-316L	1500x2500 (1.0x2)	316L	600	2	7.5	60
YC-151501-316L	1500x1500 (1.0x2)	316L	600	2	4.5	36
YC-122401-316L	1200x2400 (1.0x2)	316L	600	2	5.8	46
YC-062001-316L	600x2000 (1.0x2)	316L	600	2	2.4	19
YC-122401-2205	1200x2400 (1.0x2)	2205	600	2	5.8	46
YC-062001-2205	600x2000 (1.0x2)	2205	600	2	2.4	19



Accept any other special shape and size design and customization



Plate heat exchanger pasteurizer is a highly versatile panel-type heat exchanger that can be welded, formed, or fitted to meet your exact needs. It can be applied in irregular shapes, at high pressures, high temperatures, or in corrosive environments.



Thermally efficient types of plate heat exchanger pasteurizer

1. Immersion heating and cooling
2. Can heating,cooling, or heat preservation outside the container
3. Built-in for heating or cooling, such as internal heated fluidized bed
4. Special heat exchanger
5. Evaporator, Condenser

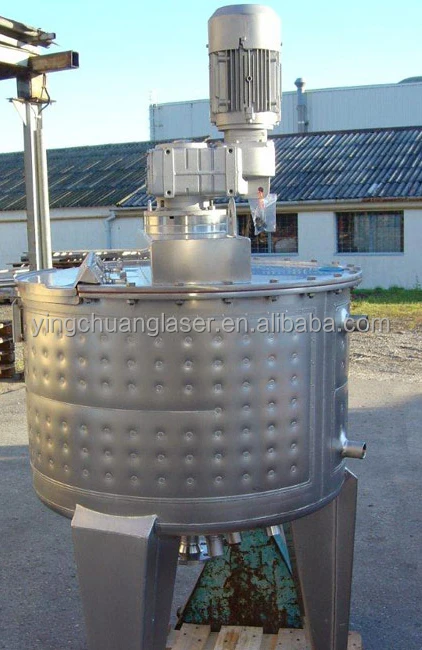

6. Clamp-on heating, cooling, and temperature maintenance
7. Polymerizer cooling, heating baffles
8. Ice storage
9. Plate heat recovery group
10. Drum Insulation
11. Equipment trough jacket
12. Conical head jacket
13. Dyeing heater
14. Flue gas heat recovery plate group
15. Falling film cold water ( brine ) Unit
16. Built concentrator or reboiler
17. Large built-in bezel set for cooling vegetable oil

Features

1. Available in most materials, like stainless steel 304, 316L, 2205 and titanium
2. High operating pressures
3. High operating temperatures
4. No gaskets required
5. Corrosion resistant
6. Easily formed to fit the shape you need
7. Cutouts are easily provided
8. Thermally efficient types of heat transfer
9. Immersion heating and cooling.
10. Clamp-on heating, cooling, and temperature maintenance
11. Integral jacketing for heating and cooling
12. Custom heat exchanger design
13. Evaporators
14. Condensers
15. Easily cleanable, attractive finishes available
16. Low pressure drop design
17. Pharmaceutical and food-grade designs available
18. More active heat transfer surface available



The type of plate heat exchanger pasteurizer

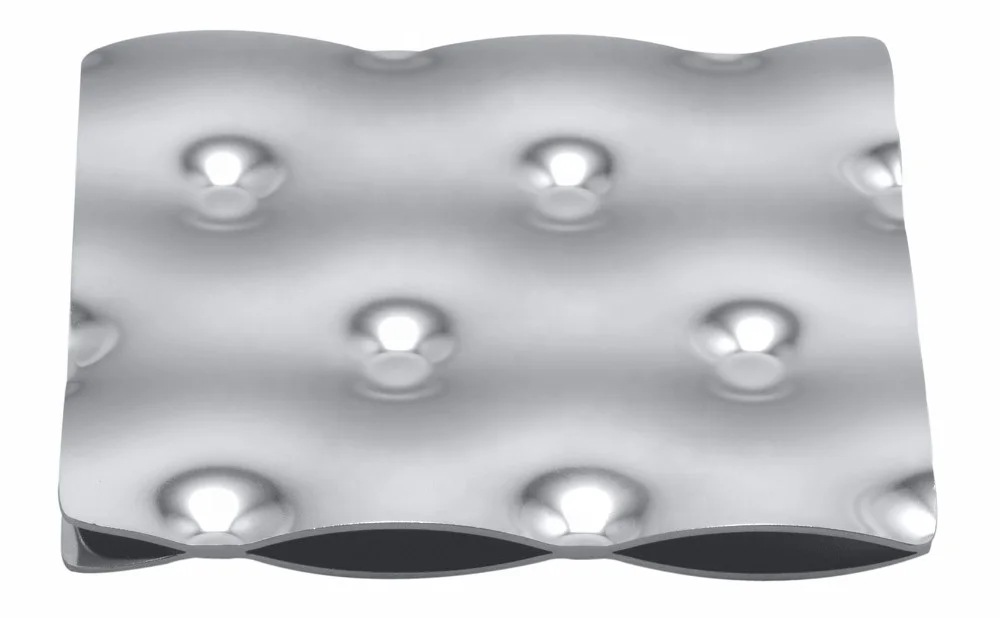

Double Embossed

Double-sided pressure molding, usually used for most applications
Suitable for heating and cooling process, generally, the thickness on both sides plate are the same.
The materials can be stainless steel , hastelloy and carbon steel and so on . The different material and thickness can meet different working pressure.



Single Embossed

Only single-sided pressure molding, usually used for single-sided plane occasions, such as the tank wall and transport bed, generally, the thickness on both sides plate are different.
The materials can be stainless steel , hastelloy and carbon steel and so on . The different material and thickness can meet different working pressure.

Plate heat exchanger pasteurizer is a simple, effective and economical solutions to maintain the temperature. Double embossed heat exchanger plate is easy to install on the existing storage tank and equipment, is a economy and effective method to maintaining the temperature.



Features

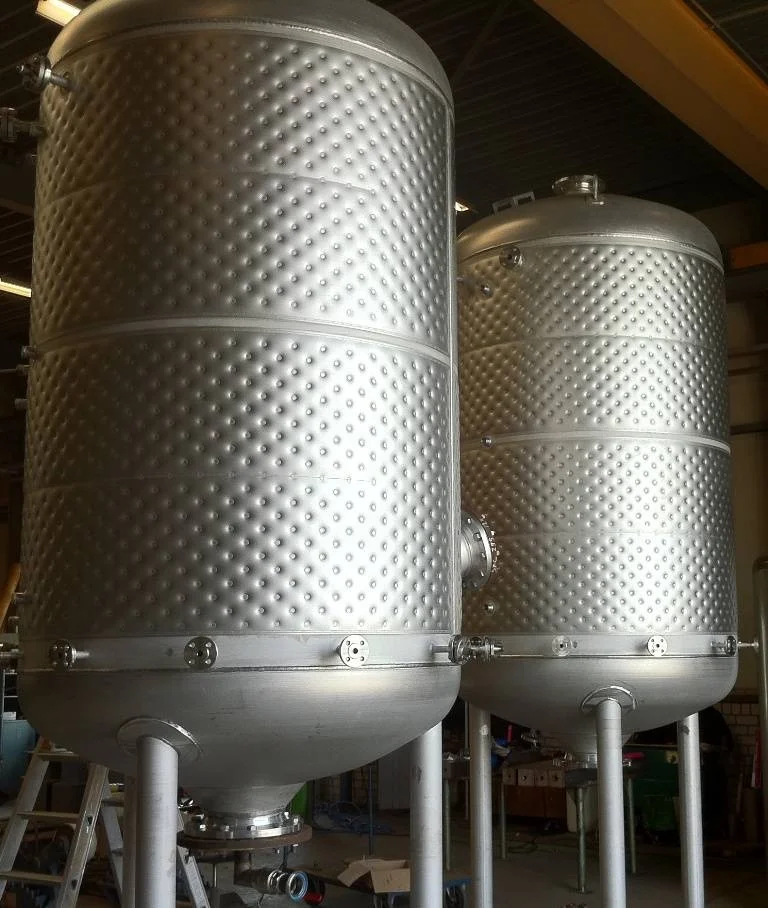

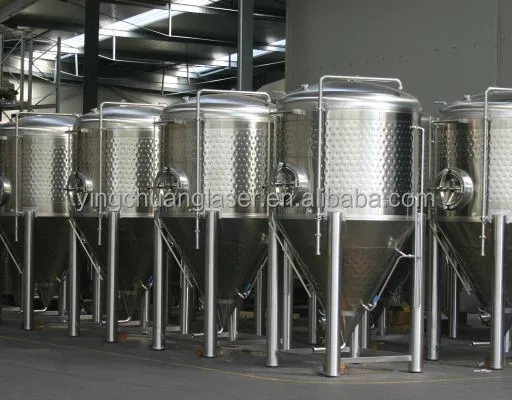

1. Easy to install in the outer wall of the storage tank and equipment
2. Can meet the special shape and size design
3. The manufacturing can meet the existing import and export pipelines , control systems and support structure
4. The material stainless steel and carbon steel are available
5. The inherent advantages of the double embossed is turbulence, this design ensure the low flow rate can be achieve high turbulence, the heat transfer efficiency have greatly improved
6. Experiments show that the double embossed heat transfer plate higher 15% heat transfer performance than the single embossed heat transfer plate



Most of the heat transfer medium can be used for plate heat exchanger pasteurizer

1. Steam
2. Hot water
3. Cooling water
4. Conduction oil
5. Heat transfer fluid
6. Glycol solution
