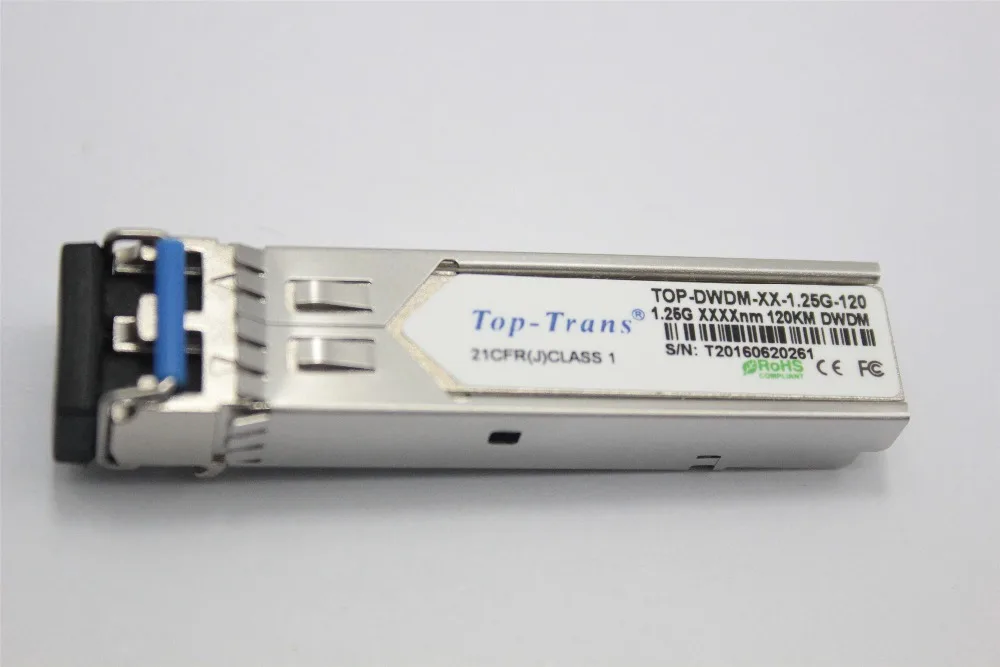

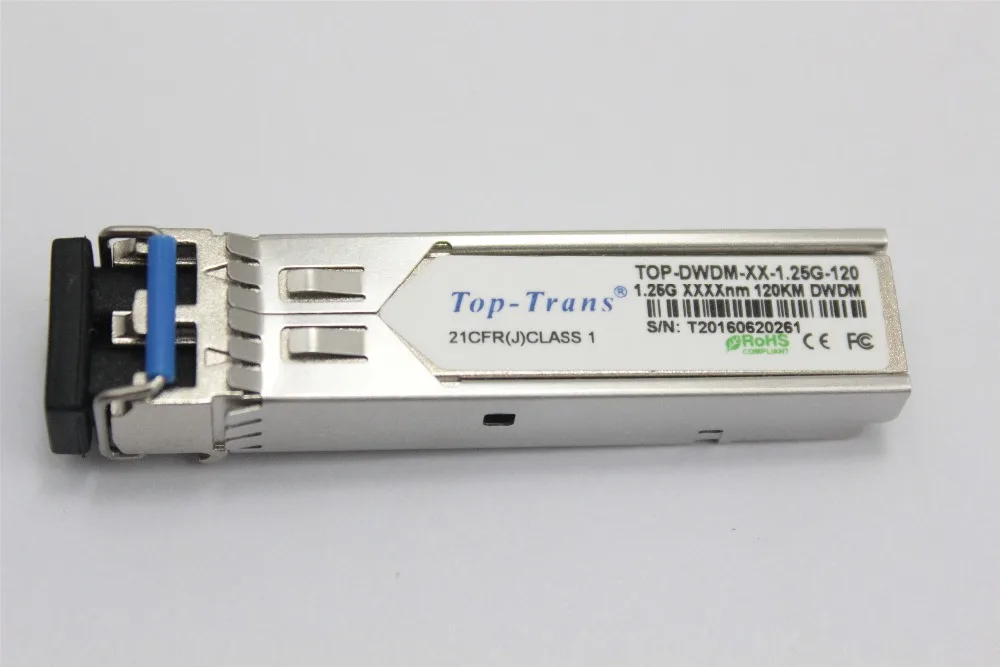

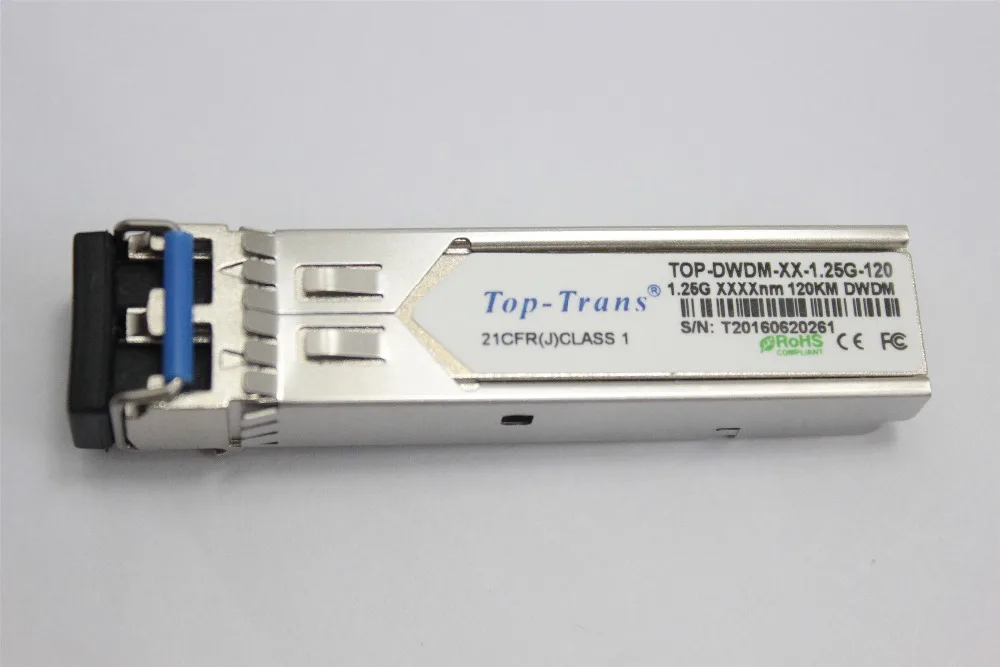

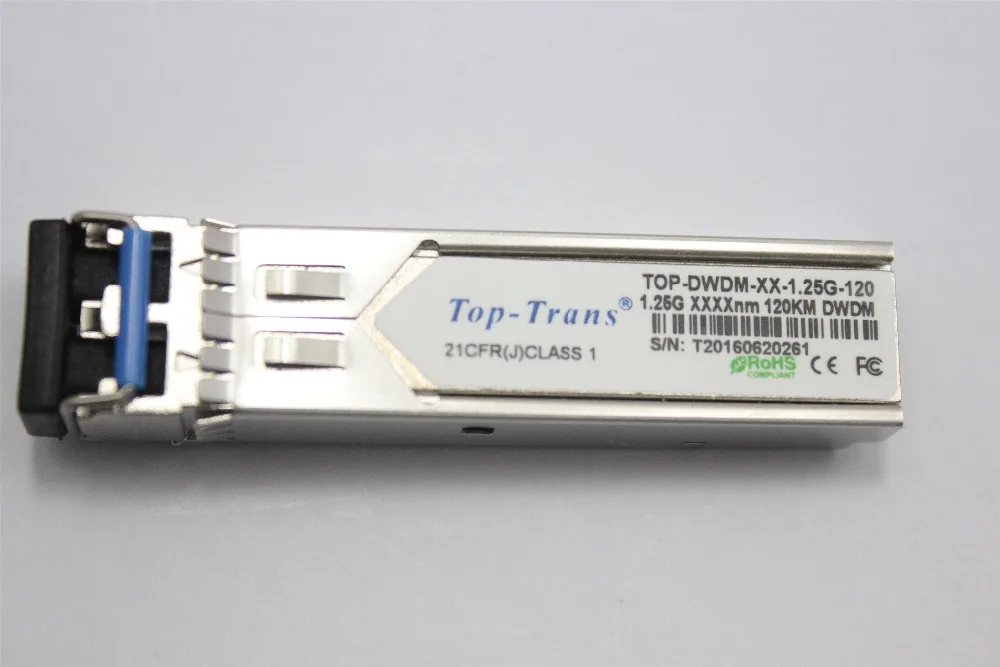

1000BASE EZX 1.25G DWDM SFP C17 C61 120KM SMF Optical Transceiver
- Category: >>>
- Supplier: Shenzhen Topstar Technology Industrial Co. Ltd.
Share on (60675300853):
Product Overview
Description
TOPSTAR TECHNOLOGY INDUSTRIAL.CO.LTD
Brand: Top-Trans OEM
P/N: TDM-XX-1.25G-120
Description: 1.25G DWDM CH17-CH61 120KM SFP Module
Application: 1000BASE-EZX
Compatibility: Juniper, Arista, Mellanox, Dell-EMC, Extreme Network, DCN, F5, FS.com
* Wavelength selectable to C-band and L-band ITU-T grid wavelengths
* Suitable for use in 100GHz channel spacing DWDM systems
* DWDM SFP MSA Compliant
* Up to 2. 667Gb/s data rate
* Cold Start up Wavelength Compliance
* Low Power Dissipation <1.3W Maximum
* -5ºC to 70ºC Operating Case Temperature
* Diagnostic Digital Monitoring (DDM/DOM)
* Extended link budget with APD receiver technology
* OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm)Versions
* RoHS compliant and lead free
* Suitable for use in 100GHz channel spacing DWDM systems
* DWDM SFP MSA Compliant
* Up to 2. 667Gb/s data rate
* Cold Start up Wavelength Compliance
* Low Power Dissipation <1.3W Maximum
* -5ºC to 70ºC Operating Case Temperature
* Diagnostic Digital Monitoring (DDM/DOM)
* Extended link budget with APD receiver technology
* OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm)Versions
* RoHS compliant and lead free
The 1.25G DWDM SFP 120km module is a valuable solution for saving fiber resources in telecom applications. With its DWDM
technology, this module enables multiple wavelengths of light to be transmitted over a single fiber, allowing for increased data
capacity without requiring additional fibers to be installed. This makes it an ideal solution for telecom applications where fiber
resources are limited or costly to install.
technology, this module enables multiple wavelengths of light to be transmitted over a single fiber, allowing for increased data
capacity without requiring additional fibers to be installed. This makes it an ideal solution for telecom applications where fiber
resources are limited or costly to install.
Additionally, the 1.25G DWDM SFP 120km module's long transmission distance of up to 120 kilometers (74.5 miles) over single-mode
fiber makes it an excellent choice for telecom applications that require data transmission over long distances, such as
interconnecting remote sites or connecting data centers.
By utilizing this SFP module in their networks, telecom companies can save on fiber installation costs and maximize their
available fiber resources, while still delivering high-speed, reliable data transmission over long distances.
ITU Channel Product Code | Frequency(THz) | Wavelength | ITU Channel Product Code | Frequency(THz) | Wavelength |
17 | 191.7 | 1563.86 | 40 | 194.0 | 1545.32 |
18 | 191.8 | 1563.05 | 41 | 194.1 | 1544.53 |
19 | 191.9 | 1562.23 | 42 | 194.2 | 1543.73 |
20 | 192.0 | 1561.42 | 43 | 194.3 | 1542.94 |
21 | 192.1 | 1560.61 | 44 | 194.4 | 1542.14 |
22 | 192.2 | 1559.79 | 45 | 194.5 | 1541.35 |
23 | 192.3 | 1558.98 | 46 | 194.6 | 1540.56 |
24 | 192.4 | 1558.17 | 47 | 194.7 | 1539.77 |
25 | 192.5 | 1557.36 | 48 | 194.8 | 1538.98 |
26 | 192.6 | 1556.55 | 49 | 194.9 | 1538.19 |
27 | 192.7 | 1555.75 | 50 | 195.0 | 1537.40 |
28 | 192.8 | 1554.94 | 51 | 195.1 | 1536.61 |
29 | 192.9 | 1554.13 | 52 | 195.2 | 1535.82 |
30 | 193.0 | 1553.33 | 53 | 195.3 | 1535.04 |
31 | 193.1 | 1552.52 | 54 | 195.4 | 1534.25 |
32 | 193.2 | 1551.72 | 55 | 195.5 | 1533.47 |
33 | 193.3 | 1550.92 | 56 | 195.6 | 1532.68 |
34 | 193.4 | 1550.12 | 57 | 195.7 | 1531.90 |
35 | 193.5 | 1549.32 | 58 | 195.8 | 1531.12 |
36 | 193.6 | 1548.51 | 59 | 195.9 | 1530.33 |
37 | 193.7 | 1547.72 | 60 | 196.0 | 1529.55 |
38 | 193.8 | 1546.92 | 61 | 196.1 | 1528.77 |
39 | 193.9 | 1546.12 |
