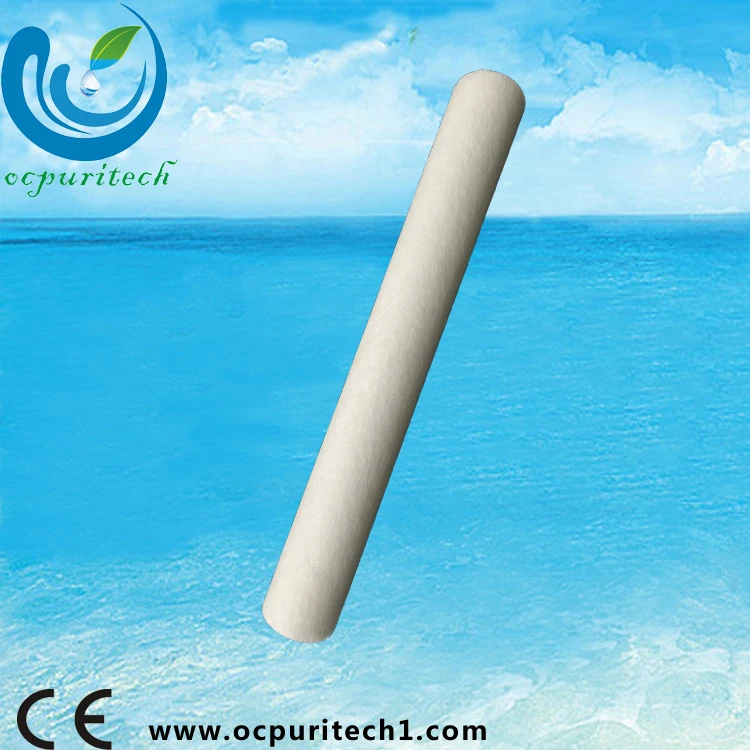

Sediment Filter Water Purifier 5 micron water filter 20 inches

Filter cartridge

Reverse Osmosis Sediment Filter Water Purifier 20" 5um PP filter cartridge

Reverse Osmosis Sediment Filter Water Purifier 20" 5um PP filter cartridge

Main technical performance indicators

1.filtering precision:1μm,5μm,10μm,20μm,30μm,50μm,75μm,100μm;

2.filter cartridge OD:φ60mm,φ65mm;

3.filter cartridge ID:φ28mm,φ30mm;

4. The filter cartridge of polypropylene can use water, acid,  alkali etc.and chemical solution and other nonorganic solution, and its operating temperature≤60℃;

5.Absorbent cotton fiber filter center pole is stainless steel materials , using in

organic solvent,water, oil,alkaline solution,drink and medicine etc., with operating temperature120℃;

filter cartridge length: 10″,20″,30″,40″;

7.Max anti-pressure:≤0.5MPa;Max drop of pressure:0.2MPa;

8.Max working temperature:Polypropylene line :Polypropylene frame≤60℃;

Stainless steel frame≤80℃. Absorbent cotton line:Stainless steel frame≤120℃.

Feature

High filtering precision,large flow rate,low differential pressure, high pressure strength,carrying large amount dirt,non-poisonous and tasteless and no secondary pollution.

Reverse Osmosis Sediment Filter Water Purifier 20" 5um PP filter cartridge

Application

Water filter: such as medium and big size of ultrapure water system and beverage industry water use’s pre-treatment;

2.Food industry filter:such as cooking and vegetable oil’s filtering, syrup,chocolate

and other kinds of slurry’s filtering;

3.Chemical industrial filter:such as the filter of plating solution liquid,oil paint,oil plants,coating mechanical oil,cutting oil,heavy oil,fuel oil, high viscosity resin,grease and pharmacy etc.

Packaging&Shipping

Guangzhou Aomi Water Purification System Manufacture Co., Ltd is specialized in a Water Purifier for household and industrial water treatment. Our main products include RO device, Ultrafiltration, Microfilter, sand, and carbon filter equipment, etc. These products completely set of equipment for school, factory, and hospital. Besides, we are manufacturing tap water and mineral water equipment.

We have been devoted ourselves to Water RO System for many years, and our engineers can make different types of water treatment equipment. We have the expertise to manufacture water treatment equipment of different sizes, capacity, and optional functions. And we also provide relative products such as FRP tank, valves, filter cartridge, and membranes, etc. Under our excellent products and patience service, we have earned a great reputation for our product quality, performance reliability, and business integrity.

1. Provide complete OEM or ODM water treatment solution based on your source water

2. Provide free technical training and full good after service.

3. We have professional QC team to check the quality before delivery.

4. The durable High-impact carton to protect the products.

5. Reply in 24 hours.

6. Lead time for water filter cartridge is  5-7 working days

    Lead time for the water treatment system is 7-15 working days

 Q: Are you trading company or factory?

 A: We are factory.

Q: How Does Reverse Osmosis Work?

A: Reverse osmosis systems purify water by forcing pressurized water through a very fine, plastic membrane. If the raw water being treated comes from a well or another private source, disinfection and pre-filters (to remove chlorine and/or particulates/sediment) may be needed in advance of the R/O unit to remove contaminants that can foul or damage the membrane.

Q: How Do I Know What Size Unit to Buy?

A: R/O units are rated according to the amount of treated water produced per day. For example, one type of unit produces 5000 liters of treated water per day under its design conditions. In reality, conditions frequently vary. Line pressure is often lower, water will frequently be colder than 25° C and backpressure in the storage tank will likely reduce the performance of the unit. Consequently, you should examine water conditions and buy a larger rated unit than needed if any of the above problems are noted

Q: Material of the reverse osmosis system?

 A: You can choose FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe or total stainless steel.

Guidelines for getting a proper quotation:

1. Tell us the production capacity you want(0.5T/H,1T/H, 2T/H......)?

2. What is your source water(tap water/underground water....)?

3. What is the product water used for(drinking /bottled water....)?

4. If you have the water report, please send us.
