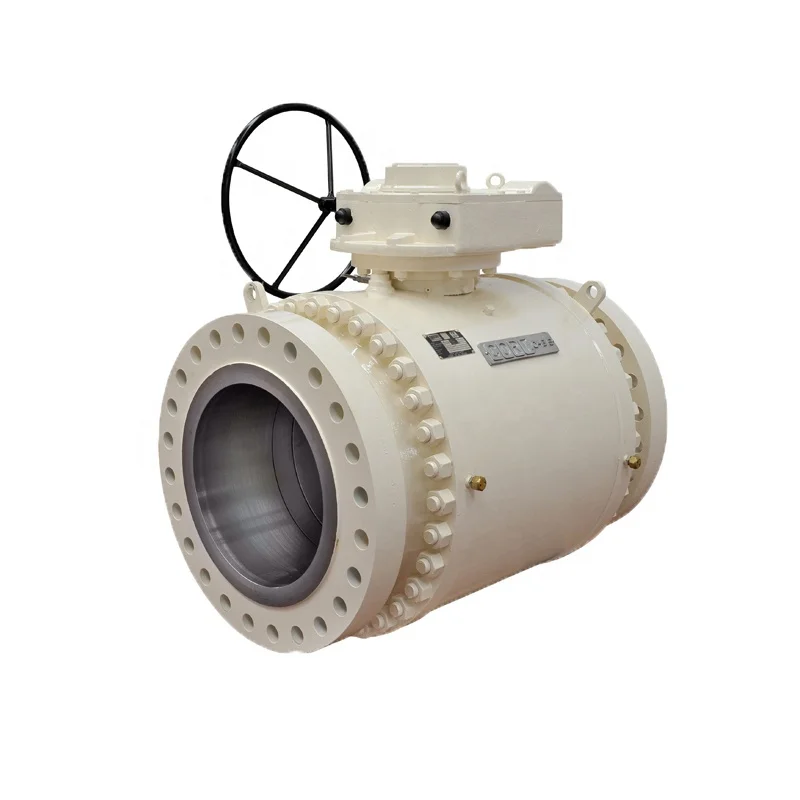

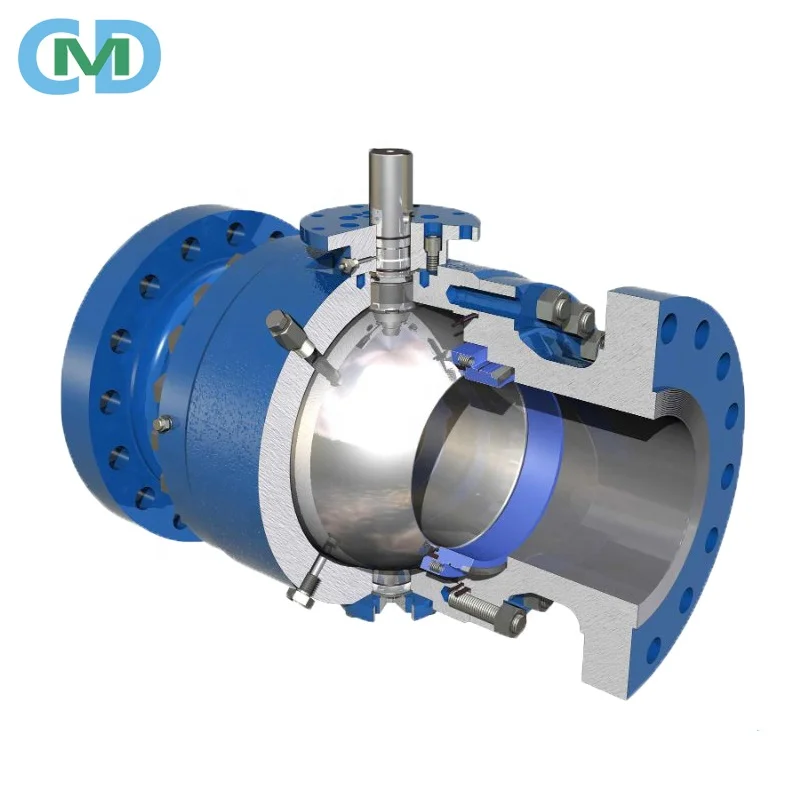

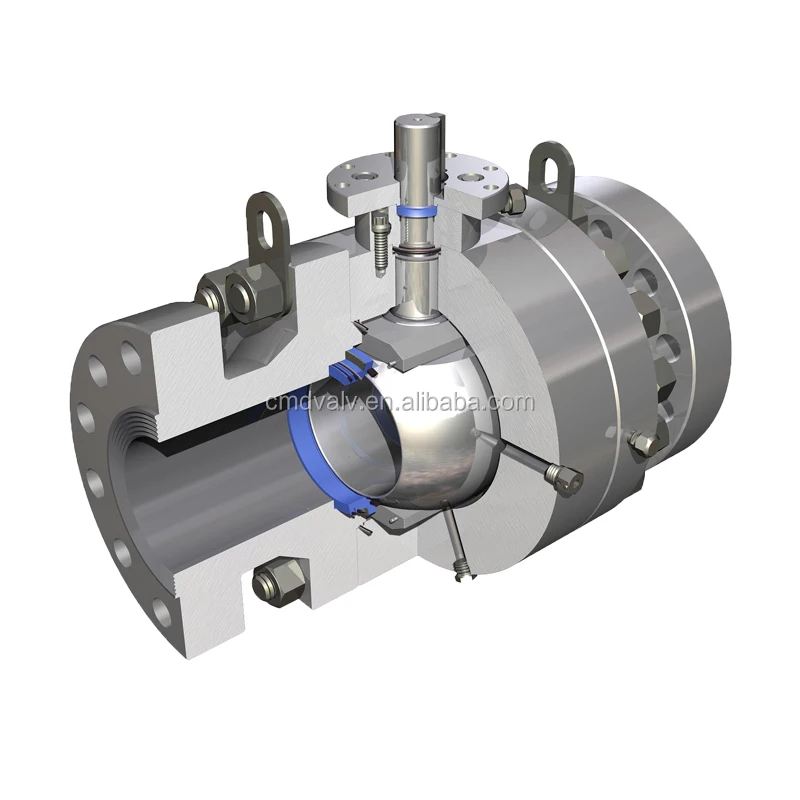

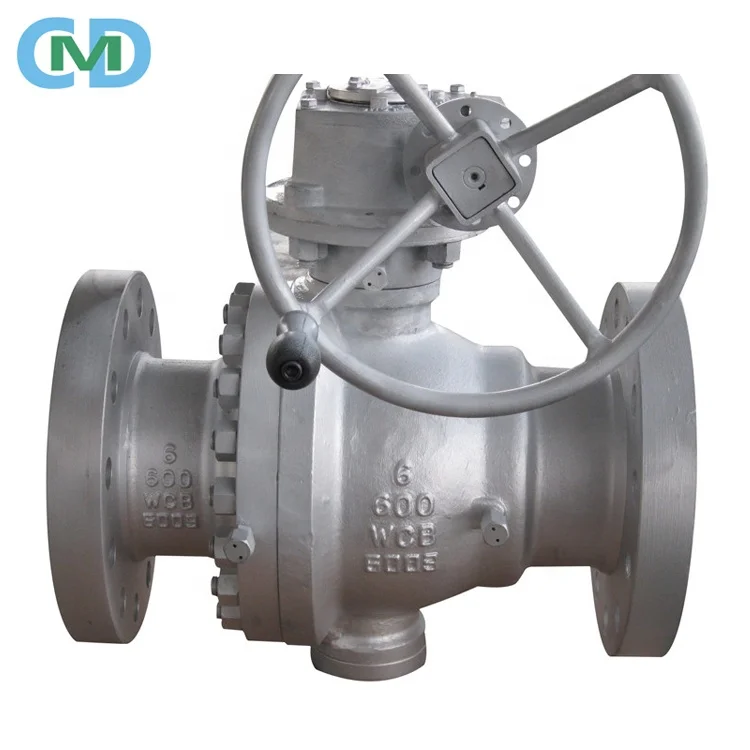

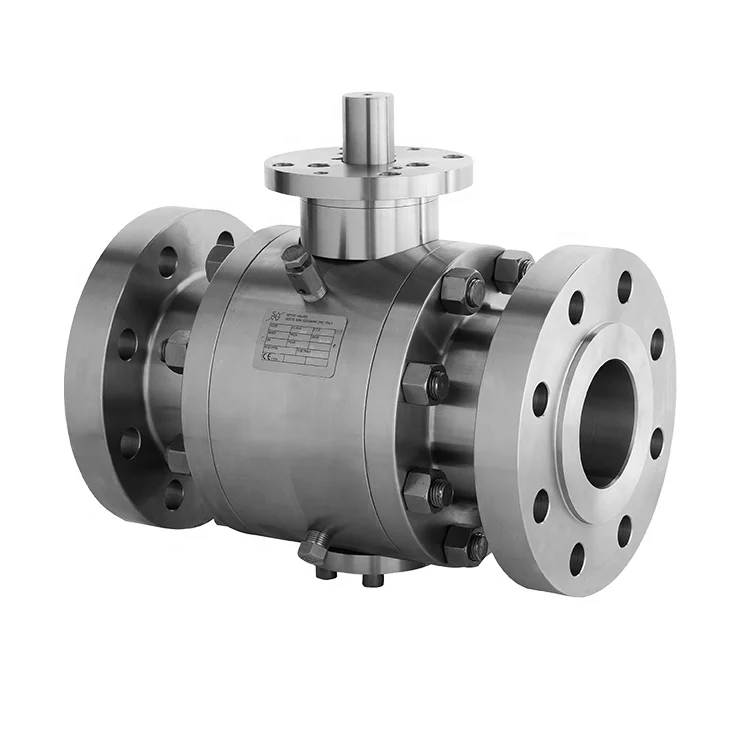

Trunnion Mounted Large size 24 Inch DBB Pneumatic Actuated Flanged Ball Valve

Name: Trunnion Mounted Large size 24 Inch DBB Pneumatic Actuated Flanged Ball Valve
SKU: 60675313854
Availability: InStock

Price:

Quantity:

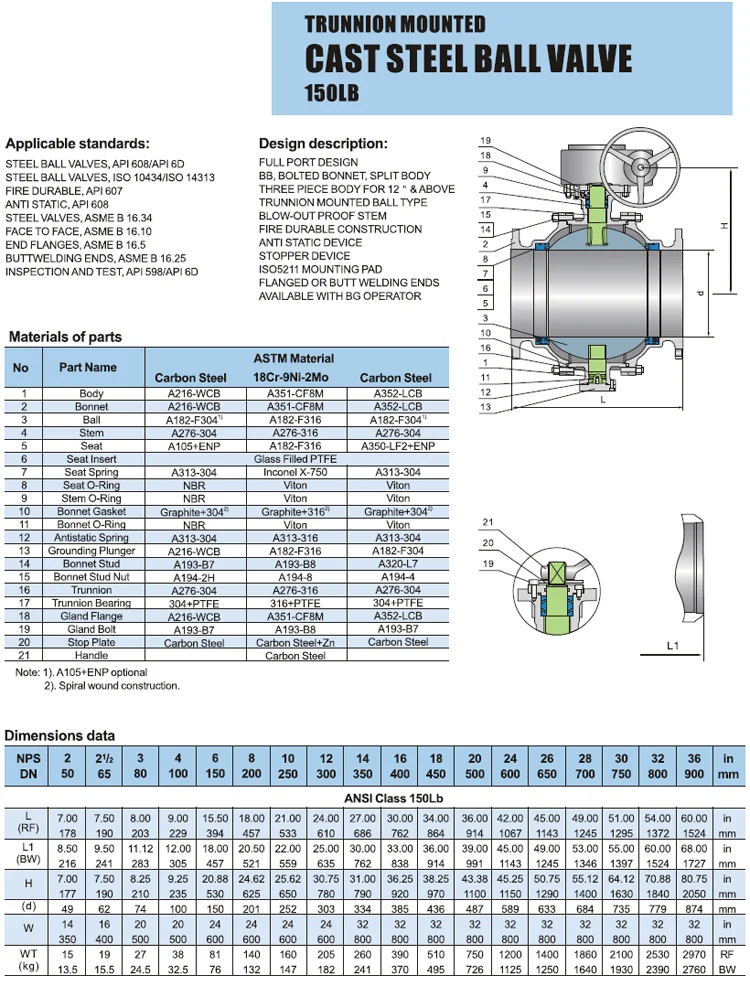

BA 150LB TM.png

SPECIFICATIONS FOR FORGED STEEL BALL VALVES
Pressure rating and size:	PN10 to PN160,ANSI Class150 to Class 2500, JIS 10K/20K
	DN50 to DN2000
	2"~80"
	50A~2000A
Material:	Body : WCB, CF8, CF8M,A105
	Bonnet : WCB, CF8, CF8M,A105
	Ball : A105, SS304, SS316
	Stem : F6a, SS304, SS316
	Seat : EPDM,Metal,Viton,PTFE,NBR
	Special material on request.
Operated type	Pneumatic,Manual,Electric
Structure:	Floating or trunnion mounted ball, full or reduced bore, 3pcs
Flange connection:	EN1092 & ANSI B16.5 & JIS
Type	Flange RF, RTJ
Maximum working temperatures:	Nitril:80°C NBR:110°C EPDM:110°C PTFE:150°C, Metal seat for high temperature
