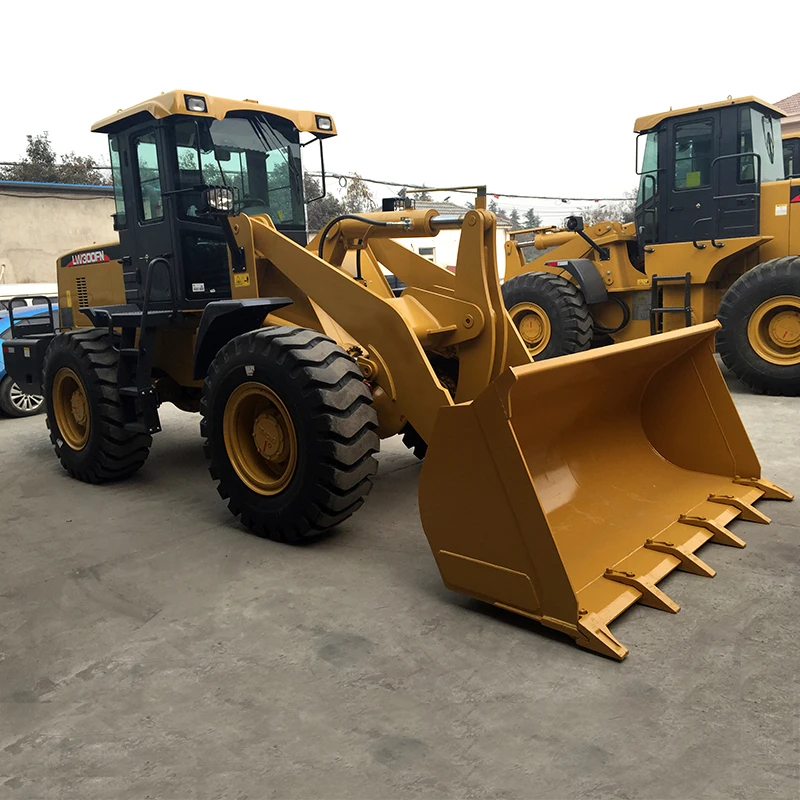

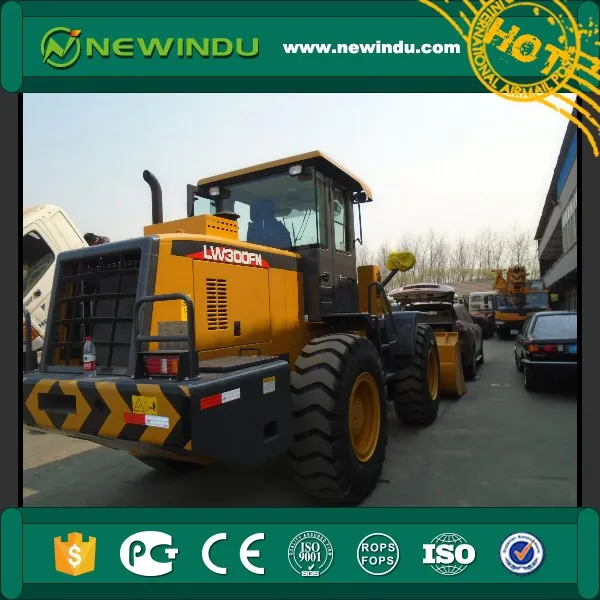

3 ton mini small front end Wheel Loader LW300FN
- Category: >>>
- Supplier: Newindu Construction Engineering (Shanghai) Co. Ltd.
Share on (60675314090):
Product Overview
Description
Mini Wheel Loader Parts Mini Loader lw300fn
Contact way
Sales Manager
Alisa Wang
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-18616224775
Web: ![]()
www.newindu.com
Product Description
1. It features high efficiency, energy-saving, and strong power.
2. The three-element torque converter and the fixed shaft power shift transmission feature high maturity and reliability.
3. The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
4. The bucket is made of high strength material to realize high wear and impact resistance.
5. The diversified configurations and complete attachments adapt to the construction needs in different regions and under different working conditions.
6. The optional A/C and the sound insulation and noise reduction measure build elaborately a comfortable operating environment.
Performance Highlights:Outstanding capability, with traction at ≥9t and breakout force at ≥13t.High adaptability, with turning radius at 5,165mm (tire center).
Variety attached tools meeting requirements of different working conditions:
Log clamp I/ Log clamp IV (offset tooth)/ Toad's mouth clamp/ Paired and Staggered interconvert/ Grasping grass machine/ Pallet fork/ Snowplow.
Log clamp I/ Log clamp IV (offset tooth)/ Toad's mouth clamp/ Paired and Staggered interconvert/ Grasping grass machine/ Pallet fork/ Snowplow.
Parameter
Description | Unit | Parameter value |
Rated operating load | kg | 3000 |
Bucket capacity | m³ | 1.5~2.5 |
Machine weight | kg | 10600±200 |
Dump clearance at maximum lift | mm | 2770~3260 |
Reach at maximum lift | mm | 1010~1210 |
Wheel base | mm | 2600 |
Tread | mm | 1850 |
Height of hinge at maximum lift height | mm | 3830 |
Working height(fully lifted) | mm | 4870 |
Max.breakout force | kN | 130 |
Max.horse power | kN | 95 |
Hydraulic cycle time-raise | s | 5.5 |
Total hydraulic cycle time | s | 10 |
Min. turning radius over tyres | mm | 5165 |
Articulation angle | ° | 35±1 |
Gradeability | ° | 28 |
Tyre size | 17.5-25-12PR | |
Overall machine dimension L×W×H | mm | 7050×2482×3118 |
Model | WP6G125E22 | |
Emission standards | Emission 2 | |
Rated Power/Speed | kW/rpm | 92/2200 |
Fuel Tank | L | 170 |
Hydraulic Tank | L | 170 |
Ⅰ-gear(F/R) | km/h | 8/10 |
Ⅱ-gear(F/R) | km/h | 13/30 |
Ⅲ-gear(F) | km/h | 24/- |
IV-gear(F) | km/h | 40/- |
