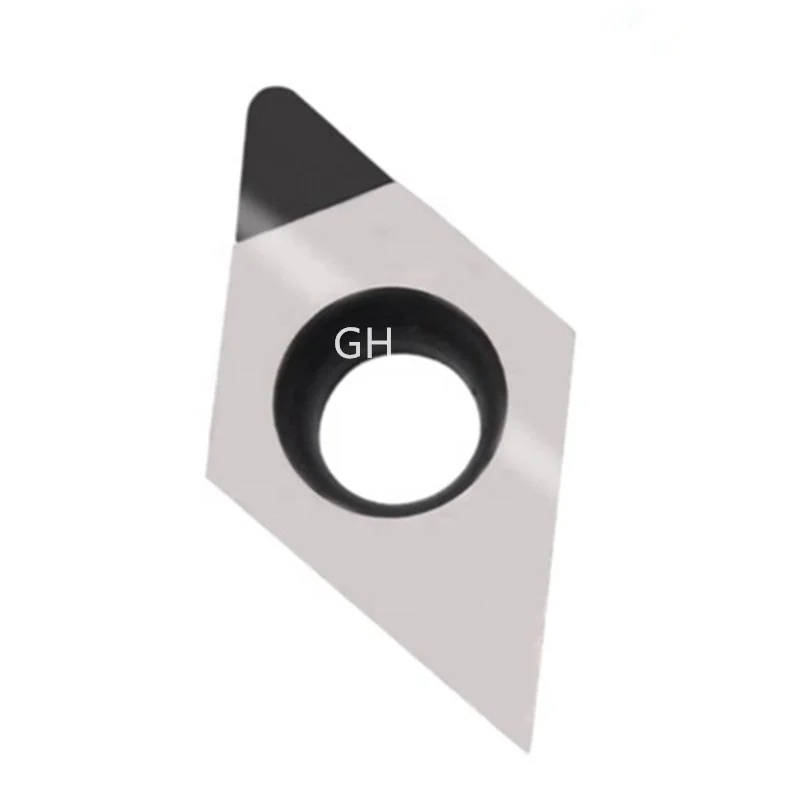

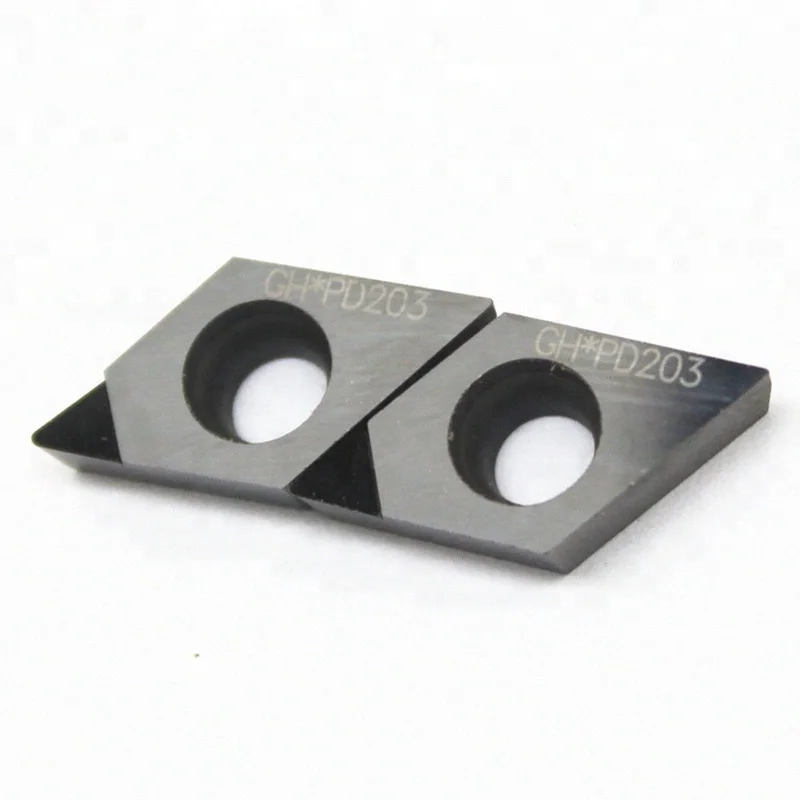

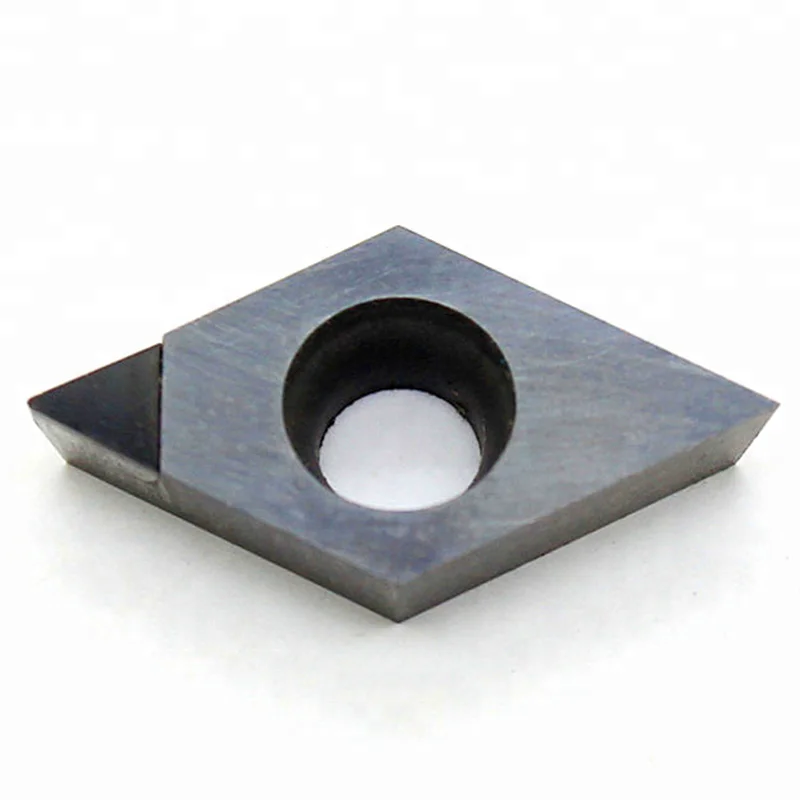

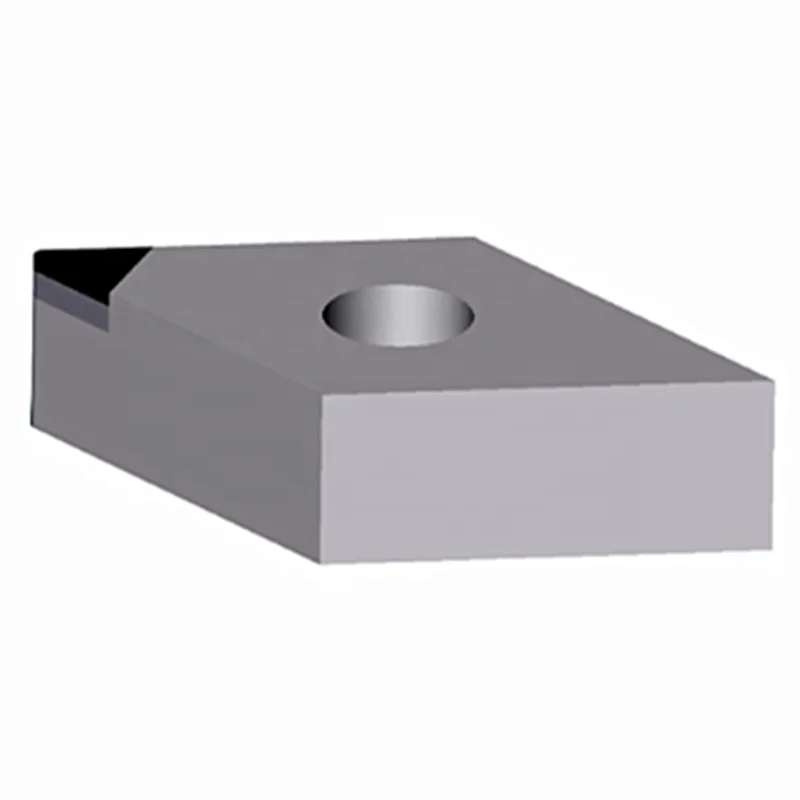

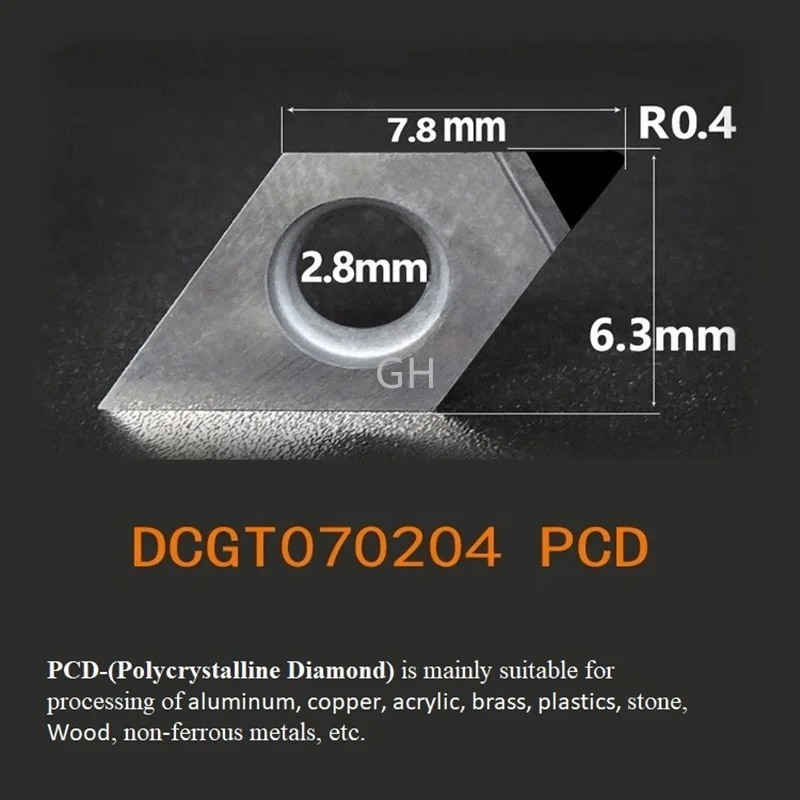

Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe
Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe
Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe
Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe
Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe
Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe
Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe

Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe

Share on (60675346295):


Price:$4.20 - $4.50

Quantity:


Product Overview

Description


Diamond cutting tools PCD tip turning tool insert DCMT DCMT070204 for CNC lathe









Product Description












l  PCD


PCD(Polycrystalline Diamond)is a synthesized, extremely tough, intergroup mass of randomly orientated diamond particles in a metal matrix. It is produced by sintering together selected diamond particles at high pressure and temperature.


2233PCD TOOLS SCAN


lAll our PCD PCBN blanks are imported from world famous companies including Element Six (DeBeers, E6), DI (GE), ILJIN, SMITH, SUMITOMO and TOMEI.





lThe body part uses high quality tungsten carbide



lPCD tool range on the one hand includes drills, milling cutters and reamers as well as ISO-Indexable inserts.





Application
The PCD tool is used for the external turning of copper, aluminum, copper alloy, aluminum alloy, tungsten carbide and nonmetal work pieces such as composite material.
The PCBN tool is used for the external turning of hardened steel, hard cast iron, grey cast iron and iron series metal work pieces.


stic etc).

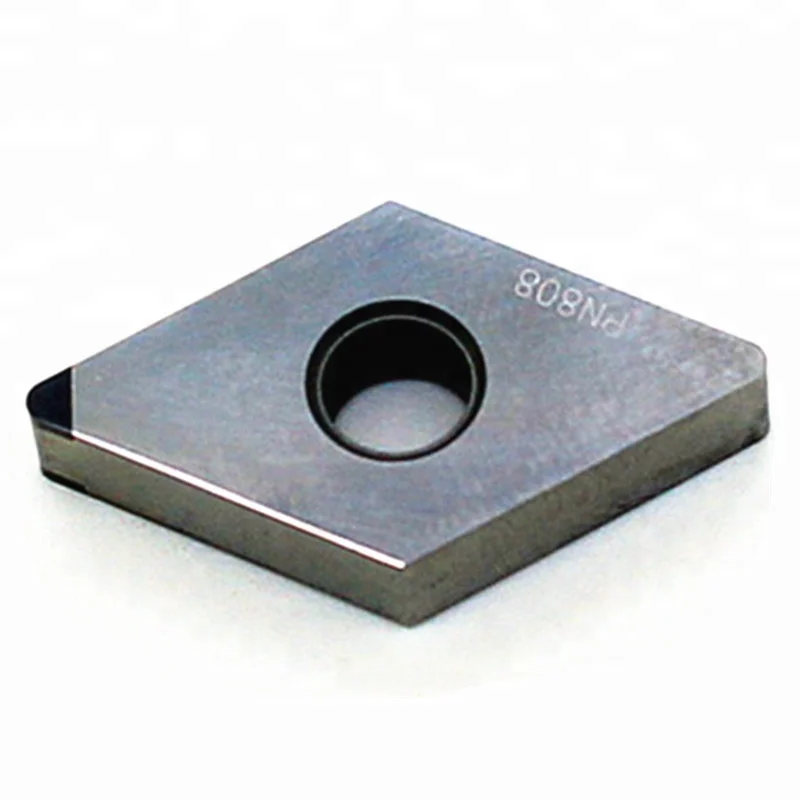

 DC DN INSERT 02_.jpgINSERT DC DN 717_.jpgDNGA150408 (1)_.jpgpcd cbn inserts specPCD CBN INSERT TYPEPCD INSERTS

















In order to supply the product you require we would need to have the following information:



1. The insert designation - ISO code or drawing.
2. The type of abrasive (Diamond or CBN).
3. The material to be machined. as there any different series of these PCD/PCBN used for processing different targets,
4. Length of required PCD/PCBN cutting edge.
5. Any special features eg: Top rake or radius different to the code etc.
6. Length of required PCD/PCBN cutting edge.
We hope to receive your drawing of indexable type insert and tools.


PCD PCBN parameters
















































































PCD Recommended Cutting Condition



Work piece



Cutting Speed



Depth of Cut



Feed Rate



(m/min)



(mm)



(mm/rev)



Aluminum(5~8% SI )



350~1600



0.05~2.50



0.10~0.40



Aluminum(8~12% SI )



350~1300



0.05~2.50



0.10~0.40



Aluminum(14~18% SI )



160~800



0.05~2.50



0.05~0.25



Copper



350~1000



0.15~2.50



0.05~0.20



Sintered Carbid



15~25



0.05~0.60



0.10~0.20



Glass Fiber



100~800



0.15~0.50



0.03~0.25



Carbon



160~700



0.15~2.50



0.15~0.40



High Aluminum



70~250



0.05~1.50



0.03~0.15



Ceramics



Wood



1000-2500



0.2~5.0



010~0.50






TECHNICAL DATA.png











44































































Materials to be Processed



Products



Nonferrous Metal



Aluminum, Aluminum Alloy



Piston, cylinder, wheel hub, transmission case, pump body, admission pipe and various shell parts for cars and motorcycles.



Tank body, shell and compressor parts for airplanes and electro mechanical products.



Precision machinery parts for cameras, duplicators and metrical instruments.



Parts for pump body and oil press.



Copper, Copper Alloy



Axle, bearing bush, bearing and pump body for internal combustion engines and ships.



Parts for various instruments, dynamo commutators, printed boards and electronic apparatus.



Bearing, bearing bush, valve and shell body.



Tungsten Carbide



Sinter such as valve seat and cylinder, and semi-finished sinter.



Others



Various nonferrous metal parts such as magnesium and zinc.



Nonmetal



Wood



Hardwood, artificial board, artificial abrasion resistant fiberboard.



Reinforced Plastic



Glass fiber and carbon fiber reinforced plastic.



Rubber



Roller for paper and rubber ring.



Graphite



Carbon rod.



Ceramic



Sinter such as sealing ring and plunger piston, and semi-finished sinter.





050401












Packaging & Shipping


 BOX





Company Information


 ._


GH Diamond Tools Co., LTD specializes PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) tools.



Main Products:   PCD insert,PCBN Inserts,PCBN &PCD Turning and Milling Tools.PCD woodworking cutter ,Diamond Wire Drawing Die Blanks. Diamond Glass Scribing Wheel And axle.



We could maketools in accordance with your drawing or specifications.
