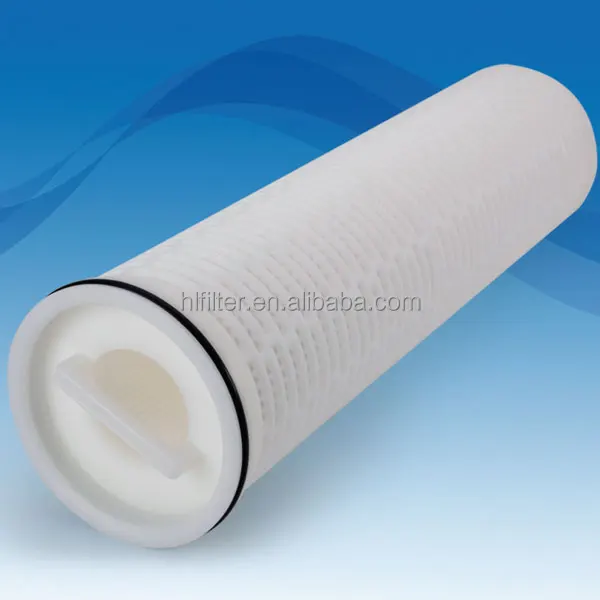

leading manufacturer of PP water filter cartridge

It has a 6 inch/152mm large diameter, and is coreless, single open-ended with an inside to outside flow pattern. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required .The long service life and high flow rate result in low investment and less manpower in many applications.

Element Specifications:

Performance:Removal Rating: Removal Rating: 0.5µm, 1µm, 3µm,5µm,10µm, 20µm, 40µm, 70µm,100µm,120µm

Maximum Operating Temperature & Pressure
20 PSID (1.4 bar) @180°F (82°C)
30 PSID (2.1 bar) @160°F (71°C)
50 PSID (3.4 bar) @77°F (25°C)

Recommended Change Out Pressure 15 PSI

Dimensions Outside Diameter: 6” (15.2 cm) OD
Lengths: 20”, 40”, 60”
50.8cm, 101.6 cm, 152.4 cm

Surface Area
20” length – 24 ft 2 (2.2 m 2 )
40” length – 49 ft 2 (4.6 m 2 )
60” length – 73 ft 2 (6.8 m 2 )

Materials Available
Media/Support/Netting
Polypropylene

End Caps
Polypropylene

O-Rings
Buna-N
EPDM
Silicone
Viton

Applications

Prefiltration of RO, Pretreatment of sea water desalination

Condensate water filtration, hot water recovery in power generation

API, solvents, and water filtration in BioPharm market

The filtration of bottled water, high Fructose, edible oil, soft drinks, and milk

Paints and coatings, Petrochemical, Refineries

Microelectronics, film, fiber and resin

Features•

Absolute rated, 6” diameter, pleated polypropylene
cartridge filters.
• Inside to outside flow keeps unwanted particulate
trapped within filter even during change out.
• External netting adds additional support and built in
handle makes filter change out fast, easy and safe.
• Thermally bonded.
• Compatible with most industry standard high flow filter
housings.

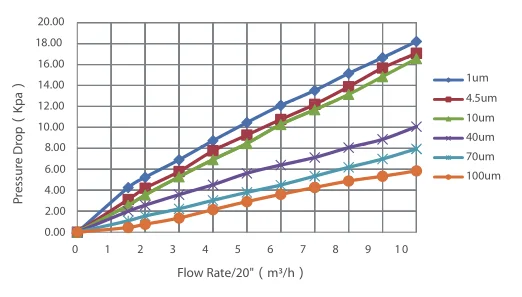

Pressure Drop vs.Flow Rate@20°C
