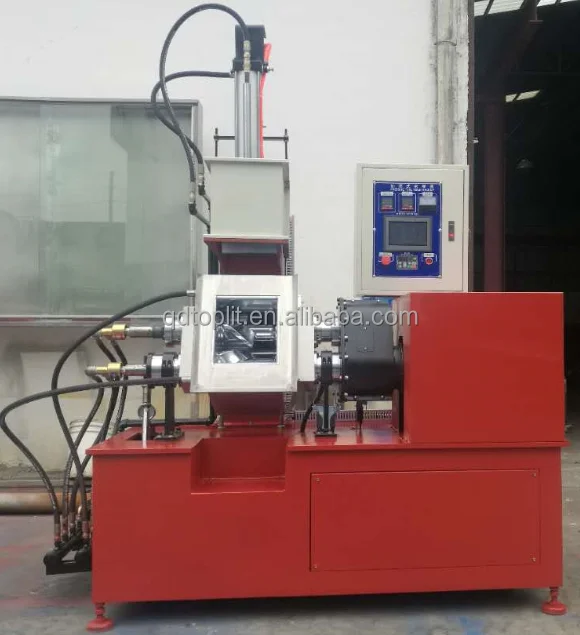

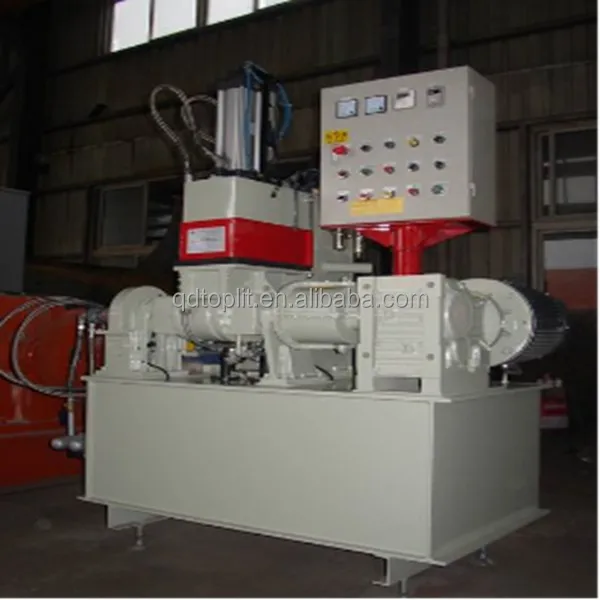

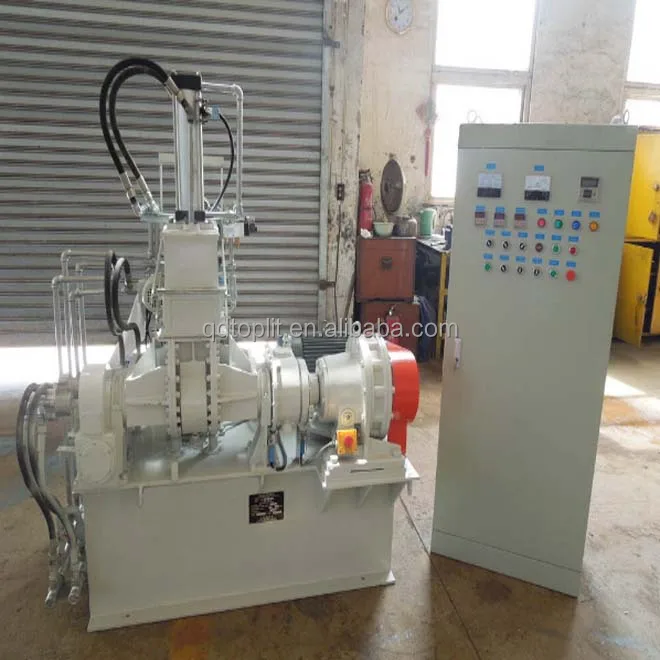

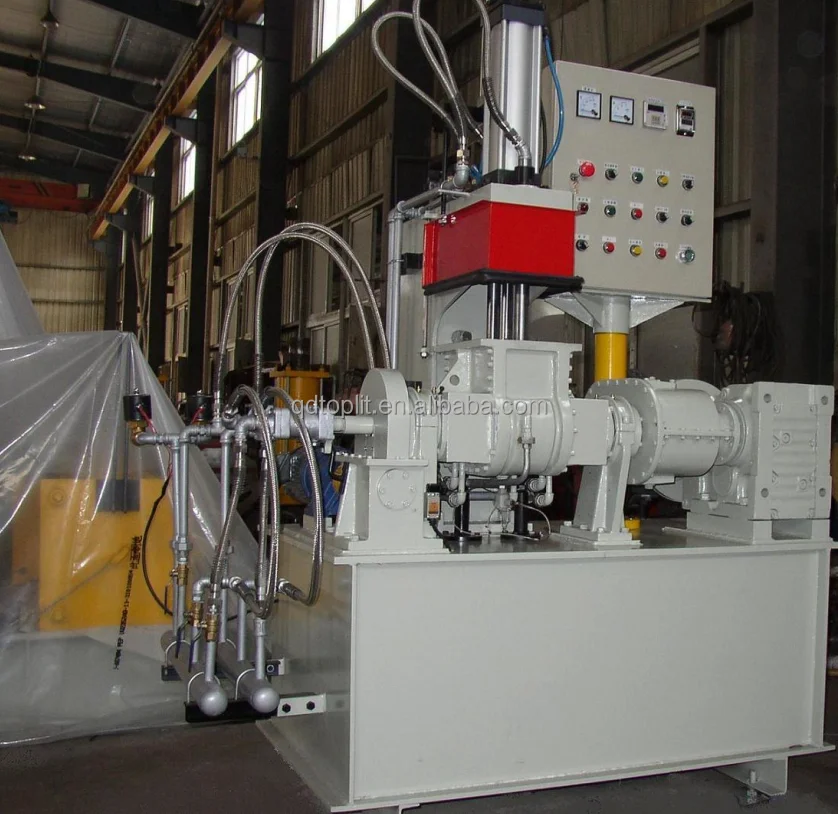

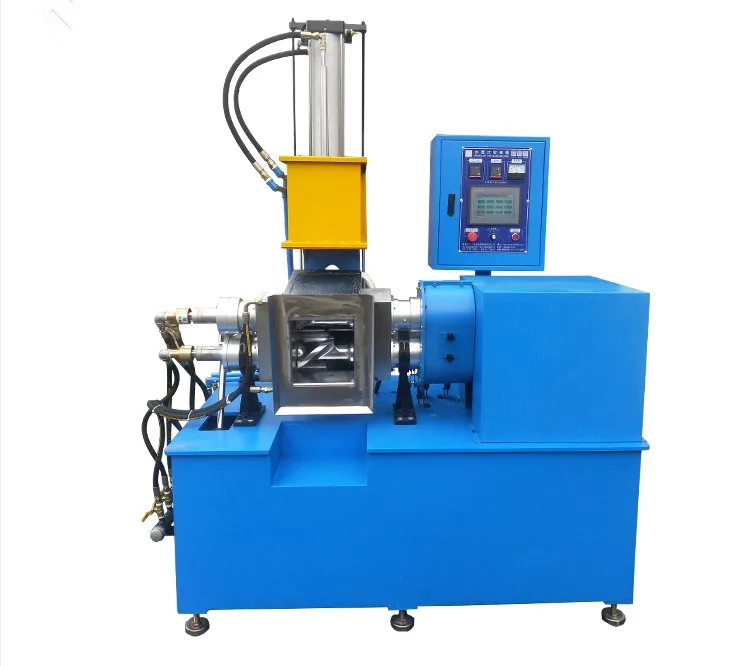

5L Lab rubber kneader / lab banbury kneader mixer
- Category: Rubber Kneaders >>>
- Supplier: Qingdao Toplit Industry Co. Ltd.
Share on (60675493977):
Product Overview
Description
Lab Rubber Kneader / Lab Banbury Kneader Mixer
Wechat / Whats app: 0086-13963951313
Product Description
Technical spec.:
|
Item |
Specification |
|
|
1.Effective capacity of mixing |
3L |
5L |
|
8L |
15L |
|
|
3.Main motor power |
5.5KW |
11KW |
|
4.Rotor speed(Front/Rear) |
32/24.5r/min |
32/23.5r/min |
|
5.Cylinder of material pressing diameter |
140° |
140° |
|
6. Tilting motor power |
0.55KW |
1.1KW |
|
7.Pressure of compressed air |
0.5-0.8Mpa |
0.6-0.8Mpa |
|
8 Pressure of cooling water |
0.2-0.4Mpa |
0.2-0.4Mpa |
|
9. Pressure of heating steam |
0.5-0.8Mpa |
|
|
10.Overall dimensions ( L×W×H) |
2000*1000*2220mm |
|
|
11. Weight |
about 2 tons |
About 2.1tons |
Usage:
Usable for rubber or plastic plasticzing and mixing or rubber and plastic blending.
Features:
1.The motor is 3- phase asynchronous motor.
2.Rotor surface of wearing parts and interior cavity of mixing chamber are hard chromium plating, chrome plating thickness is of 0.08 ~0.12mm, the rotor shaft end is inlaid with alloy ring.

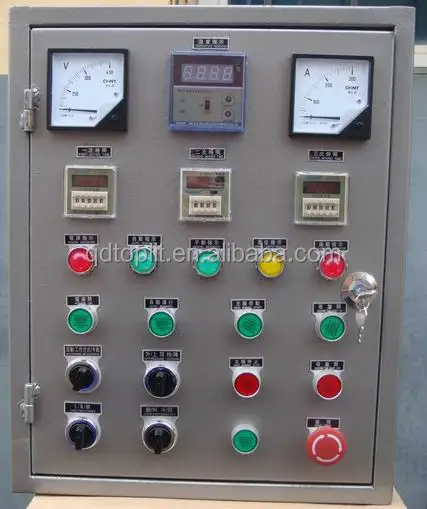

3.Mixing chamber equipped with a thermocouple, operation cabinet equipped with a thermometer, to monitor the mixing chamber temperature
4.Electric use of PLC control, PLC use Omron products in Japan.
\
