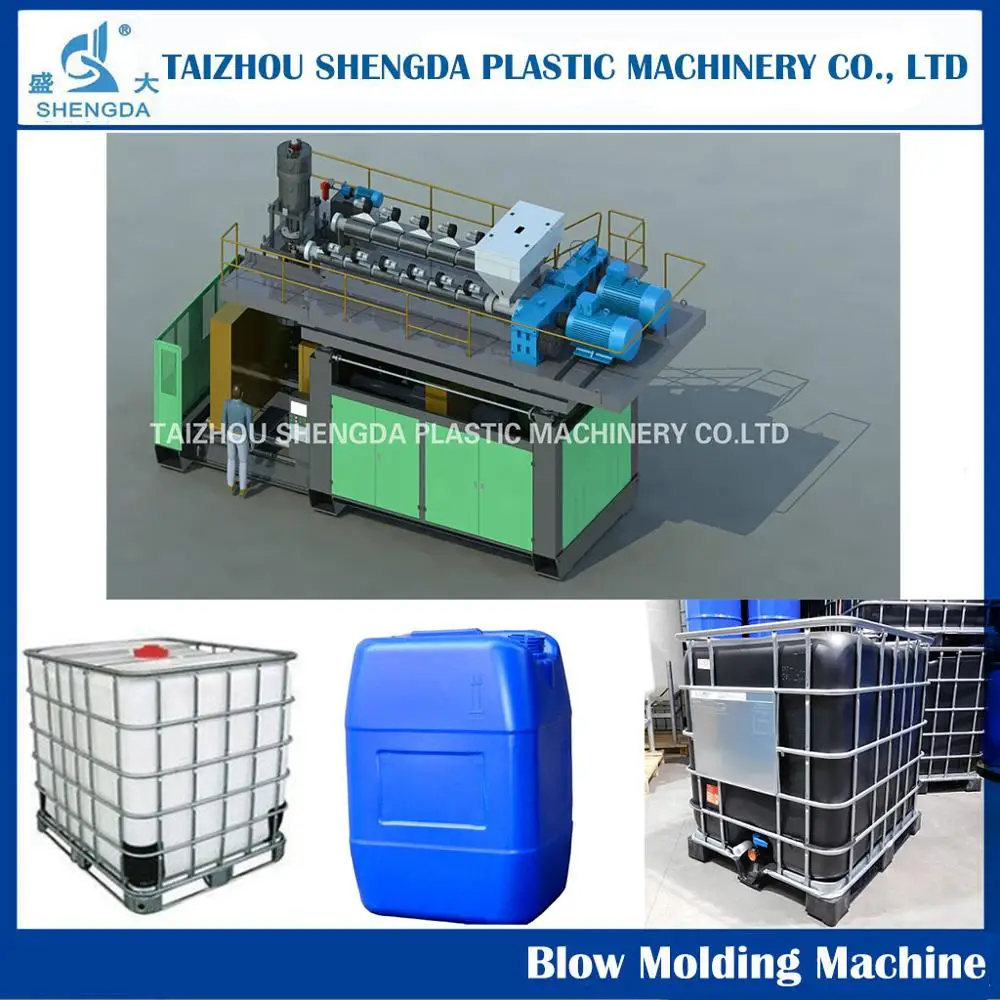

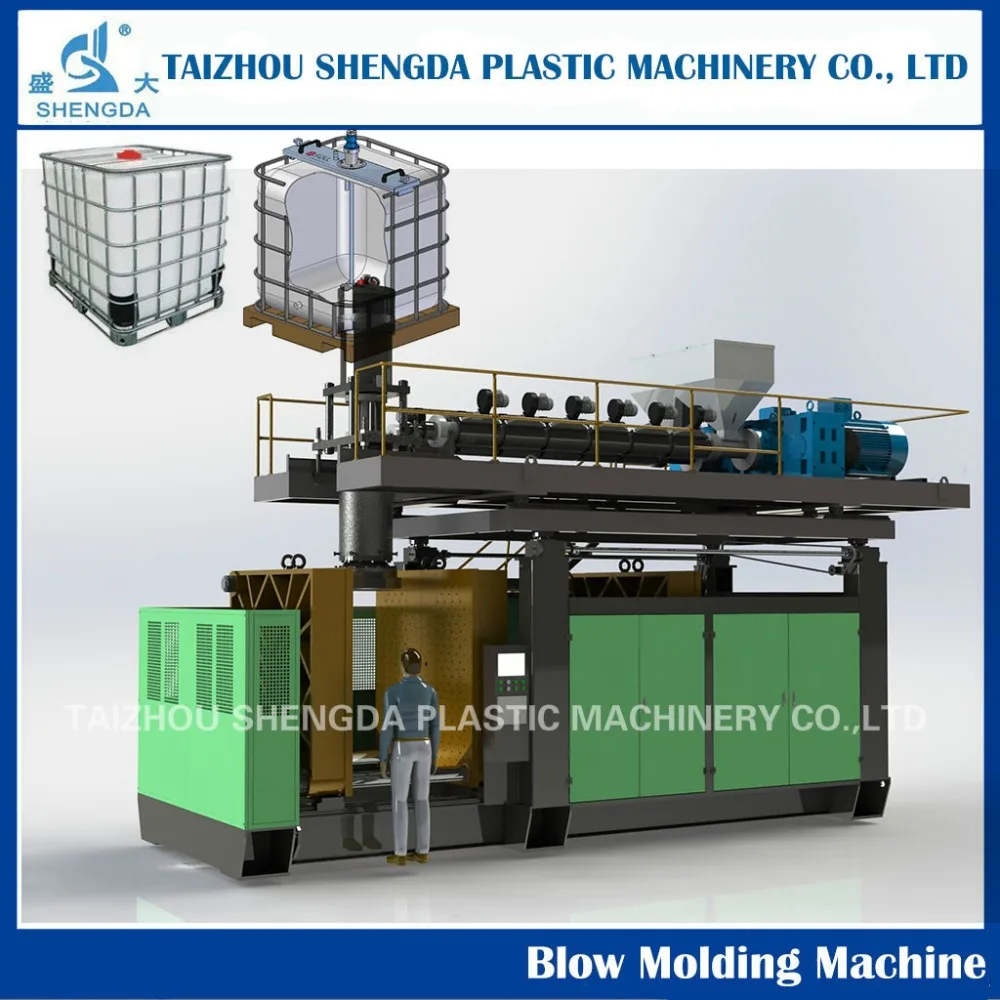

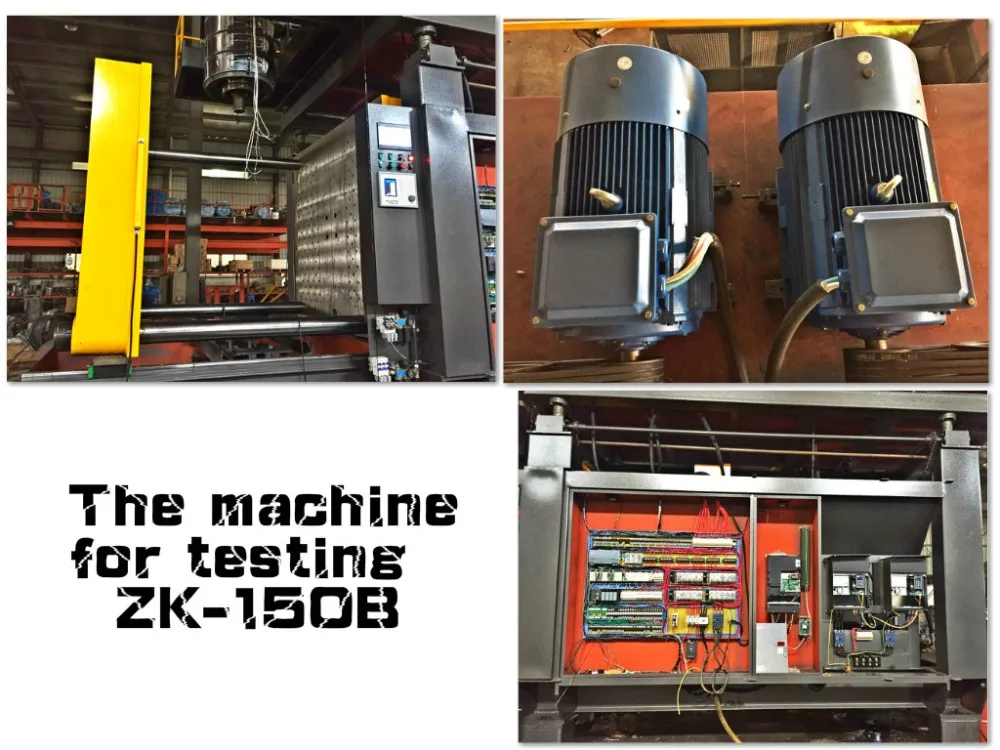

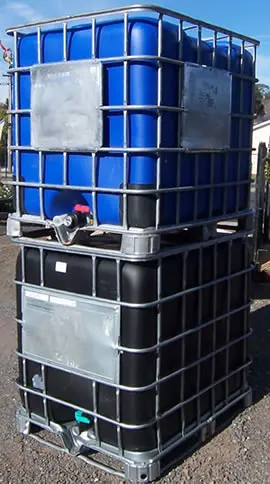

IBC tank blow moulding machine

Product Overview

Description

WELCOME TO "SHENGDA"

PLC plus man-machine interface, operate by touch screen. Self-diagnosis alarm, clear at a glance.
Accumulator die head whose runner is made by high-quality nitride alloy steel with mirror surface treatment, material and color quick reload.
Unique " three tie bar +two cylinder + linear guide" structure of the clamping structure to ensure a more uniform mode-lock, knit line more smooth.
Hydraulic system designed under energy-saving hydraulic principles,adopt two oil pump structure. lower energy consumption by 20% -40% compared with the conventional model. At the same time, a significant reduction in oil temperature extends the service life of hydraulic parts.

Features:

1) Controlled by Taiwan PLC

2) Temperature controlled model

3) Interactive monitor with machine-human interface

4) Imported hydraulic elements

5) Hydraulic Proportional control

6) Imported electric elements

7) Hard gear surface reducer

8) Accumulator head with special steel

9) Vicker hydraulic valve, seal and proportional control

10) Taiwan  PLC+ Taiwan human machine interface +software in touch type +famous brand electric elements.

Technical specifications:

Specification	unit	ZK-150B
Max Container Capacity	L	2000
Number Of  Die Heads	set	1
Machine Dimension(L*W*H)	M	8.5*4*6.5
Total Weight
Clamping Force	KN	2200
Platen Opening Stroke	mm	1000-2500
Max Mould Size(W*H)	mm	1800x2200
Mould Thickness	mm	1050-1500
Power
Hydraulic Motor	KW	55
Total Power	KW	300
Fan Power For Screw	KW	1.2
Air Pressure	Mpa	0.7
Air Consumption	m3/min	0.9
Average Energy Consumption	KW	120
Extruder Unit
Screw Diameter	mm	150
Screw L/D Ratio	L/D	30:1
Plasticizing Capacity	kg/hr	480
Number Of Heating Zone	zone	7
Extruder Heating Power	KW	50
Extruder Driving Power	KW	160
Accumulator Head
Die Head Dimension	m
Number Of Heating Zone	zone	6
Power Of Die Heating	KW	60
Max Die-Pin Diameter	mm	70
Accumulator Volume	L	300-1000
