24v dc boat waterproof windscreen wiper motor

Product Overview

Description

This motor equips with 18Nm torque to drive longer and heavier wiper arms& blades. Moreover, the motor is waterproof with IP66 rated so you don’t need to worry about waves and to install cover for the motor. Suitable for most windshields, the motor can adjust its wiping angle from 40 to 110 and parking position. The thin fin design on the body can transfer the heat, cool the system and make motor lifetime longer.



Specification

Torque: 18 Nm

Max arm length: 24" (610mm)

Max blade length: 24" (610mm)

Sweep angle: 40~110, 10 increments

Two speeds: Low 40 sweeps/min; High 60 sweeps/min

Park position: Adjustable & Self-parking; Left or Right

Shaft length: 2.5” (63.5 mm) [Optional]

Shaft adapter: 13.85 mm, L9.8 mm, 72 teeth [Optional]

Voltage: 12V/24V

Waterproof: IP66

Isolated ground; suitable for steel, aluminum, wooden and GRP boat

Stainless drive shaft with nickel-plated brass socket

Aluminum case

CE Approval

3 years warrany



IP66 Waterproof

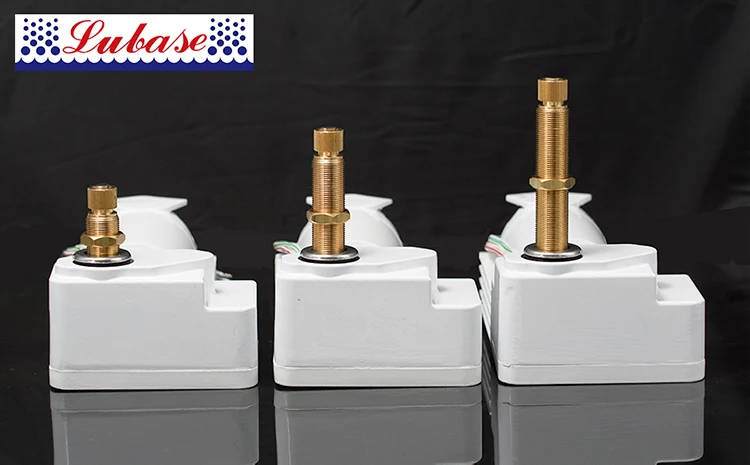

3 different shaft lengths (1.5",2.5",3.5" from left to right)









Item name	Item Number	Shaft Length	Color	Voltage
IP66 Waterproof HD Windshield Motor (1693 Series)	169311-12 CE	1.5"	White	12V
	169321-12 CE	2.5"	White	12V
	169331-12 CE	3.5"	White	12V
	169311-24 CE	1.5"	White	24V
	169321-24 CE	2.5"	White	24V
	169331-24 CE	3.5"	White	24V

* All products are preset 110 degree & right parking. If you need other settings, please notify in advanced.





If you need a quote, please provide 1. Item Number 2. Qtys 3.Your Postal Code. We will reply you with shipping  ASAP
