Mini CNC Glass Cutting Machine for Small Glass

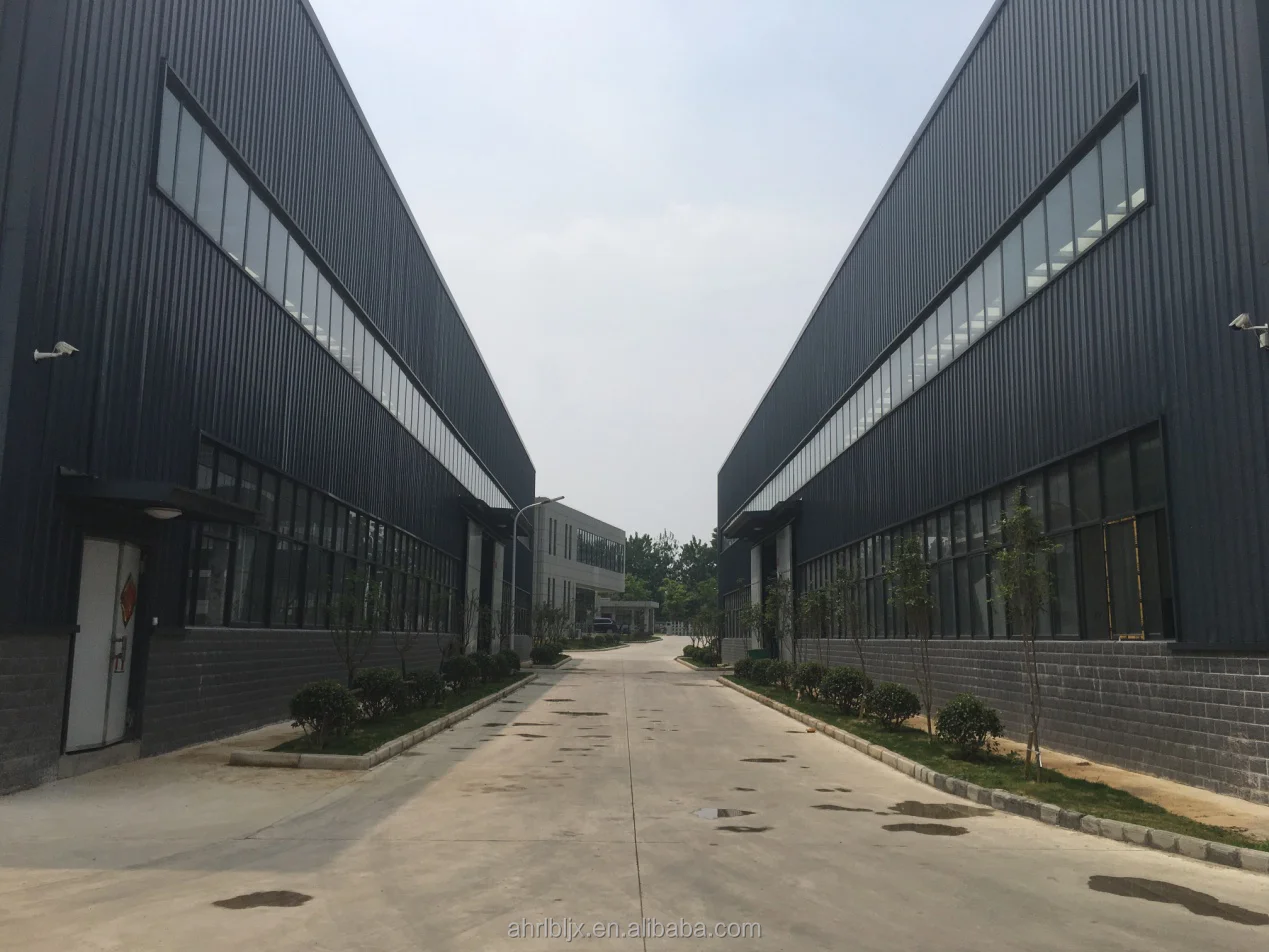

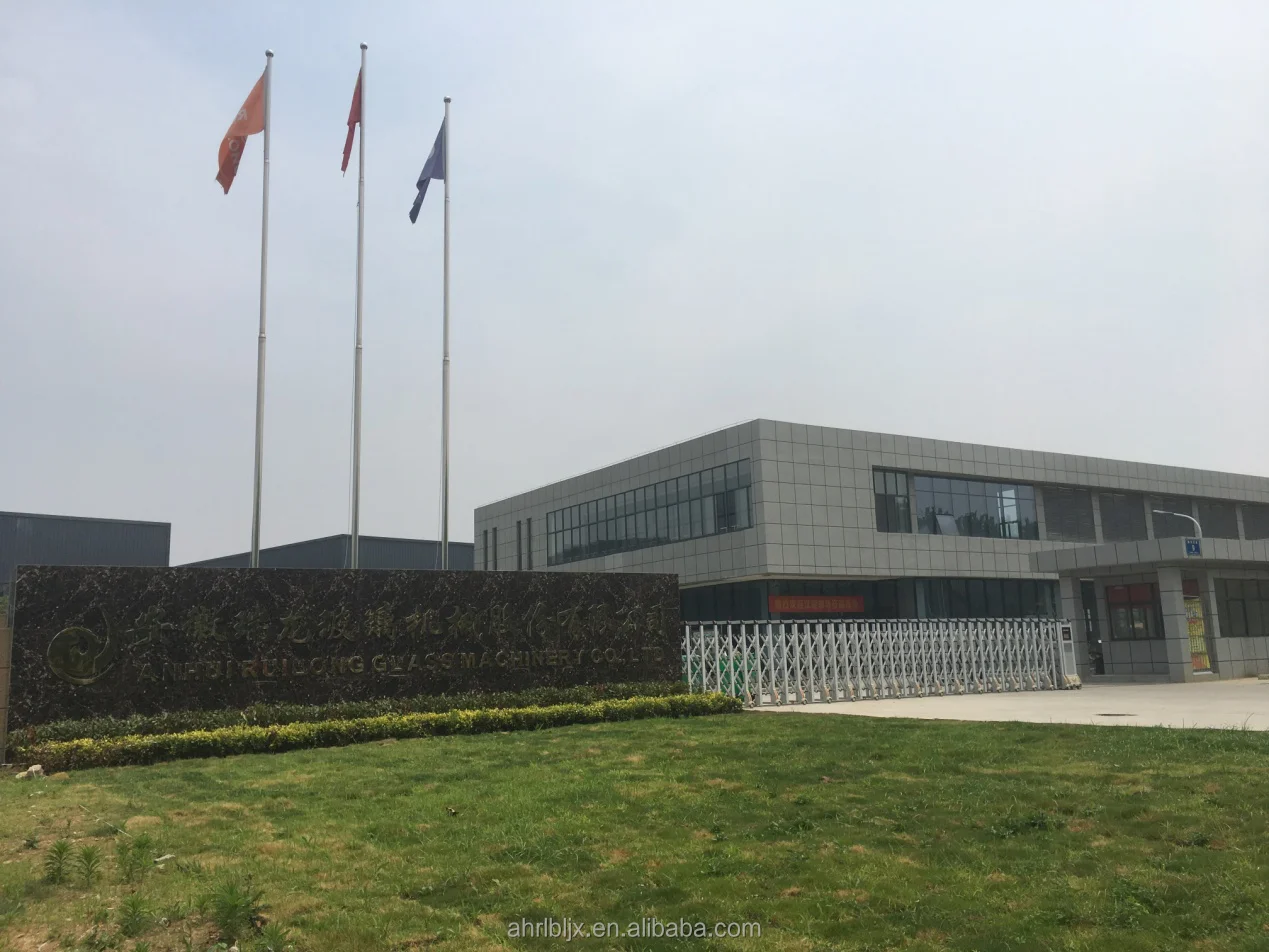

  Anhui Ruilong glass machinery co.,ltd focus on intelligent glass machinery and relevant automatic machinery . we are also one of the comprehensive new enterprises that provide the research and development,production,sale , technology service and  After-sale maintenance and other services .The company covers an area of 40000 square metres  , total investment more than 200 million yuan(31 million dollar), existing staff 80 people.

  So far Ruilong has been won the recognition award in Anhui province industrial design competition ,Bengbu city first sets of major technical equipment certification enterprise specialization, arts and new certification enterprises, Bengbu city Internet and information fusion development demonstration and many kinds of honorary certificate .

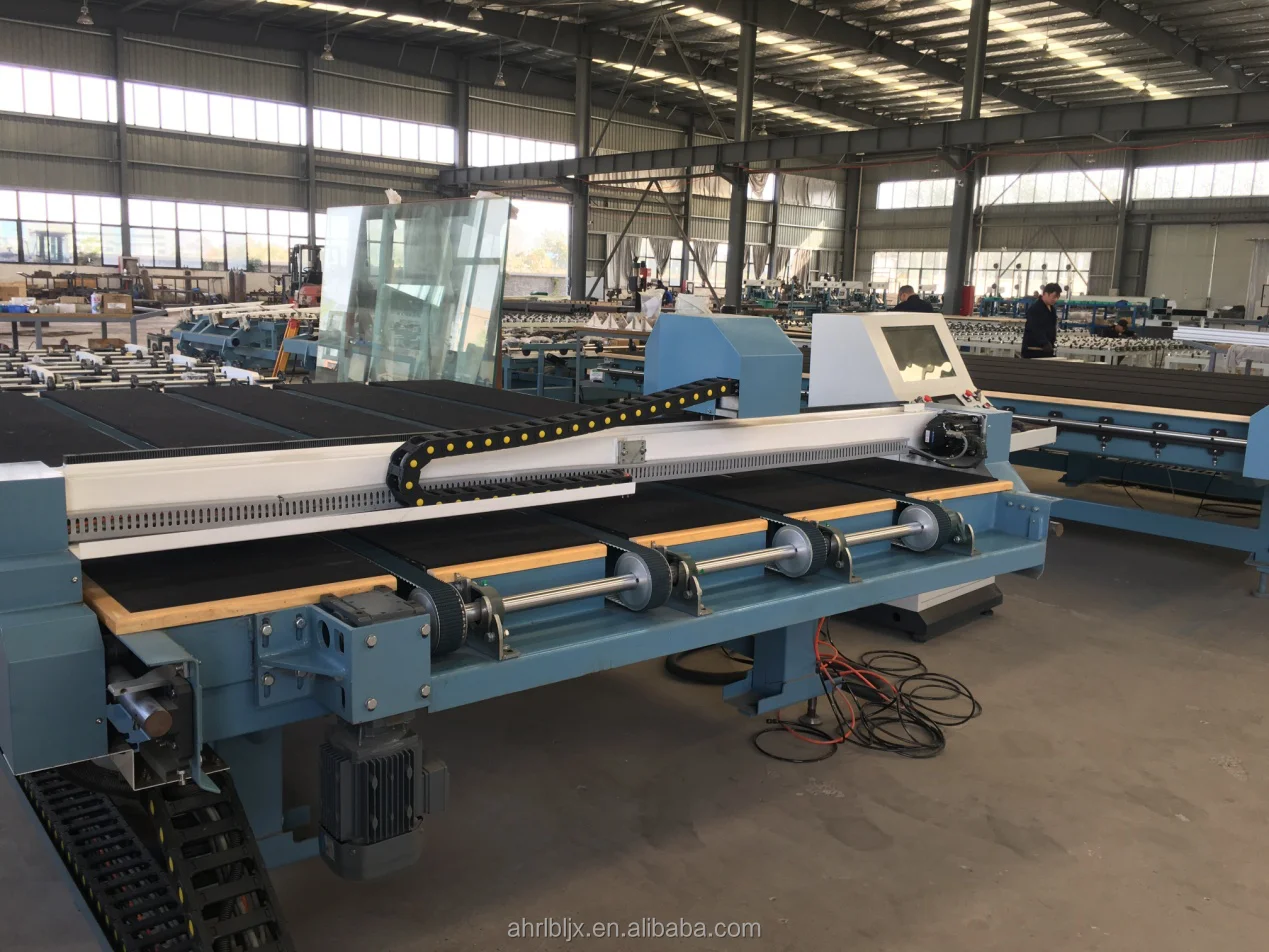

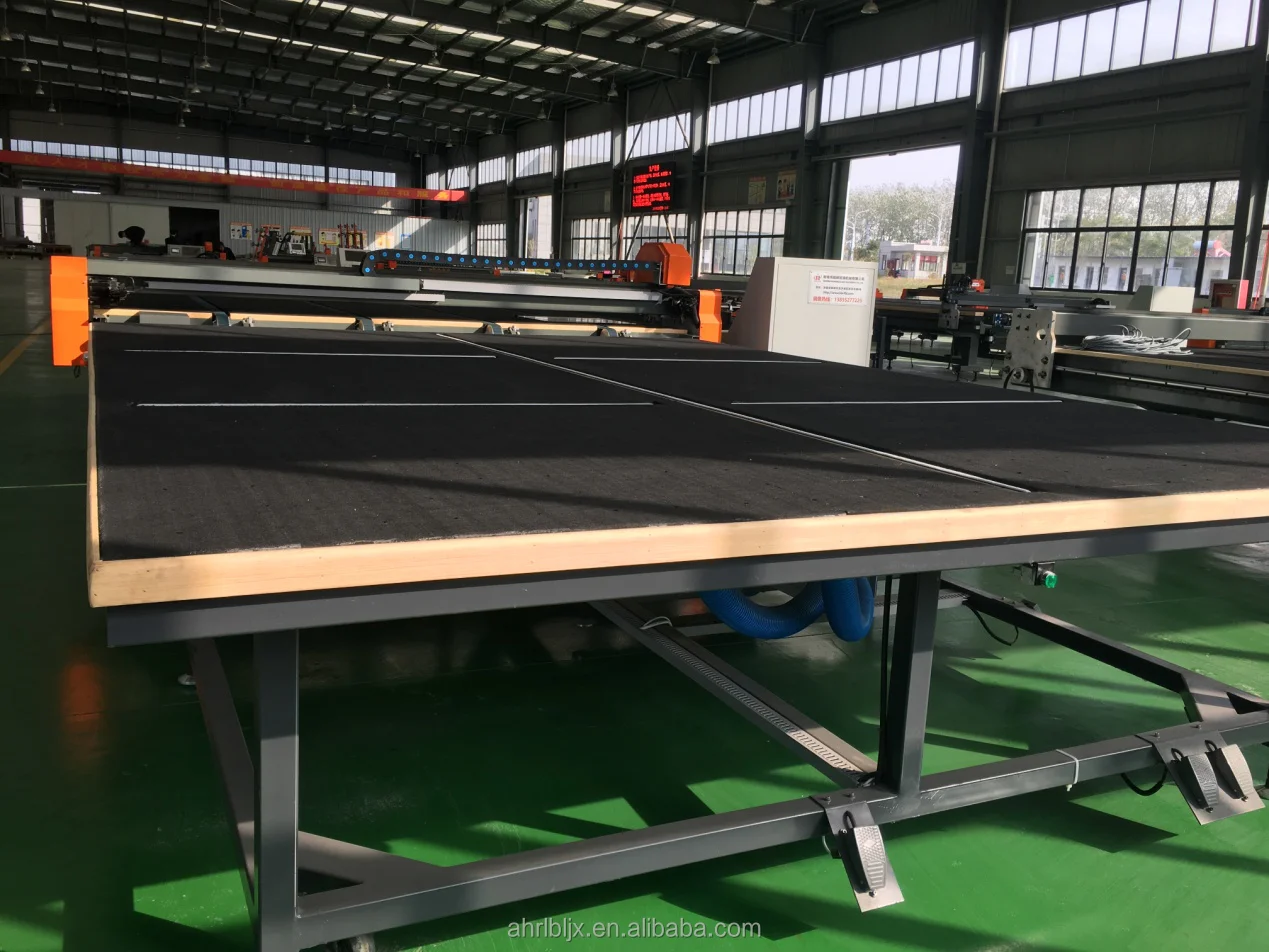

   Our company research and development design ,production and sales of main products are: loading and uploading for all kinds of glass machine, CNC glass cutting machine ,Semi-automatic glass cutting machine, double or single sides glass grinding machine, various types of ultra-thin glass cutting machine and  grinding machine, normal ,convex ,ultra-thin glass cleaning machine, glass rod,brick,tube, bottle and optical material cutting machine, glass transmission table, glass drilling machine, Top level intelligent cold glass processing line and all kinds of non-standard automation equipment and  etc .

   As a key investment enterprise in the Longzihu area, we trying to business development as well as positive response One Belt And One Road ; 4.0 industrial ,power industrial ,manufacturing strong province of  various national and provincial strategyUnder the keen concern of the party and government, under the support of relevant functional departments, the Ruilong is through continuous efforts and enterprising, explaining the belongs to own heart spirit and Chinese craftsmen to make new style. In the future we will make persistent efforts continued ascension, establish a sound and efforts to improve the business process, in order to succeed at an early date to build industry leading brand, become the industry standard makers and guidance in the development of industry Inheritance, The century-old foundation begins with the first step, and the day progresses into perfection, Ruilong people are on a mission to get the final glory and let the dream come true .

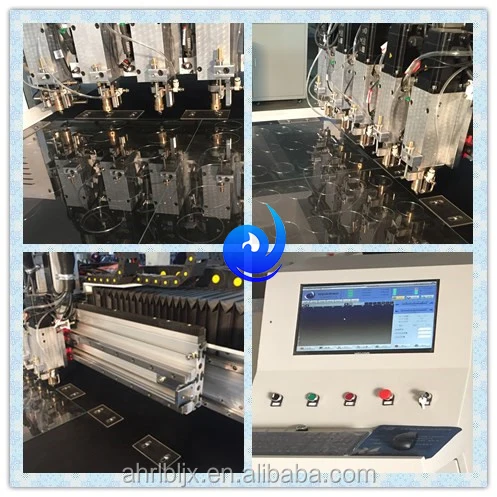

Mini CNC Glass Cutting Machine for Small Glass

This automatic ultra thin glass cutting machine is used for cutting ultra thin glass,. Suitable for OLED glass, optical glass, crystal glass, display glass, mobile phone touch screen glass, glass, cutting process of OGS ultra-thin glass, high cutting efficiency, good accuracy, high yield and simple and convenient operation, no technical requirements for operators.

1. Parameters:

Thickness: 0.2mm-5mm

Cutting size: 600*500mm

Weight: 1000kg

Tolenrance: large: ±0.1mm; small:±0.05mm

Speed: 0-60m/min(adjustable)

Power: 3.1kw

Flatness of marble surface: ±0.05mm

2. Configuration

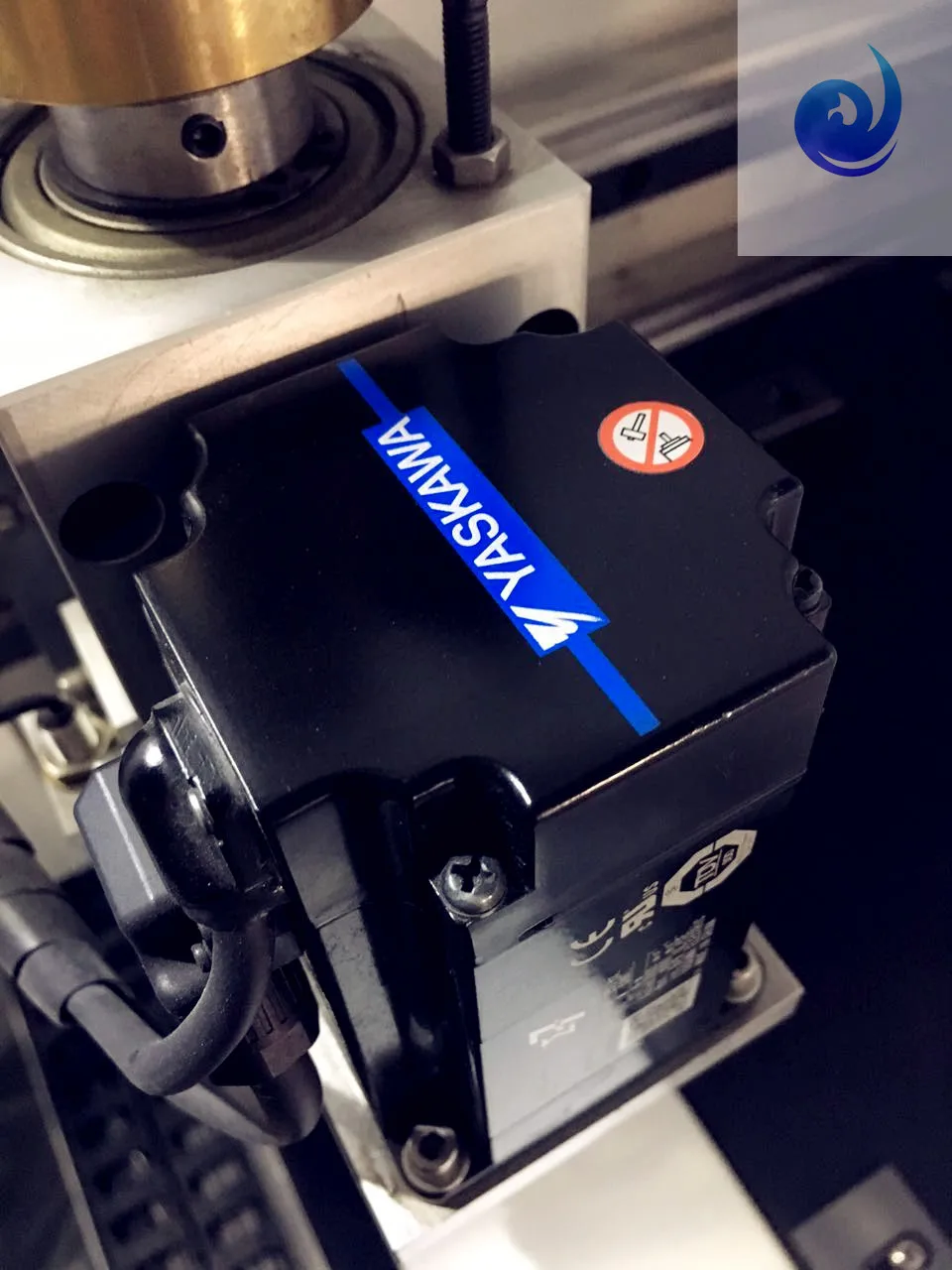

Transmission: X, Y, Z axis imported from Japan Yaskawa servo motor
Oil: automatic oiling device
Positioning device: mechanical positioning device

Mechanical Configuration: screw are Bank of Taiwan on the grinding level , guide for the silver.

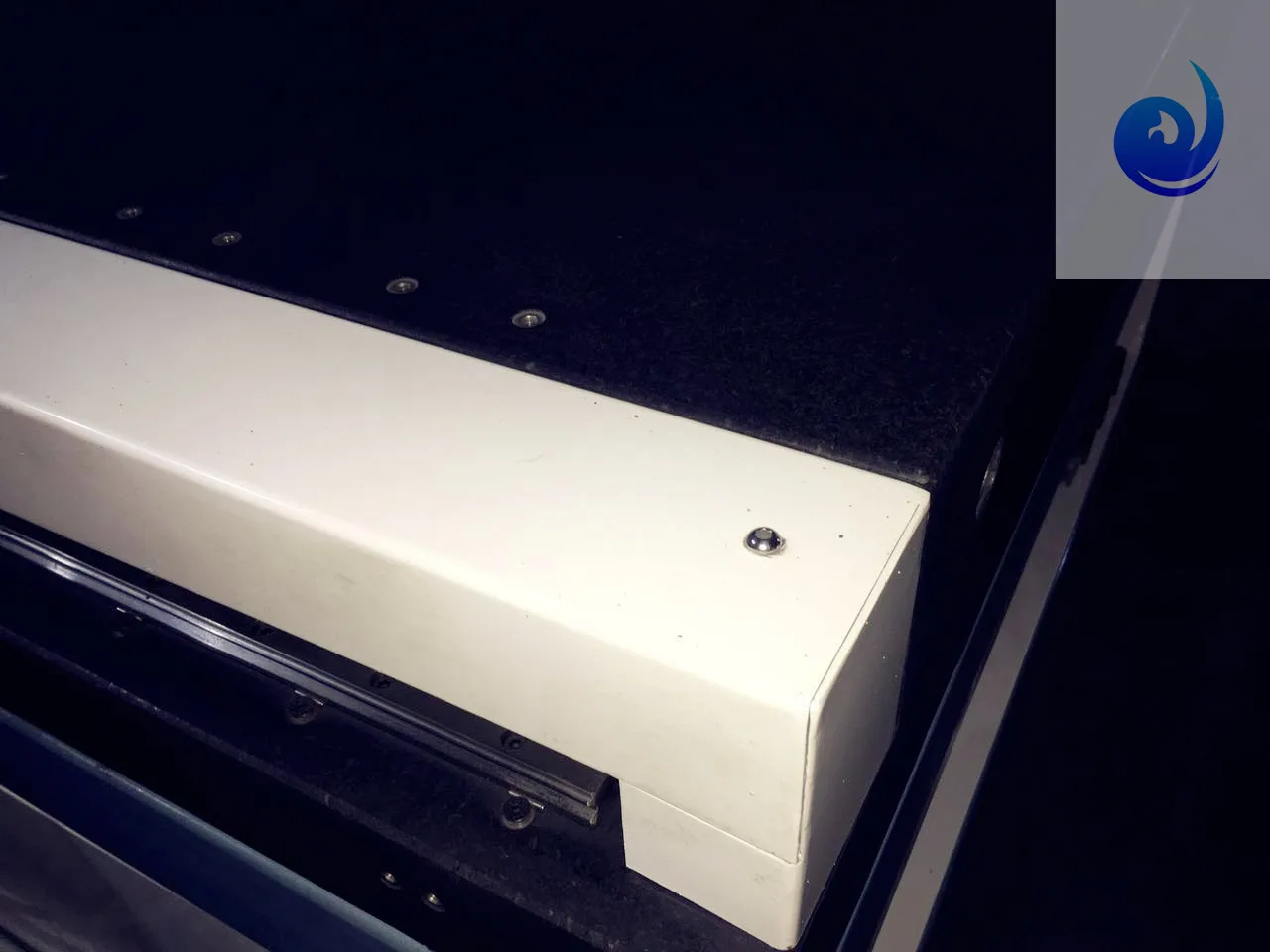

Table: Precision Marble countertops, flotation device
Pneumatic components: AirTAC, SMC
Computer Configuration: Lenovo Industrial Dual Card

Software: glass cutting software (Shanghai Weihong)

Professional glass cutting software, CAD drawing, you can cut a rectangle , A variety of graphics.

3. Electrical appliances (gas) component details

A. Air switch: Taiwan Adventist (with leakage protection)

B. AC contactor: Taiwan Adventist

C. buttons, lights, selector switches: Taiwan's mountains and rivers

D. Switching Power Supply: Taiwan Mingwei

E. Relay: Omron

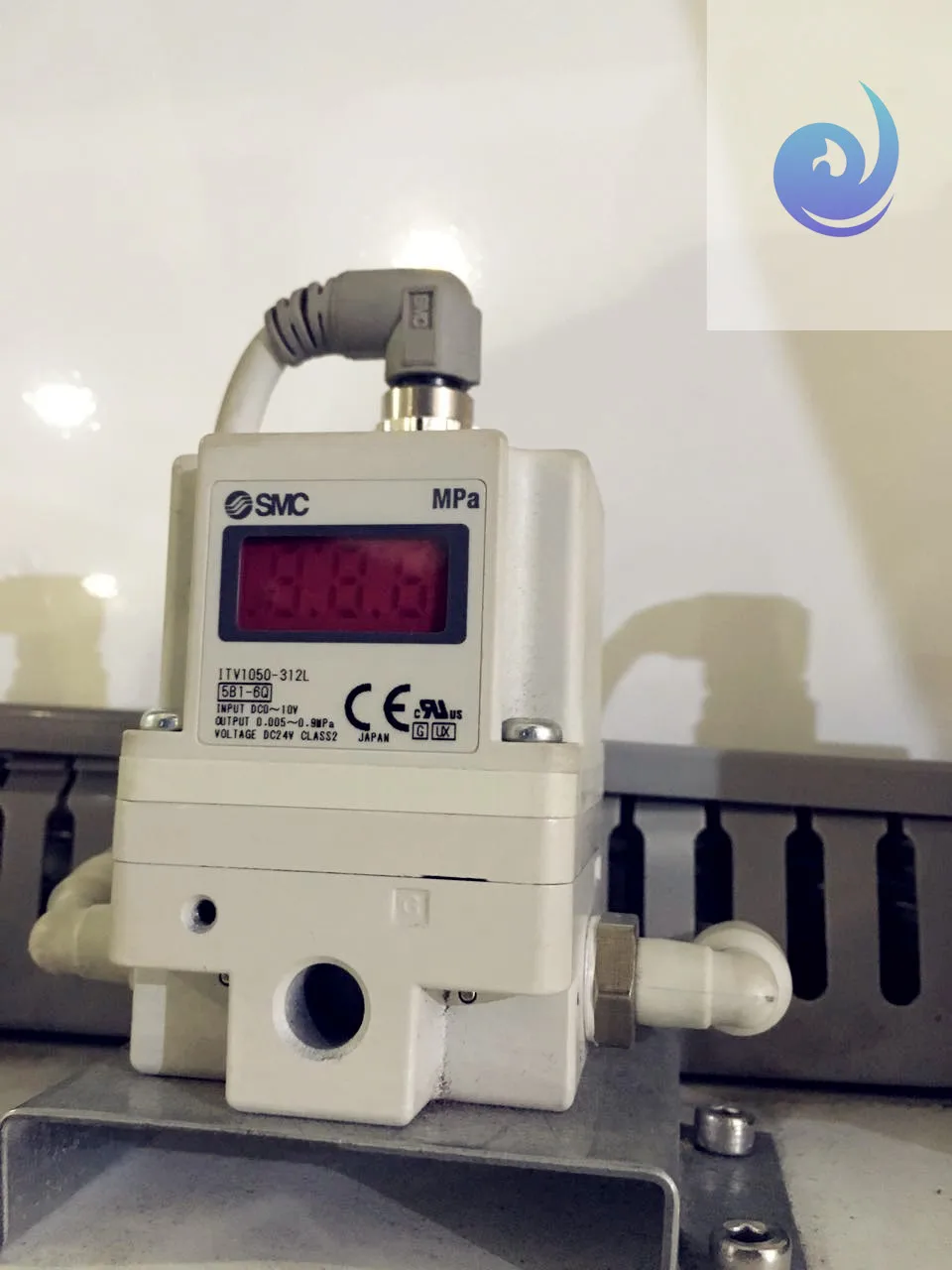

F. proportional valve: SMC

G. filters, solenoid valve: AirTAC

4. Delivery list

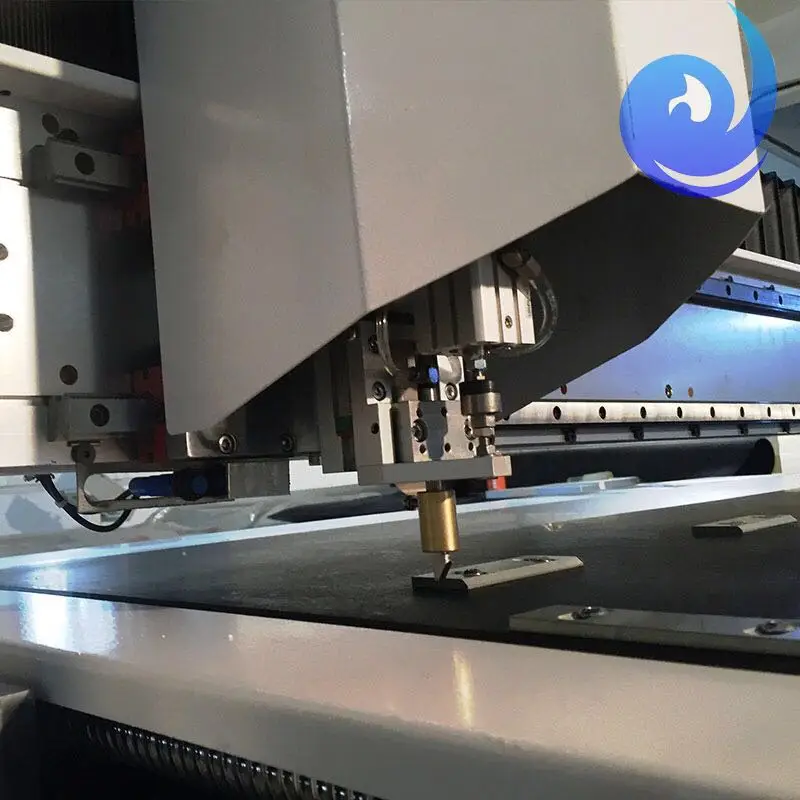

Three Toolholders (Nikken cutter wheel)

One set Debugging tool

One manual instruction

One year maintenance, excluding wearing parts, lifetime repairing

Configure supplier by installation:

Power: 380V, Output: 3.6KW

Air pressure: 0.4—0.6MP, Drying gas source

What are we supply?

Q: Do you supply overseas enginners service for small glass cutting machine ?

A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.

Q: What’s the small glass cutting machine warrnty?

A: One year, If you need to incease the warrnty, need extra cost.

Q: Do you provide accessories for small glass cutting Machine?

A: Yes, we will provid some additional loss of accessories.
