Полуавтоматический механический привод по индивидуальному заказу CY400, круглое формовочное устройство для жестяных банок
- Category: Packaging Forming Machines >>>
- Supplier: Jiujiang Yongxin Can Equipment Co. Ltd.
Share on (60675752958):
Product Overview
Description
| Related Equipment |

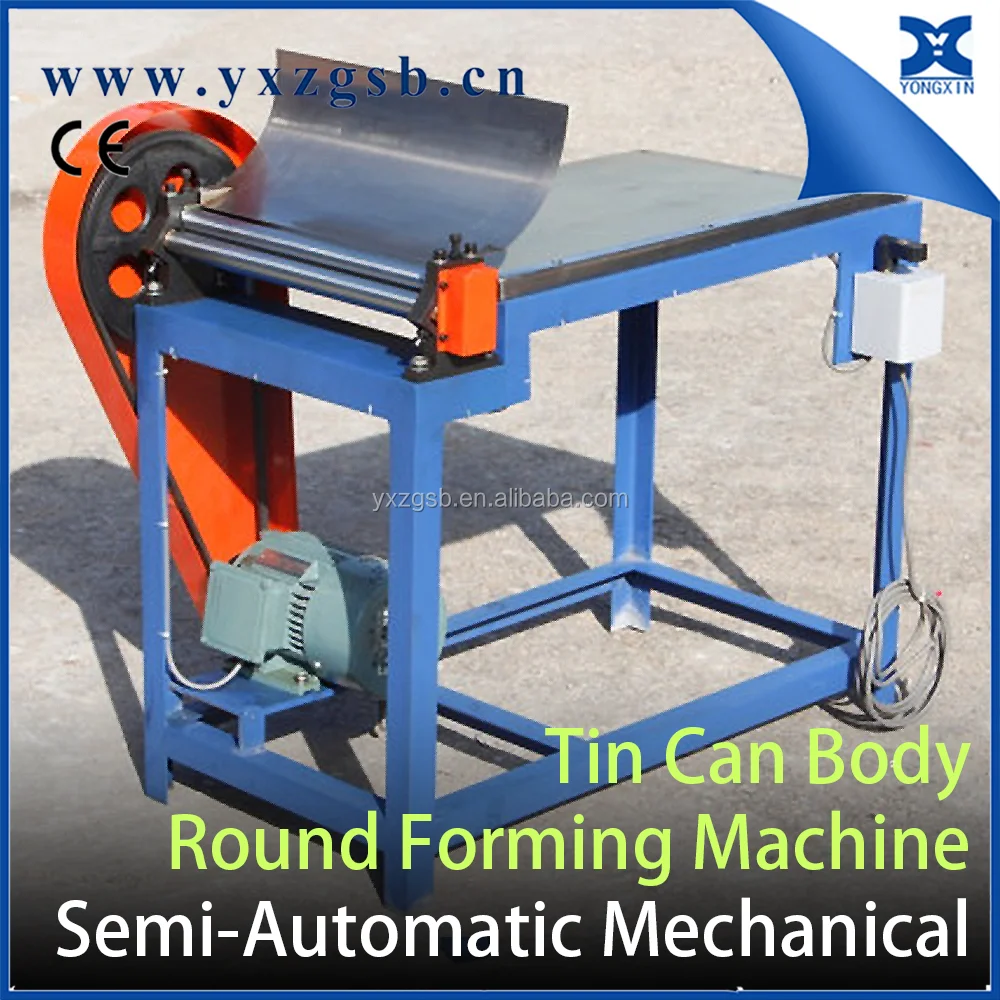

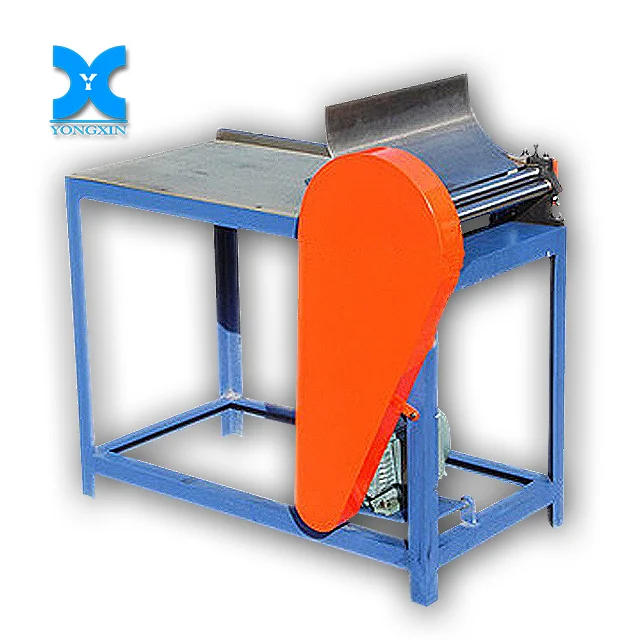

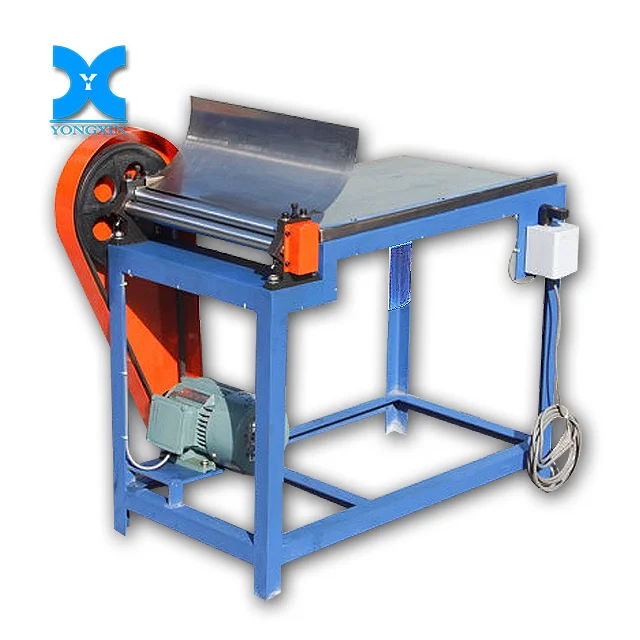

CY400 Semi-Automatic Mechanical Drive Tin Can Body Round Forming Machine
Model: CY400
More information please go to www.jeitco.com
Specification
Specification |
| Model | CY400 |
| Usage | Can body Rounded Forming |
| Main Color | Blue |
| Operation Mode | Semi-Automatic |
| Output Capacity (CPM) | 30 cans/min |
| Range of Can Diameter | 100-300mm |
| Range of Can Height | less 400mm |
| Support Canbody Material | Tinplate / Steel-based / Chrome |
| Canbody Material Hardness | T2.5-DR8 |
| Canbody Thickness Range | 0.2-0.4mm |
| Power System Overload & Short-Circuit Protection | Provided |
| Protection Grade for Electrical Switch-gear Box | Class Index IP65 |
| Electrical Control & Distribution System Supplier | Schneider Electric |
| Standard | IEC60947 for Electrical System |
| Motor Power | 2.2kW |
| Power Supply Required | 380V 50/60Hz @ Three-Phase Sys. |
| Weight | 110kg |
| Construction Size | 870 X 670 X 920 (mm) |
| Shipment Lead time: | 2-4 weeks |
| Packaging | Plywood Case (Standard Export Packaging) |
| Warranty: | One Year for parts from shipping date |
| Operator Manual & Instruction | DVD supplied |
| Features |
It has quality cylindrical shape, simply operation and maintenance, cost economic.
We'd be proundly invite all of our friends and customers to visit our factory and facilities, also meet our genius how to build our one set of machine!
General Canmaking Processing Workflow
