We offers PLC splitter with high quality and good price. It's specially for passive internet, including EPON, BPON, GPON, etc. And different package can follow customer's inquiry.
Applications:
1. Fiber in the loop.
2. Test instruments.
3. Local area network (LAN).
4. Fiber optic CATV.
Features:
1. Low insertion loss, excess loss and PDL.
2. High directivity.
3. Long haul reliability.
4. Customer defined specifications.

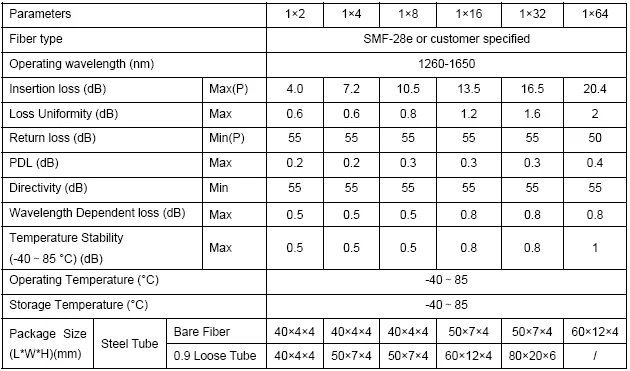

Specification:
1XN
Remark:Parameters not include fiber and connector loss.

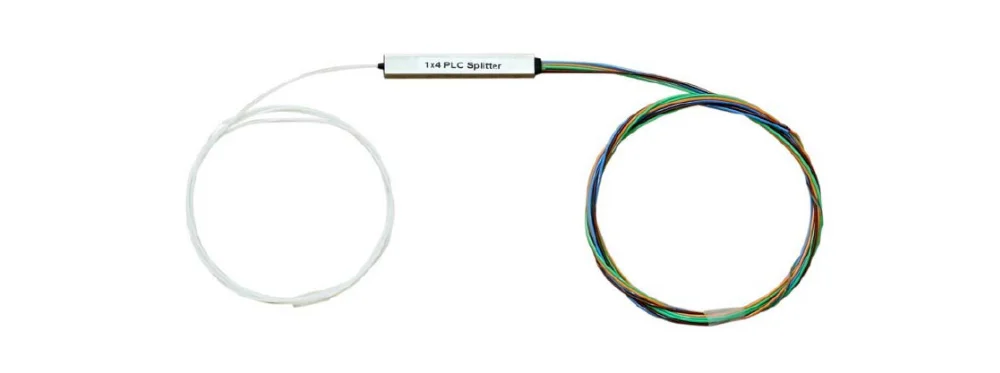

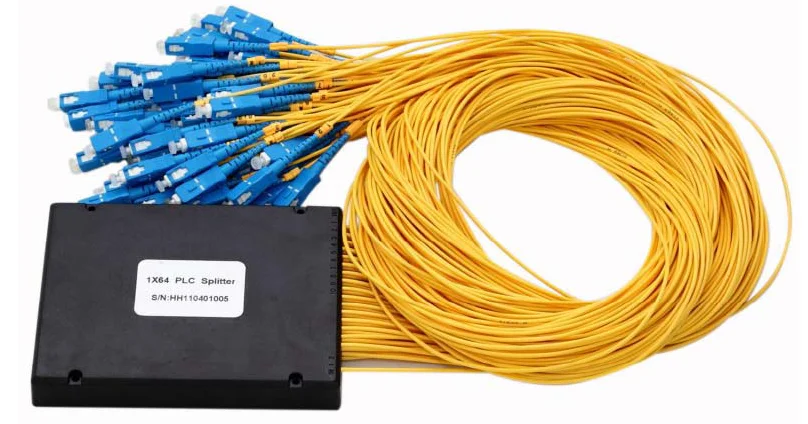

Module Type PLC Splitter
Description
PLC splitters mainly applied to the optical distribution network, distribute the power of truck fiber to several roads, so as to realize the multiple users access of community or building. PLC splitters are designed and applied to various of boxes, fixed by card or bound. 1 or 2 inputs, with several outputs, protecting with 2.0mm or 3.0mm loose tube, the PLC splitter has reliable performance, compact structure and users plug.
Features
1. The package sizes are optional.
2. Length and diameter of fiber optic cable are optional.
3. FC, SC, LC and ST connectors are optional.
4. Fixed way: paste, binding or nut fixing.
5. Operation wavelength: 1260 ~ 1650nm.
6. Good uniformity and high reliability.

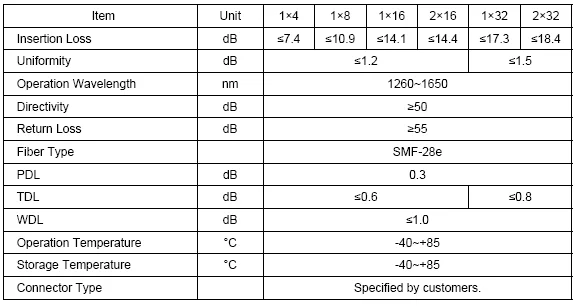

Specification

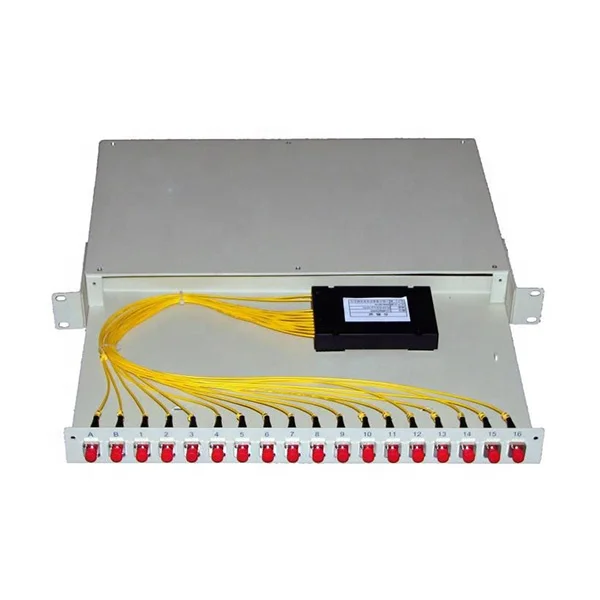

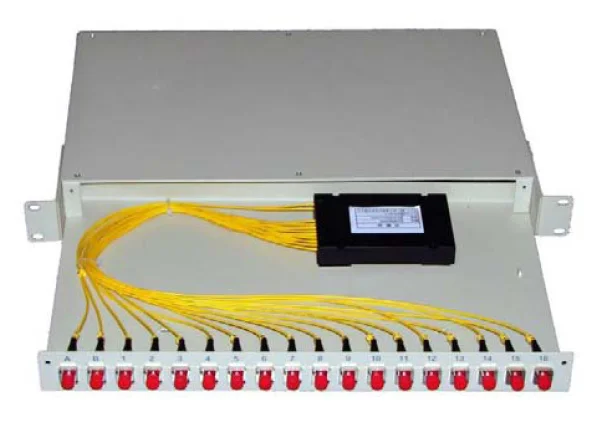

Rack Mounted Fiber Optic Splitter
Description
Suitable for FTTx system scene with small splitting capacity. 19” standard installation dimension and 1U standard height, can be conveniently applied to the comprehensive frame or the standard 19” ODF.
Features
1. Capacity is 1(2)×32(or less).
2. Can install PLC splitter or FBT coupler with various splitting ratio.
3. Can install FC, SC and LC adapters.
4. 19” standard installation dimension and 1U standard height.
5. Tray type structure.

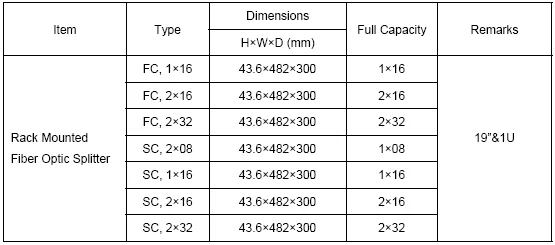

Ordering Guide

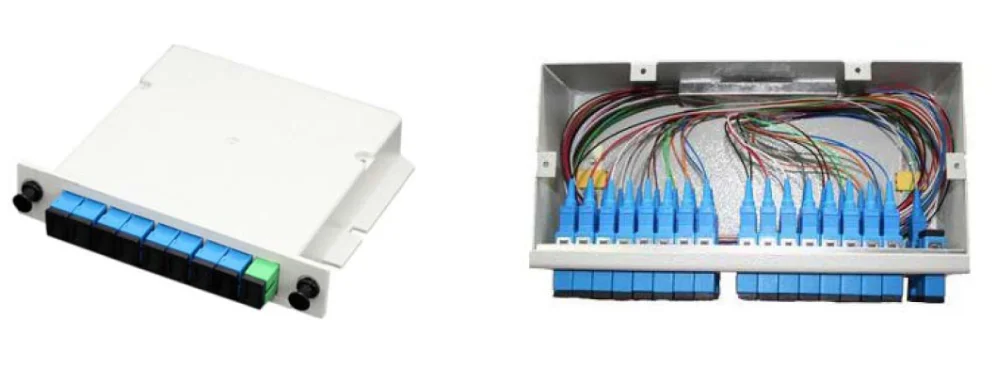

Card-Inserted Type PLC Splitter
Description
Applicable for various distribution equipment inquired for light splitting in FTTx system. Module structure with convenient configuration and expansion.
Features
1. Card-inserted type PLC splitter sets PLC splitter and fiber optic adapter as a whole.
2. Great convenience to project construction, also reduces pigtail damage caused by construction or improper storage.
3. Offer 1×4, 1×8, 1×16, 1×32 specifications.
4. Modular design with good interchangeability and convenient expansion.
5. Gradual expansion, can effectively reduce the customers’ investment cost.

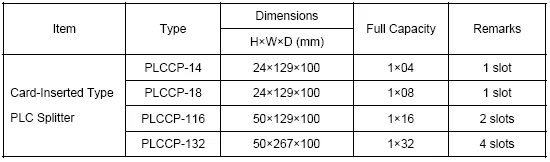

Ordering Guide
*We can also provide products according to your requirement. Welcome to contact us with any inquiries. Thank you!
