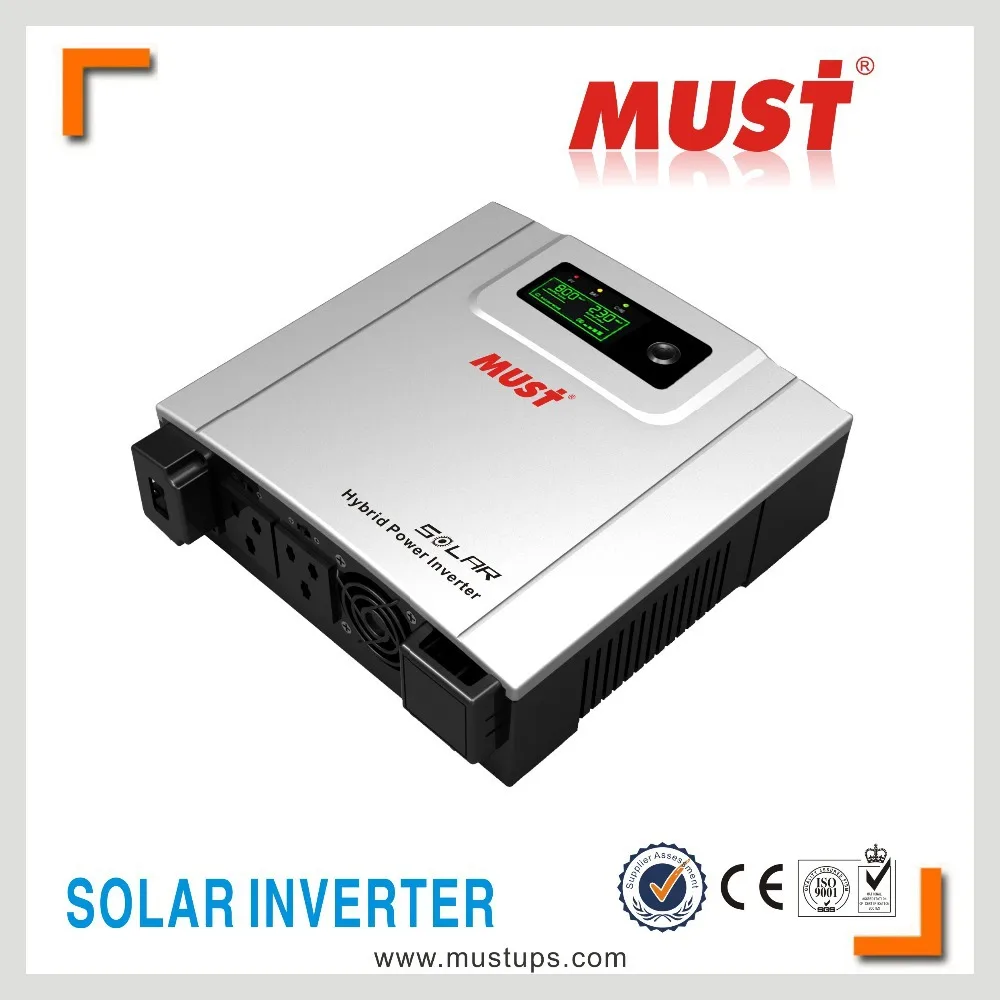

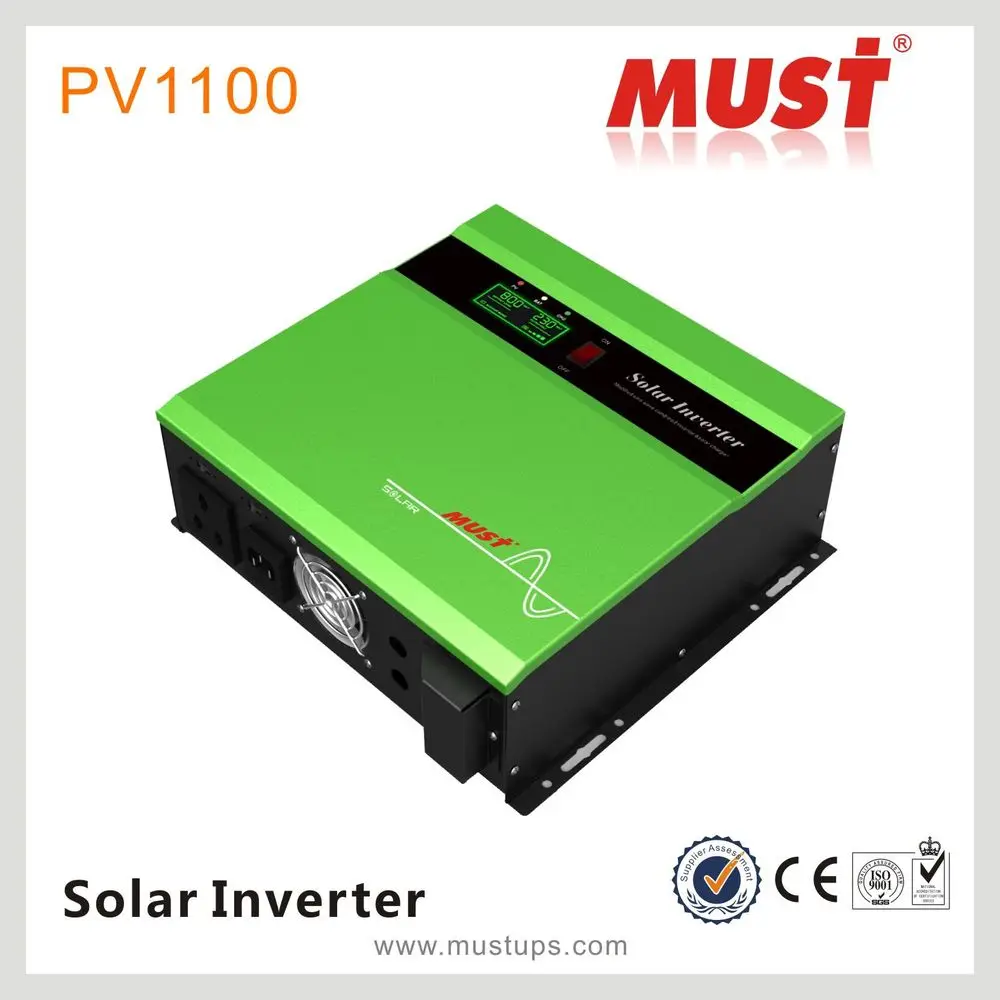

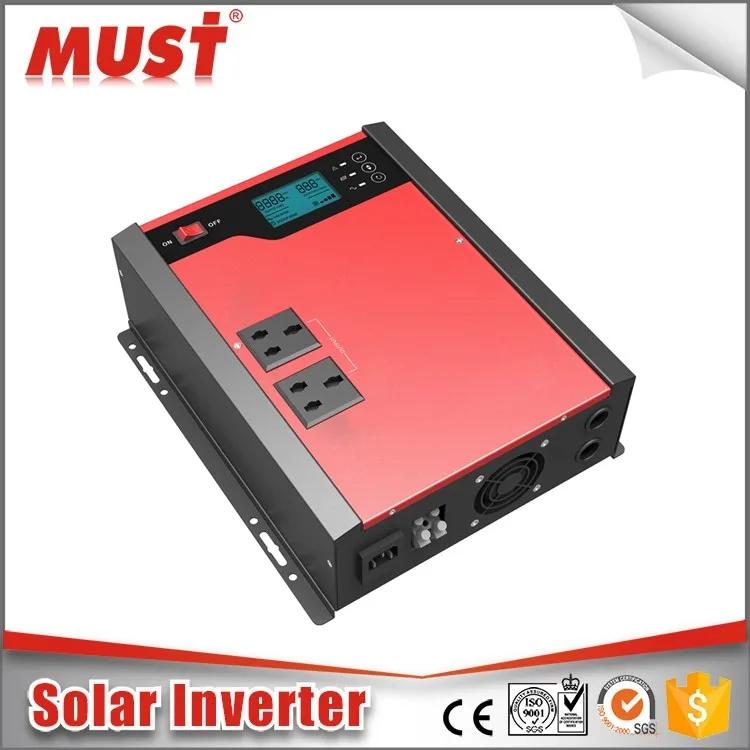

Must pv1100 plus best price 1000w power PV inverter with 50A PWM solar charger
- Category: >>>
- Supplier: Shenzhen Must Power Limited
Share on (60675828300):
Product Overview
Description
Must pv1100 plus best price 1000w power PV inverter with 50A PWM solar charger
Product Description
| Features of the Solar Inverter PV1100 plus series |
* Frequency range: 40Hz - 70Hz
* solar and AC charging at the same time, 70A MAX charging current
* Protection methods: 10A Fuse(Recoverable)Relay optional
* Low battery cut off data: 9.9-12vdc, 19.8-24vdc (adjustable)
* setting mode: Smart setting via LCD display
* Battery charging mode: PV priority/Battery priority/Grid only/Union charge optional
* Floating charge current: 13.8-15vdc, 27.6-30vdc (adjustable)
* Output Socket: 2pcs for metal case, and 3pcs for plastic case
* Display: LED + LCDwith menu adjustable to show the PV parameter and load power
* Double layers PCB board
| Design of Solar Inverter PV1100 plus series |

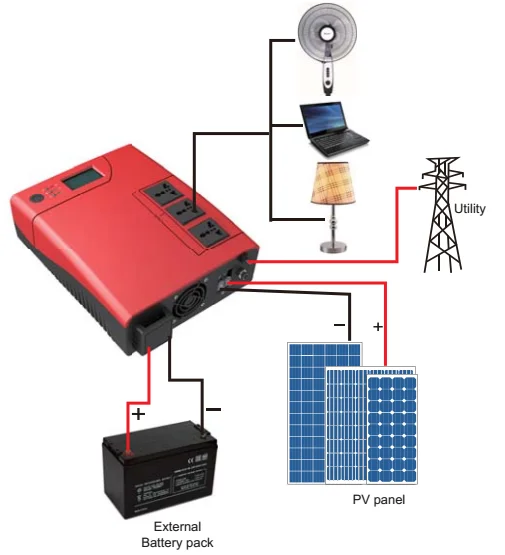

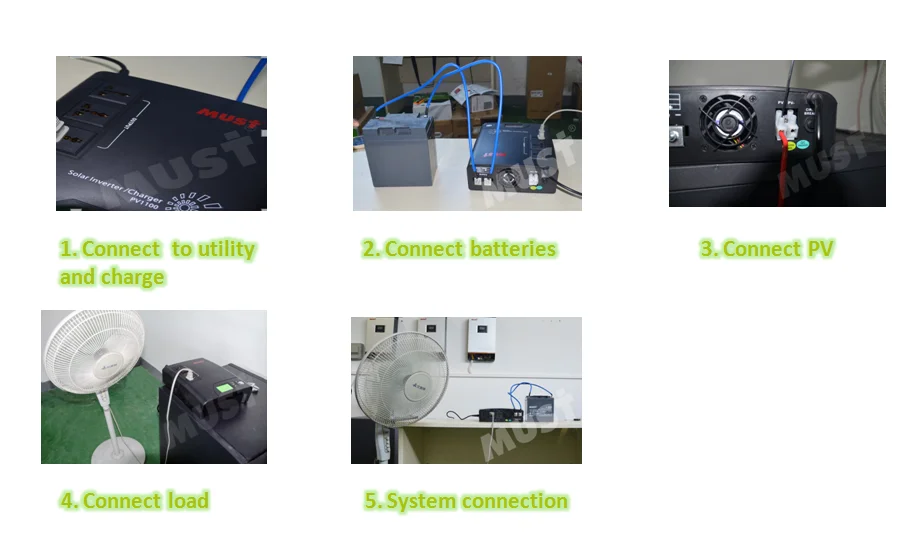

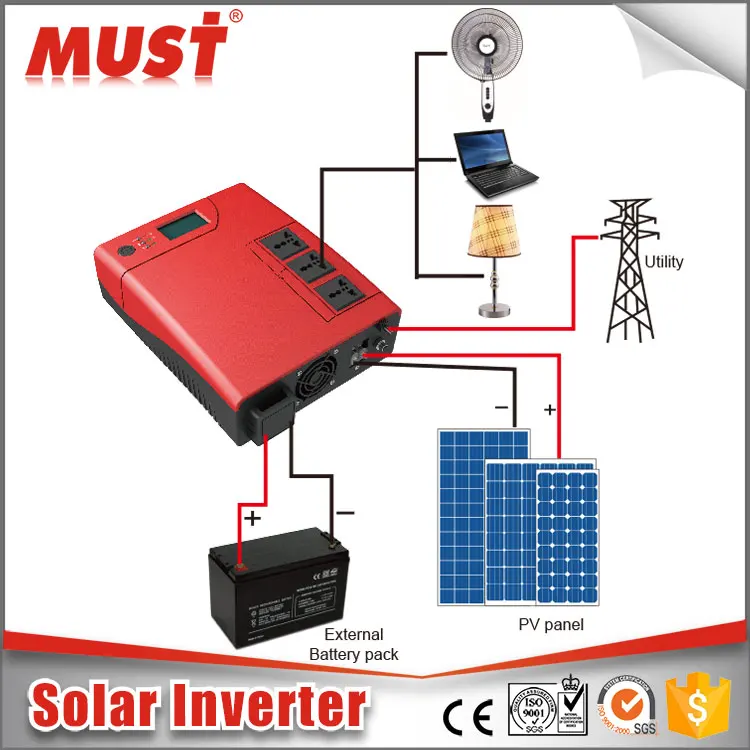

| Installation of Solar Inverter PV1100 plus series |
Specifications
| Specification of the Solar Inverter PV1100 plus series |
| MODEL | PV11-1400 Plus | PV11-1800 Plus | PV11-2400 Plus | |||||
|---|---|---|---|---|---|---|---|---|
| Default Battery System Voltage | 12VDC | 12VDC | 24VDC | |||||
| INVERTER OUTPUT | Rated Power | 1400VA/720W | 1800VA/1000W | 2400VA/1440W | ||||
| Waveform | Modifided Sine-wave | |||||||
| Nominal Output Voltage RMS | 230V | |||||||
| Output Voltage Regulation | +10/-18% | |||||||
| Output Frequency | 50Hz/60Hz +/-1 Hz | |||||||
| Inverter Efficiency(Peak) | >80% | |||||||
| Line Mode Efficiency | >98% | |||||||
| Typical Transfer Time | Typical 15~20ms 40ms max | |||||||
| AC INPUT | Voltage | 230VAC | ||||||
| Selectable Voltage Range | Narrow | 170~280VAC | ||||||
| Wide | 90~280VAC | |||||||
| Frequency Range | 40Hz-70Hz (Auto sensing) | |||||||
| BATTERY | Nominal Input Voltage | 12VDC | 24VDC | |||||
| Minimum Start Voltage | 10.5VDC | 21.0VDC | ||||||
| Low Battery Alarm | 10.4VDC (min) | 20.8VDC (min) | ||||||
| Low Battery Cutoff | 9.9~12VDC (Can be set) | 19.8~24VDC (Can be set) | ||||||
| High Voltage Cutoff | 15.0VDC (max) | 30.0VDC (max) | ||||||
| SOLAR CHARGER & AC CHARGER | Maximum PV Charge Current | 50A (max) | ||||||
| Maximum PV Array Power | 450W/750W | 900W/1500W | ||||||
| PWM Range @ Operating Voltage | 16~55VDC | |||||||
| Maximum PV Array Open Circuit Voltage | 55VDC | |||||||
| Maximum Efficiency | >95% | |||||||
| Standby Power Consumption | <2W | |||||||
| AC Charger Voltage | 14.5(max) | 29(max) | ||||||
| AC Charging Current | 10A / 20A (Can be set) | |||||||
| Maximum Charge Current | 10-50A (Can be set) | |||||||
| BYPASS & PROTECTION | Nominal Input Frequency | 40Hz - 70Hz | ||||||
| Overload Protection (SMPS Load) | FUSE | |||||||
| Output Short Circuit Protection | FUSE | |||||||
| Bypass Fuse Rating | 10A | |||||||
| Max Bypass Current | 10Amp | |||||||
| MECHANICAL SPECIFICATIONS | Dimensions (W*H*D) | 290*232*83mm | ||||||
| Net Weight (kg) | 2.8 | 3.0 | ||||||
| OTHER | Operation Temperature Range | 0°C to 50°C | ||||||
| Audible Noise | 50dB MAX | |||||||
| Display | LED+LCD | |||||||
| Loading(20GP/40GP/40HQ) | 1700pcs / 3400pcs / 4100pcs | |||||||
Packaging & Shipping
| Product Packing |
Why Choose Us
| Must Company Information |
| Headquarter & Factory Location | In HongKong & Shenzhen,Guangdong China Mainland |
| Industry Experience | 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier |
| Product Range | Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System |
| Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
| Factory | 8000 Square Meters, 220 workers |
| Department | 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept. |
| Certificate | ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc |
| Patent | Software Patent, Design Patent, Project Patent |
MUST Power Revenue Growth Increases Every Year
FAQ
| Frequently Asked Questions: |
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
