Laboratory/Lab Ink and Paint Mixing Machine, Paint Dispersion mixer/Air Pneumatic Lifting Mixer/Disperser With High Quality

Product Overview

Description

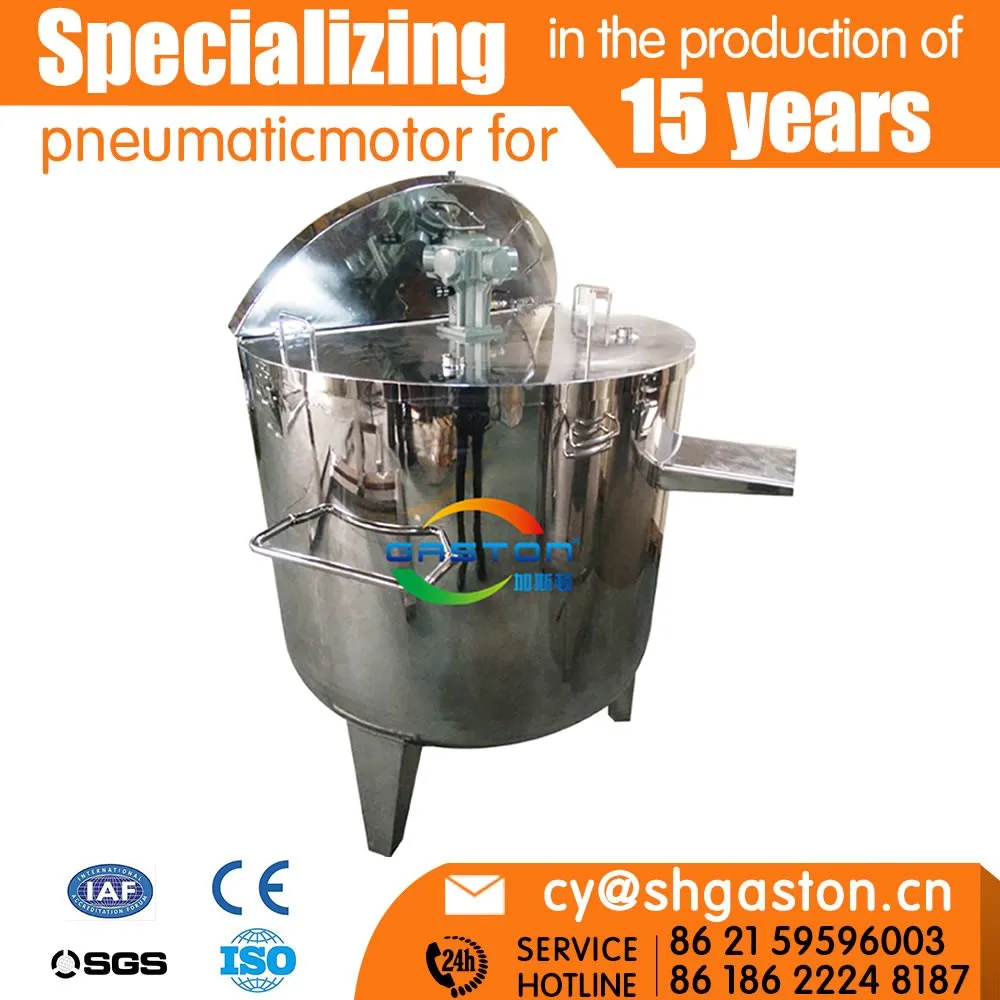

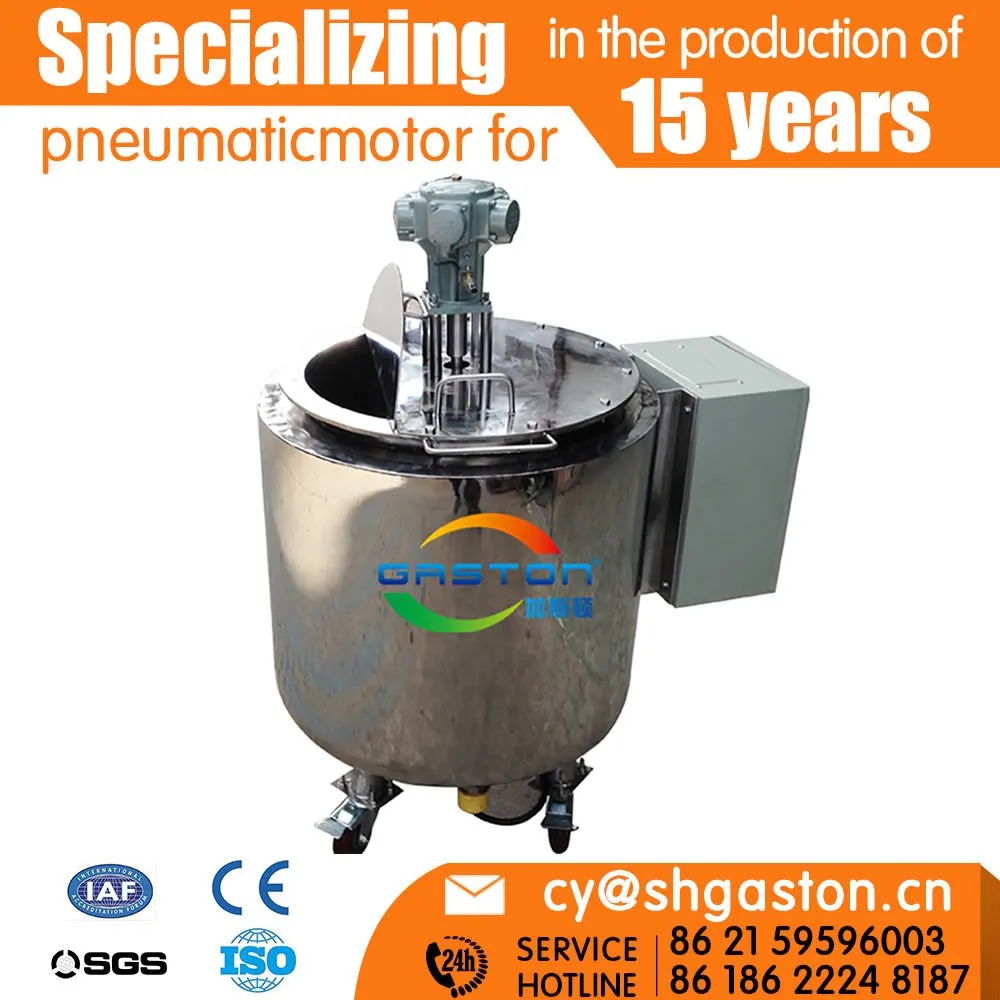

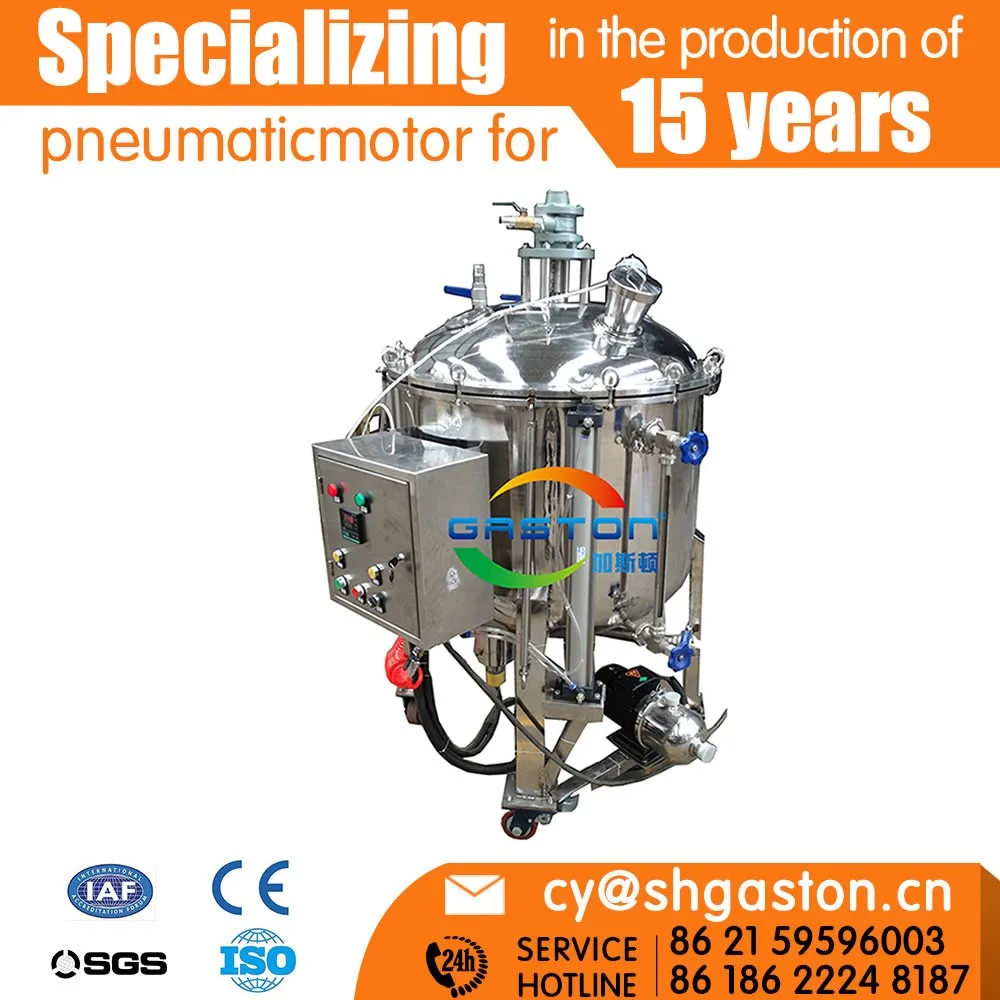

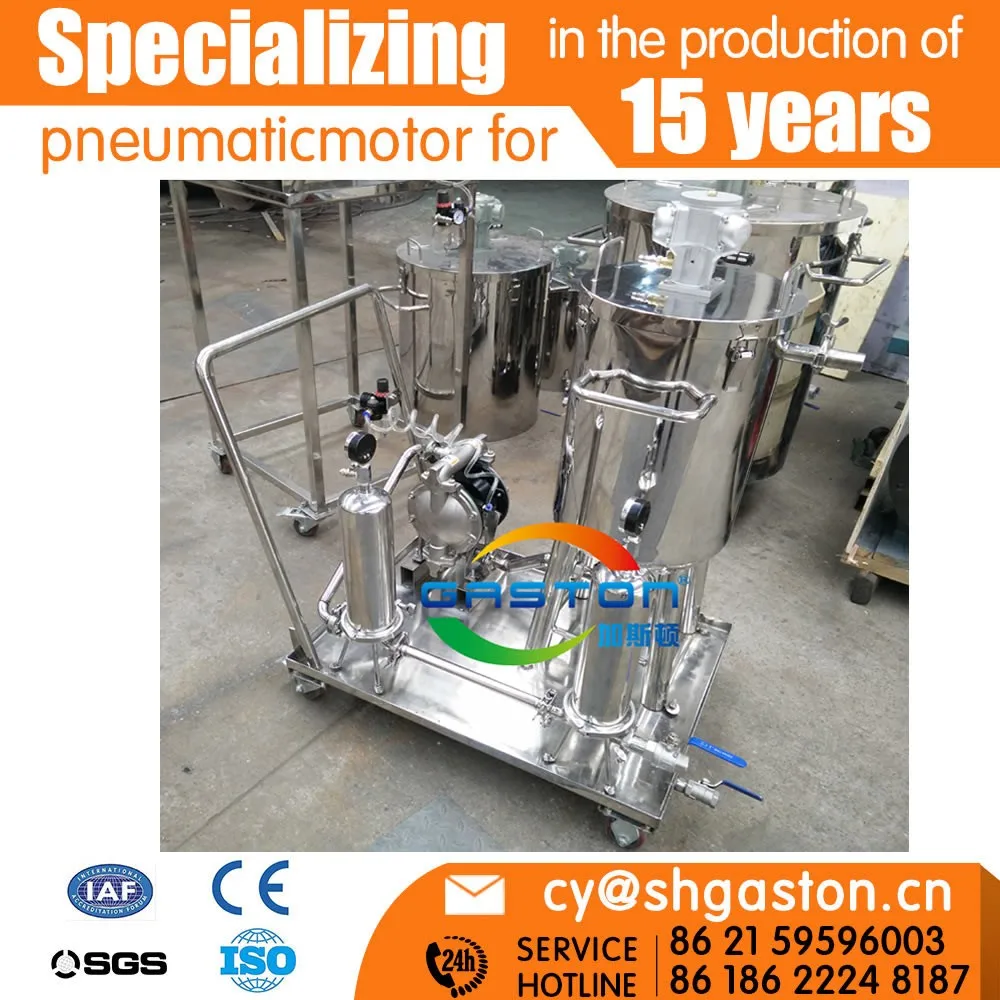

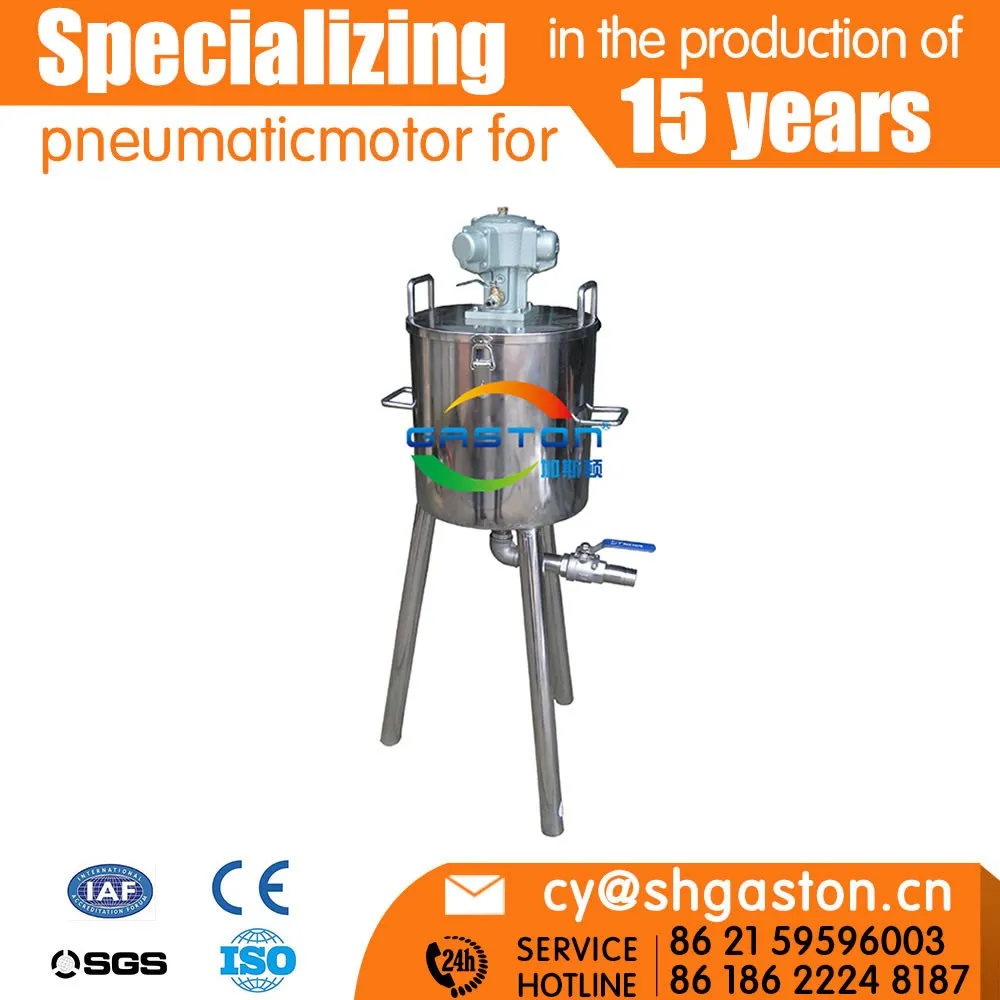

Stainless steel barrel mixer series

Product PROFILE

Stainless steel tanks have the ability to resist atmospheric oxidation - that is, stainless, and also contain acid, alkali, salt, etc.
The ability of the medium to resist corrosion - that is, corrosion resistance. Our company uses SUS304# stainless steel material, acid and alkali resistant, resistant
corrosion. Suitable for coatings, pharmaceuticals, building materials, chemicals, pigments, resins, petroleum dyes, fiber, food,
Research and other industries.
The equipment can be made of SUS304/316 stainless steel according to the technical requirements of the user's products, and the setting
Heating and cooling devices to meet different process and production needs. Heating form with jacket electric heating, water wheel
Back heating, heat transfer oil heating, the equipment is structurally sound, advanced, solid and durable, and has simple operation
Single, easy to use and so on, it is an ideal chemical equipment with low investment, fast production and high profit.

structural characteristics.

1. It adopts single-layer double-layer or three-layer stainless steel structure, and the surface of the mixing barrel is brushed, the texture is good, and the solder joints are processed in full.
Beautiful and generous. The structural design is humanized and operability is high. The transition section of the inner wall of the cylinder adopts a circular arc transition.
Clean and hygienic.

2. Explosion-proof pneumatic mixer, using compressed air; pneumatic explosion-proof; stable.

3. The contact with the liquid is made of SUS304 stainless steel, which is corrosion-resistant, acid and alkali resistant; easy to clean.

4. The components of the mixer are fixed by screws, which is convenient to disassemble and assemble; the maintenance is simple.

Stainless steel pneumatic mixing tank product configuration selection

1. How much capacity is it stirred?
   The conventional mixing capacity is: 5L, 10L, 20L, 40L, 50L, 100L, 200L, 300L, 500L, etc. Kind of capacity, non-standard can be customized.

2. What is the thickness of the stainless steel barrel?
   The stainless steel pneumatic mixing drum made by our company has a regular thickness of 1.0 and 2.0MM, and the barrel cover is 3.0MM. Other thickDegree can be customized.

3. What is the discharge form of the mixing tank?
    The conventional discharge has a bottom discharge, a bottom side discharge, or a diaphragm pump to draw from above.
 4. Is the stainless steel mixing tank closed or openable?
    The closed type can be equipped with a bucket cover and an observation window. Generally, it can be used as a pressure type and with a pressure bearing pressure range. Open oneIt is usually 1/3 open.

5. Are there any special requirements for the surface treatment process?
    The conventional treatment process is surface drawing treatment, and the pharmaceutical, food and other industries can be made into mirror polishing treatment.

6. What is the style of fixing the lid and the barrel?
     Conventionally, four buckles secure the barrel lid and the barrel body together.

7. What kind of liquid is it stirred? What is the viscosity?
   Stirring liquid according to customer's site requirements, generally: chemicals, paints, coatings, inks, resins, glue,Liquid materials such as cosmetics.
8. What is the power requirement of the air motor?
    According to the viscosity of the stirring liquid, the stirring speed requirement we will match the specific selection.

9. Advantages of piston type motor mixer?

a, large torque, low air consumption, low noise, stable performance
b, no oil, no pollution, safety explosion-proof, quality assurance
10, optional accessories (configured according to customer requirements):
a. Roller legs.
b. thermometer, temperature controller, time setter
c. Liquid level meter (alarm type liquid level meter)
d. stainless steel dispersion impeller
e. Positive and negative mixing controller
f. Speed display
g. Feeding platform



Principle and application scope of pneumatic mixe
Essentially,the mixing process is a single momentum rtansfer in the fluid field,of the momentum,the process of heat transfer,mass transfe and chemical reaction,and the agitator is a device for inputting the mechangical energy into the flow field by using a suitable medium.
The stirring process is as follows:the motor drives the stirrer to rotate at acertain speed through the speed reduce,depending on the speed of agitation,the fluid is expelled from the impeller at different speeds,and the moving fluid attracts the surrounding fluid,which makes the static flow or low velocity flow involved in the surroundings,so as to synthesize a complex flow,the synthetic flow has both the water circulation and the circulation flow along the wall surface and the stirring shaft,which can berelated to the larger range of the mixing tank and the volume circulation.The energy transfer from the impeller to tank medium discharged from the impeller liquid,and the liquid in the tank in order to have the effect of local circulation near the impeller,due to instananeous velocity fluctuation due to turbulence,vortex and irregular movement,gradually disintegrated
and mixed fluid around.As a result,the fluid itself,as well as the heat,mass and energy contained in the fluid,also move to the periphery,thereby vontributing to the mass transfer and heat transfer reaction of the whole flow,which is caused by the local mixing and the interface between different phases.
Pneumatic mixer is mainly used in explosion-proof requirements of the industry,pertoleum,chemical,palint,carpentry,food,chemical and other flammable and explosive,dust,heavy load,humidity and other workplaces.Mainly by:air compressor,pneumatic motor,air purifier,trachea,quick plug,gas control valve,coupling ,stirring shaft,stirring blades and other components.The utility model can be arranged according to different occasions and different containers,and the utility model is provided with a manual litfing type.Our company can according to the autual working comdition requirements of various types of pneumatic mixer stepless speed adjustment.Pneumatic motor can be equipped with reducer,torque is more suitable for coating,resing,water-based glue,chemical raw materials,cosmetics raw materials,food and other mixing.
