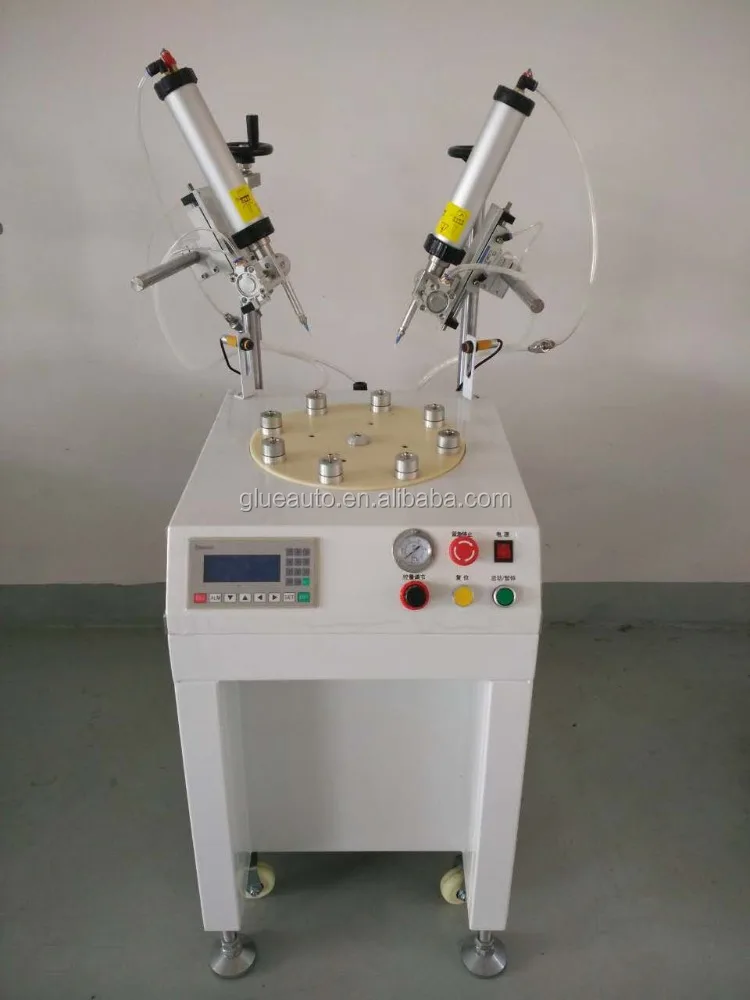

automatic silicone dispensing machine for LED bulbs,2500pcs/h capacity automatic glue dispenser gluing machine
- Category: >>>
- Supplier: Zhongshan GDS Automation Equipment Co. Ltd.
Share on (60675878403):
Product Overview
Description
Principle Description

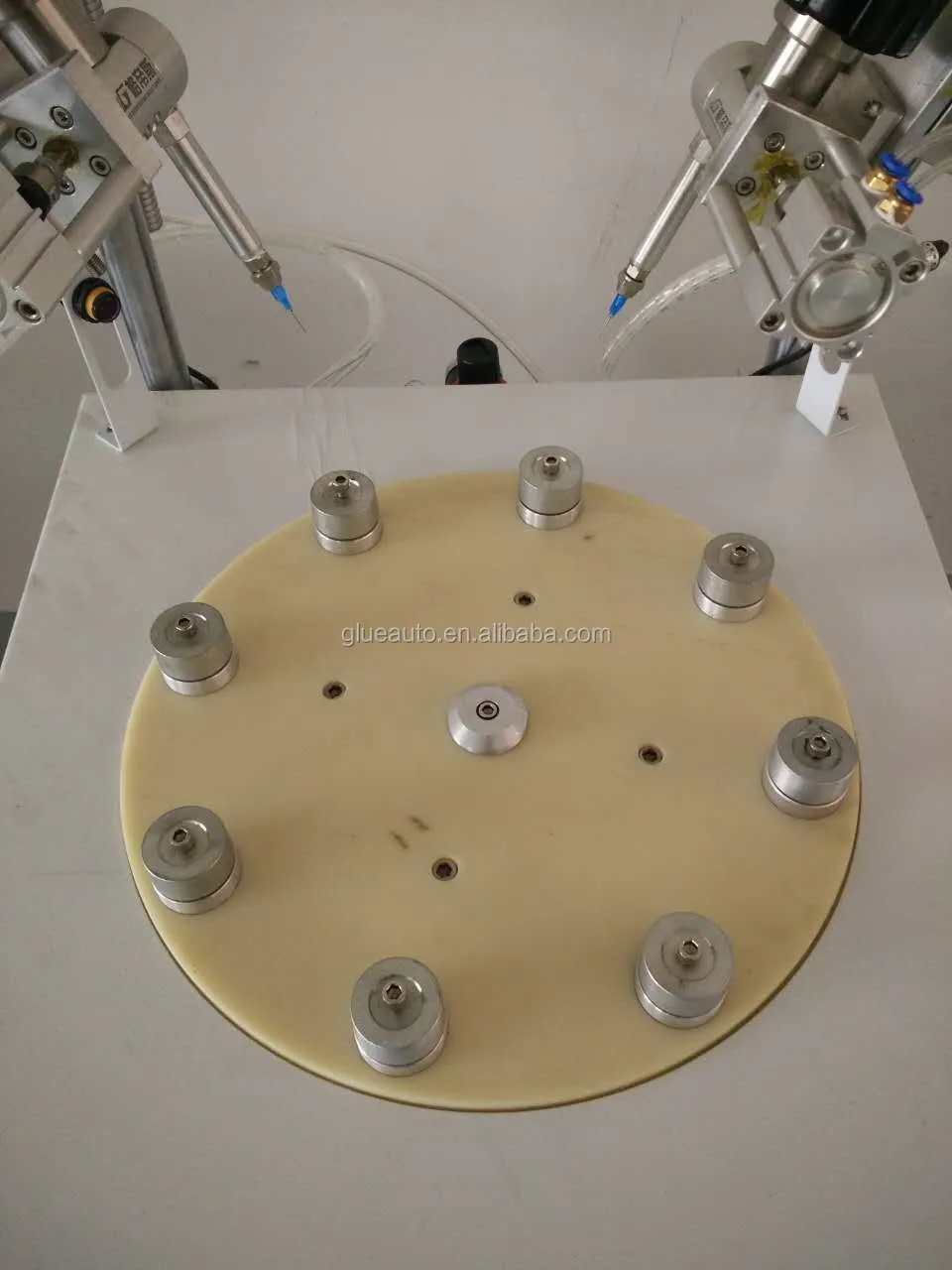

- Eight stations are distributed on the revolution disc by 45 degree. The revolution motor rotates 90 degree each time to bring two work-pieces to the gluing nozzle. Auto-revolution motor drives two work-pieces rotating in average speed to achieve evenly glue coating.
Machine Features
- Floor stand design with caster, the machine is stable and easy to move;
- Eight stations work in cycle with two glue dispensing system, the designed capacity is 1500~2000pcs/h;

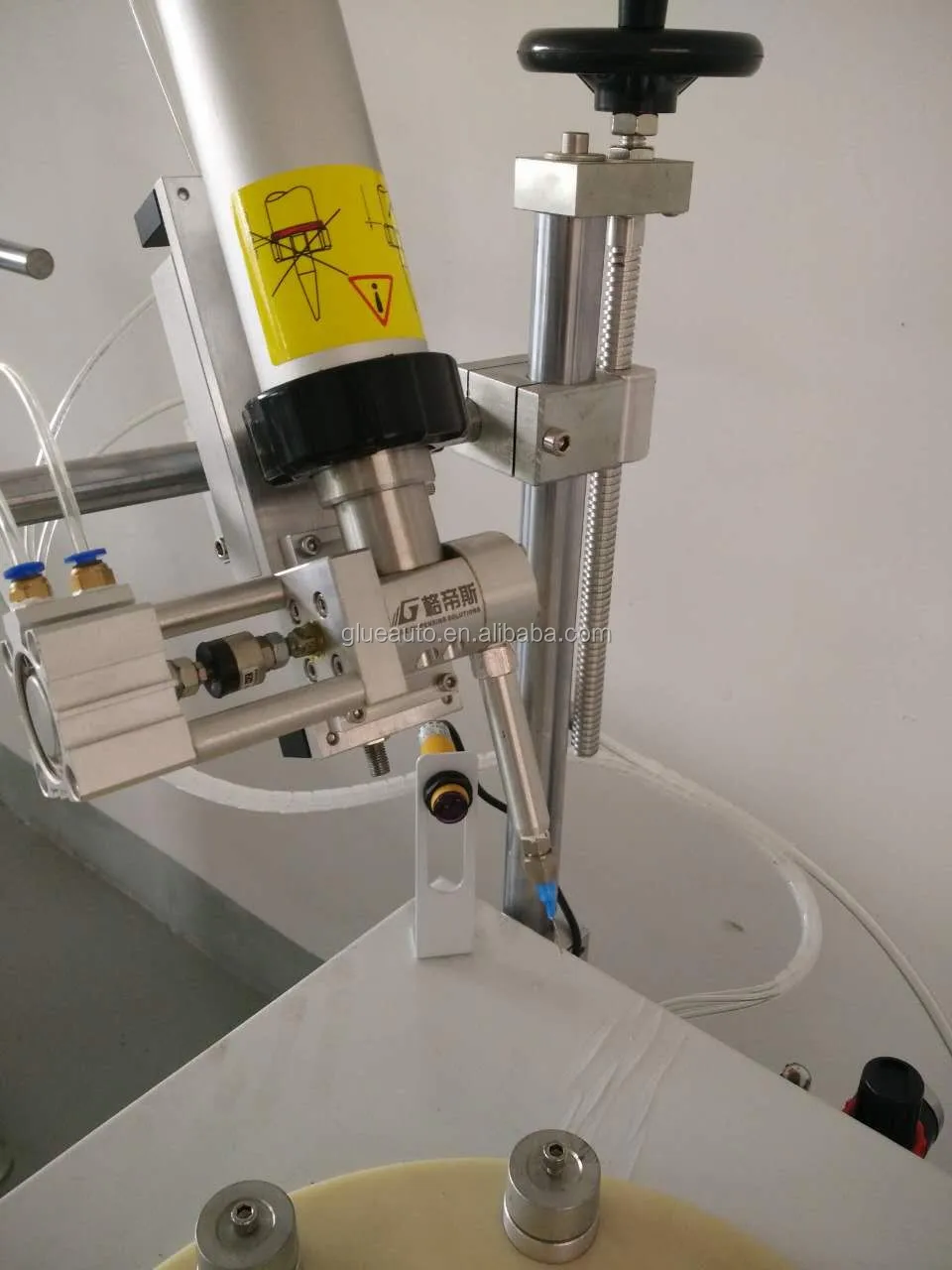

- Equipped work piece detector to decide gluing or skip for each system;
- Gluing track can be set as full circle, single point or segmented arc etc.
- Working mode can be two-station, four-station or eight-station;
- It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.
Model | JD-80 |
MCU | Industrial PLC |
Programming | Text Demonstration Programmer |
Drive mode | Precise Stepping Motor |
Max Dispensing Diameter | 280mm(two-station), 200mm(four -station), 110mm(eight-station) |
Motor Speed | 0 ~ 300 RPM |
Positioning Accuracy | ±0.1mm |

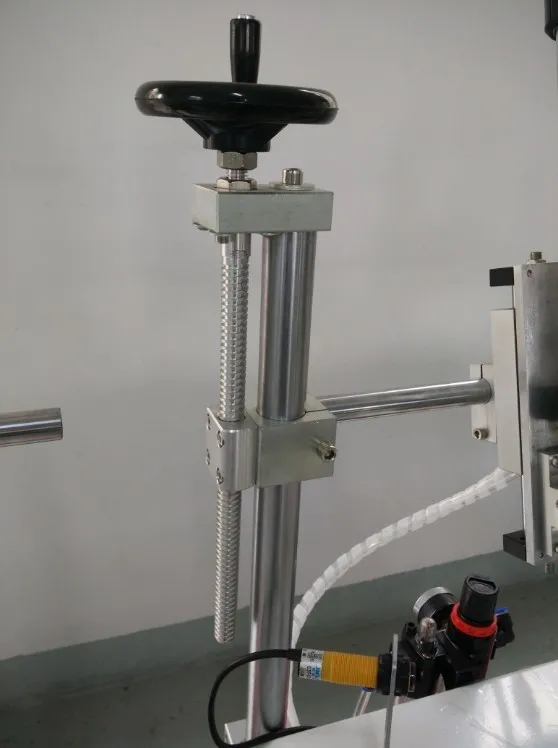

Z-axis Adjust Range | 250mm |
Z-axis Route | 50mm |
Dimension (L*W*H)
| 500mm*850mm*1300mm |
Weight | 50Kg |
Working Power | AC220V/50~60Hz/200W |
Working air pressure | 0.4~ 0.6Mpa(no condensation) |
Working Temperature and Humidity | Temperature: 0~40℃,Humidity: 20~90% |
Suitable Glue:300ml/2600ml single-component package for silicone, thermal-conductive silicone grease, UV glue, AB glue etc.

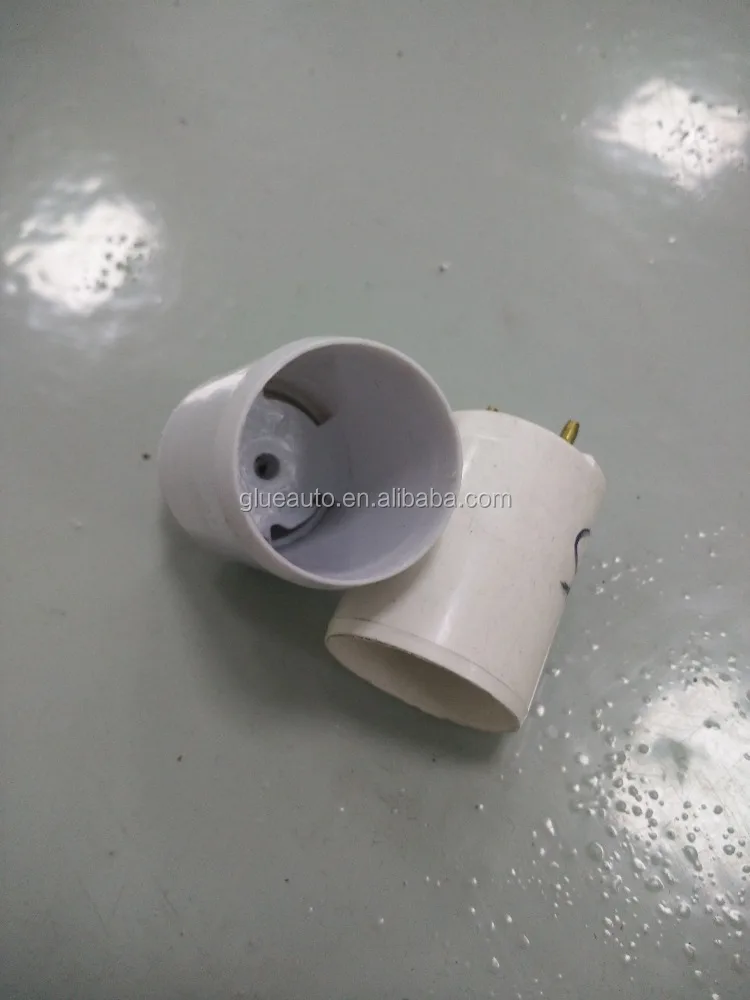

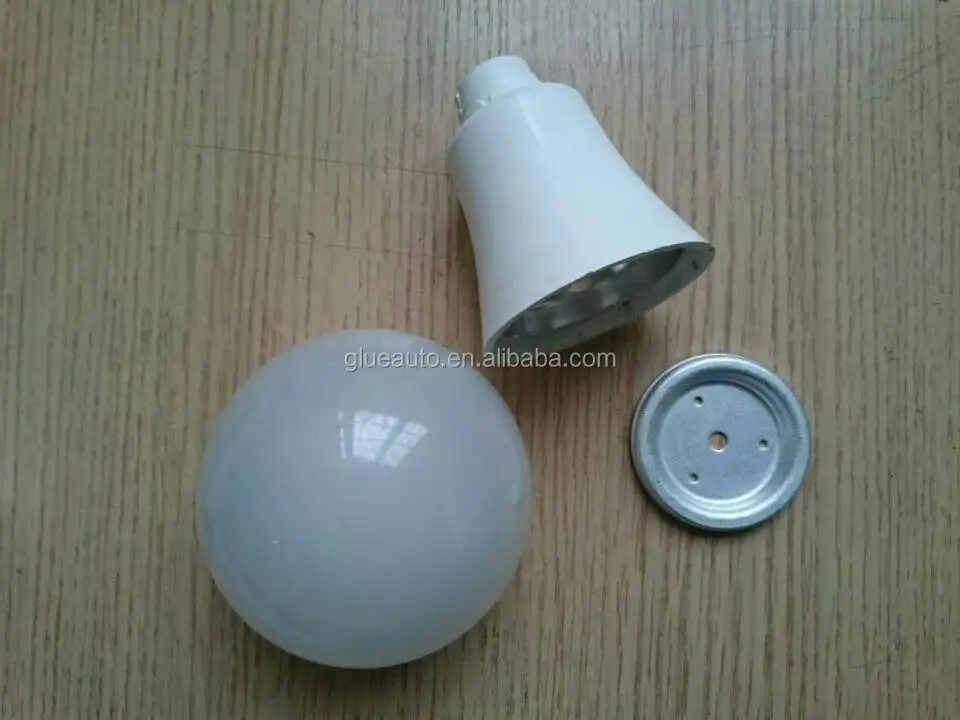

Applications:Round lights, such as LED bulbs, candle light, T8 glass tube cap, round panel light, PAR light etc.
