HTS-A series industrial chiller is mainly applied in Plastic & Rubber industry. It can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in medium and large scale industrial cooling, central air conditioning system, cold room, thermostatic chamber, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.
Not all chillers are created equal. For efficient cooling and long-lasting performance, you can depend on HERO-TECH of Cooling Products for all your cooling needs.
HERO-TECH always present qualified, best and solution based service.
Product Parameters

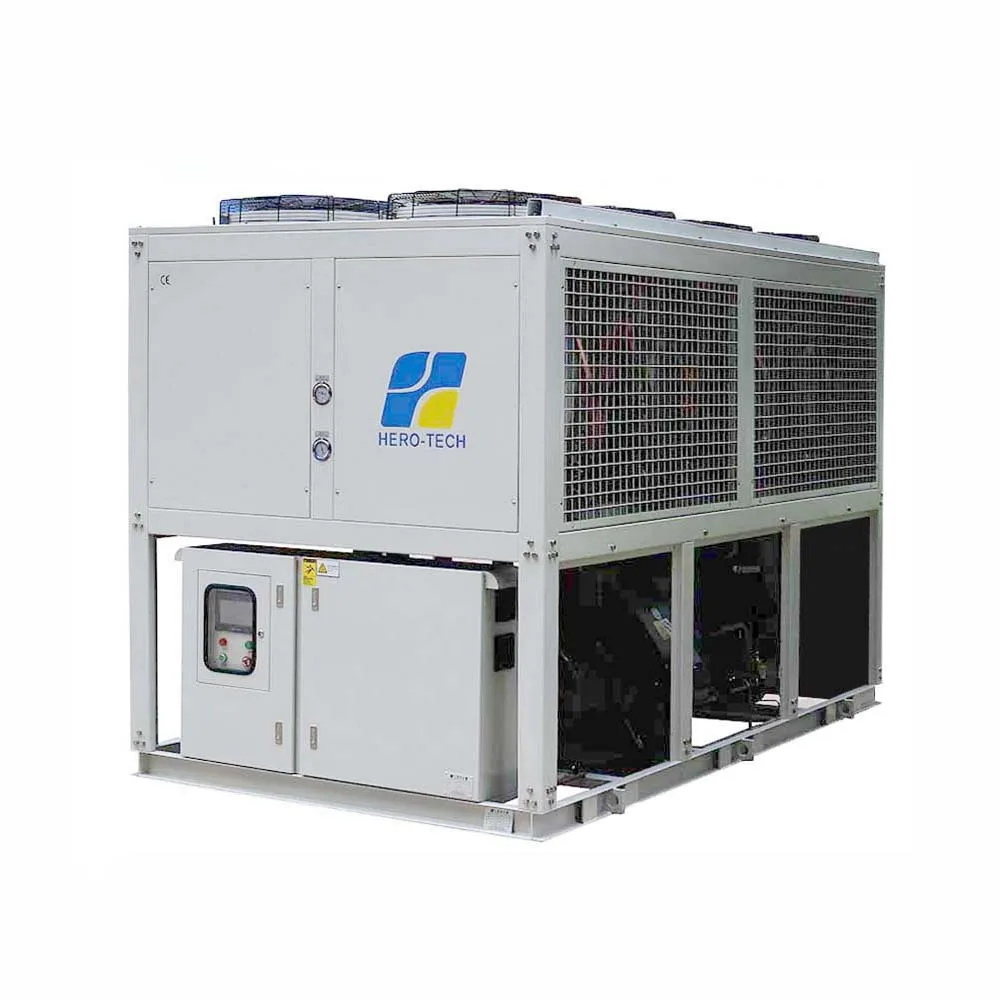

40hp industial refrigeration equipment 30tr air cooled screw chiller
Model
HTS-40A
Nominal cooling capacity
Kcal/h
89956
KW
104.6
Max power consumption
KW
40.9
Power source
3PH 380V/50HZ
Refrigerant
Type
R22
Control
Thermostatic expansion valve
Volume
KG
28
Compressor
Type
Semi-hermetic screw
Start mode
Y
Capacity control
%
0-25-50-75-100
Power
KW
36.5
Evaporator
Type
Shell and tube
Coolant flow
m3/h
18
Water pressure drop
KPa
32
Inlet and outlet connection(BSP)
Inch
3
Condenser
Type
Air cooled type high efficiency finned copper tube
Fan information
Type
Big volume & low noise exterior rotor fan
Motor power
KW
1.1×4
Air volume
m3/h
40000
Unit protection Module
Compressor Overheating, Motor Overload, High&Low Pressure, Chilled Water Over Temperature, Water flow protection
Dimension
Length
mm
2100
Width
mm
1850
Height
mm
1950
Net weight
KG
1300
Running weight
KG
1450
NOTE: The specifications based on the following design conditions
Chilled water supply/return temperature: 7℃/12℃
Cooling air inlet/outlet temperature: 30℃/38℃
We reserve the right to modify the specifications without further notice.
Design features
Well Known Brand Compressor Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency. Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running. Compressor start-up in stages, minimize the impact to electricity. Steady and safe running with low vibration. Most advanced patented highest precision manufacturing process. Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor. Microprogramming Control System LCD touch screen interface. Industrial Siemens PLC centralized control combined with compressor capacity control system, precisely monitor. Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency. Optional operation language, menu leading, unit running state easy to adjust.
A variety of refrigerants and power source are available
Standard design charged R22 CFC Free R407C, R410A, R404A, R134A for option. 380V-415V/50Hz 3pH for standard design. 380V~415V, 50HZ/60HZ, different design on customers' request.
Easy installation, quality is assured
Compact structure, less space demand and light in weight, easy for transport and installation. Completely wired, inspected and tested pre-delivery, saving installation time and cost.
Application
Our chillers are exported to more than 50 countries all over the world
Packaging & Shipping
Company Information
About us
Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.
Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.
“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.
FAQ
Q1: Could you help us to recommend the model for our project? A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:
Cooling capacity; If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment
Q2: How to ensure your product with good quality? A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.
The units will be fully tested before package and The packing will be carefully checked.
Q3: What's the warranty? A3: 1 year warranty for all parts; Whole life labor free!
Q4: Are you a manufacturer? A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.
Q5: How can I place an order? A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
