Container Paint booth/spray booth fan/burner for spray booth

Product Overview

Description



Model: AC-6900A
Detailed Parameters
Dimensions	Length (mm)	Width (mm)	Height (mm)
Booth Outside	7,000	5,200	3,300
Booth Inside	6,900	3,900	2,650

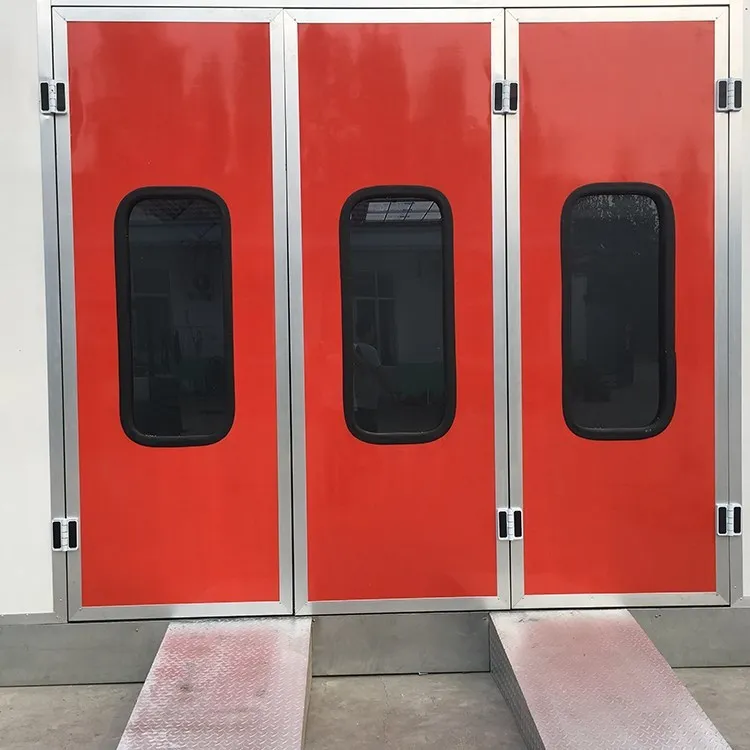

Entrance Door	3 folds,size is 3,000×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock
Personnel Door	size is 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock
Plenum Chamber	700mm high, all spare parts of plenum are made of galvanised bended steel and treated by white powder for long using life.

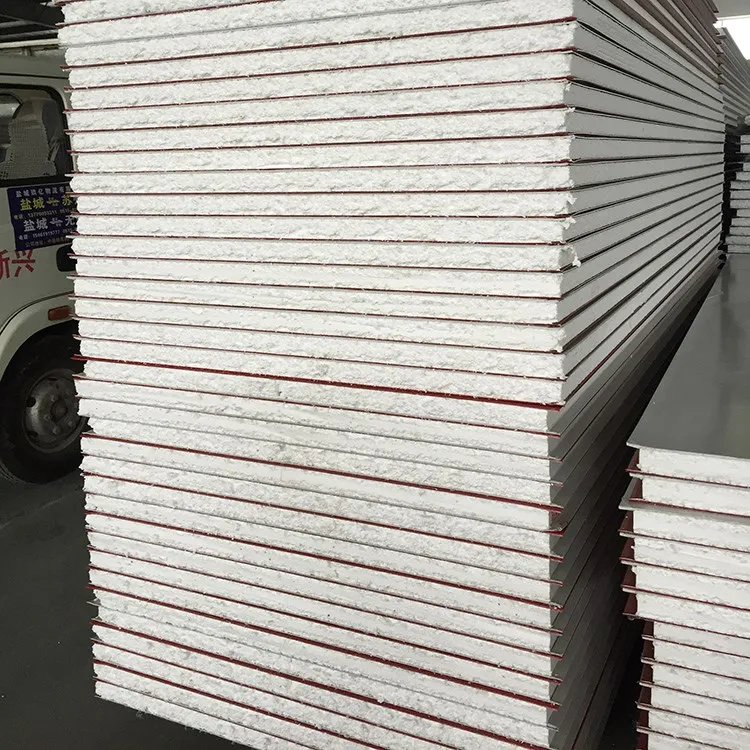

Walls Panel	50mm thick and 1,000mm wide,insulation is EPS and covered by 0.476mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel.
Basement System	Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment,equipped with floor filter supporting frame.loading weight is 600KG/wheel
	Diamond Plates (Powder Coated or Galvanized)* 3rows
	2 ramps,each size 800x2,000mm(WxL)

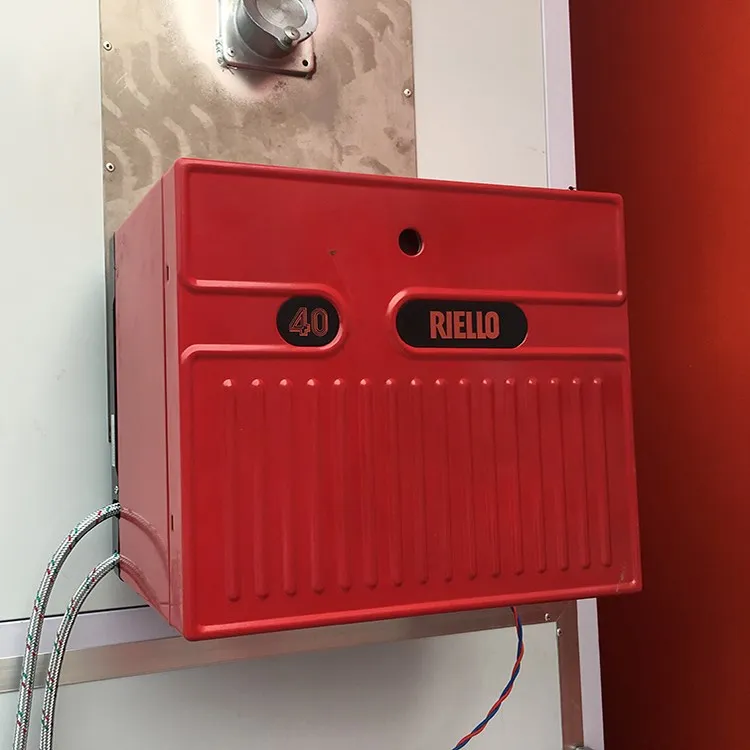

Heating System	Diesel Burner*1unit (Italy RIELLO, G10) heating  capacity  is  100,000Kcal/H
	Heating Exchanger*1unit 200kw, made  of  1.5mm  stainless  steel SUS304,round  type  multi-cycle,radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M long bended galvanised steel chimney and 1 pc of rain shield.
	Cabinet*1unit,rock-wool insulation. Cabinet Frame is made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy.

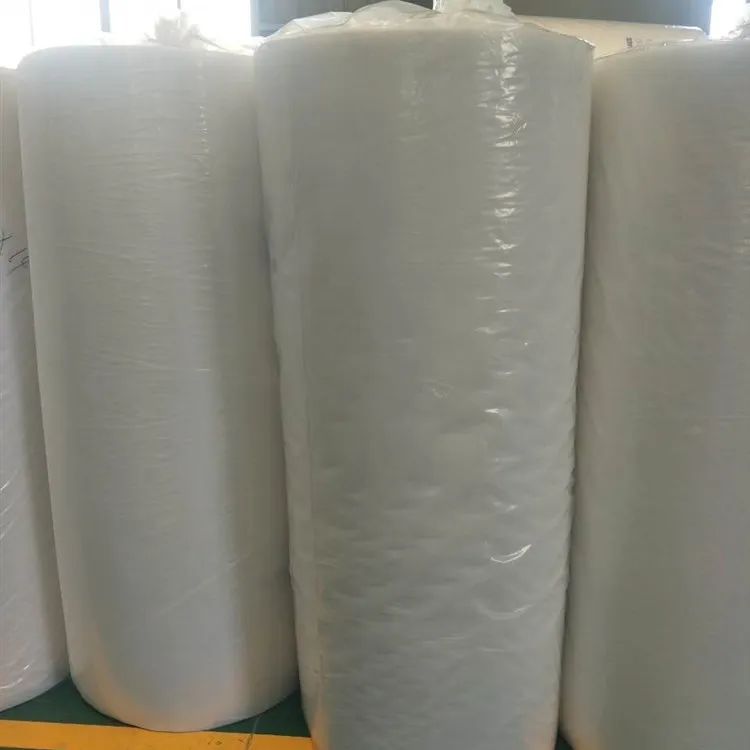

4. Filter System	Primary Filter* 1set, filtering rate > 83% G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3)
	Air-Intake Filter* 1set, filtering rate > 97% Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5)
	Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70% Fibre glass filter, G2 Grade(EU-3)
5. Air System	Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each
	Belimo NMU230 20NM electric damper
	Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit
6. Illumination	Ceiling Lights * 32pcs, 16w LED lamp, with Light Fixtures, anti-explosion design
	Side Lights * 32pcs,16w LED lamp, with Light Fixtures, anti-explosion design
	Illumination ≥800LUX
7. Control Panel	*1unit,Button type control box, with main switch, and set with normal temperature spraying, constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc.
** Included	All Hardware, Fasteners, and Sealants
