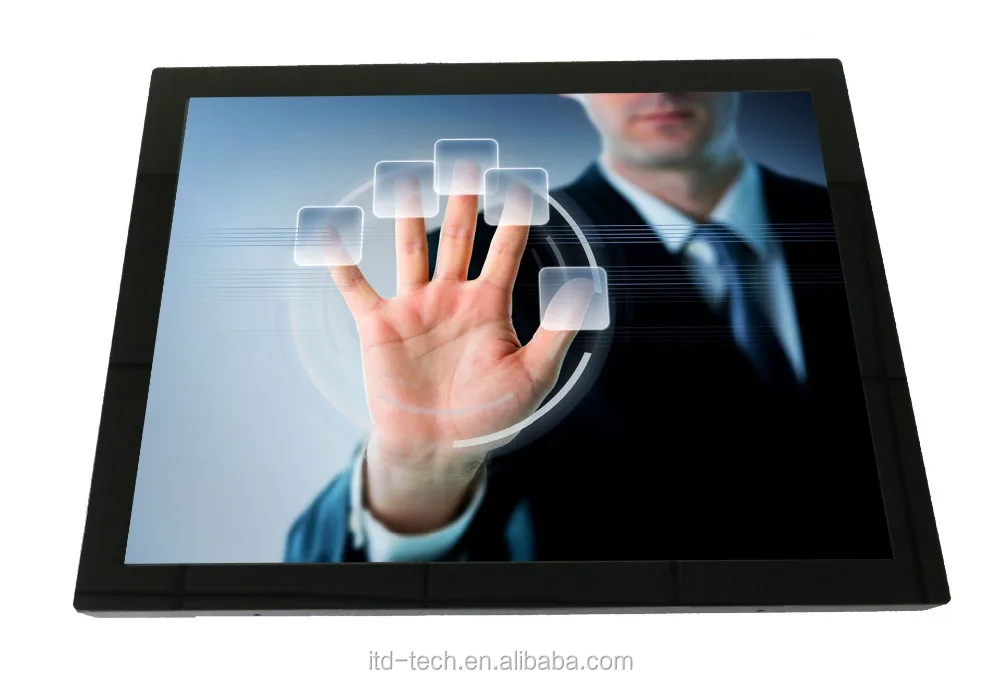

from 10 to 65 inch Android PC with capacitive 10 touch points

Product Overview

Description

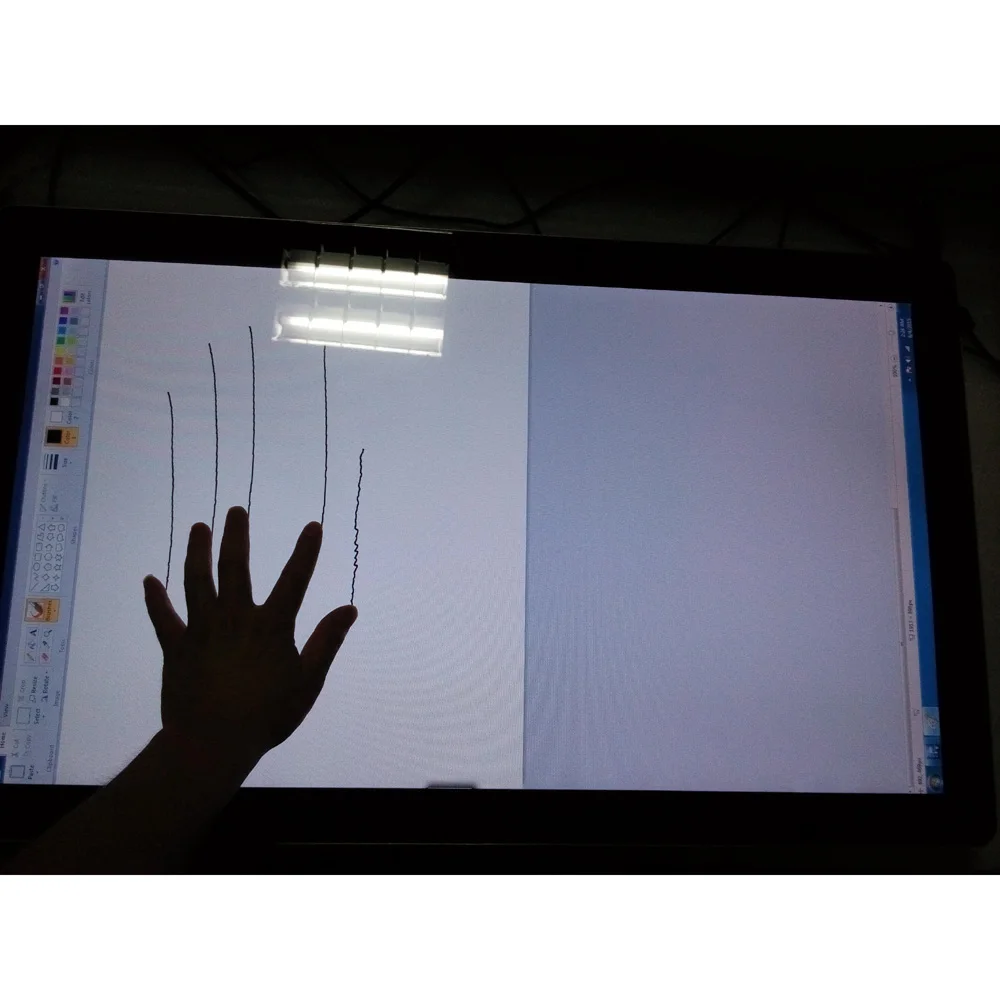

ITD New Series multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines Android mainboard, and Projected Capacitive Touch (PCT or PCAP)Technology in TFT LCD flat panels, with sleek and flat front surface commercial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD multi-touch HMI comfort panel PC specifically suited for various interactive digital signage applications.




Model	ITD101PPCT5KE1	ITD15PPCT5KE1	ITD156PPCT5KE1	ITD17PPCT5KE1	ITD18PPCT5KE1	ITD19PPCT5KE1
Size	10.1”	15”	15.6”	17”	18.5”	19”
Active Area	216.81(H)x 135.5(V)	304.128(H)x 228.096(V)	246.0(H) x 184.5(V)	337.920(H) x 270.336(V)	409.8(H) x 230.4(V)	376.32(H) x 301.06(V)
Contrast	800:1	700:1	800:1	1000:1	1000:1	1000:1
Resolution	1920 x 1200	1024 x 768	1366 x 768 (1920 x 1080)	1280 x 1024	1366 x 768	1280 x 1024
Brightness	300nits	250nits	300nits	250nits	250nits	250nits
Viewing Angles	89/89/89/89	80/80/60/70	45/45/15/35 (89/89/89/89)	85/85/80/80	85/85/80/80	85/85/80/80
Backlit	LED	CCFL/LED	LED	LED	LED	CCFL/LED
Model	ITD21PPCT5KE1	ITD24PPCT5KE1	ITD27PPCT5KE1	ITD32PPCT5KE1	ITD42PPCT5KE1	ITD55PPCT5KE1
Size	21.5”	24”	27”	32”	42”	55”
Active Area	476.64(H) x 248.25(V)	531.36(H) x 298.89(V)	597.6(H)x 336.15(V)	698.4(H) x 392.85(V)	930.24(H) x 523.26(V)	1209.6(H) x 680.4(V)
Contrast	1000:1	1000:1	1000:1	3000:1	4000:1	4000:1
Resolution	1920 x 1080	1920 x 1080	1920 x 1080	1920 x 1080	1920 x 1080	1920 x 1080
Brightness	250nits	300nits	300nits	350nits	400nits	400nits
Viewing Angles	85/85/80/80	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89	89/89/89/89
Backlit	LED	LED	LED	LED	LED	LED

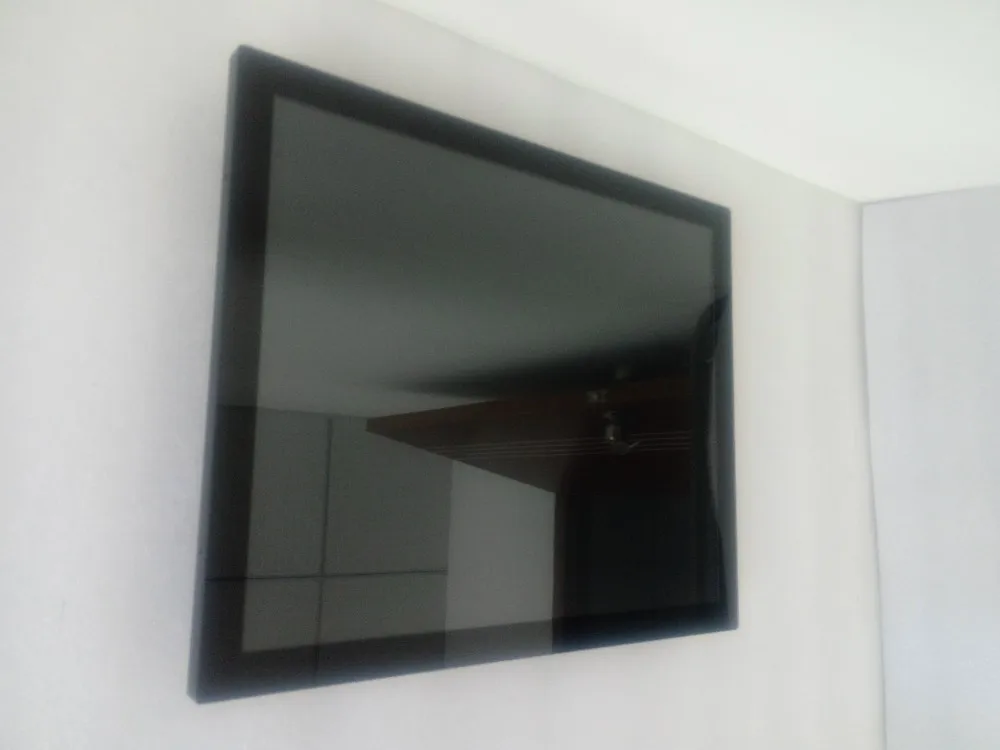

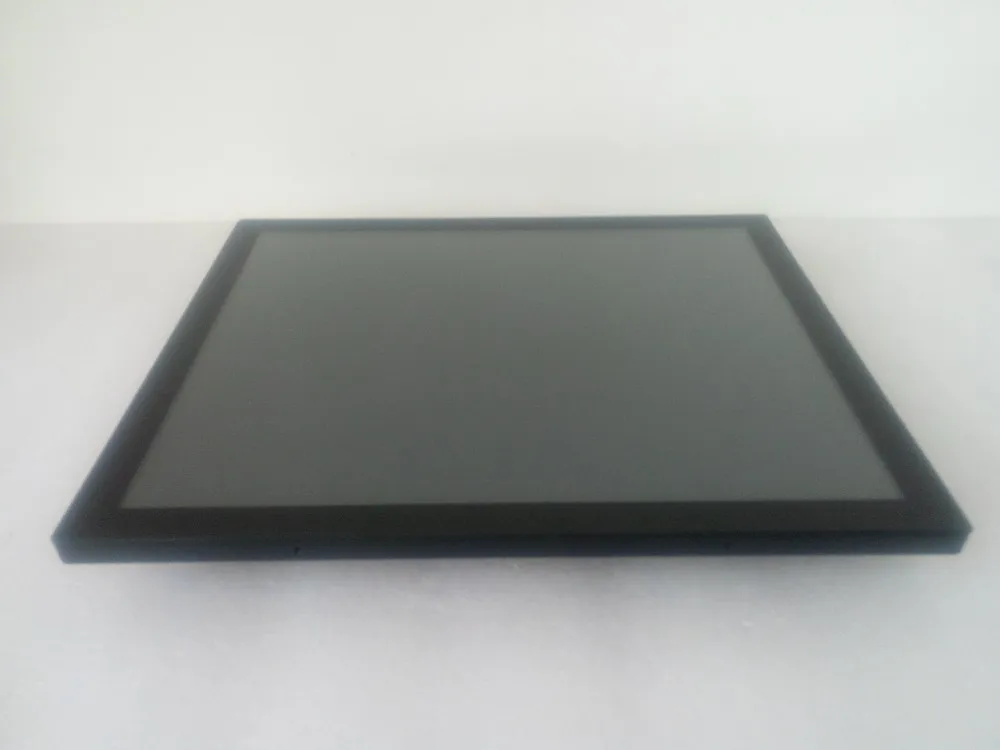

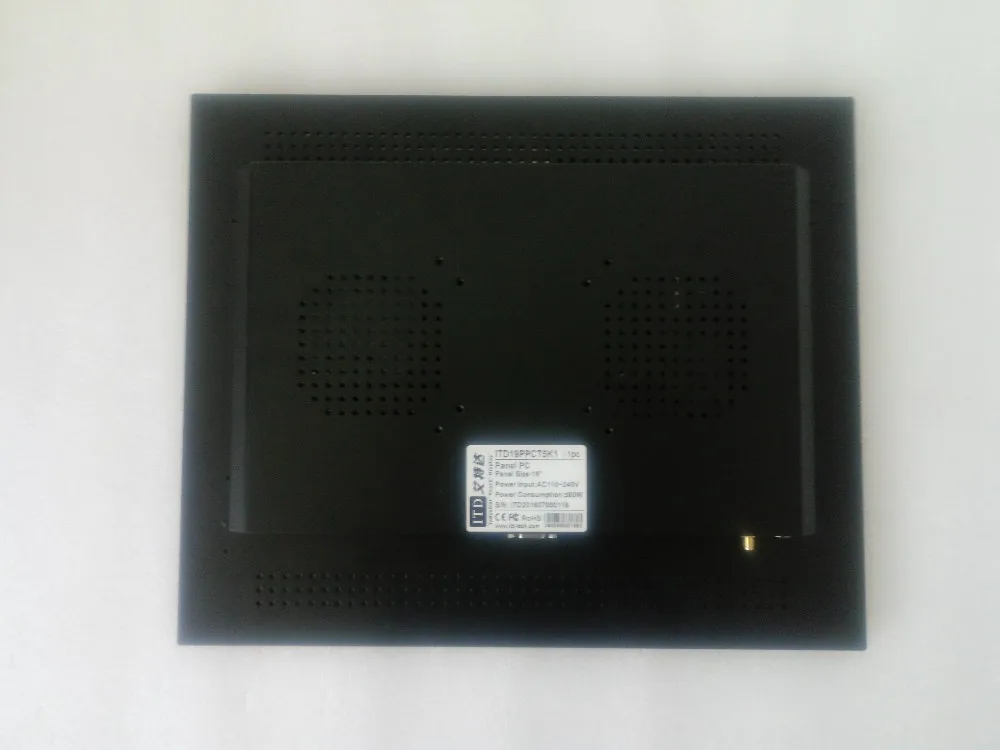

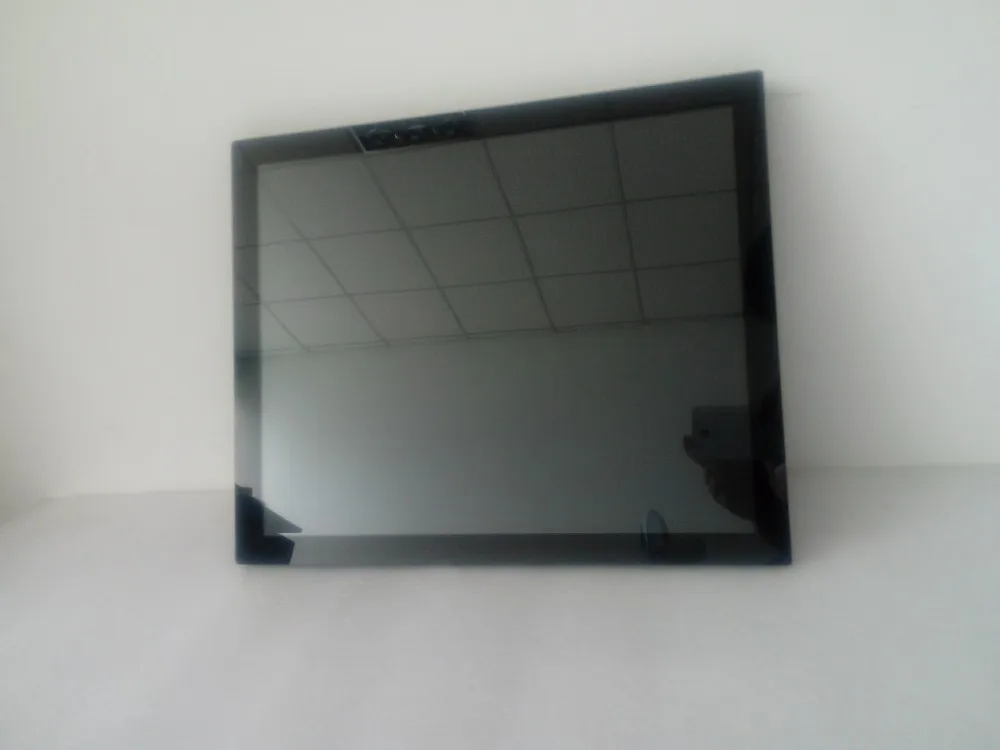

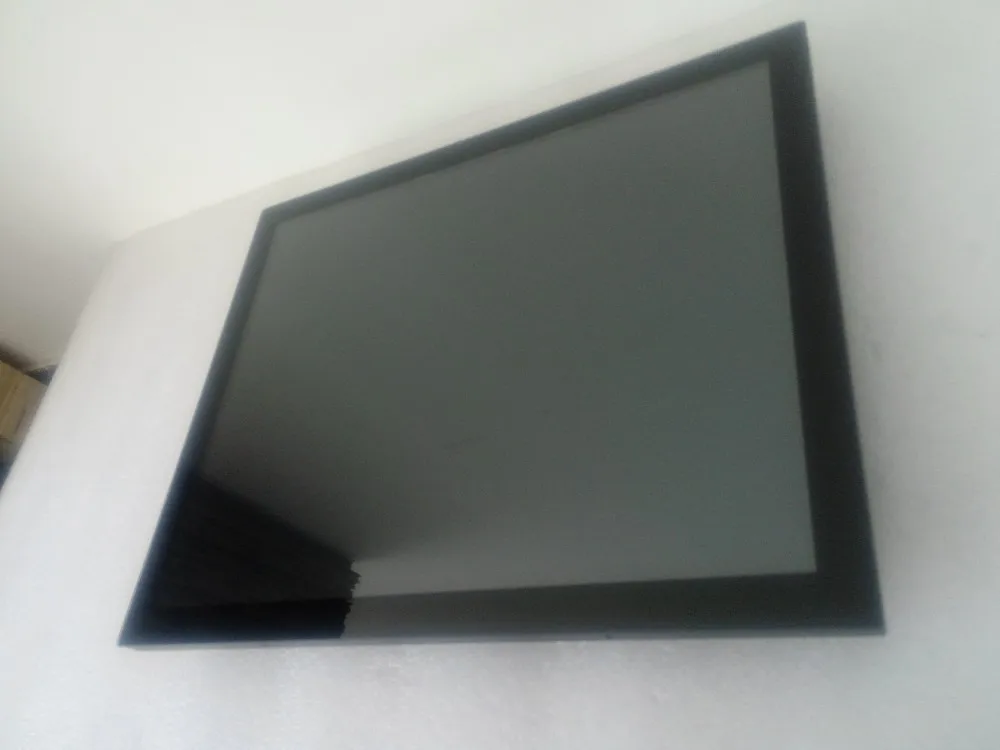

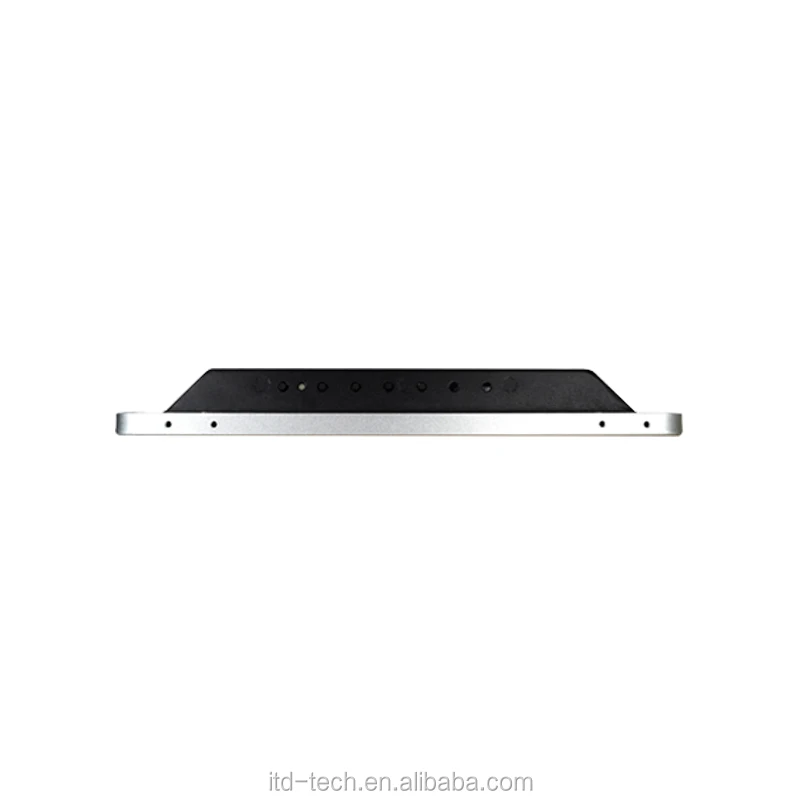

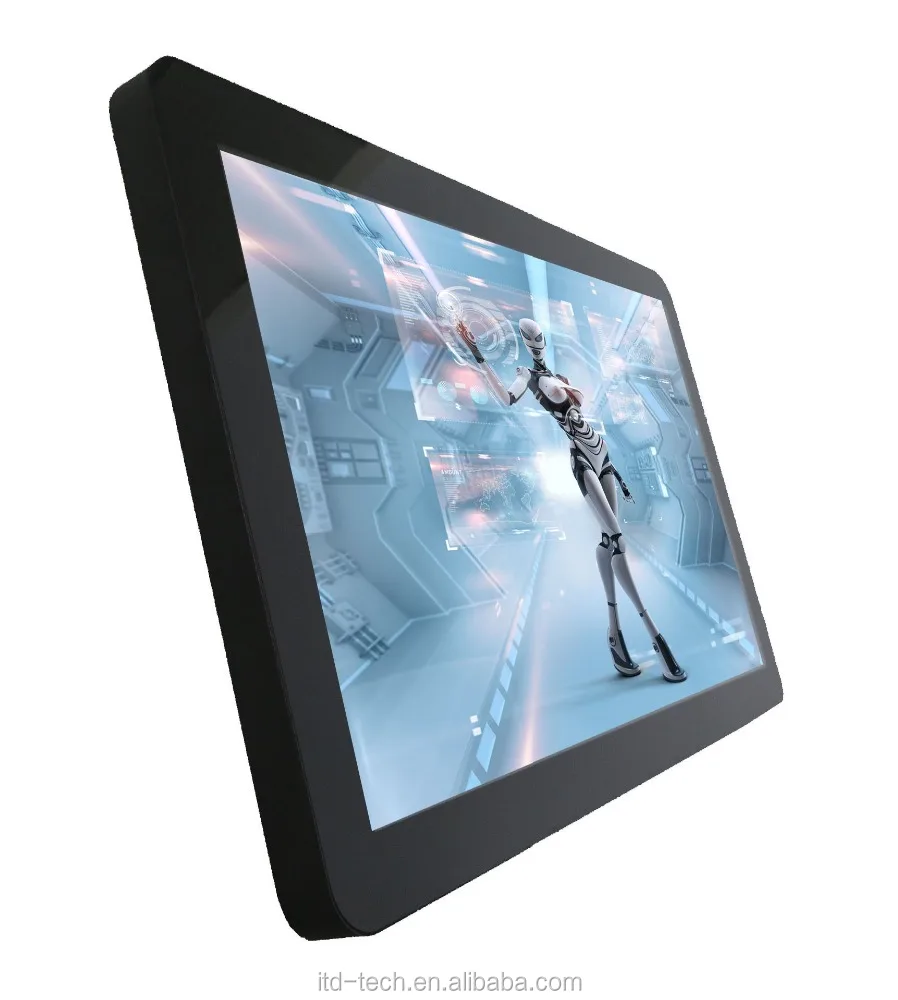

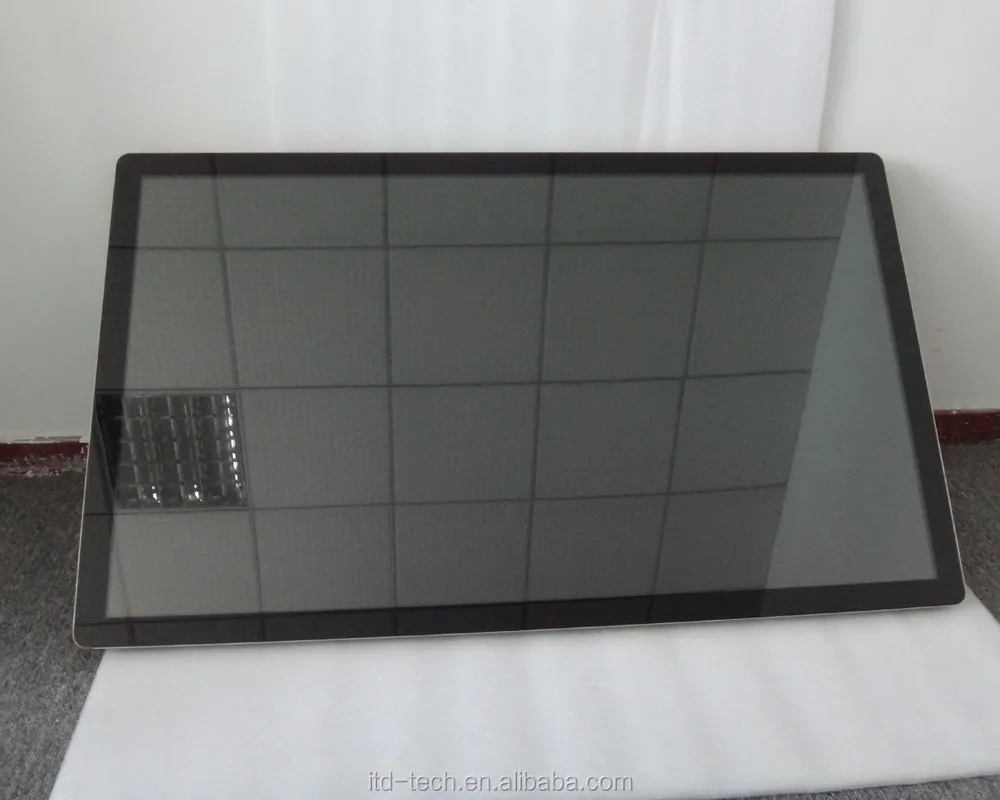

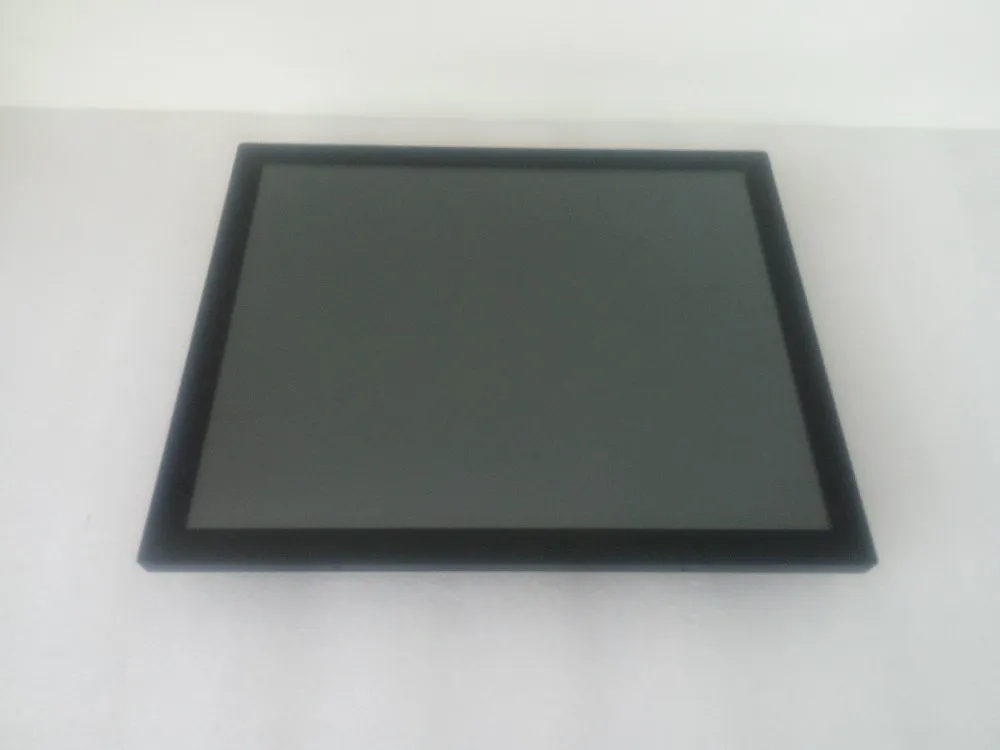

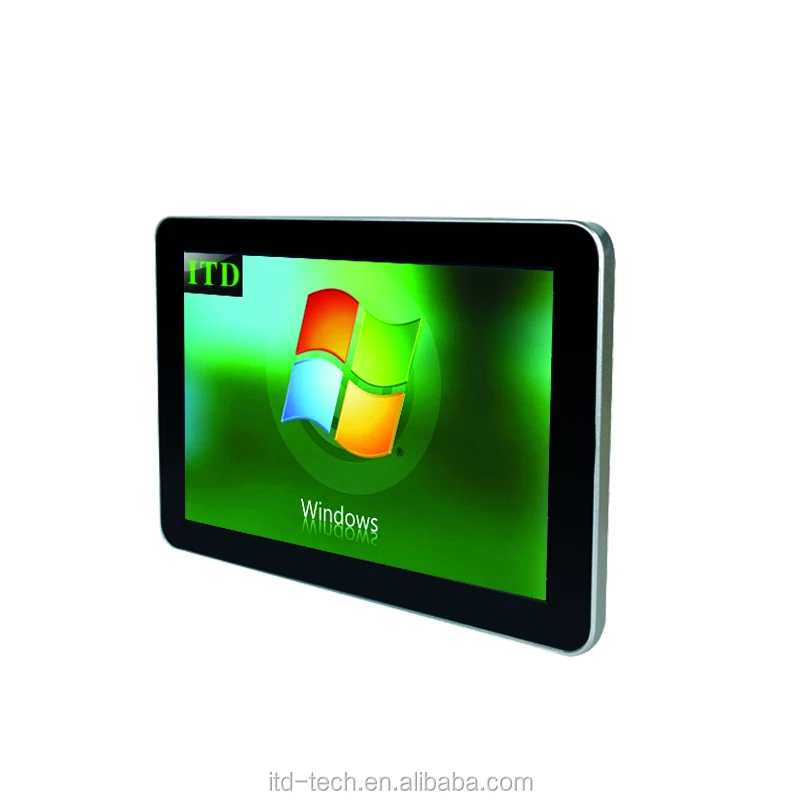

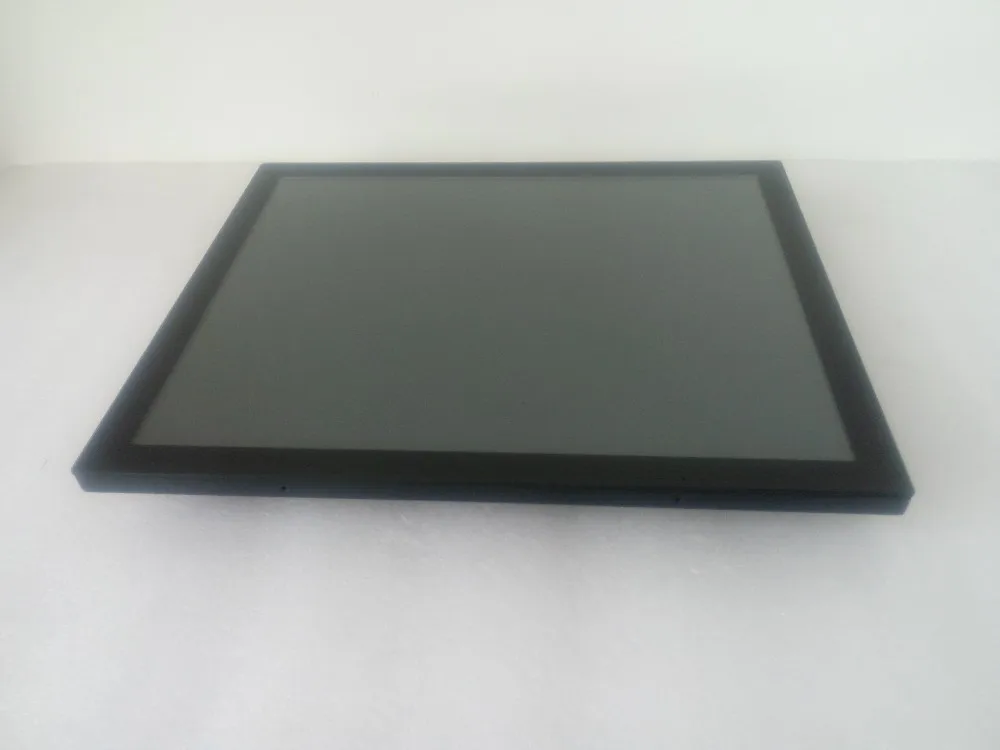

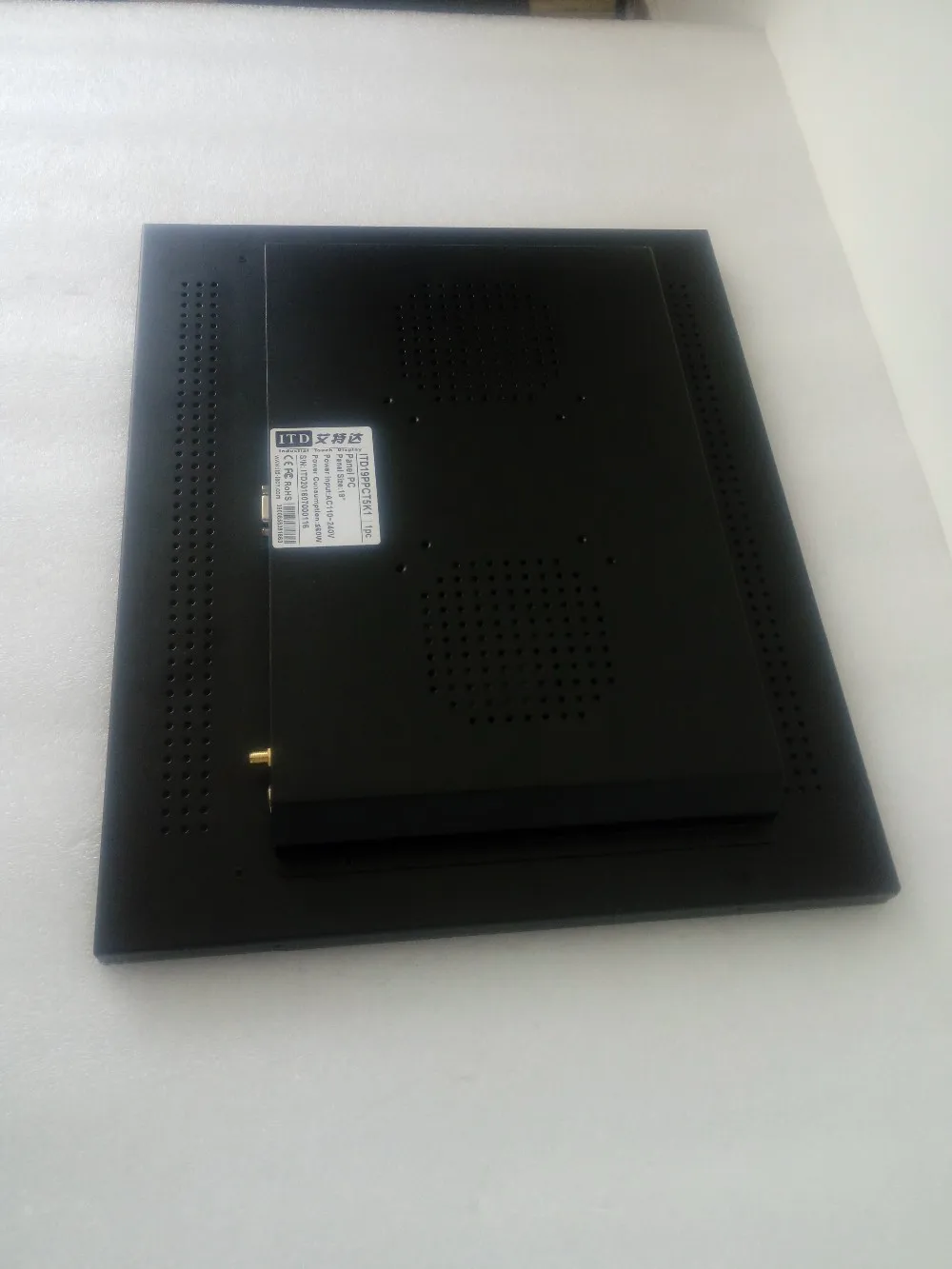

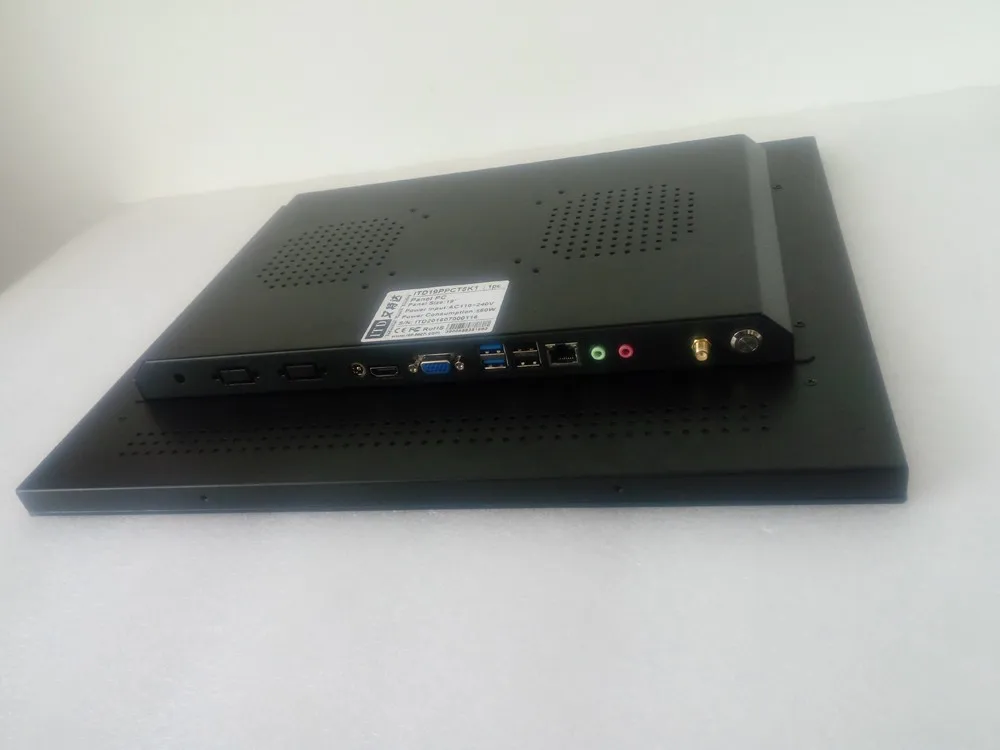

Product Display:

















 Firm, safe, standard cartons with foams

Wooden Shelf or box for big sizes and big quanity

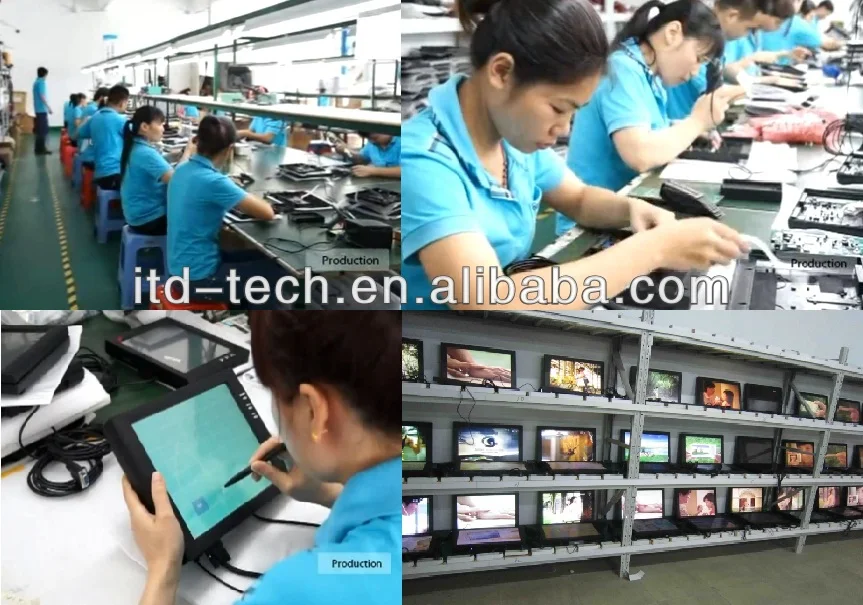

Factory & R&D:







DOA&RMA service

Warranty



DOA Service (Dead On Arrival):
To run DOA within 30 days after shipment. Goods are guaranteed to exchange when it is returned.
New product operation would be completed within 5-20 working days. Round trip shipping costs are paid by ITD. The following failures are allowed to be serviced by DOA:
A: The image cannot display normally.
B: It cannot be powered on.
C: The internal functions of monitors are out of work.



RMA Service (Return Merchandise Authorization):
To run RMA within 1 year after shipment. Maintenance time lasts from 5 to 20 working days according to the difficulty and specific situation. Returning shipping cost after maintenance is paid by ITD.

The Range of Warranty



All of the products offered by ITD except for gifts.



Authorized Number



A: Before customers return the goods to ITD for maintenance, they must apply for an authorized number (Please ask your sales contact who would reply you in one working day.) If we receive the returns without authorized number marked on package, we would reject to receive it.
B: If we receive the returns including unauthorized goods, these would be rejected.
