OMP 160 OMH OMS OMS OMT orbit hydraulic motor

Product Overview

Description

OMP-160 OMH  OMS OMS OMT orbit hydraulic motor



All kinds of products manufactured by the company can be widely applied in the hydraulic drive system of mine construction machinery, cranes and transporting equipment, heavy-type metallurgic machinery, petroleum and coal mine machinery, vessel deck machinery, machine tools. light industry ,plastic machinery, geological drilling equipment ,agricultural and forest machinery, mineral equipment, construction equipment and working platform ,lawn mowers, special vehicles fishery winches, machine tools, carpenter machinery and sawing machinery, and rubber machinery, these products are especially applicable to screw drives of plastics injection machines ,the drive of lifting winches and winding drums and driving tracks of rotating mechanisms and drive of wheel traveling mechanisms

main technical data

model		BMP-50	BMP-80	BMP-100	BMP-125	BMP-160	BMP-200	BMP-250	BMP-315	BMP-400
displacement(ml/r)		52.9	79.3	98.2	120.9	158.7	196.4	241.8	317.3	392.9
pressure(Mpa)	cont	14	14	14	14	14	14	11	9	7
	int	17.5	17.5	17.5	17.5	17.5	17.5	14	11	9
	peak	20	20	20	20	20	20	16	13	11
torque(N.m)	cont	89	150	191	235	307	365	378	378	378
	int	110	185	231	292	376	440	465	465	465
	peak	130	215	268	336	430	506	537	537	537
speed.range(r/min)		10-800	10-770	9-615	9-480	8-385	7-310	5-250	5-195	5-155
max.flow(L/min)		40	60	60	60	60	60	60	60	60
max.output.power(kw)		7	10	10	10	10	8	6	5	4
weight(kg)		5.6	5.7	5.9	6	6.2	6.4	6.6	6.9	7.4

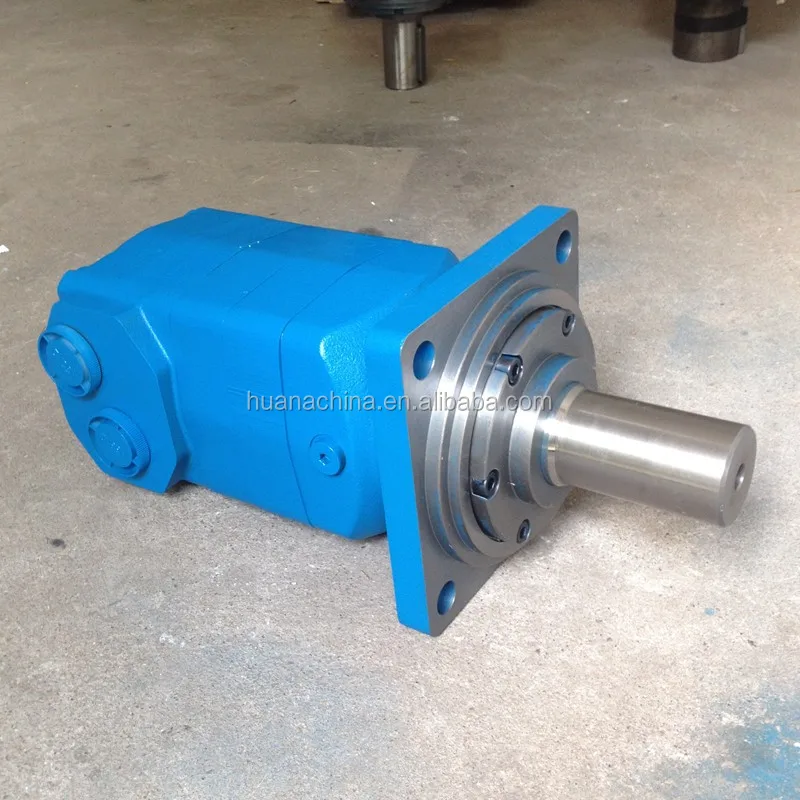

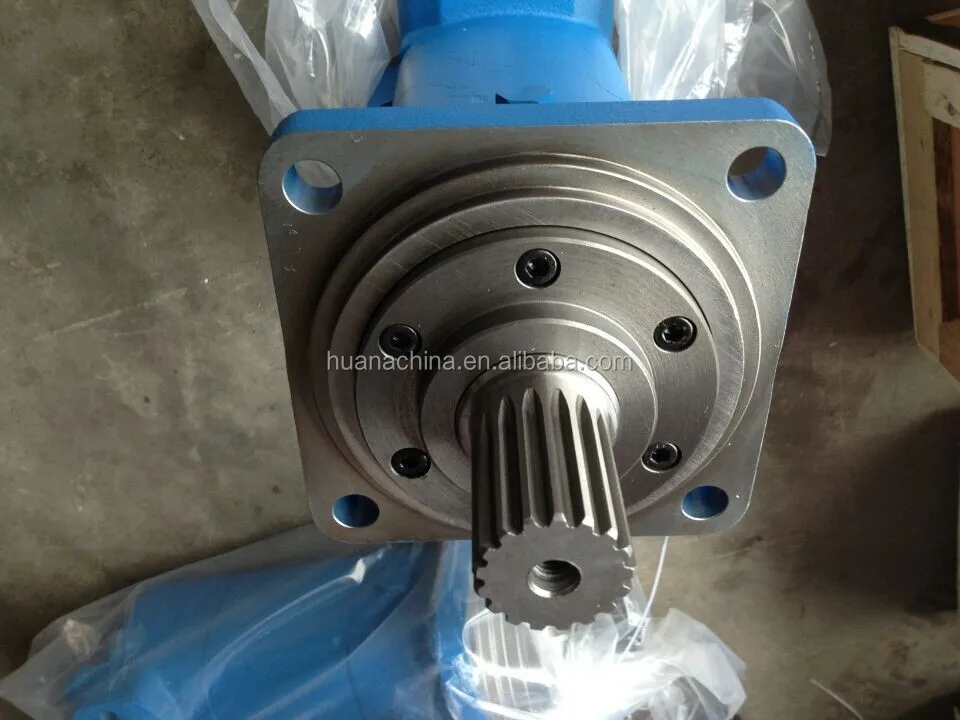

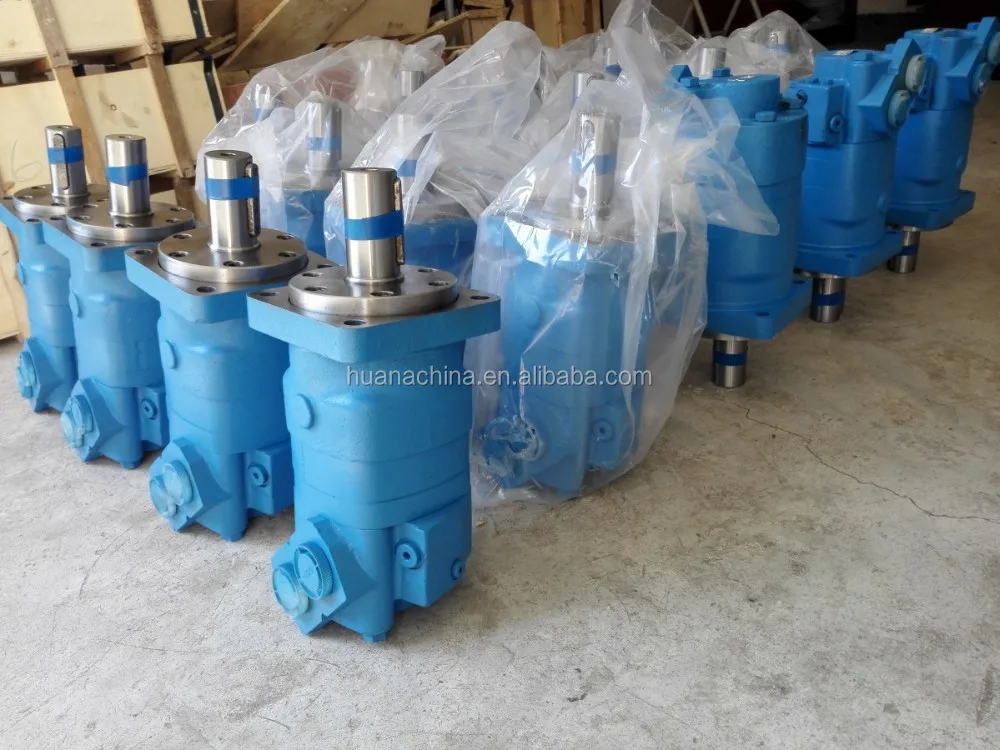

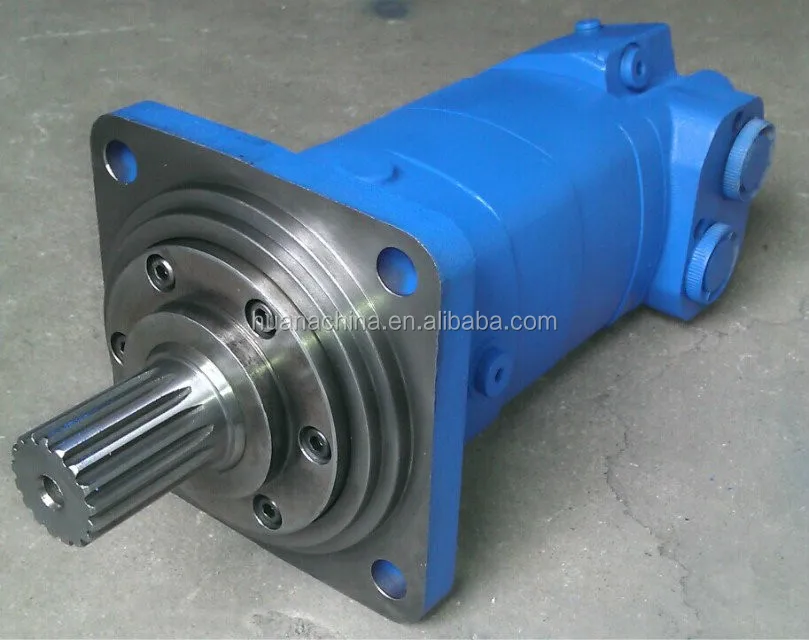

product picture

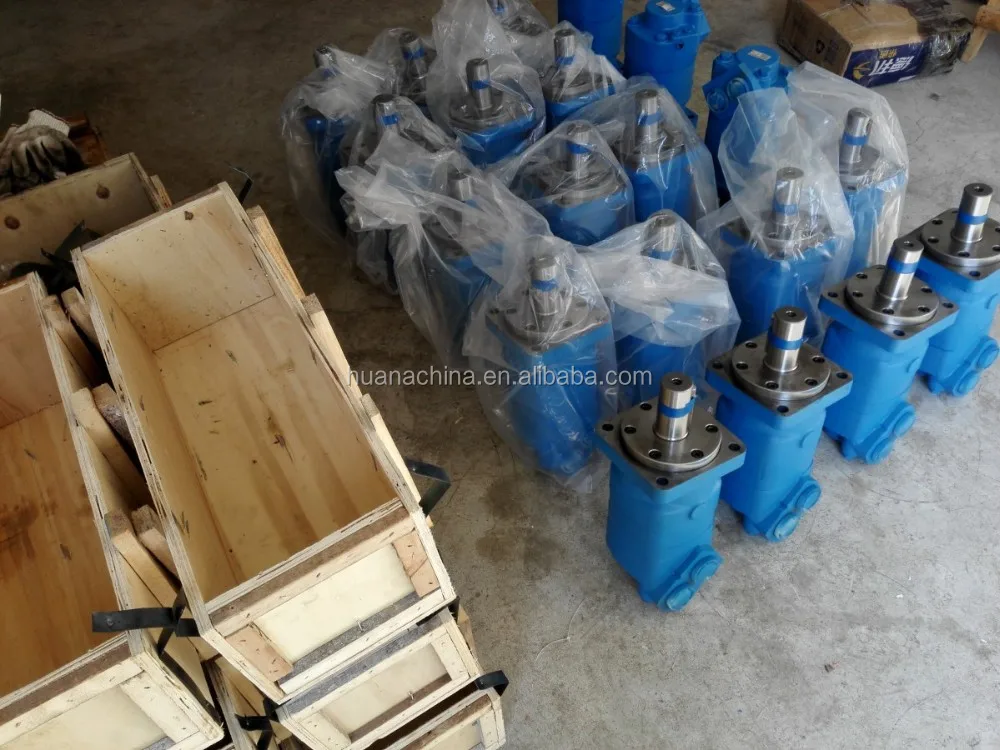

loading&shipping
