Product Overview

Description

Compressed Air Receiver Application


AEGIS’S VISION IS ‘ Quality shapes the future’’,and this commitment drives everything we do at all leaves of the company. Ourbelief is that we can reach this goal and maintain our position at the world’s ‘’one of the best quality compressed air receiver’’.

AEGIS is good quality compressed air receiver manufacturer making equipment strictly for the marine and offshore makets,We understand the challenges of these industries, and have utilized innovative solutions to meet their unique and strict requirements.

Over the last several years we have developed strong relationships with shipyards,shipowners and drilling contractors and these have been of great importance in our constant search for innovative product improvements.The result of this cooperation will enable our customers to become more competitive in the long-term.

Our new line of VSD air compressors capitalizes on variable frequency drive technology, allowing for up to 50% energy saving as well as reduced emissions. AEGIS VSD air compressors are the future of modern air compressors!

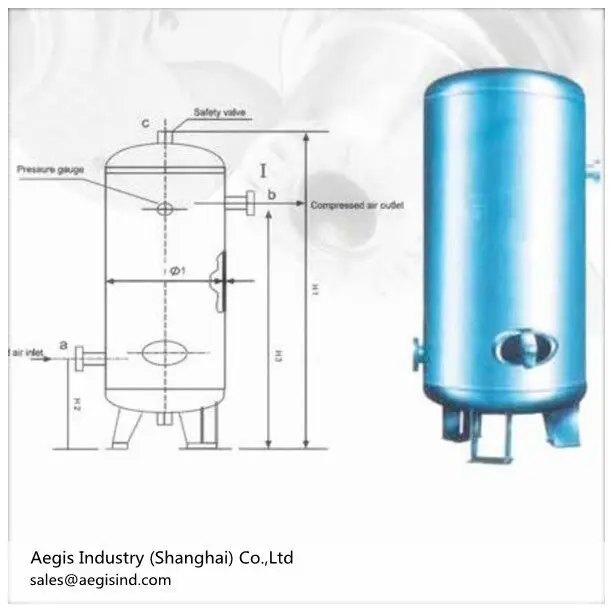

SPECIFICATIONS FOR COMPRESSED AIR RECEIVER AC-10/8





DESCRIBTION
Height
3754mm
Air inlet height
1082mm
Air outlet height
2962mm
Materials
Q345R
Model
AC-10/8
Others
Low noise and long useful life



 Main performance
parameters
Capacity
  10m3
Pressure
8bar
Internal diameter
1400mm
Safety valve connection
RP21/2
Weight
1610kg
Air inlet and outlet connection
  DN150
QQ20170710153813.jpgQQ20170710153913.jpgQQ20170710153913.jpgMain Features

MAIN FEATURE

1)Compressed air receiver is adopt screw air compressor,and we have many types to match different compressors.As one product of ARK VISION ,it has steadily gain sales momentum and brand recognition due to its competitive price and first-rate performance.


2)PLC intelligent control system.
Human-based Chinese/English user interface which have many function: remote control, several compressors interconnected running at the same time, automatic protection, automatic protective warming, unattended automatic running can be handled easily. It is helpful to control the compressed air receiver in case overheating,overpressure and so on .


3)Automatic regulatory inlet value
Adopting 0-100% inlet proportional regulator which stable work pressure of compressor and save energy.(provided by European corporation headquarters)

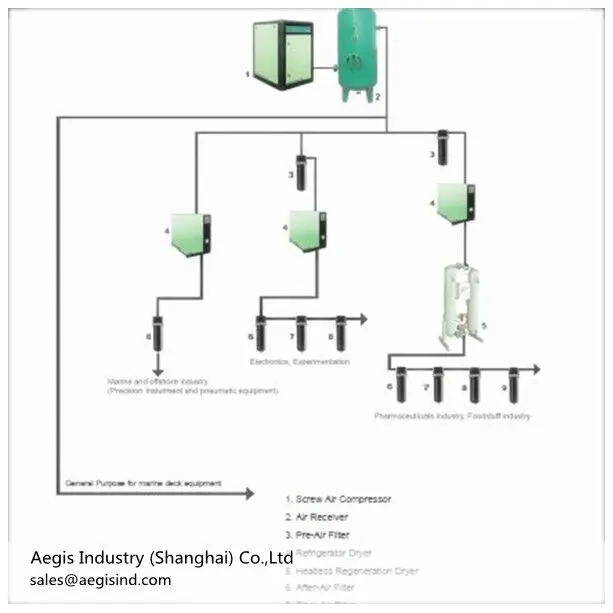

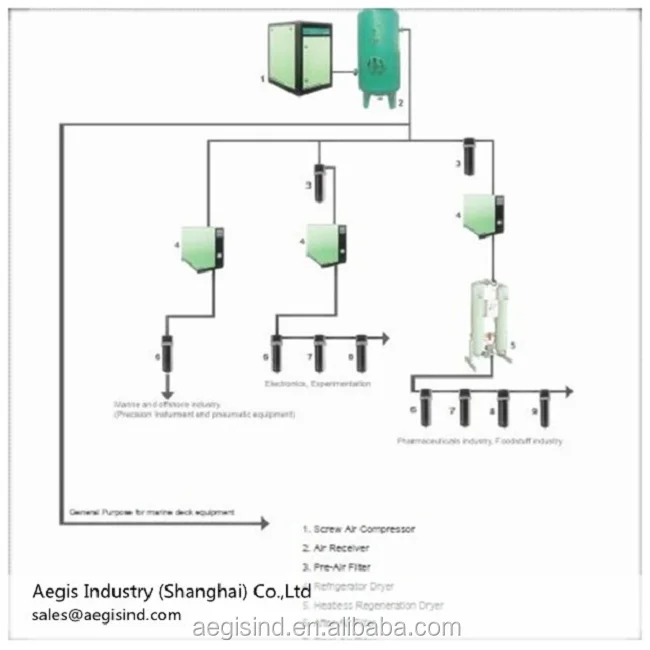

4)About  illustration of diagram(General Purpose for marine deck equipment)

1.Screw Air Compressor

2.Air Receiver

3.Pre-Air Filter

4.Refrigerator Dryer

5.Heatless Regeneration Dryer

6.After-Air Filter

7.Final-Air Filter

8.Activated Carbon-Air Filter

9.Sterilizing Air Filter






Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
