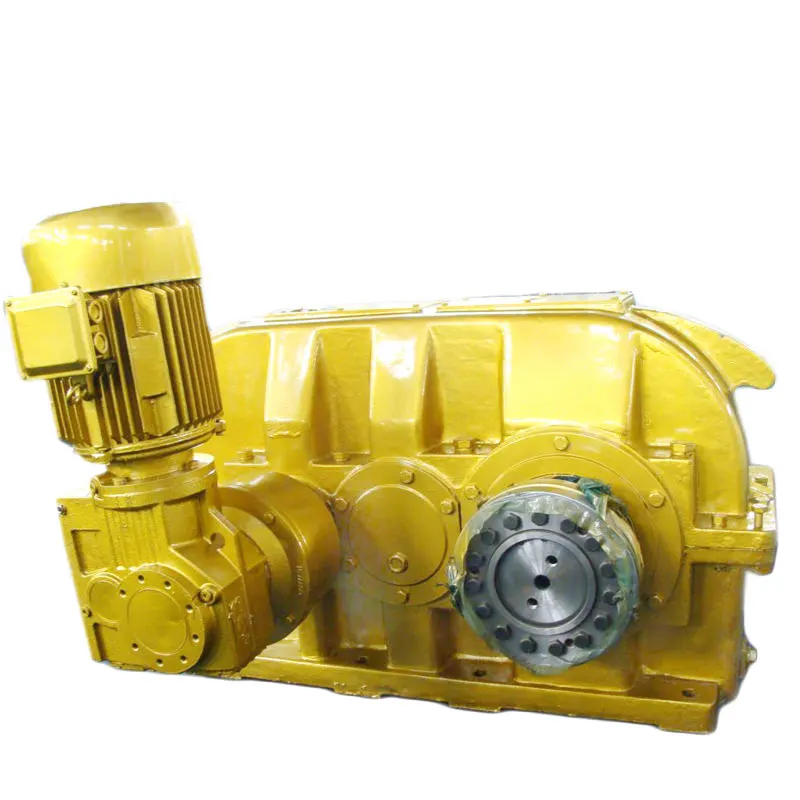

China Guomao DCY280 cylindrical bevel gear box industrial reducers
Type, specification of speed reducer and its expressed method:
This product is an outer meshed involute helical tooth cylindrical gearbox.
It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.
1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of toothsurface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;
| Gear Box's Usage Field|| || || Gear Box's Usage|
|1||Metallurgy|| || ||1||Agitator|
|2||Mine|| || ||2||Blast fan|
|3||Machine|| || ||3||Hoister|
|4||Energy|| || ||4||Compressor|
|5||Transportation|| || ||5||Petroleum industry|
|6||Water Conserbancy|| || ||6||Air Compressor|
|7||Tomacco|| || ||7||Crusher|
|8||Pharmacy|| || ||8||Plastic extruder|
|9||Printing Package|| || ||9||Conveyer|
|10||Chemical industry|| || ||10||Textile indutry|
|……|| || || ||……|| |
| || |
|…||Model &Nominal centre distance|
|Two stage||DBY/DBYK:160/180/200/224/250/280/315/355/400/450/500/560 Ratio:4/4.5/5/5.6/6.3/7/8/10/11.2/12.5/14|
|Three stage||DCY/DCYK:160/180/200/224/250/280/315/355/400/450/500/560/630/710/800 Ratio:16/18/20/22.4/25/28/31.5/35.5/40/45/50/56/63/71/80/90|
| || |
1.Highly standard modular designed
2.Many Mounting arrangement
It consists of model, nominal center distance a (last grade center distance), nominal transmission ration, assembly model, and input shaft rotation direction code.
According to the output shaft, it can be classified into I, II, III, and IV four kinds. Type I and II are left and right output shafts; III and IV are left and right output shaft of removal brake.
