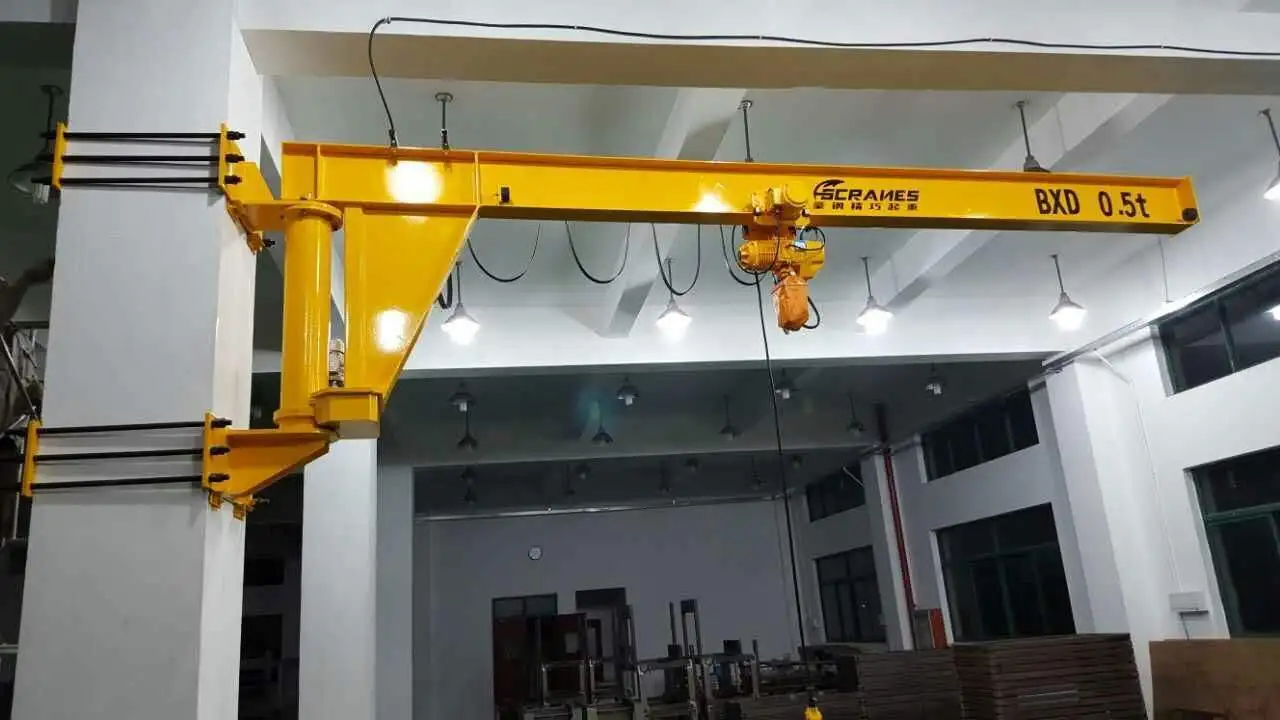

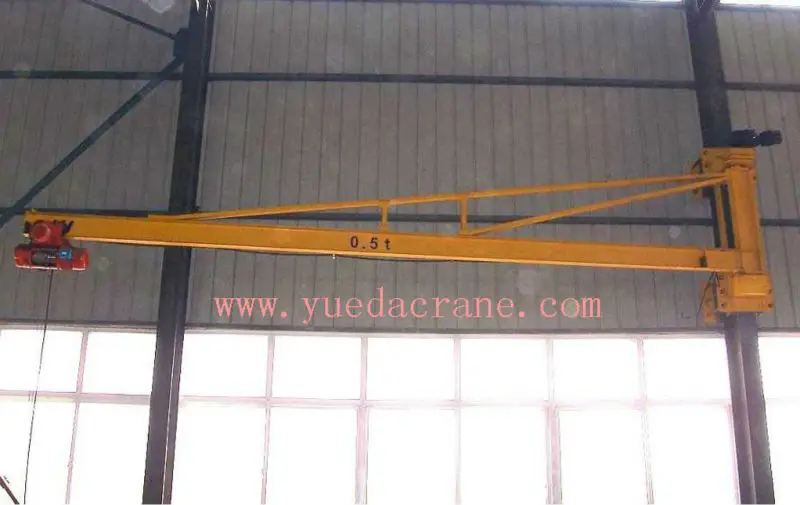

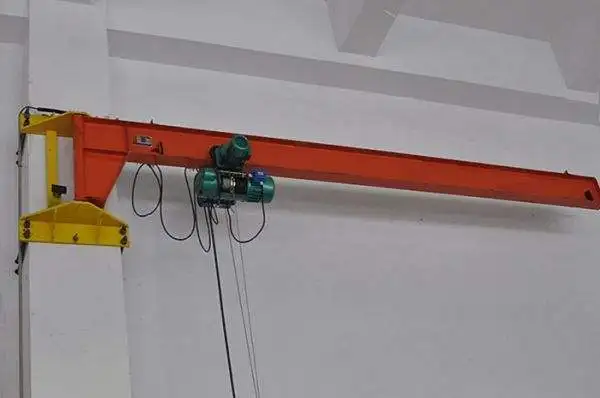

Easy Operated Wall Mounted Slewing Jib crane 1 ton

Product Overview

Description

Easy Operated Wall Mounted Slewing Jib crane 1 ton

 1.Main part:

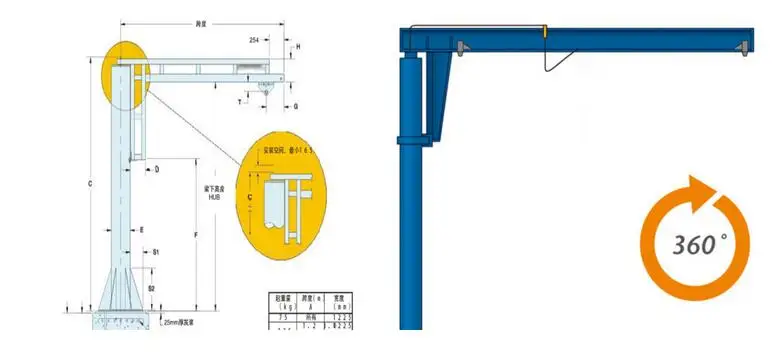

 2. Feature and Drawing

1,Two operational methods for your choice.

2,Safety device

3,Six directions travelling

3.Product Superiority                                                                                                           1.Convenient installation

2. Small occupied space

3. Top quality long time bearing polyurethane materials buffer

4. Crane traveling limit switch

5. Voltage lower protection function

6. Emergency stop system

7. Current overload protection system and so on



4.Safety protection system

a. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible

b. All movements can be switched off by actuating the emergency-off switch at the control station via a main contact
c. Safety hook latch used for avoiding the lifted material out off from the hook
d. Protective earth conductor is fitted as standard
e. Voltage lower protection system
f. Current overload protection system

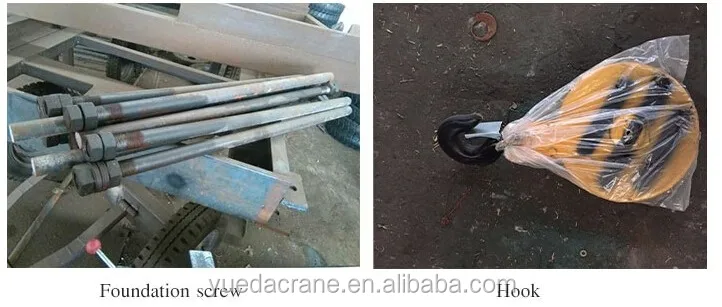

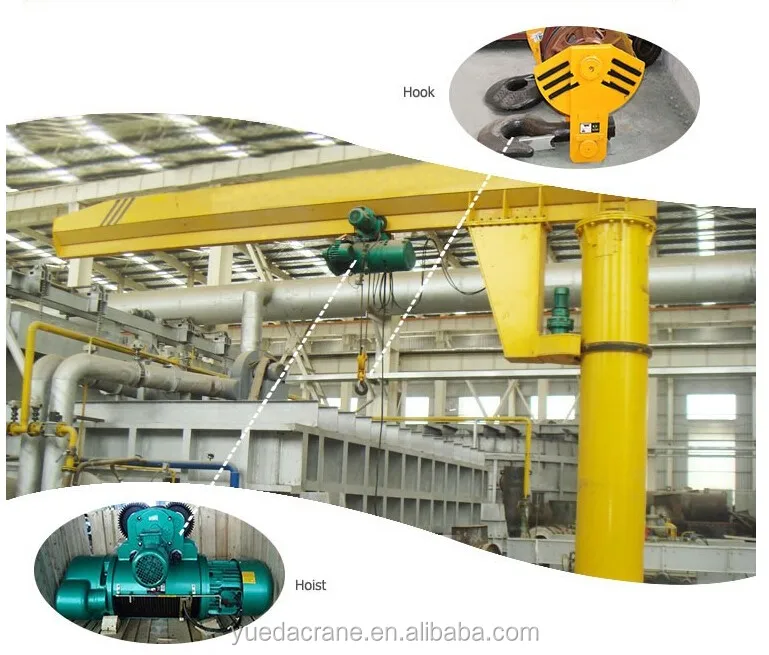

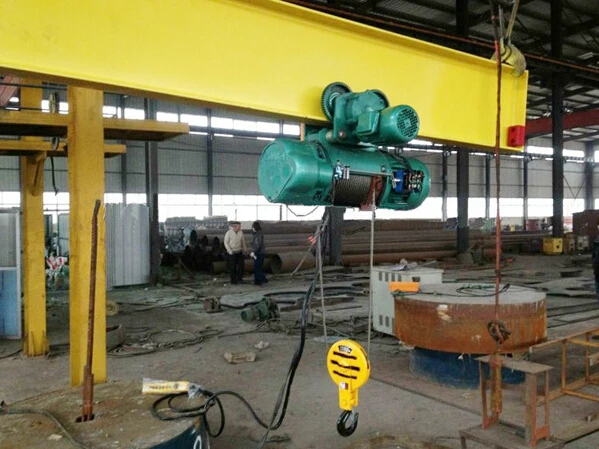

5.Detailed Images:



6.Pendent line control:

a. 36V control voltage safety for human being.
b. Easy to control, no additional driver necessary, operate following the travelling of crane and hoist
c. Double step button with emergency to achieve safety stop
d. Connected with the electric trolley suspended under trolley
e. Protection class IP65
f. Operation life not less than 500,000 times

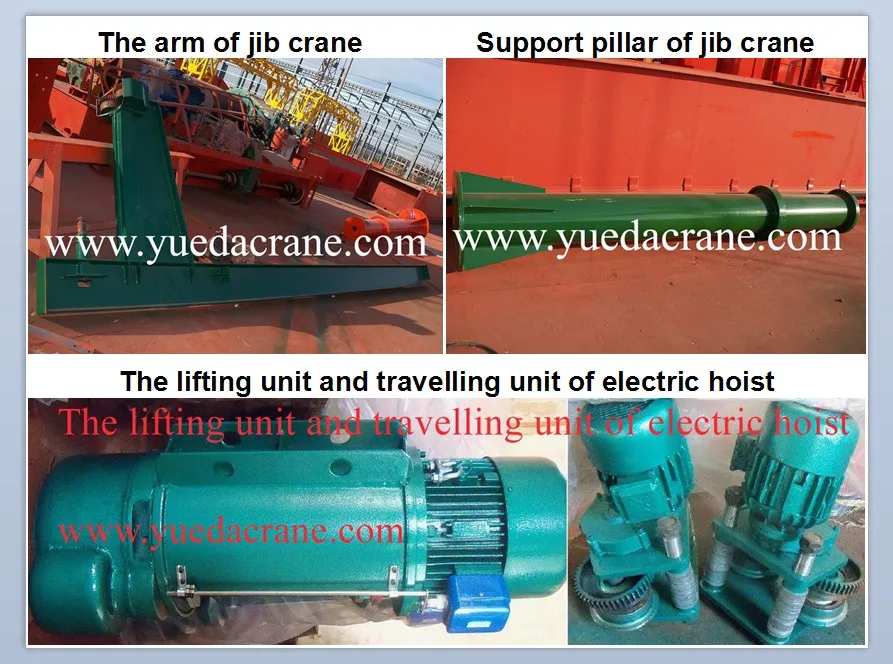

7.The Arm And Support Pillar Of Jib Crane:





Our company is located in Henan Industrial Park of Crane (the birthplace of crane).Based on the convenient transportation, our area becomes the most advanced and the largest manufacturing base for overhead cranes, gantry cranes, jib cranes, electric hoists and electric winches.

Based on the strong support of technical and manufacture experience, we can manufacture 5T-600T double beam overhead cranes, 1T-20T single beam overhead cranes, 5T-250T double beam gantry cranes, 3T-32T single beam gantry cranes, 0.25T-20T jib cranes, 0.25T-80T wire rope electric hoists and 1T-65T wire rope electric winch. There are more than 3/4 of the market shares in China come from our area.The quality of these products has won the credit and praises of customers.



Certificates:

1. Provide Precise design Proposal: Including Detailed Quotation List, CAD Flow Chat, Installation Diagram and photos for customers reference.



2. Delivery Goods: Provide standard shipping wooden package, full set of equipments photos before and after packing goods.also, full set of shipping documets sent by post.



3. Installation: Engineers is available to install machine oversea.



4. Quality Guarantee Term: 14 Months.



5. After-sales service: Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
