Rechargeable lithium ion polymer battery for tablet computer.
Product Description
Battery model
JHY251020(3.7V/20mAh)
Design scheme
Battery+Seiko PCM board+Wires+Connector
Nominal voltage
3.7V
Minimum capacity
20mAh
Charging voltage
4.2V
Discharging cut-off voltage
3.0V
Standard charging
0.2C/4.2V
Max charging
0.5C/4.2V
Standard discharging
0.2C/3.0V
Max discharging
0.5C/3.0V
Weight
Appr: 120.0g
Shipment voltage
≥3.85V
Operating temperature
Charging: 0℃~45℃
Discharging: -20℃~60℃
Storage (at 50% SOC and specified temp, recoverable capacity in % VS time)
-10℃~25℃
-10℃~45℃
-10℃~55℃
20±5℃ is the recommended storage temperature.
Visual Inspection
There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on on the surface of the cell.
Packaging & Shipping

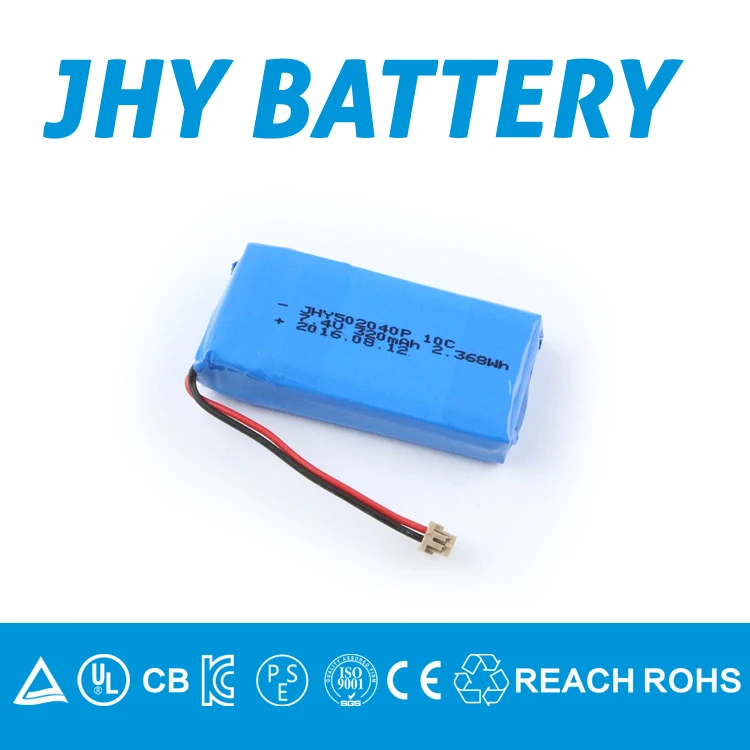

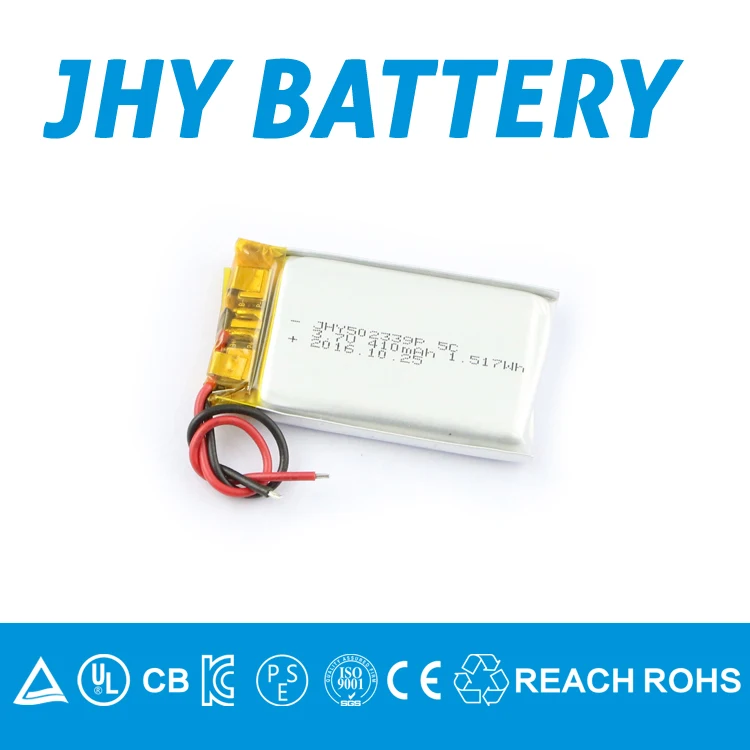

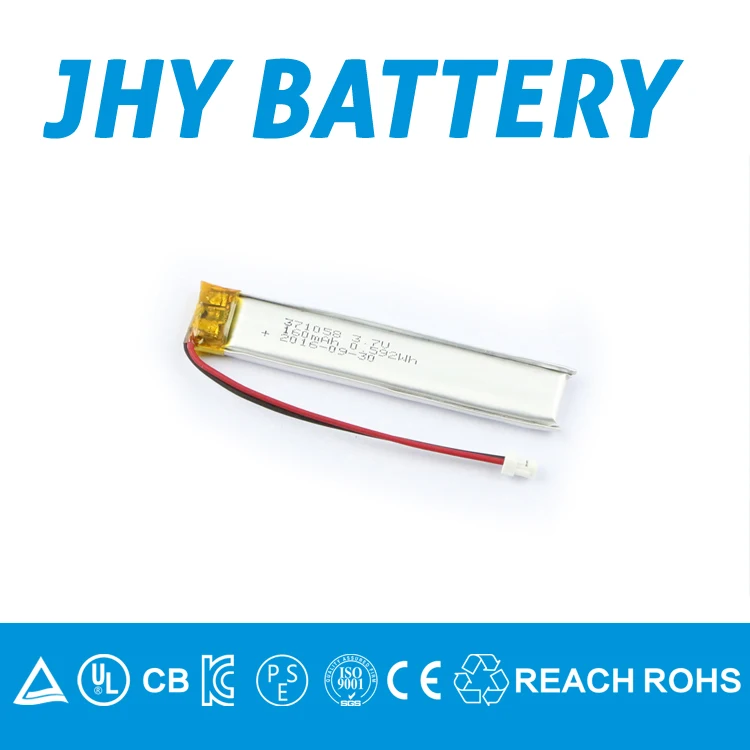

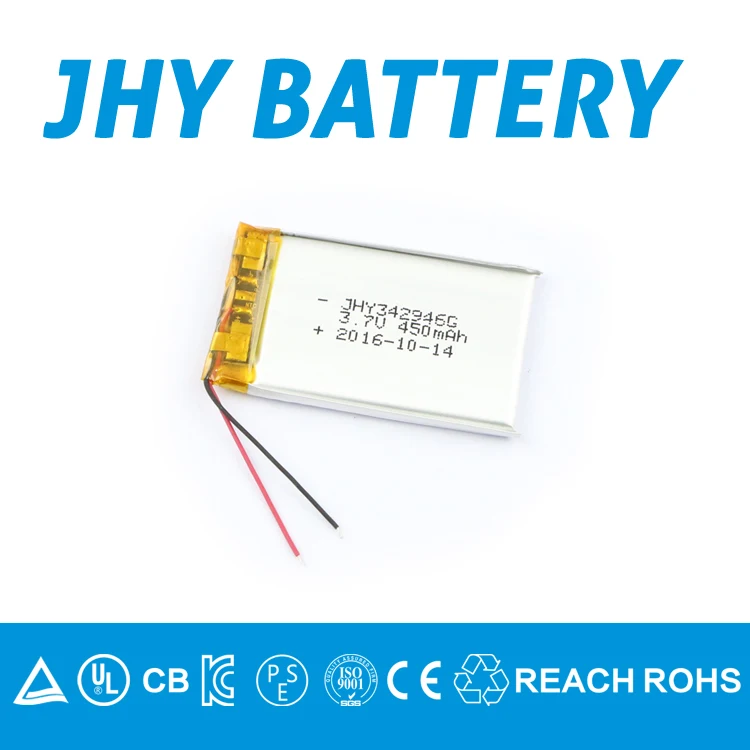

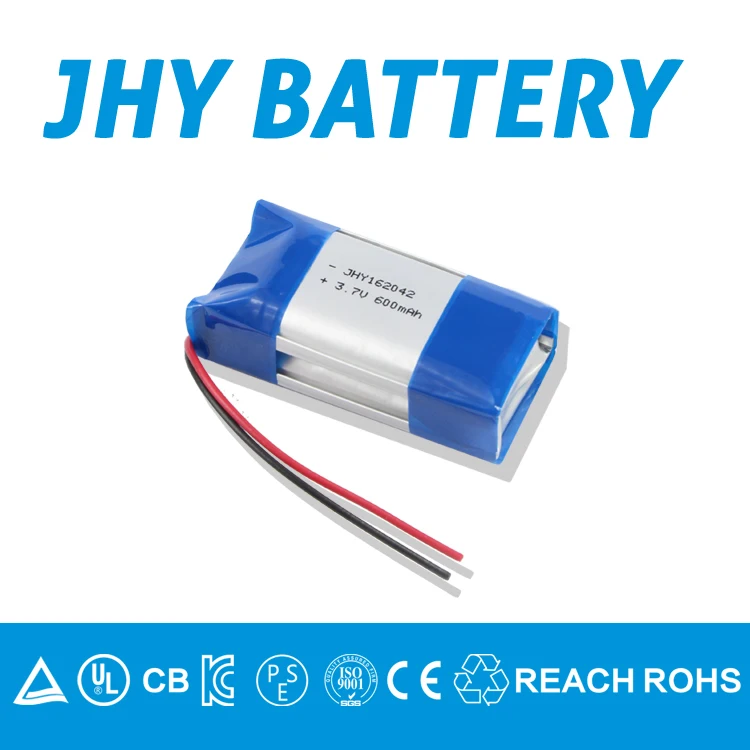

Battery image
Battery thickness
Battery length
Battery width
Company Information
Shenzhen JUHEYUAN Science & Technology Co., Ltd. is a leading high-tech enterprise and professional solution provider specializing in lithium ion battery in China. JHY battery ranks top 3 within industry.
Over the years, JHY has accumlated a lot of know-how and experience:
JHY superior products: Ultra-thin & ultra-narrow battery (able to reach the thickness of up to 1.3 mm) High Rate Battery: 3C to 30C, DOD reaches to 95%. High & Low Temperature Battery: workable temperature from -35℃ to 85℃.
Products range: High-capacity battery; Long-cycle life battery; Battery with high-temperature range vision; Battery with low-temperature range vision; High & low-temperature battery; High-rate battery; Ultra-thin flexible battery; Diamagnetic battery etc.
Product application:
Wearables, Bluetooth products, POS machine, GPS system, tablet PCs, RC models, Medical equipents, etc.
Also we are proud that JHY is fully RoHS compliant and has achieved accreditation to ISO 9001:2008.
Markets:
In the early stage of our business, we were focusing in domestic market, with strong support of our R&D team, Companies to develop new products, selling products throughout the country and exported to overseas countries and regions, won the trust of all customers, products in the domestic industry leader. With a wide coverage of market in Asia, Middle East, North America and Latin America and Europe, the annual sales volume of JHY battery is increasing dramatically.
Our customers put their trusts in us, we also think we can have your trusts. Hope there is a chance to serve you, any your inquiries are welcome to us, regardless of the order qty.
Q: I would like to get good prices, what could I do? A: Please send us a mail and show us your interested models & quantity, and more project details. Larger qty, more discount.
Q: I would like to buy only one battery, is it OK? A: When the one is in stock, we would like to sell you.
Q: I can't find any models fit for our products, how could I do? A: Every week we make some new models but do't update in time. Please send us the dimension range (length*width*thickness) and capacity. We will check these ones haven't been showed online. Besides we can provide you customized battery.
Q: I would like to buy some batteries, how could I pay? A: We accept payment via PayPal, Western Union or T/T.
Q: I want battery assembled connectors, can you do that? A: Yes, can assemble connectors such as Molex, JST or SMK. Please send me the part number, we will offer our solution accordingly.
Q: What is your lead time? A: Generally speaking, our lead time is 30 days after confirmation on the order based on 5K-10K.
