Product Overview

Description

Nordic Mini Portable Low Power Nrf51822 Bluetoo Ble Beacon 4.0 Ibeacon Made In China Ic Module Odm Iot

MOLD	NRF51822	NRF52832	CC254x	CC2640	CC2640-X1
Chipest	Nordic	Nordic	Ti	Ti	Ti
BLE	4.0	5.0	4.0	5.0	5.0
Power Supply	2.0-3.3V	2.0-3.3V	2.0-3.3V	1.8-3.8V	2.0~3.0V
Output Power	4dBm	4dBm	0dBm	5dBm	5dBm
Broadcast interval	1S(adjustable)	1S(adjustable)	1S(adjustable)	1S(adjustable)	1S(adjustable)
TX Current	13mA	13mA	24mA	9.1mA	9.1mA
average current	50uA	50uA	80uA	40uA	40uA
Standby Current	3.1uA	3.1uA	3.1uA	1uA	1.5uA
Distance	>50m	>50m	>50m	>60m	>60m
Diameter thickness	2.4cm*4.5mm	2.4cm*4.5mm	2.4cm*4.5mm	2.4cm*4.5mm	75*26mm (with pedestal)
Battery	CR2032	CR2032	CR2032	CR2032	2*AA ALKALINE (industrial battery)
Life Time	6 month	6 month	4 month	8 month	Five Years
Waterpoof	No	No	No	No	Yes
Sensor Optional	Yes	Yes	Yes	Yes	No



No.	Item	Test Requirement	Remarks
1	Voltage Supply	2.0-3.6v	DC
2	Working Frequency	2402 - 2483.5Mhz	Programmable
3	Flash(KB)	256/128
4	Output Power	-30dBm~4dBm	Programmable
5	Receiving Sensitivity	-97dBm	High Gain Mode
6	TX Current	10.5mA
7	RX Current	9.7mA
8	Standby current	2.6uA
9	Antenna form	PCB Antenna
10	Interval	1S
11	Power	4dBm
12	Transmit Distance	>50M	0dBm
13	Size	25mm*4.6mm
14	Sensor	Option	SHT3X/KX022

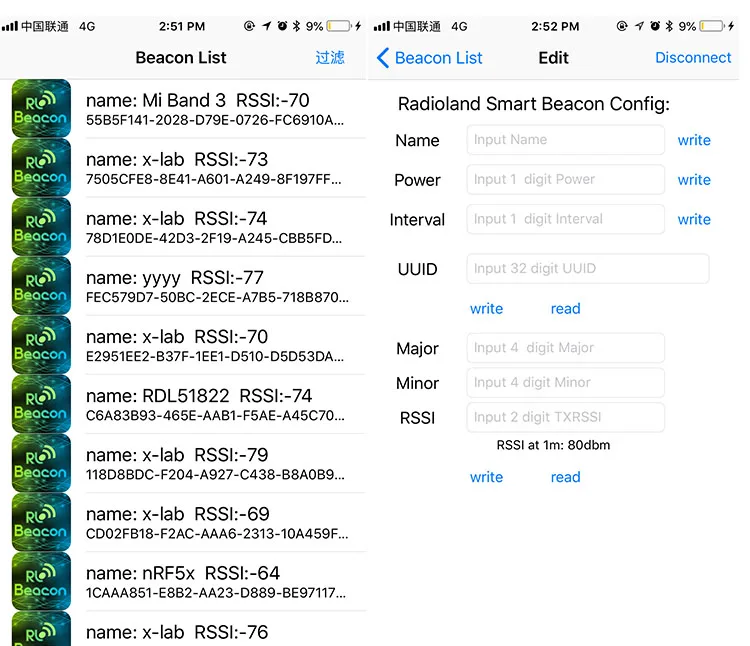

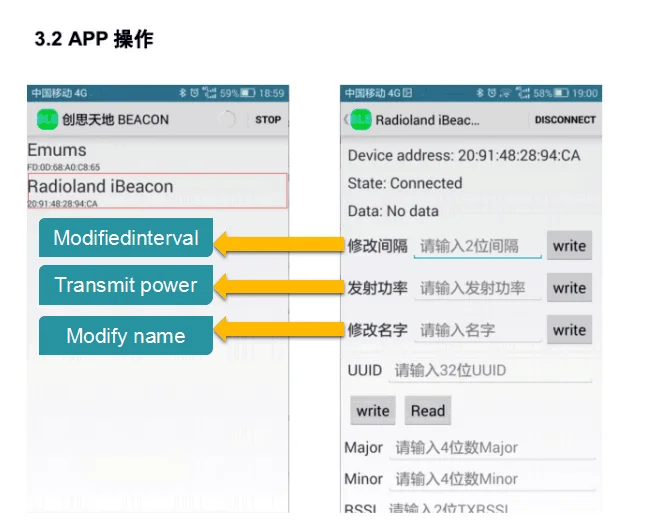

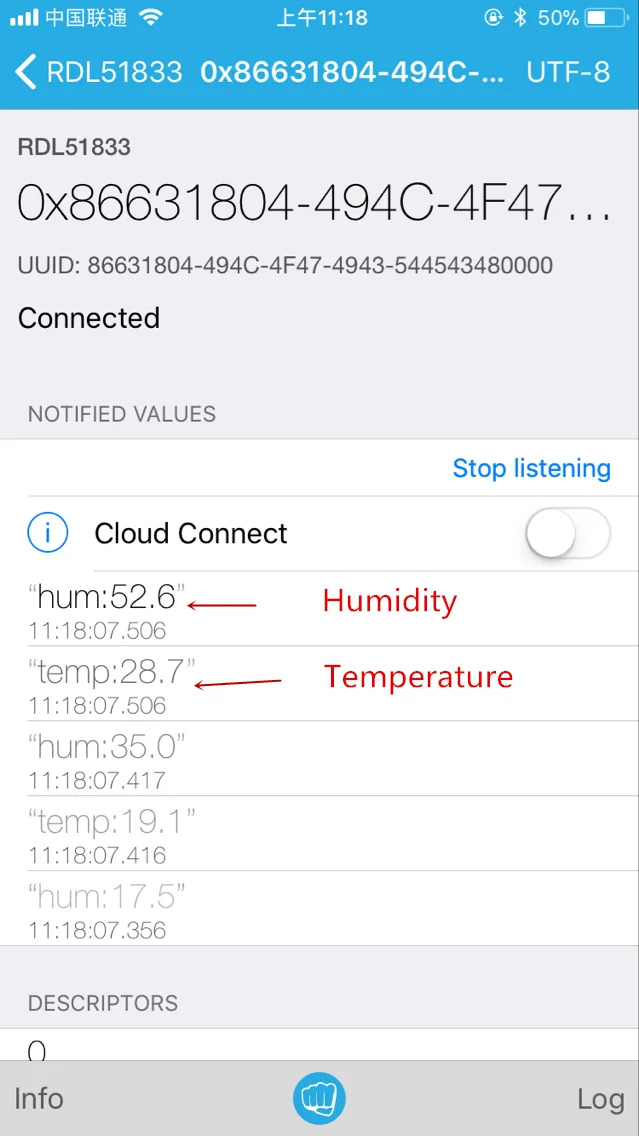

Beacon SizeConfigure App

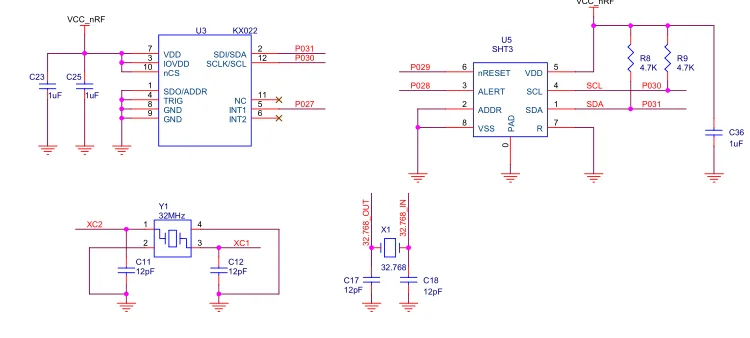

Circuit DigramDescription:

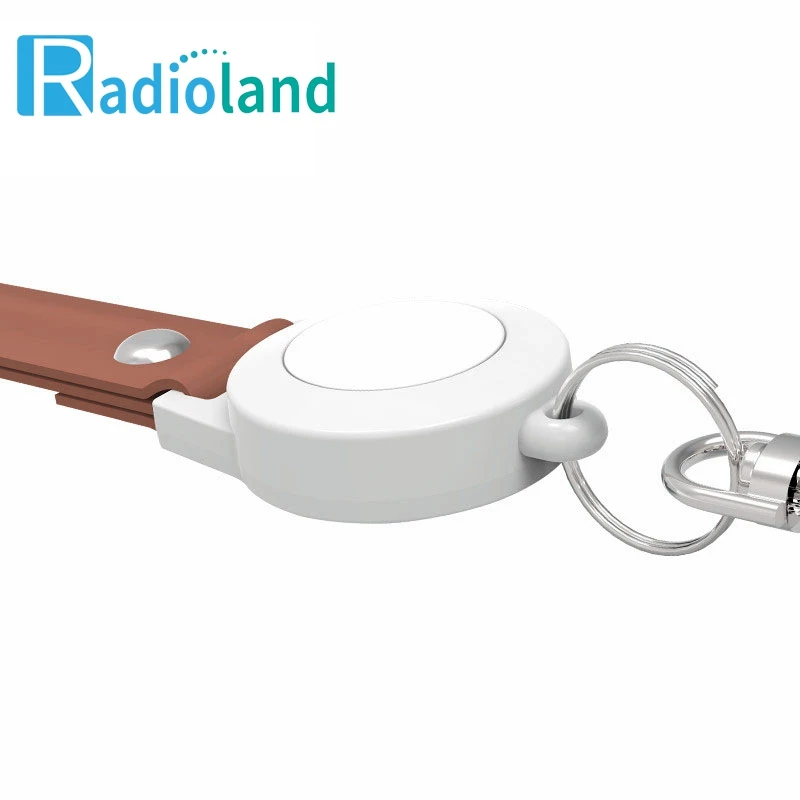

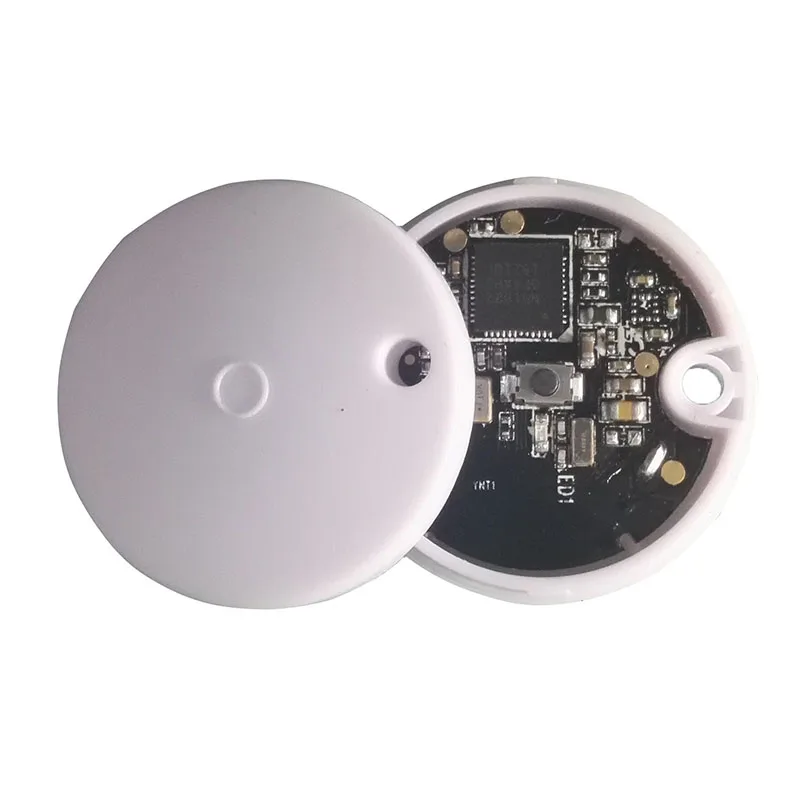

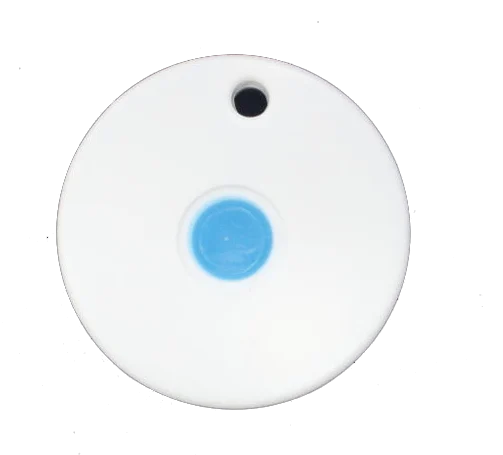

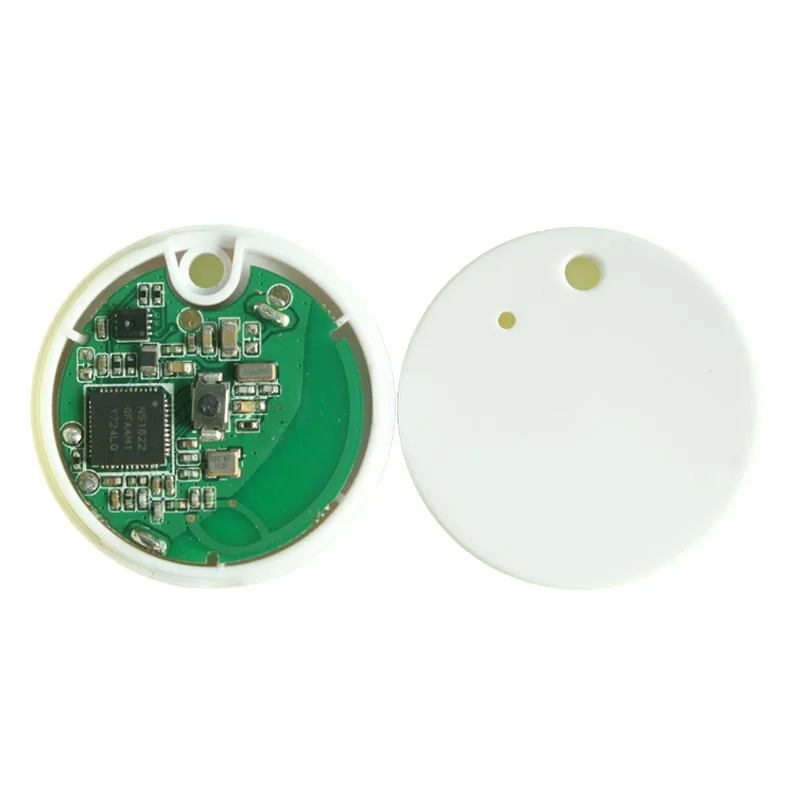

The NRF51822 beacon module is a portable iBeacon tag with ultra low power chip set NRF51822 and leverage BLE 4.0 technology. It has a portable white case, accurate hardware and robust firmware. It is designed for the commercial advertising and indoor location-based service.
NRF51822 beacon module outputs 2.4GHz radio signals at regular and adjustable intervals when it is power on. It can be detected and interpreted by iOS and Android BLE devices that are equipped with many mobile apps.

Characteristics :

1. Easy and Rapidly to customize a casing in very low cost;
2. UUID, Major, Minor and other parameters can be changed by customer;
3. iBeacon with bar code and easy for recognize;

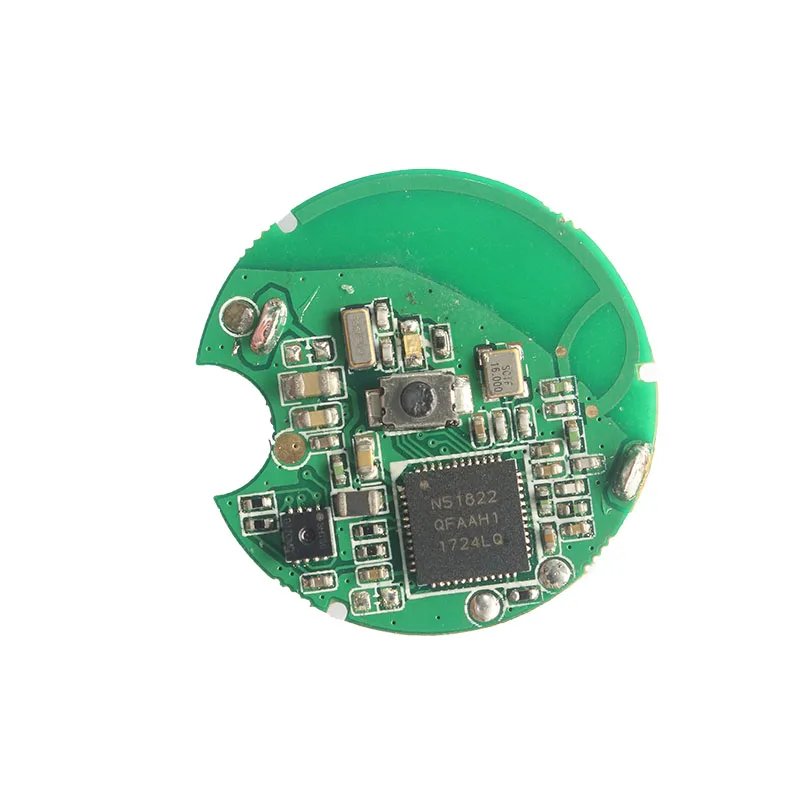

4. Based on Nordic's NRF51822 chip, BLE low energy module;
5. Support for IOS7.0,Android 4.3 or above;
6. Effected range:50M;
7. The battery lifespan have over 1 year .



Application fields:

--Indoor navigation
--mobile payment
--in-store promotions specialist
--flow analysis

--Broadcasting Advertisement
