30A Golf Cart DC DC Converter 36V 48V to 12V Step Down Voltage Reducer
- Category: >>>
- Supplier: Shenzhen Fulree Electronics Co. Ltd.
Share on (60676416739):
Product Overview
Description

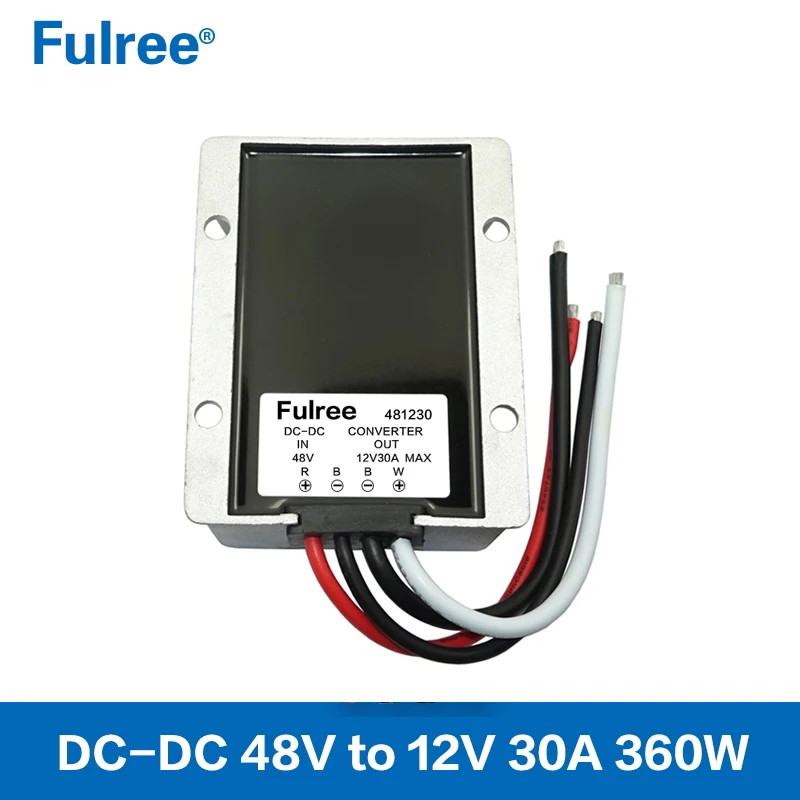

30A Golf Cart DC DC Converter 36V 48V to 12V Step Down Voltage Reducer
Product Description
Product Name | DC DC Converter 36V 48V to 12V 30A 360W | |
Brand | Fulree | |
Model No. | 481230 | |
Module Properties | non-isolated buck module | |
Rectification | synchronous rectification | |
Input | ||
Input Voltage | DC 48V | |
Input Voltage Range | DC 30-60V | |
Output | ||
Output Voltage | DC 12V | |
Output Current | 30A Max | |
Output Power | 360W Max | |
Conversion Efficiency | 97% (half load), 95% (full load) | |
Voltage regulation | ±1% | |
Load regulation | ± 2% | |
Ripple (Full load test) | < 120mV | |
No-load current | <50mA | |
Working Temperature | -40~80℃ | |
Waterproof Rating | IP68 | |
Protection | Over-current protection | |
Over-voltage protection | ||
Overheat protection | ||
Short-circuit protection | ||
Reverse Polarity Protection | No, please follow label instructions wiring strictly: red for input positive, black is negative, white for output positive | |
Certification | CE/RoHS | |
Case Material | Aluminum | |

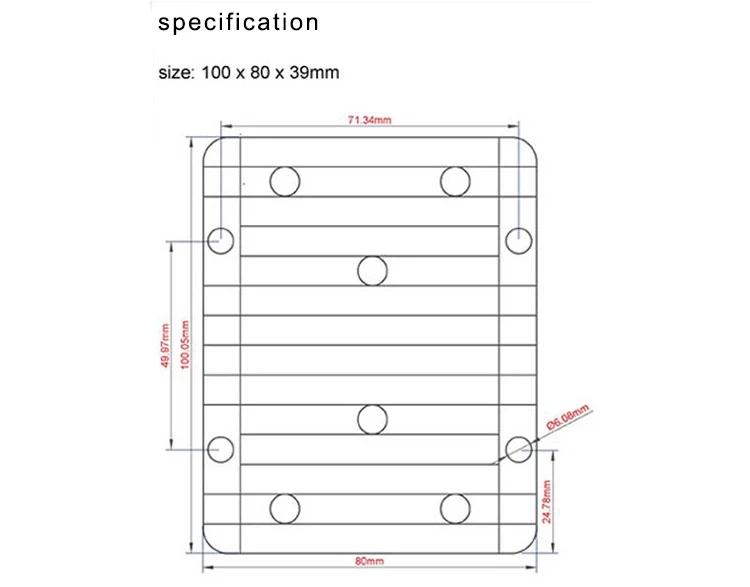

| Product Size (L x W x H) | 100*80*39mm | |
Product Weight | 500g | |
Warranty | 12 months, lifetime up to 100,000 hours | |
Cooling Way | Free air convection | |
OEM&ODM Service | Accept | |

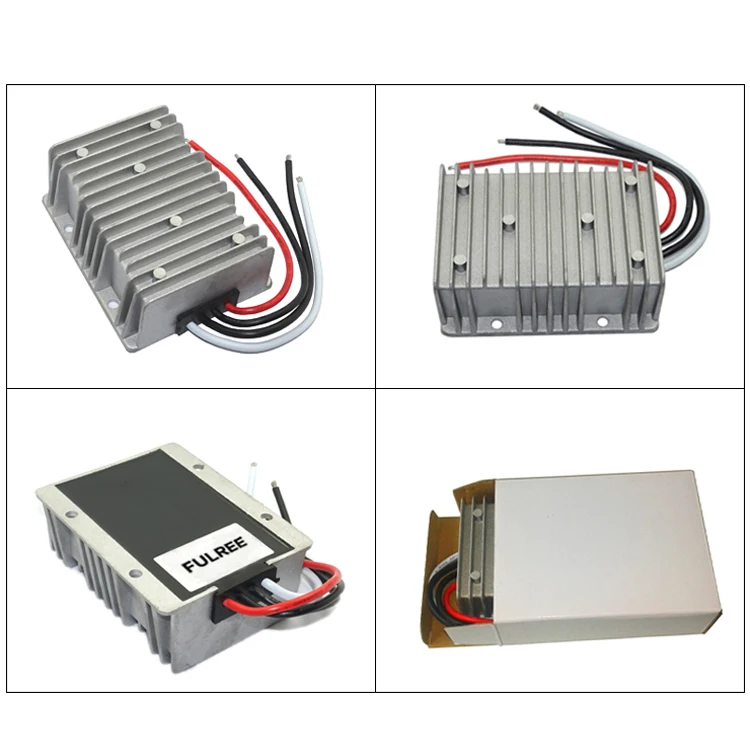

Product Picture
