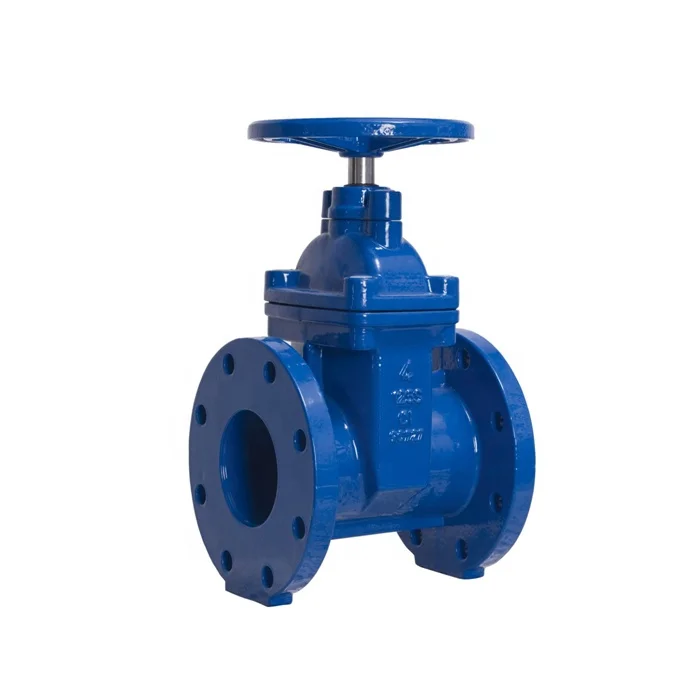

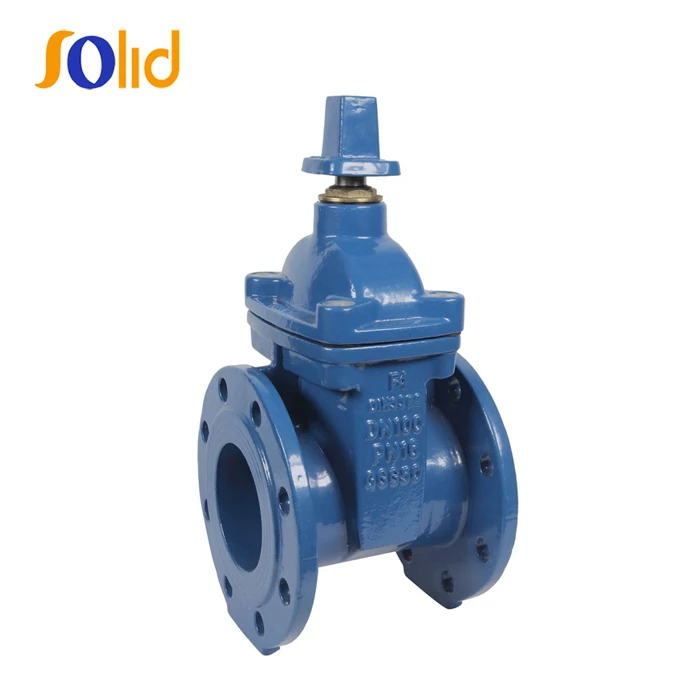

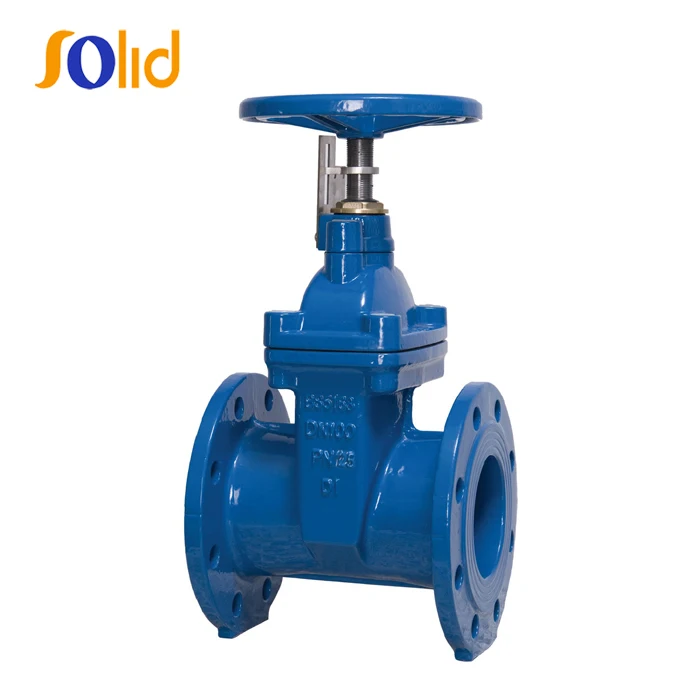

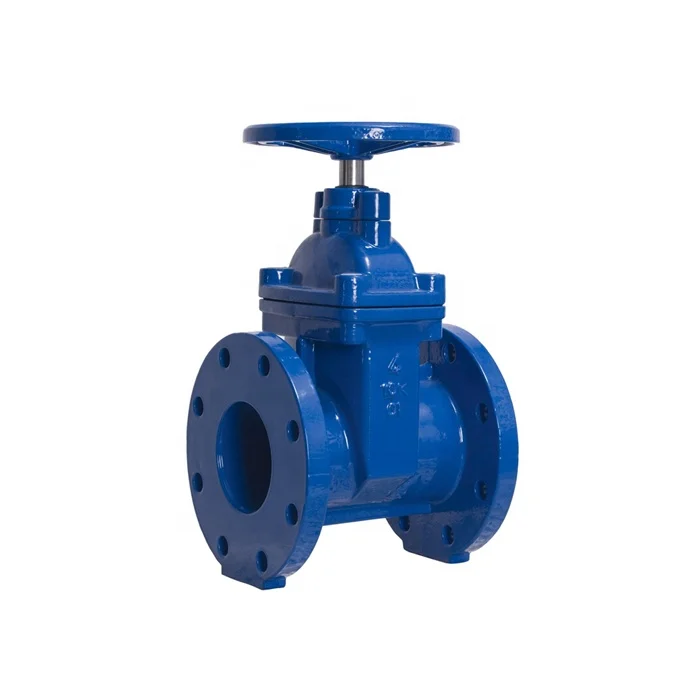

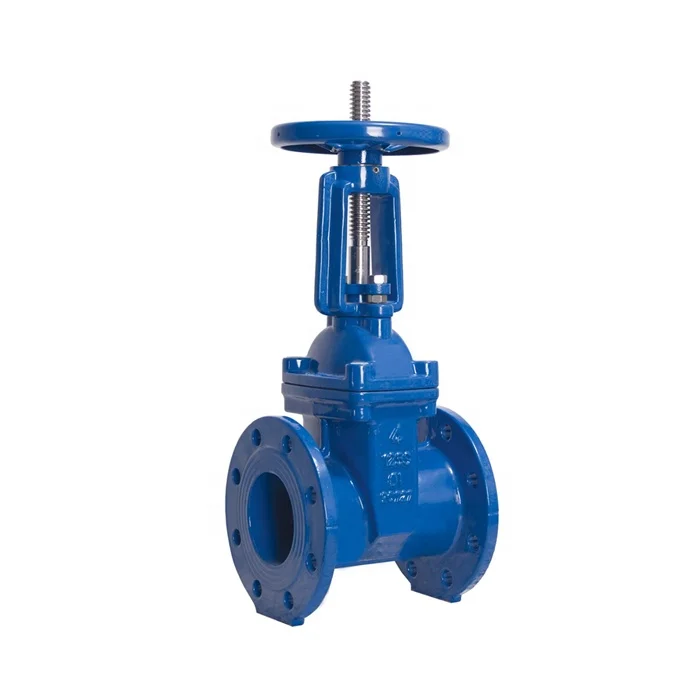

Features: Outside stem and yoke (OS&Y) Stem Seal with O-ring Bolt bonnet, Full bore Rubber encapsulated wedge, Brass Wedge Nut. Fusion bonded epoxy coated inside and outside , blue RAL 5017 200 Micron thick Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
Technical Specification: Valve design according to EN 1171,BS5163,EN 1074-1 and 2 Face to face dimensions according to BS5163,EN 551-1 Series 13 Hydraulic test according to EN 12266,ISO5208 Standard flange drilling to EN 1092-2,ISO 7005-2
1
Body
Cast iron/Ductile iron
2
Bonnet
Cast iron/Ductile iron
3
Wedge
Ductile iron with NBR/EPDM
4
Stem
2Cr13
Detailed Images
Factory Overview
Packaging & Shipping
Related Products
Our Services
Sample Room
Company Information
FAQ
1. Can I get free samples? A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation? A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment? A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product? A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings? A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. Which price terms could accepted? A: FOB,CIF all acceptable.
