3inch Acid Resistant WCB F4 Seat PTFE Lined Float Ball valve

Product Overview

Description

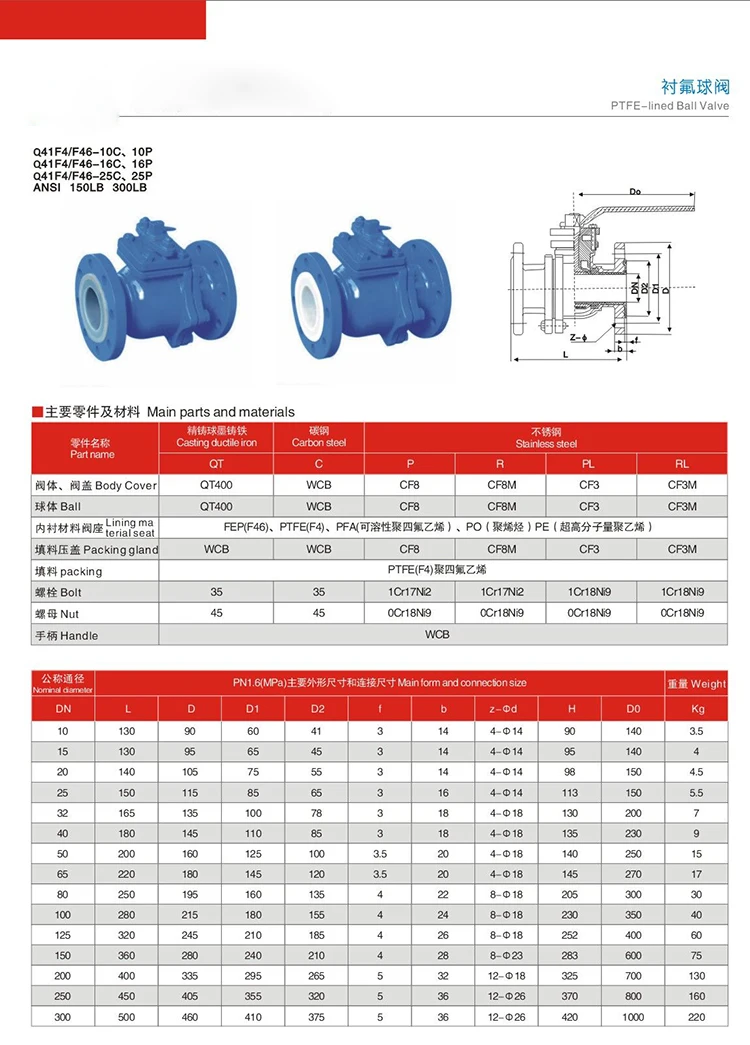

SPECIFICATIONS FOR PTFE-LINED BALL VALVES
Pressure rating and size:	ANSI 150LB,300LB
	DN10 to DN300
	1/2"~12"
Material:	Body : QT400,WCB, CF8, CF8M
	Bonnet :QT400, WCB, CF8, CF8M
	Ball : WCB, CF8, CF8M
	Seat : FEP(F46),PTFE,PFA,PO,PE
	Special material on request.
Operated type	Lever, Pneumatic, Gear, Electric, Bare shaft, etc.
Structure:	Floating or trunnion mounted ball, full or reduced bore, 1pc,2pc or 3pcs
Flange connection:	EN1092 & ANSI B16.5 & JIS
Type	Flange RF, RTJ,wafer
