Chinese manufacture cheap price Er yag laser rod crystal hair removal

Product Overview

Description

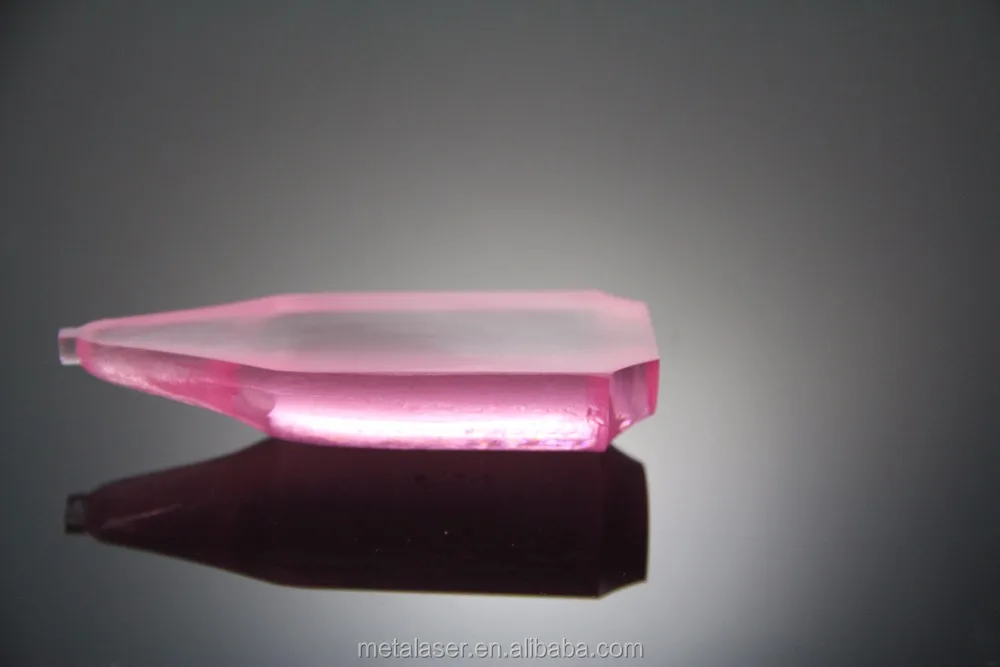

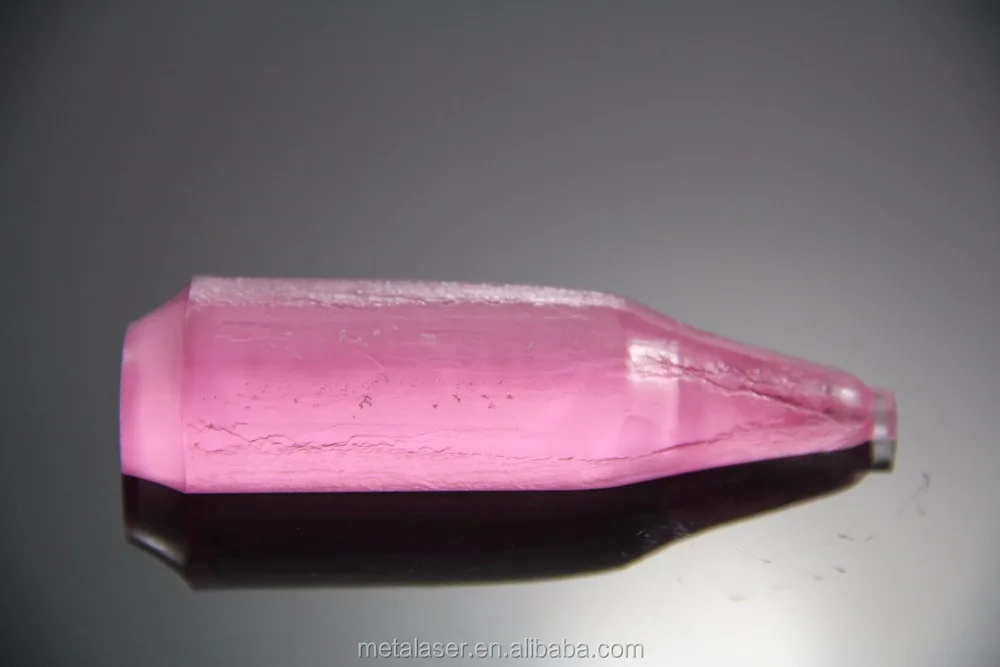

Er yag laser  rod crystal hair removal

Erbium doped Yttrium Aluminum Garnet (Er:Y3Al5O12 or Er:YAG) combines various output wavelength with the superior thermal and optical properties of YAG. Er:YAG is a crystal material with a wide pump band of 600 - 800 nm,and the Er:YAG lasers typically emit light with a wavelength of 2940 nm, due to the strong water and hydroxyapatite absorption at this wavelength It commonly used in medical applications such as surgery, cosmetic dermatology, and in many other laser applications, to where water is present. Low doped Erbium YAG have been studied as an efficient means to generate high power and high energy 1.6 micron 'eye-safe' laser emission thru 2 level resonant pumping schemes. In these systems, fiber or diode lasers pump the ~1.5 micron⁴I_14/2−>⁴I_13/2 absorption band, where non-radiative coupling between stark levels allows 1.6 micron laser emission with quantum efficiencies in excess of 90%.



Features

Ø Works in a relatively eye-safe wavelength region

Ø Strongly absorbed by water, hydroxyapatite and human body fluid

Ø Wide pump band from 600~800 nm

Ø Works well under room temperature

Ø High slope efficiency

Ø Good optical quality

Ø Laser Er YAG crystals

Applications

Ø Medical laser systems including skin disorder therapy, hard tissue removal, blood sugar monitoring, orthopedics

Ø Dental laser systems including tooth enamel, cosmetic surgery



Laser properties

Property	Value
Concentrations	50 at.% (highly doped); (0.1~1) at.% (low doped)
Laser transition	4I11/2 → 4I13/2 (highly doped) 4I13/2 → 4I15/2 (low doped)
Emission wavelength	2940 nm (highly doped) 1645 nm (low doped)
Pump wavelength	600~800 nm (highly doped) 1530 nm (low doped)
Fluorescence lifetime	0.23 ms (highly doped) 2~5 ms (low doped)
laser transition peak cross section, σl (E-20 cm2)	3
Coatings	< 0.25% @ 2940 nm



Polishing Specification

Property	Value
Orientation Tolerance	< 0.5°
Thickness/Diameter Tolerance	±0.05 mm
Surface Flatness	<λ/8@632 nm
Wavefront Distortion	<λ/4@632 nm
Surface Quality	10/5
Parallel	10''
Perpendicular	5'
Clear Aperture	>90%
Chamfer	<0.1×45°



Standard products

Doped concentration	Dimensions	coating	Surface quality
50 at.%	Diameter:3~6mm, Length:50~120 mm	<0.25%@2940nm	10/5
0.1~1 at.%	Diameter:3~6mm, Length:50~120 mm	<0.25%@2940nm	10/5
*customer designed products available







           Absorption Spectrum of 50% Er³⁺:YAG crystal





Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.

Q2: Do you have any MOQ limited? A: Our MOQ: 1pcs Q3: What’s the lead time?

A: Sample :2-3 days.Mass production: 15-20 days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship goods by UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.

Q5: Do you offer guarantee for your products?

A: After test them if not pass test,you can return the goods at any time, we will re-offer you again and also bear shipping fee.

Q6: Do you accept OEM?

A: We have our own brand-metalaser. OEM is also acceptable.
