TM T24J/T16J High quality table top high pressure steam sterilizer

Product Overview

Description

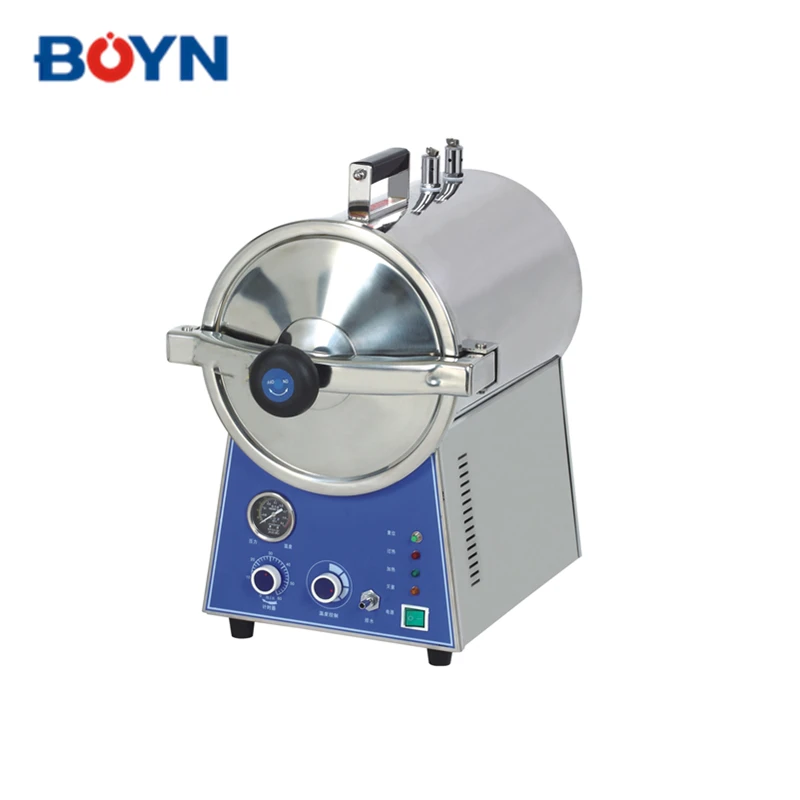

TM-T24J/T16J High quality table top high pressure steam sterilizer

Characteristics:

1.Sterilizing course: Automatic sterilization controlled by computer, easy to operate.

2.Maximum temperature: up to 134 ℃, suit for 4-6 minutes rapidly sterilizing.

3.Safe protection of water lacking.

4.With over-temperature, over-pressure auto-protect device:

5.After sterilization it will automatically cut the power and then alarm.

6.Fully stainless steel structure.

Technical data:

MODEL  TECHNICAL DATA	TM-T24J
Sterilizing chamber volume	24L(φ270×410 mm)
working pressure	0.22Mpa
working temperature	134℃
Adjustment of temperature	105-134℃
Timer	0-60 min
Heat average	≤ ± 1℃
Power	1.5 KW / AC220V 50Hz
Sterilizing plate	340 ×200 × 30 mm ( 3piece )
Dimension	560 × 350 × 500 mm
Package dimension	620 × 410 × 570 mm
G.W/N. W	20/18 kg



Other models:

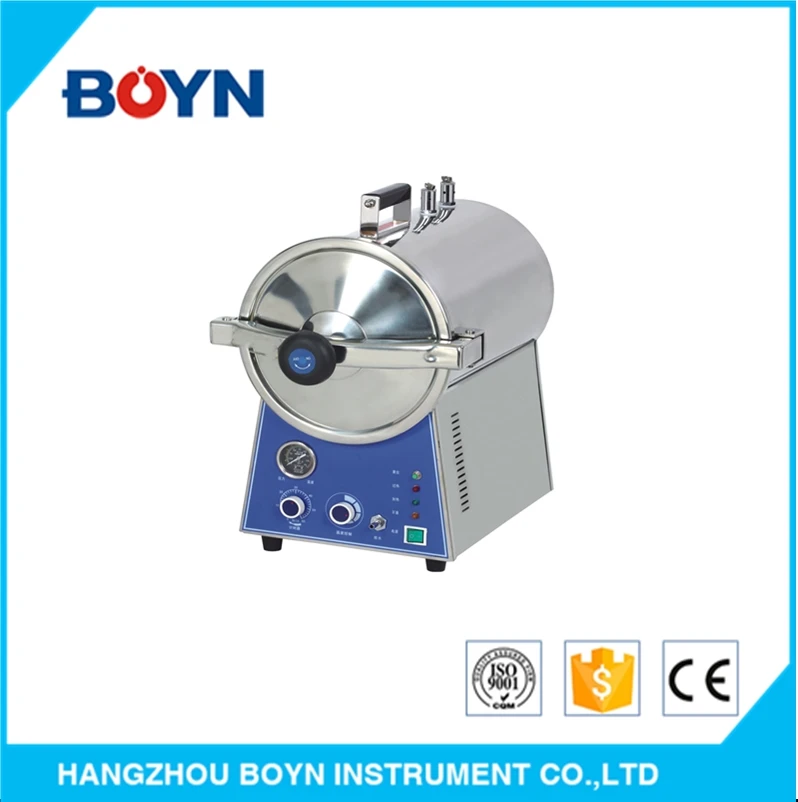

Benchtop STEAM STERILIZER

TM-T24D

Characteristics:

1.Sterilizing course: Automatic sterilization controlled by computer, easy to operate.

2. Maximum temperature: up to 134 ℃, suit for 4-6 minutes rapidly sterilizing.

3.The drum is netting wire type.

4.With over-temperature, over-pressure auto-protect device:

5. All the sterilizer body made by stainless steel and can be use for a long time.

Technical data:

MODEL TECHNICAL DATA	TM-T24D
Sterilizing chamber volume	24L(φ270×410 mm)
Maximum working pressure	0.22Mpa
Maximum working temperature	134℃
Adjustment of temperature	105-134℃
Timer	0-99 min
Heat average	≤ ± 1℃
Power	1.5 KW / AC 220V 50Hz
Sterilizing plate	340×200×30 mm (3 piece)
Dimension	560×350×500 mm
Package dimension	620×410×570 mm
G. W/N.W	20/18kg

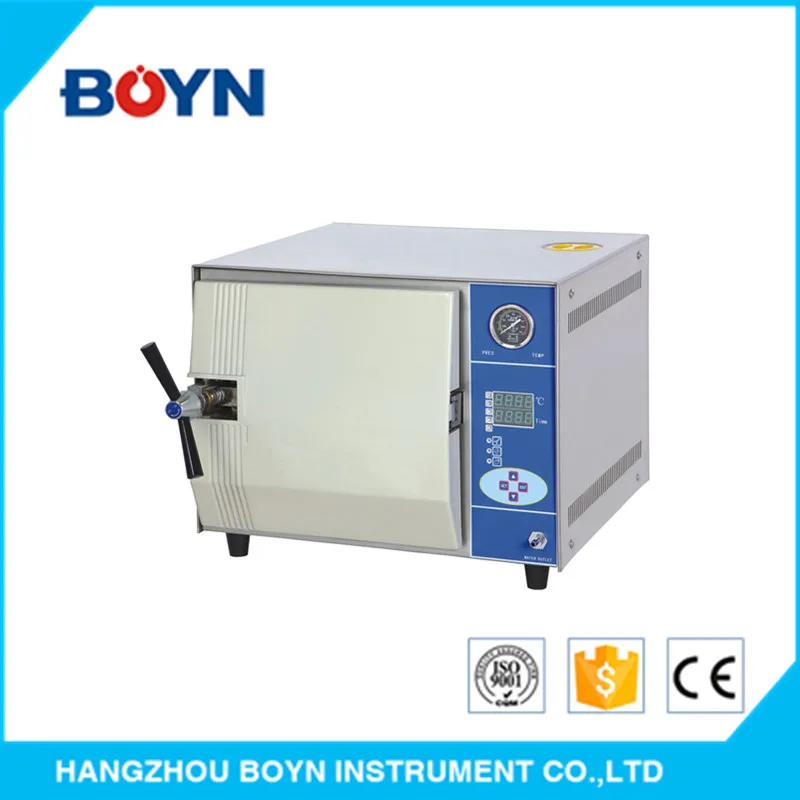

Benchtop Steam Sterilizer

TM-XA20D/24D

Characteristics:

1.For 4~6 minutes rapidly sterilizing.

2.Digital display of working status,touch type key.

3.With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Exhaust the cool air automatically.

6.Safe protection of water lacking.

7.Door safety lock system.

8.With three stainless steel sterilizing plates.

9.The chamber of the sterilizer is made of stainless steel.

10.Automatically shut off with beep reminding after sterilization.

11.With drying function.

Technical data:

MODEL TECHNICAL DATA	TM-XA20D	TM-XA24D
Sterilizing chamber volume	20L(φ250×420 mm)	24L(φ250×520 mm)
Maximum working pressure	0.22Mpa
Maximum working temperature	134℃
Adjustment of temperature	105-134℃
Timer	0-99min
Chamber temperature equal	≤ ± 1℃
Source power	1.5KW / AC220V 50Hz
Sterilizing plate	340×200×30 mm (3 piece)	400×200×30 mm (3 piece)
Dimension	480×480×384 mm	580×480×384 mm
Package dimension	700×580×500 mm	800×580×500 mm
G. W/N.W	43/40 kg	50/45 kg

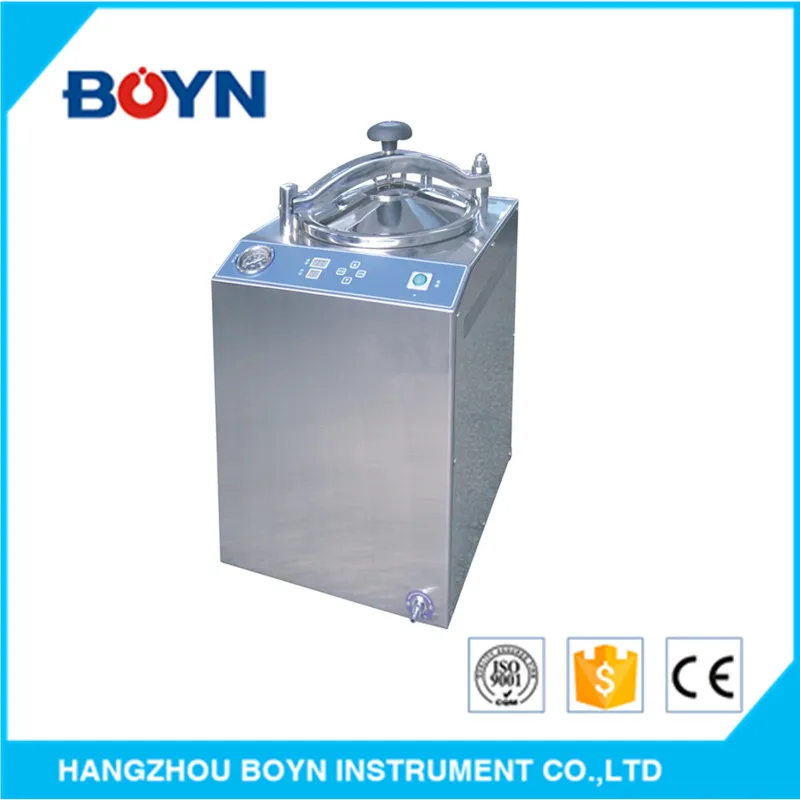

Vertical pressure steam sterilizer

LS-28HD

Characteristics:

1.  The chamber of the sterilizer is made of stainless steel
2.   Indicator light indicates working state

3.   Over temperature & over pressure auto-protection

4.   Safe protection of water lacking

5.   Double scale indication pressure gauge

6.  Automatically shut off with beep reminding after sterilization
7.  Easy to operate,safe and reliable
8.  With two stainless steel sterilizing baskets
