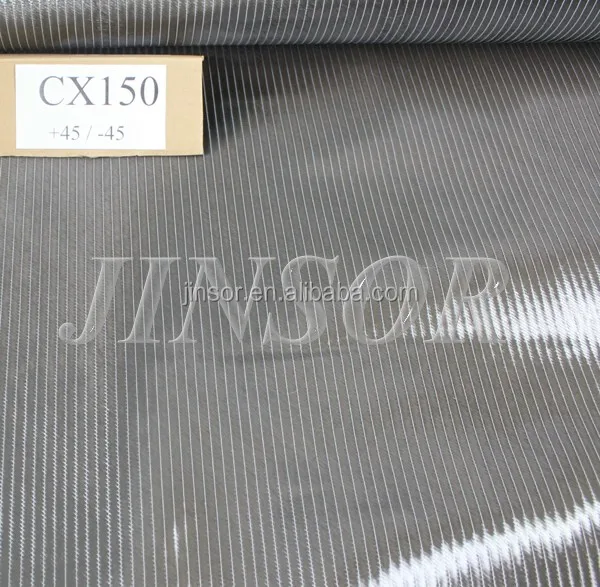

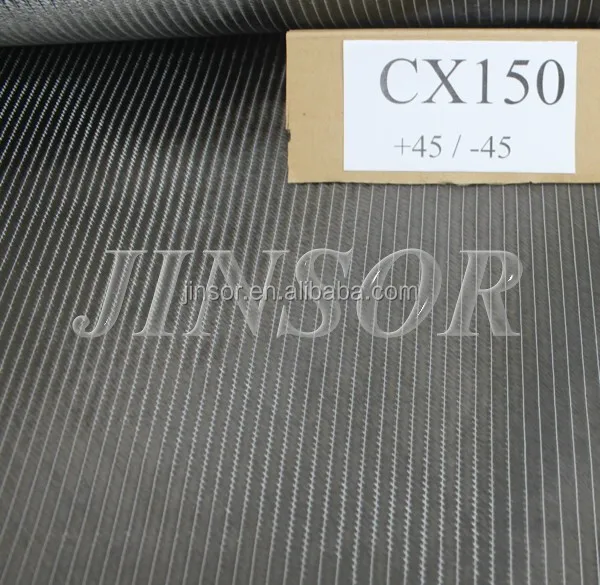

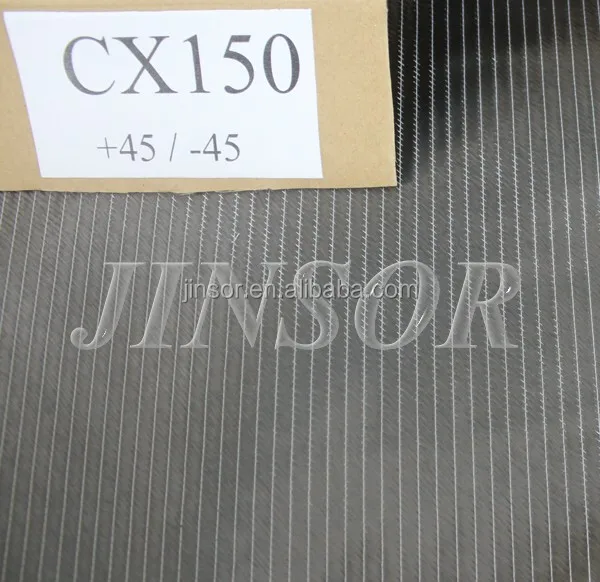

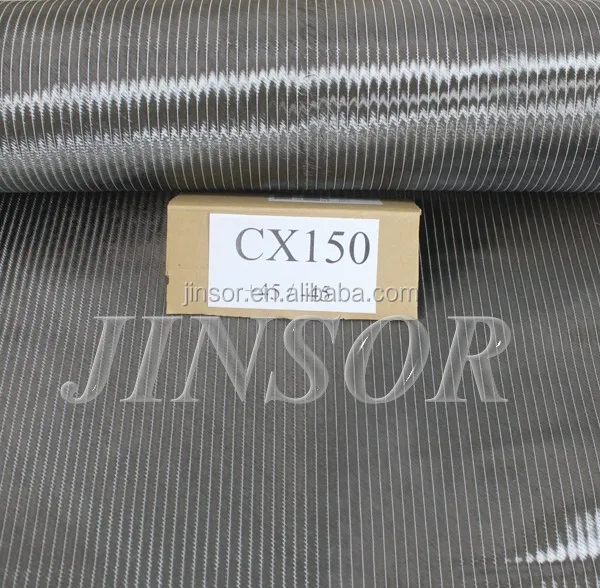

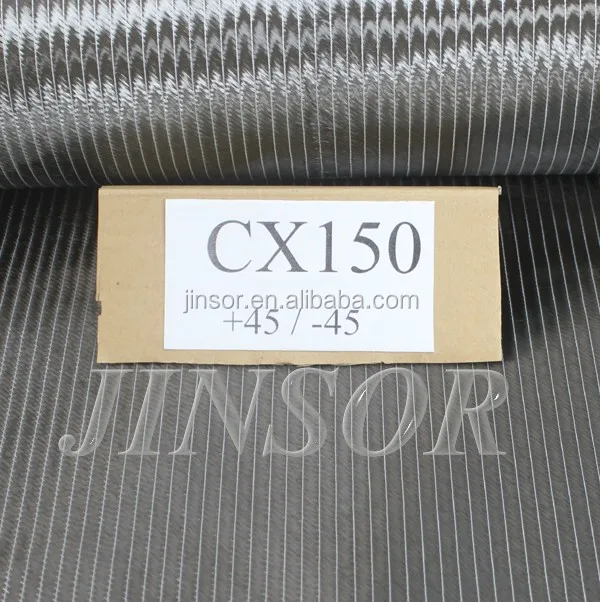

Japan T700S 12K biaxial carbon fiber fabric 150 gsm

Product Overview

Description

Thanks for your inquiry and visiting.

We are from Taiwan and we can supply Toray  12K carbon fiber fabric biaxial CX150

width is 1270mm
ultra-light carbon fabrics with a perfect distribution of the fibers within the fabric thanks to "spreading" technology,
so that can be used as a finishing layer in the laminate.
These structural fabrics are used in sectors such as automotive, aerospace, marine and other industrial applications.

The range of carbon fabrics products using this new technology are the following:

- biaxial 0o/90o from 150gr/m2 to 600 gr/m2
- biaxial ±45o from 150 gr/m2 to 600 gr/m2
- triaxial -45o/90°/+45° from 225 gr/m2 to 900 gr/m2
- triaxial ±45o/ 0° from 225 gr/m2 to 900 gr/m2
- quadriaxial -45o/90°/+45°/ 0° from 300 gr/m2 to 1600 gr/m2

You can use different types of carbon fibers of Various form and several titles such as. 12K, 24K,
You can used also woven carbon fabrics for special parts.

We also can supply Toray T-700 spread tow wovwn fabric ,100gsm.
If you need to know more about our carbon fiber fabric products list.
Please visit our website
//jinsor.com/jinsor-english-products.htm

Best Regards



Oliver Chou

JINSOR multiaxial carbon fiber fabrics detail specifications
Multiaxial carbon fiber fabrics application are as follows
1. carbon fiber yacht parts. 2. carbon fiber Wind turbine blade.
3.carbon car parts: hood,front fender,steering wheel,gear shift,mirror cover,trunk cover.
4. carbon boat parts:mast,kayak,loom blade,boat shell. 5. sporting goods parts:snowboard,skateboard,skiboard.
6. construction retrofitting:carbon fiber reinforced building and bridge and factory base.

Item name	Fiber orientation	Each layer weight(g/m2)	Stitched fiber weight(g/m2)	Total fiber weight(g/m2)	Fabric width (cm)	Fiber	Photos
CX150	+45/-45	75	7	157	127	12K spread tow Toray,Formosa Mitsubishi
CXT230	+45/90/-45	75	7	232	127	12K spread tow Toray,Formosa Mitsubishi
CX200	+45/-45	100	7	207	127	12K spread tow Toray,Formosa Mitsubishi
CXT300	+45/90/-45	100	7	307	127	12K spread tow Toray,Formosa Mitsubishi
CX250	+45/-45	125	7	257	127	12K spread tow Toray,Formosa Mitsubishi
CXT380	+45/90/-45	125	7	382	127	12K spread tow Toray,Formosa Mitsubishi
CX300	+45/-45	150	7	307	127	12K spread tow Toray,Formosa Mitsubishi
CXT450	+45/90/-45	150	7	457	127	12K spread tow Toray,Formosa Mitsubishi
CX400	+45/-45	200	7	407	127	12K spread tow Toray,Formosa Mitsubishi
CXT600	+45/90/-45	200	7	607	127	12K spread tow Toray,Formosa Mitsubishi
CLXT800	+45/90/-45	200	7	807	127	12K spread tow Toray,Formosa Mitsubishi
CX600	+45/-45	300	7	607	127	12K spread tow Toray,Formosa Mitsubishi
CXT900	+45/90/-45	300	7	907	127	12K spread tow Toray,Formosa Mitsubishi
CXLT1200	0/+45/90/-45	300	7	1207	127	12K spread tow Toray,Formosa Mitsubishi
