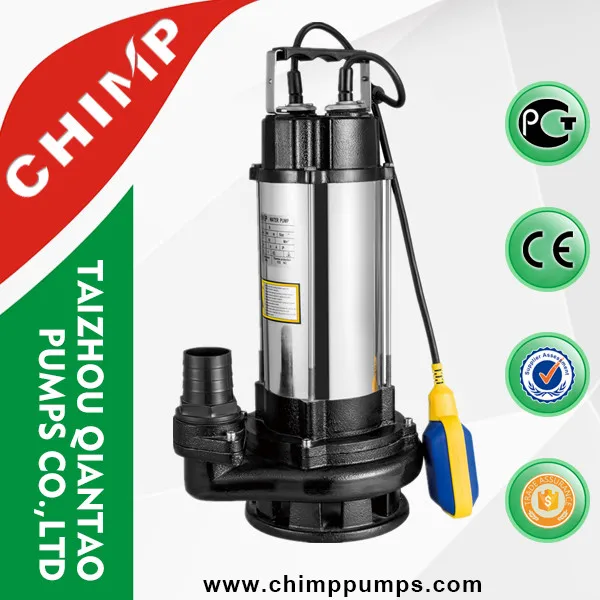

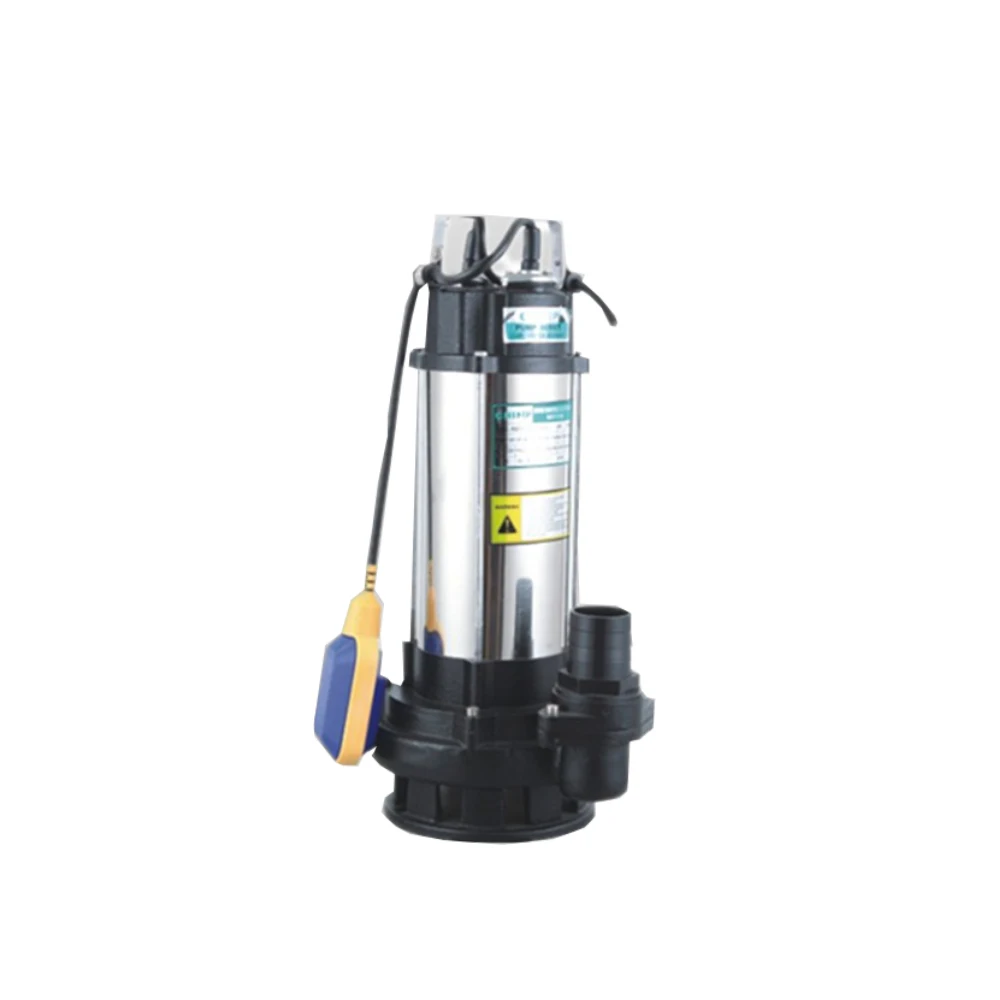

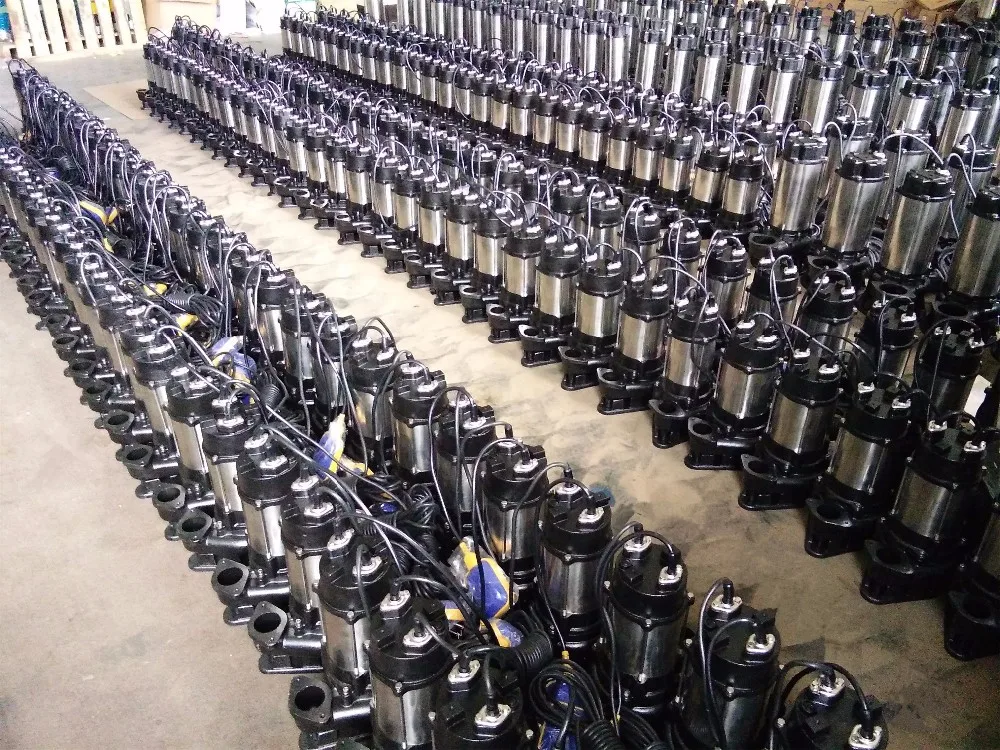

V series submersible water pumps 1.0hp with float switch V750AF
- Category: >>>
- Supplier: Zhejiang Qiantao Pumps Co. Ltd.
Share on (60676661376):
Product Overview
Description
V SERIES Electric Submersible Sewage Pumps with Cutting Impeller 2" outlet 1.0HP V750AF
PUMP
Max. immersion depth: 5m
Max. Liquid temperature: +40℃
Liquid pH value: 4-10
Liquid kinematic viscosity: 7X10-7~23X10-6m2/S
Max.liquid density: 1.2X103kg/m3
EXPLOSIVE VIEW
| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | Protector | 11 | Bolt | 21 | Mechanical seal | 31 | Bolt |
| 2 | Cable presser | 12 | "O" ring | 22 | "O" ring | 32 | Cutting wheel |
| 3 | Screw | 13 | Capacitor cover | 23 | Stator | 33 | Washer |
| 4 | Bolt | 14 | "O" ring | 24 | Oil chamber cover | 34 | Snap ring |
| 5 | Handle | 15 | Capacitor | 25 | Oil seal | 35 | Nut |
| 6 | Cable | 16 | Rubber washer | 26 | Bolt | 36 | Housing |
| 7 | The rod | 17 | Motor cover | 27 | Key | 37 | Bearing |
| 8 | Bolt | 18 | Bearing | 28 | Impeller | 38 | Bolt |
| 9 | Flange | 19 | "O" ring | 29 | Pump casing | 39 | Snap ring |
| 10 | Float switch | 20 | Rotor | 30 | Cutting disk | 40 | Connection part |
| MODEL | POWER | MAX.FLOW (m3/h) | MAX.HEAD (m) | OUTLET (in) | GW(kg) | PACKING DIMENSION (MM) | |
| kW | HP | ||||||
| V750AF | 0.75 | 1.0 | 18 | 12 | 2" | 22 | 260X195X500 |
| V1100AF | 1.1 | 1.5 | 20 | 14 | 2" | 23.5 | 280X205X440 |
| V550F | 0.55 | 0.75 | 10 | 8 | 2" | 22 | 280X205X450 |
| V750F | 0.75 | 1.0 | 12 | 15 | 2" | 24 | 280X205X485 |
| V1100F | 1.1 | 1.5 | 20 | 10 | 2" | 25.5 | 280X240X495 |
| V1500F | 1.5 | 2.0 | 22 | 12 | 2" | 26.5 | 260X240X430 |
| SPA6-28/2-1.1A | 1.1 | 1.5 | 15 | 30 | 2" | 23.5 | 260X240X430 |
| SPA6-39/3-1.5A | 1.5 | 2.0 | 15 | 42 | 2" | 27.5 | 260X240X440 |
Company Information
Taizhou Qiantao Pumps Co., Ltd. is a modern enterprise with a combination of development, production, service. It is specialized in producing electric pump and motor with more than 50 series and 1000 specifications.
Our company centers on people, equipped with a large technology team and management talent, forming significant human resource and powerful technology advantagement.
We own advanced electric pumps and assembly line for motors as well as online automatic testing systems. All these equipments supply favorable managing condition and reliable detecting methods. Our company has passed the ISO9001:2000 international quality system certification and "3C" electrician product certification. The products have won the producing licence granted by the national technical supervision bureau and "Agricultural Machinery popularization licence" granted by the national agriculture ministry.
Customers' satisfaction is the everlasting pursuit of “Qiantao” staff. Quality and credit standing is the forever main topic of Qiantao. We sincerely wish to cooperate and develop together with all partners. At the same time, we warmly welcome the new and old customers from home and abroad to do business with us and direct us.
