This model is applied to wheat and rice which can achieve harvesting, threshing, separating and cleaning all at one time. The compact body design makes it more easily handling and convenient operating, which is especially for small and medium farms. The cutting platform is equipped at the front of the body, which makes inclining T-shape with the threshing body, is applied to cutting and delivering. Hydraulic controlled lifting of the cutting platform and reel enable the operation more reliable. The threshing and cleaning which includes threshing, separating, cleaning and delivering mechanism etc. is applied to threshing, separating, cleaning and delivering the seeds to the storage box, with the terms in strips and chaffed spread to the ground. The 150 HP engine is located at the top of the cleaning room, which offer the drive forces for the walking, hydraulic system and the working mechanism. Chassis and the walking part are the special self-propelled mechanism, which include front and the rear axle, drive wheels, transmission, and the steering wheels. The cabin includes the operating mechanism and the instrument system which is for the operating and monitoring the working system.
Specifications for wheat&rice combine harvester machine
Model
4LZ-7
Barn capacity
2m³
Feeding volume
7kg/s
Threshing type
traversal
Working width
2560mm
Horse power
165HP
Working efficiency
6000-12000m2/h
Dimensions
6700*2900*3380mm
Certifications
Detailed Images
Main Features
Name: Engine Brand: Domestic Famous Brand Original: China powerful and lower fuel consumption, in-line,water-cool,four-stroke,direct injection,powerful and lower fuel consumption
Main Feature:
Name: fuel tank
Brand: Domestic Famous Brand
Original: China
130L fuel tank, enough for one day working, more convenient and higher efficiency.
Main Feature:
Name: Opearting System
Brand: Domestic Famous Brand
Original: China

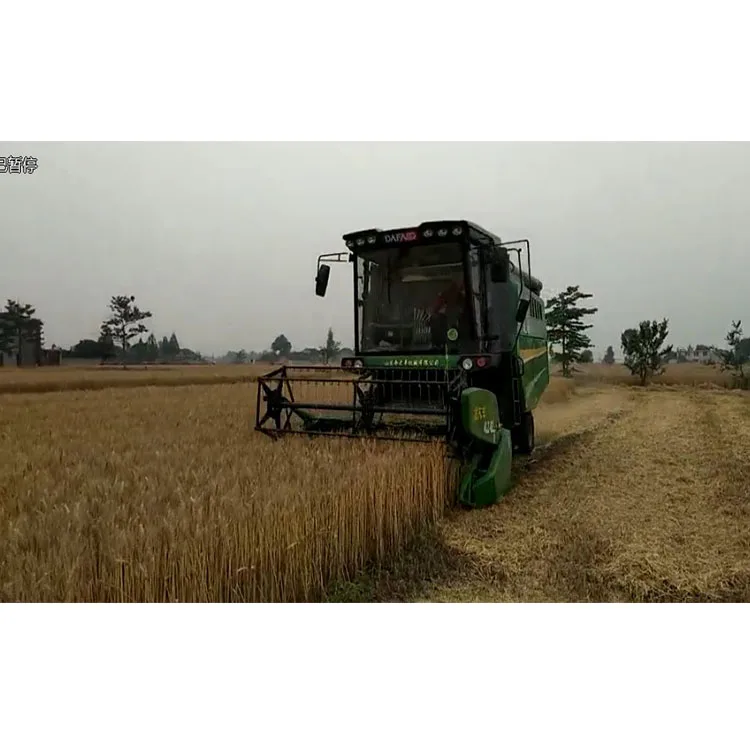

harvest lodged crop, as shown in the picture
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Oversea service is available, Any order over 6 sets, we can send our engineer to your side, and for agencies, if you need, our engineer can stay at your side for 2 or more months every year.
Packing & Delivery
Packaging
Size
6700 (L) * 3400 (W) * 3380 (H) mm
Weight
5300kg
Packaging Details
The normal package is steel box(Size: L*W*H). we will use pe film for packing or pack it according to customers special request.
Related Products
Gold Dafeng1504
Gold Dafeng1304
Gold Dafeng1300
FAQ
1.Q:What is the warranty of your agricultural machines? A:One year guarantee for whole machine(except quick-week parts),engine and gear box. Tips:We usually suggest the buyers to order some quick-wear parts separately when purchasing machines.
2.Q: Are there any optional parts for your combine harvesters? A:Yes,optional parts such as a rubber track size,grain thank and type of grain unloading.
3.Q:How long is your delivery time? A:Normally it take 15-20days to deliver after your deposit or L/C at sight
4.Q:What is the payment term? A:Irrevocable L/C at sight or 30%T/T IN advance and balance agianst B/L copy
5.Q:What is the after-sales service ? A:Every year we send our engineers and after-service people to local market twice to assist our sales agent for staff trainning,marketing,advertising,maintaining and repairing the machine during the harvesting season.
6.Q:Is OEM or ODM service acceptable? A: OEM service is no prplnem.if you have any special requirments about the machines please kindly inform us,our engineering department will study and offer you the suitable solution
