255 presets, the positioning accuracy of 0.5 degrees.
Support: Guard position/Power up Action /Park action/3 groups Tours /Pattern/Area scanning/360° horizontal scanning.
PTZ camera parameter
Model
HDR-604G-120T
Camera
sensor
1/2.8" CMOS
Definition
2.0M pixels 1920(H)X 1080(V)
Video System
PAL/NTSC
Minimum illumination
Colour:0.1Lux B/W:0.01Lux
Video output
AHD-H(1Vp-p 75Ω)
noise-signal ratio
≥50DB
Lens
lens
4.7 to 94mm(F1.6 to F2.7) 20X Optical zoom
Displayable 36X
Zoom Speed
Approx.4s (Optical Wide-Tele)
Angle of View:
55.4°-2.9° (Wide-Tele)
PTZ Control funtion

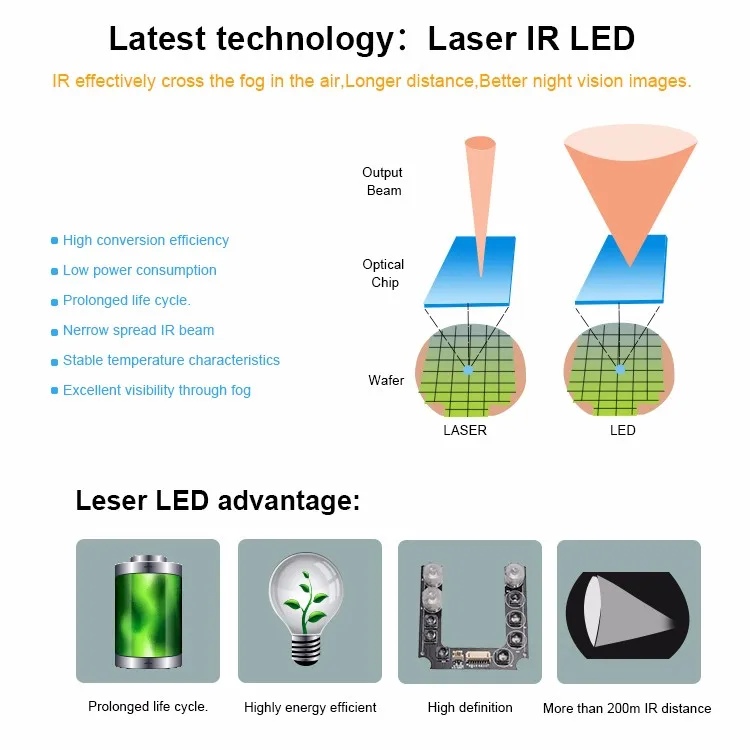

IR Distance
200m
Horizontal Range
-15°~360° continuously
Vertical Range
-15°~90°
Horizontal Speed
0.05°~100°/s
Vertical Speed
0.05°~100°/s
Max Speed
100°/S
Preset
256
Patrol scan
4pcs(10 preset for each)
L/R Scan
1pc
Horizontal Scan
1pc
Power-off memory
Support
PARK Action
Watch position/ Area Scan /Horizontal 360°scan/ Cruise
Watch position
Support
Wide angle speed limit
Focus / speed automatic matching function
INPUT/OUTPUT
Analog video output
1.0Vpp/75Ω,NTSC or PAL,BNC Interface
control interface
Support:1. TVICoaxial control 2.RS485
General
Power
DC12V/4A
Consumption
<20W
work environment
temperature :-20~60℃;humidity<90%
Protection level
IP66 waterproof,4000V lightning protection
GW
3.5KG

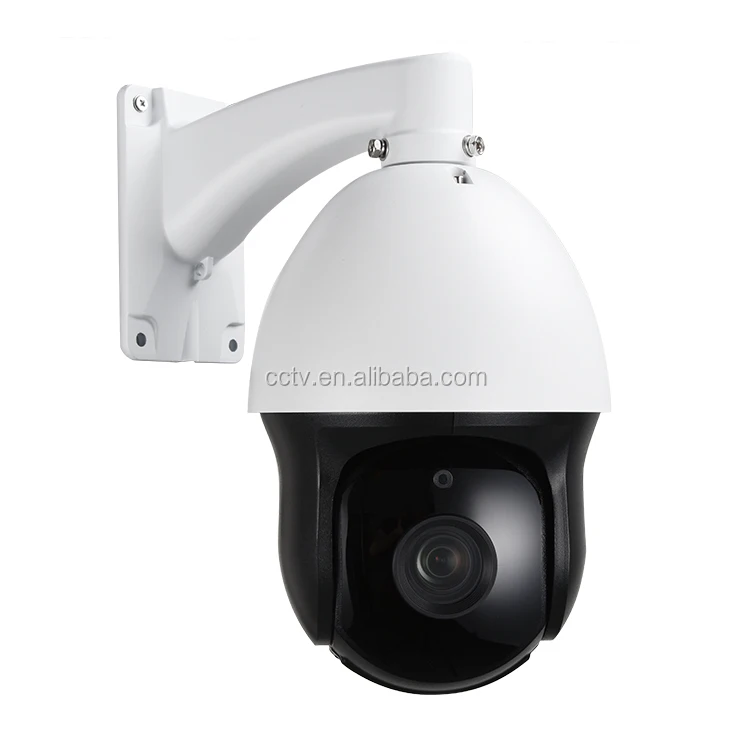

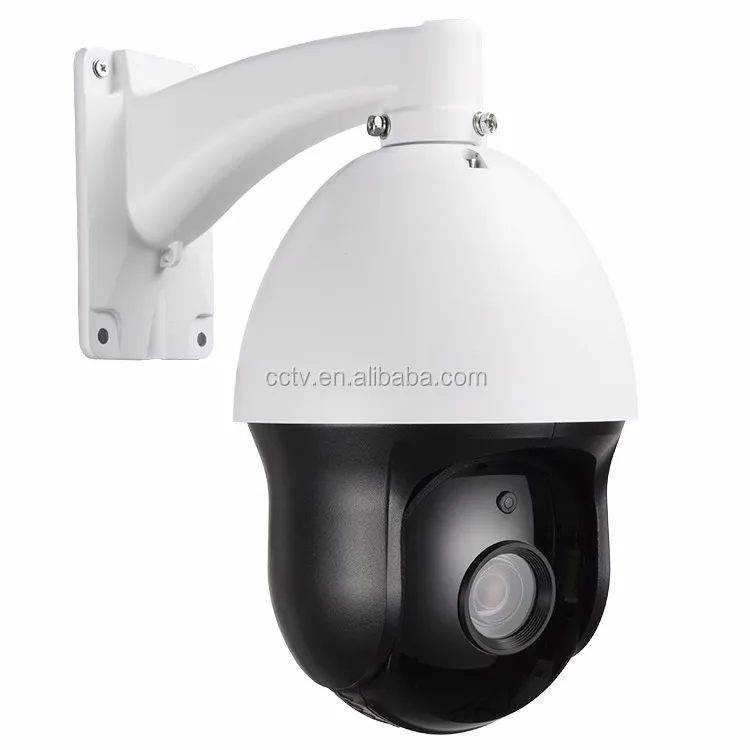

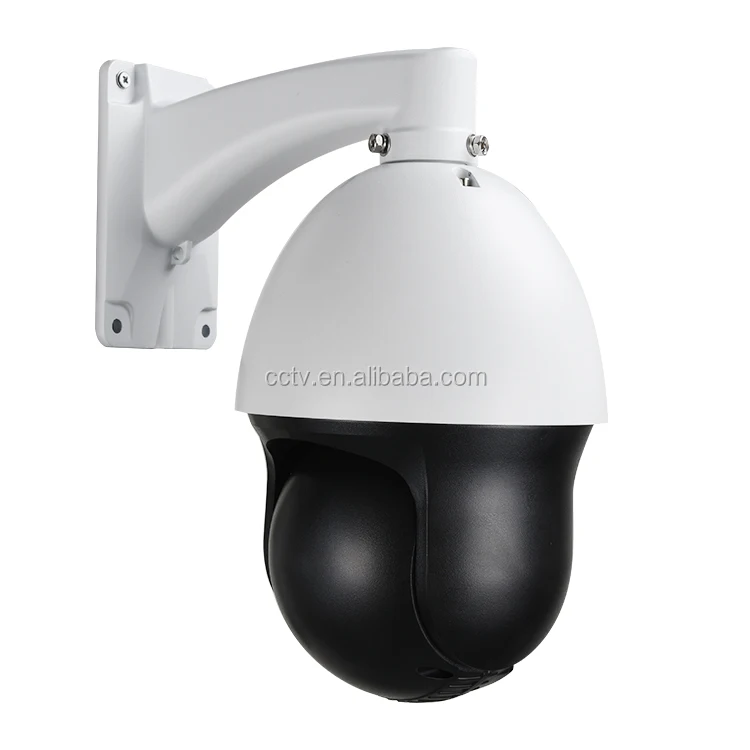

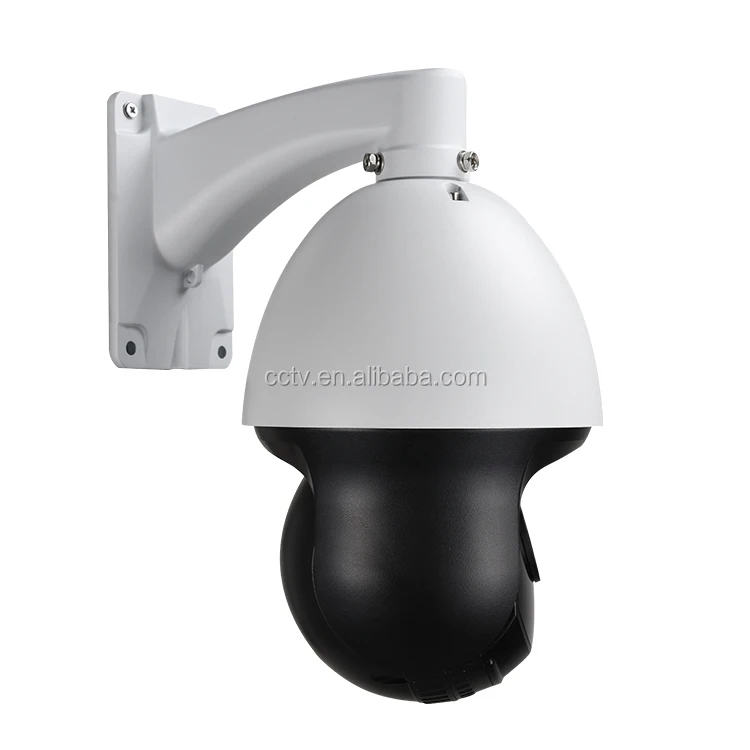

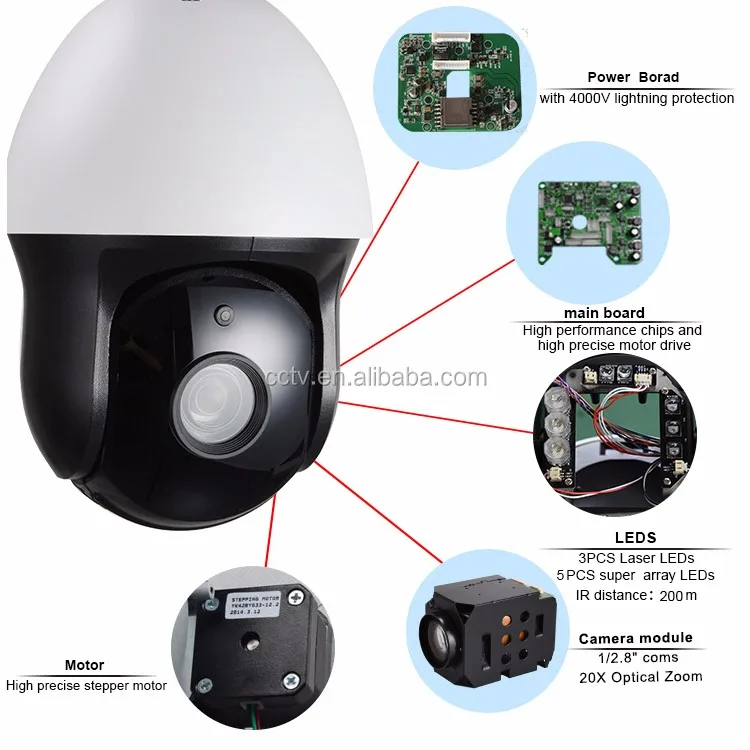

PTZ camera overview

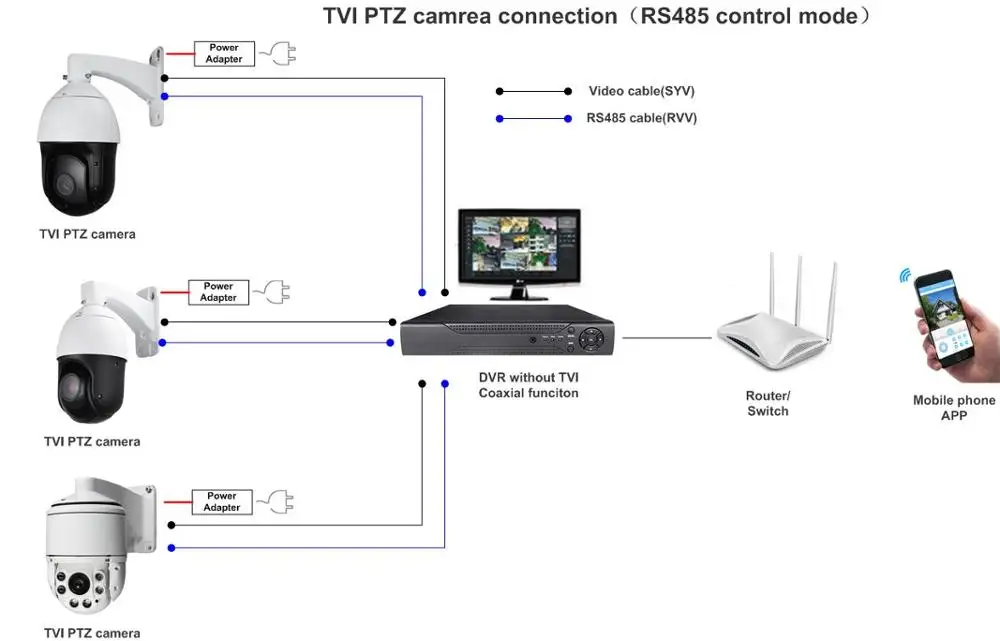

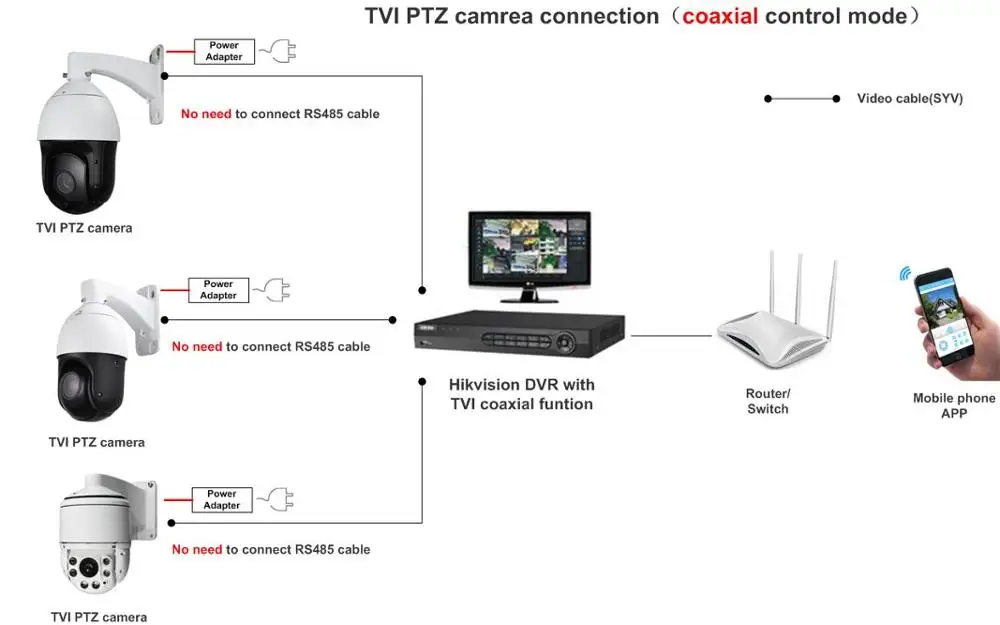

Connection

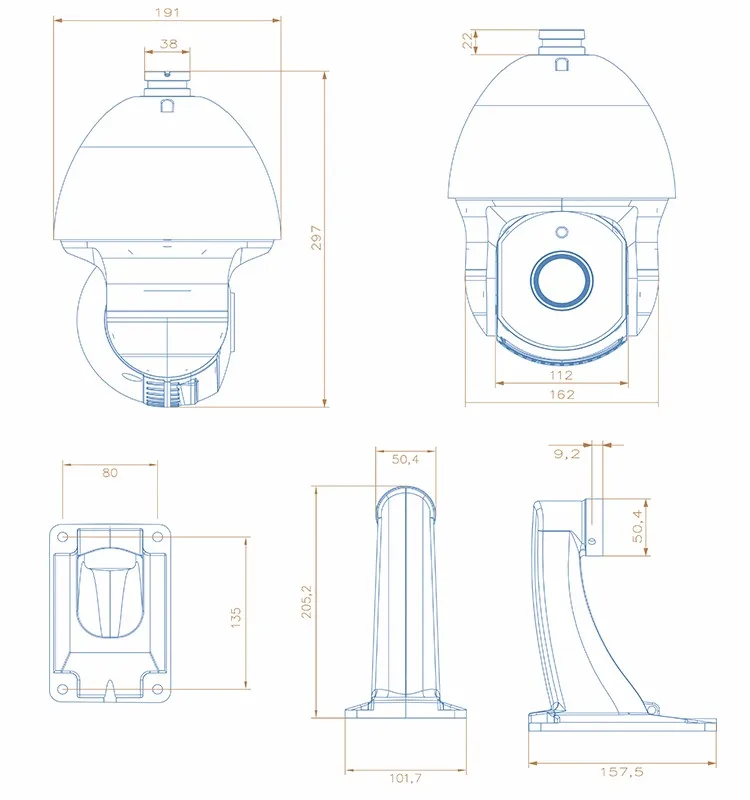

Dimension

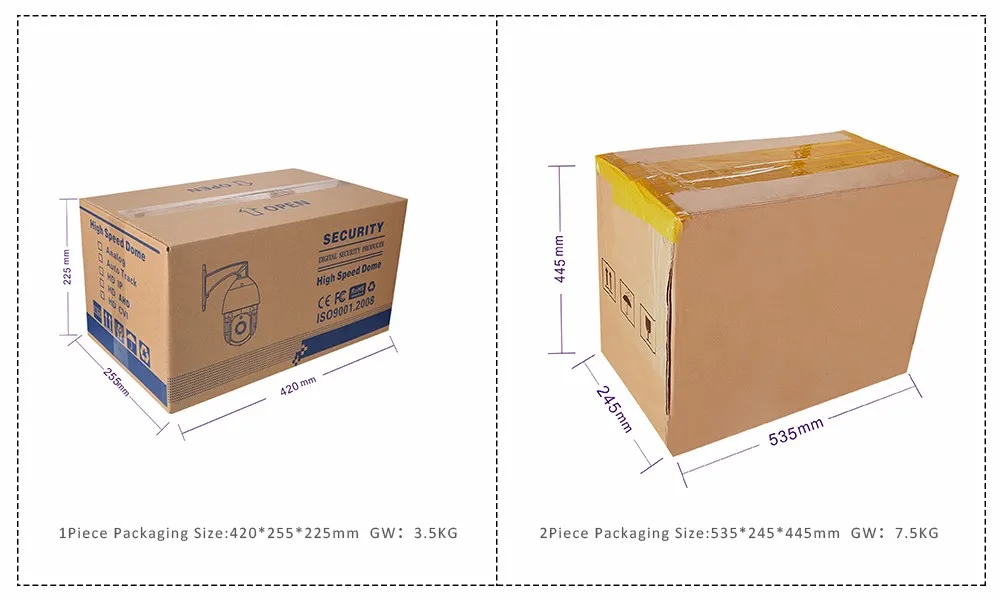

Packaging & Shipping

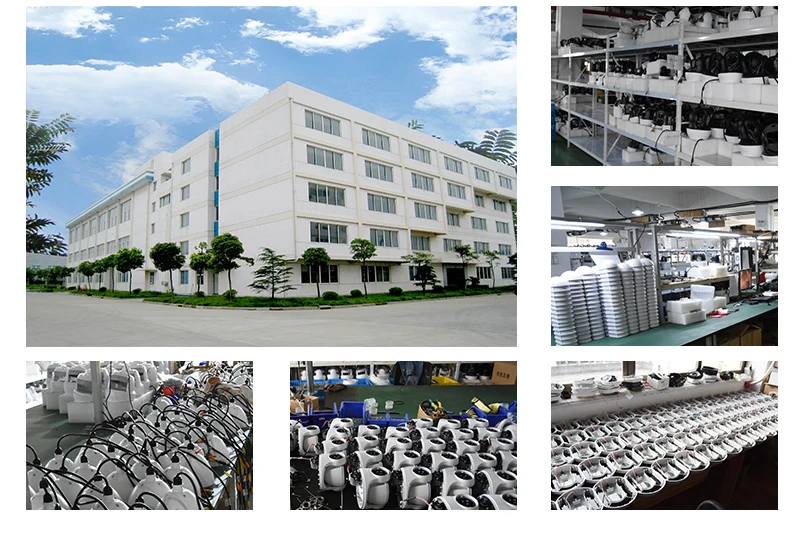

Company Information
Shenzhen Qianpei Technology Co,Ltd is commited to the CCTV security industry since 2007 in Shenzhen, China. With more than 10 years experience in developing,designing and manufacturing surveillance products which are widely used and popular in North & South America, Europe and Middle East. We're capable of providing our customers most benefits by latest technology and service. Main products: PTZ cameras, Zoom cameras, domellet cameras, DVR/NVR. Capacity: 10,000 Per Month Warranty: Two years
FAQ
1.Can you put my own Logo on the products? Yes we do offer logo printing service, OEM orders are warmly welcomed.
2.Can I put sample order and how? Yes we do accept sample order and please contact our sales person to place order.
3.What's the warranty time? We offer 2 years warranty for our PTZ cameras.
For more questions, please find contact details below.
