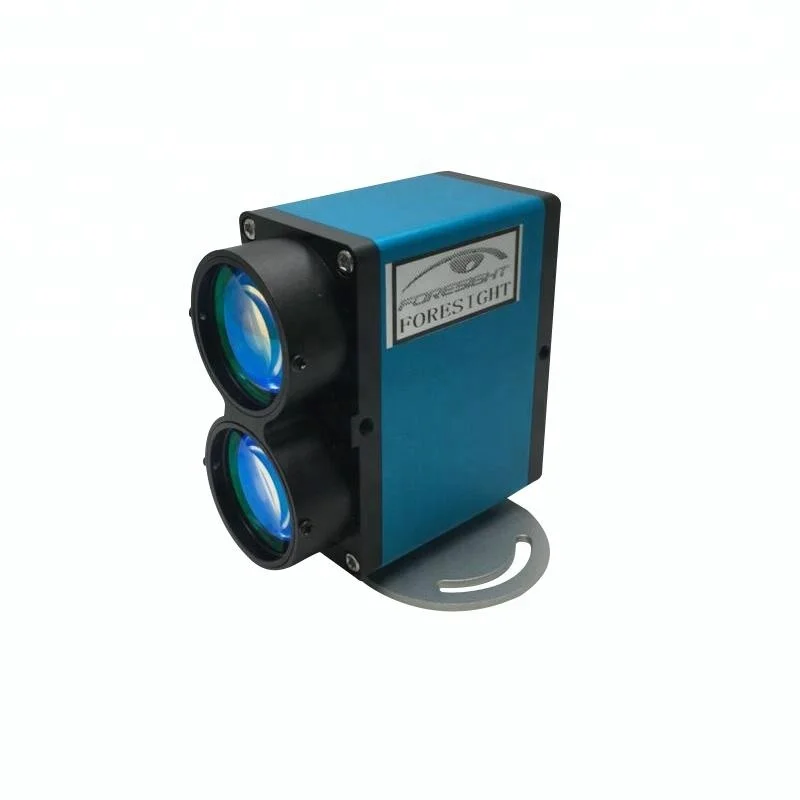

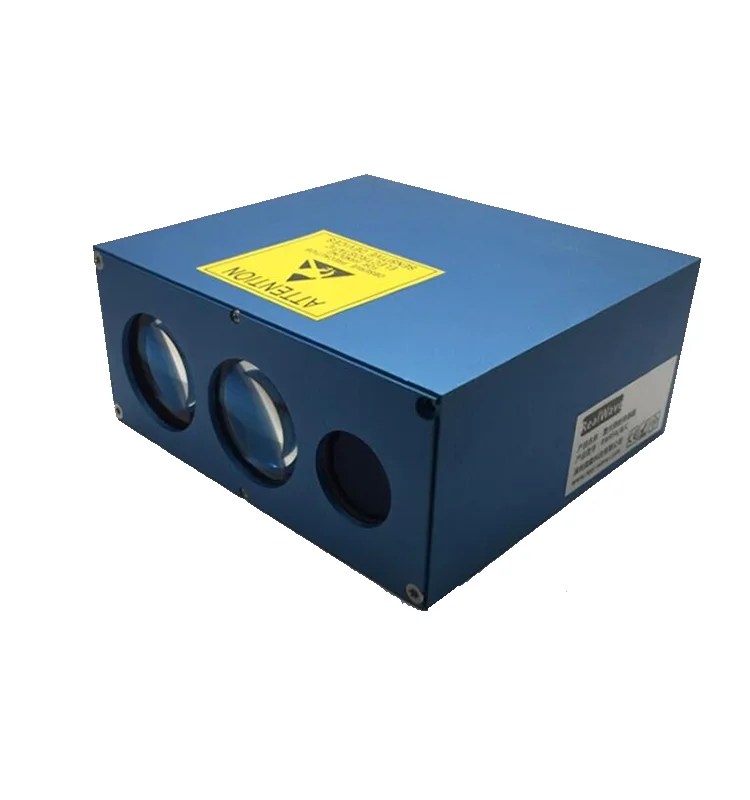

FST-B200 High measuring rate laser distance sensor
Laser sensors can be ideal for collision avoidance, level measurement for liquids and solids, conveyor belt profiling, proximity detection, positioning and equipment monitoring, or even altimetry applications
The variation in material characteristics or the difference in environment conditions can be a contributing factor of why a particular sensor won’t work properly. Certain sensors struggle to recognize a moving target in dusty conditions whereas others have difficulties obtaining a valid level measurement to liquids.
Considering all these factors, it would be nearly impossible to design an all-encompassing laser sensor that could work in a wide variety of scenarios. This is why our line of lasers is all considered to be quite an engineering feat
| Measurement Range | 0.5---100M(Natural Surface) | 0.5---200M(Natural Surface) |
Resolution | 1CM | |
Repetition Resolution | ±4CM | |
Measurement Accuracy | 5CM-20CM | |
Laser divergence angle | 4mrad | |
Laser Type | Class I Semiconductor wavelength 905nm invisible laser and safety to human eye | |
Measurement mode | measurement by the command , continuous measurement | |
Measurement time | 3-5ms | |
Power Consumption | < 1W(ranging power) <0.1W(Standby Power) | |
Input Voltage | 5-28VDC | |
Communication interface | TTL,RS232,RS485,4-20mA,0-5V Optional | |
Temp.Range | Storage temperature;-40℃to +80℃ Working Temperature;-20℃--60℃or Tailor made -40---70℃ | |
Weight | 285g | |
Dimensions | 75mm*60mm*40mm | |
IP Grade | IP65 | |

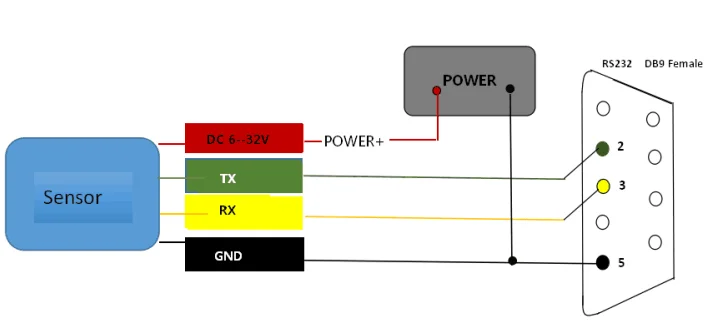

Power Supply | Red Line(VCC) | Black Line (GND) |
RS232 | Green-TX | Yellow Line -RX |
RS485 | Green-485A | Yellow Line-485B |
Kindly Prompt: If need to DB9 Female head, so TX,RX and G will be corresponding to connection to Second, Third and Fifth base pin of DB9 head separately.
Plug in the power supply, the sensor will be measured automatically. Switch off the power supply, the sensor will be stopped the work
The actual measurement is from the rear-end of the sensor as the starting point, while input voltage is 5V, the current is about 50mA
Command output format:
Baud Rate:19200 Stop Bit :1 Transfer bits:8-bit Odd-even check:No
Output data format:AA XX XX CS FF, among them, AA is data head, FF is data tail,CS is Checksum.
XX XX represents distance value.
Power Supply: Red line(VCC) Black (GND)
4-20MA: Green-LOOP+ Yellow line -LOOP-
0-5V: Green line -LOOP+ Yellow line -LOOP-
