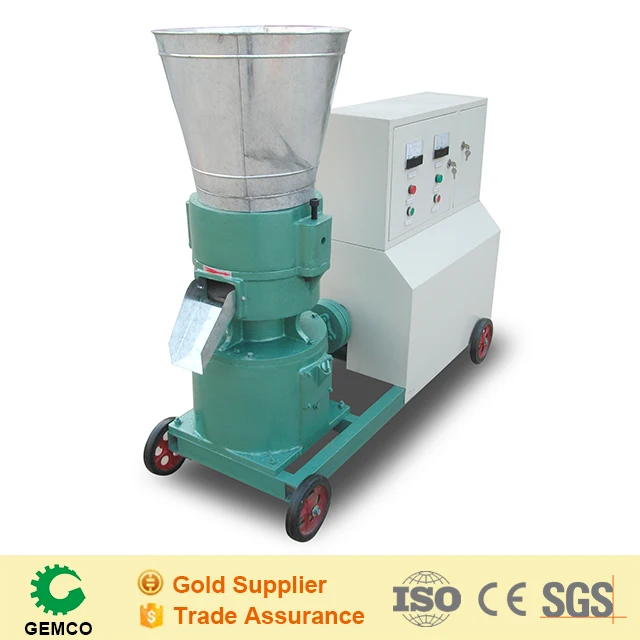

Линия по производству гранул на биомассе для печей превосходного качества

Product Overview

Description

Superior quality biomass pellet mill machine production line for stove

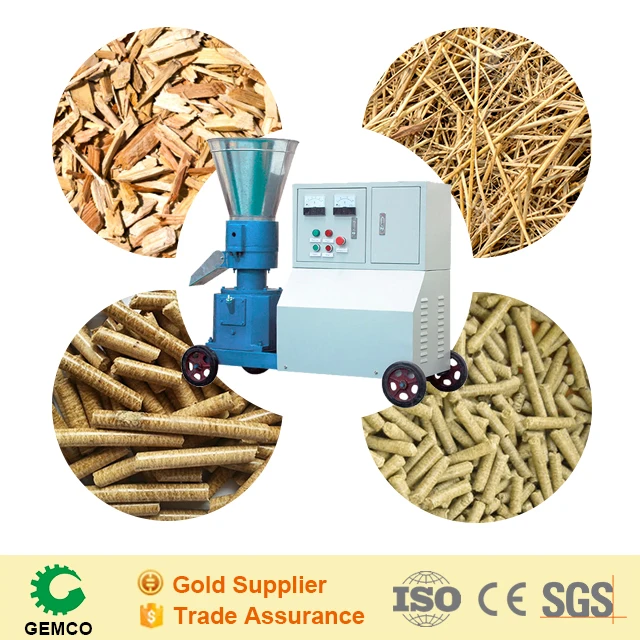

Biomass pellet mill machine is a kind of production machinery specialized in processing wood, crops straw, sawdust and other biomass materials. As a renewable and clean energy, biomass pellets plays an important part in business and home use.



Family clients can use it in pellet stoves for heating and cooking. They have higher combustion ration, convenient to store and transport. In industrial production field, they have become one of the most popular fuels for industrial boiler. The lower carbon emission makes it better substitute for coals. Therefore they are also widely applied in thermal power generation.



Superior quality biomass pellet mill machine produced by gemco boasts higher production and high stability. It reaches the best compression ratio for biomass materials, so as to create more economic benefit for you. In addition, our biomass pellet mill machine features low power consumption and low noise. We can guarantee you safe and economical products.



Performance features of gemco biomass pellet mill machine

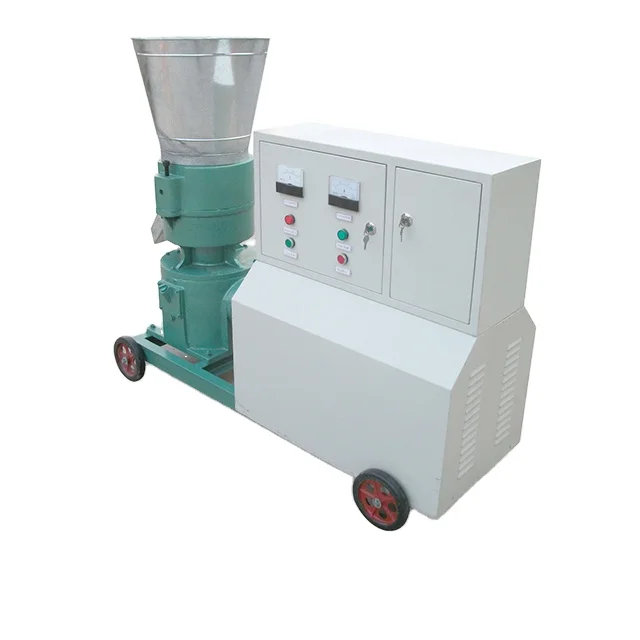

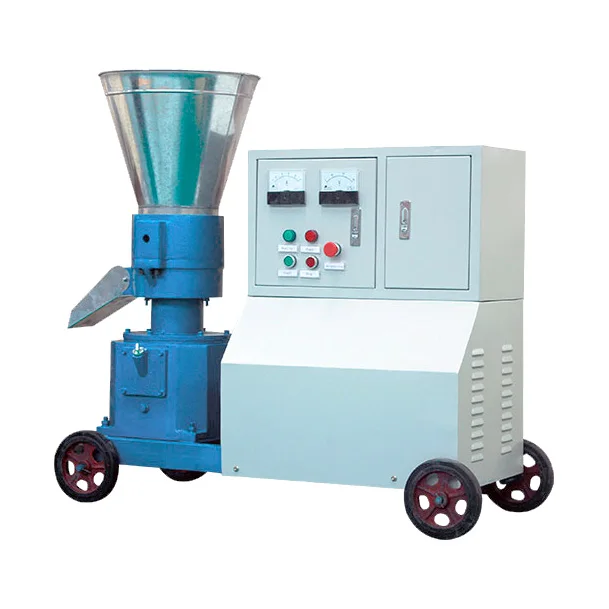

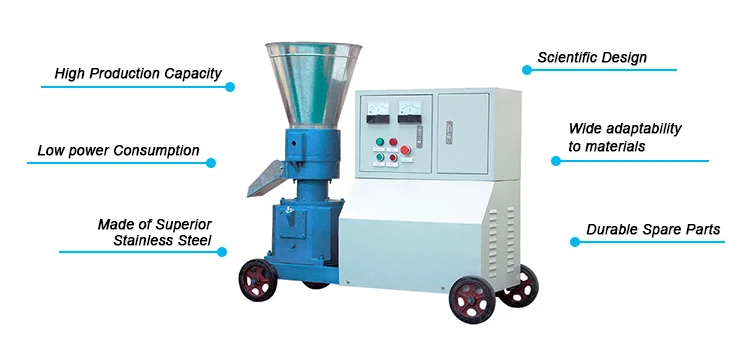

This series of biomass pellet mill machine adopts electric motor as drive engine. It features compact and simple exterior design. The feed hopper has large diameter, which allows high feeding efficiency. The pressing parts adopt rotating flat die structure, a popular design for making biomass pellets.

The capacity of this series biomass pellet mill machine is up to 250-400kg/h. Under high pressure between the roller and flat die, the temperature of the chamber can reach up to 80℃, and realize the pellets come out dry. Meanwhile, the wood pellets made by our biomass pellet mill machine represent smooth surface, uniform shape and high hardness. You can choose flat die of different sizes according to your materials and requirements so as to achieves the best economical effect.

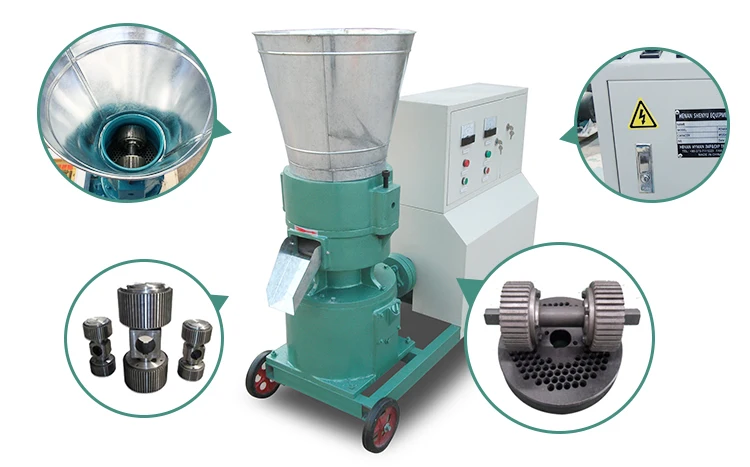

With decades of experience in biomass pellet mill machine design and manufacture, our products have such advantages of compact structure, simple exterior, high capacity, low power consumption, easy operation and stable performance. The roller of pellet mill machine is installed evenly on the flat die, and can work steadily and continuously. And with large pressing area on flat die, the productivity is largely improved.



The roller adopts pressure adjusting device in the center, you can conveniently adjust the clearance of roller and flat die to make it applies to various materials and achieve the best compression effect. Moreover, there is a observation door on the biomass pellet mill, where you can look into the operation of the inside, and repair and maintain it when needed.

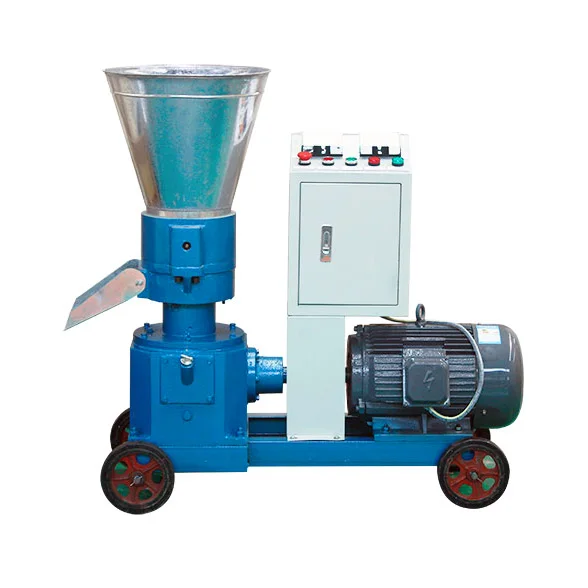

D-type biomass pellet mill with half covered electric motor

	Model Number	Power(kw)	Output(kg/h)	N.W./G.W.(kg)	Package Size(mm)
	ZLSP150B	3phase, 5.5	50-100	95/100	800*450*700
	ZLSP200B	3phase, 7.5	80-120	200/230	1050*480*930
	ZLSP230B	3phase, 11	120-200	290/320	1180*540*1000
	ZLSP260B	3phase, 15	160-250	320/360	1240*540*950
	ZLSP300B	3phase, 22	250-400	350/380	1300*560*1100

D-type biomass pellet mill machine with full covered electric motor

	Model Number	Power(kw)	Output(kg/h)	N.W./G.W.(kg)	Package Size(mm)
	ZLSP150C	3phase, 5.5	60-110	105/125	1000*480*780
	ZLSP200C	3phase, 7.5	80-120	210/230	1050*550*830
	ZLSP230C	3phase, 11	120-200	290/320	1200*560*950
	ZLSP260C	3phase, 15	160-250	340/370	1240*580*1000
	ZLSP300C	3phase, 22	250-400	425/465	1300*620*1100

Gemco: a professional and experienced pellet mill manufacturer

The biomass pellet mill machine production line is a self-developed new energy product. As a professional and reliable pellet machine manufacturer, we have built a top-class research and development team, with specialized departments for pellet machine, briquette press and renewable energy machinery production. With advanced and abundant machinery manufacture equipment, strong research capacity and excellent after-sale service, we stand as one of china’s leading pellet mill manufacturer and supplier. Up to now, we have obtained many certifications from authorities at home and abroad, and accumulated over 10 patents on pellet mill and briquette machine.
