(Manufactory) Free sample high gain car navigation antenna GPS/GSM Combo Antenna for tracker/car gps
GPS Antenna | Dielectric Antenna | Center frequency | 1575.42MHz±1 MHz |
Band width | ±5MHz | ||
Polarization | RHCP | ||
Gain | 5db | ||
V.S.W.R | <1.5 | ||
Impendance | 50Ω | ||
Axial ratio | 3db(max) | ||
LNA | Gain | 28±2db | |
Noise figure | <1.5 | ||
V.S.W.R | <2.0 | ||
Supply voltage | 2.2~5V DC | ||
DC Current Consumption | 5~15mA | ||
GSM Antenna | Frequency range | 850/900/1800/1900/2100MHz | |
V.S.W.R | <2.0 | ||
Polarization | Linear | ||
Gain | 2.0dBi | ||
Impendance | 50Ω | ||

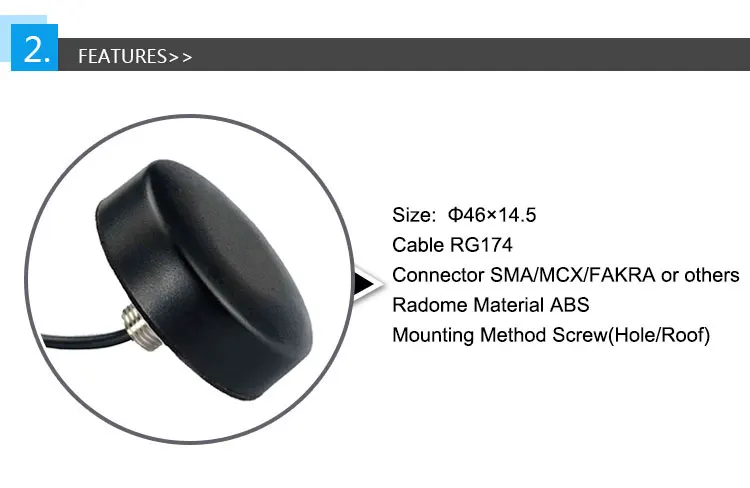

Mechanical | Cable | RG174 | |
Size | Φ46*14.5 | ||
Connector | SMA/MCX/FAKRA or others | ||
Radome Material | ABS | ||
Mounting Method | Screw(Hole/Roof) | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP67 | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally Friendly | ROHS Compliant | ||
