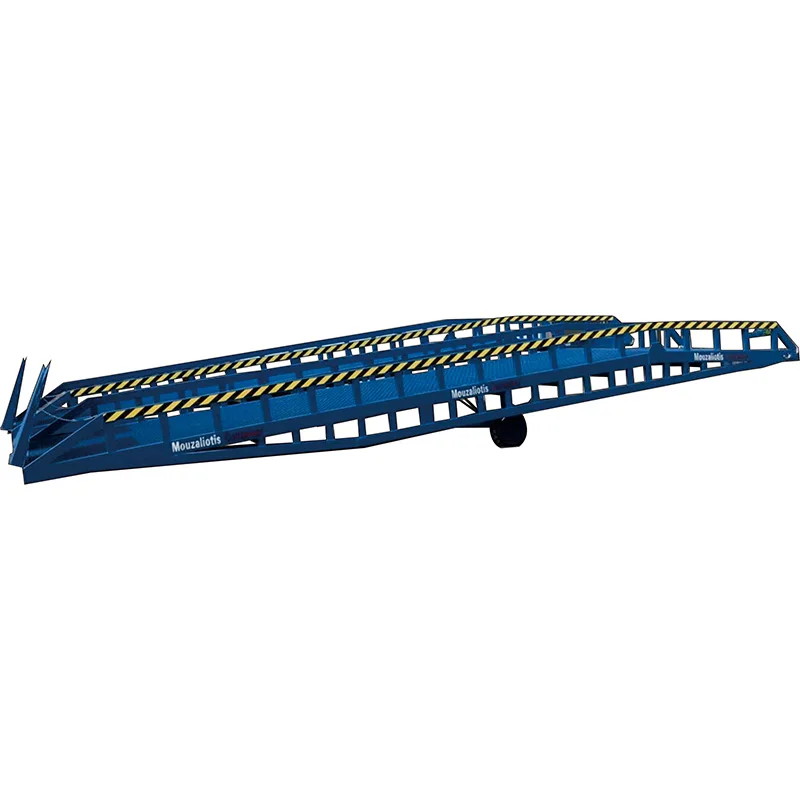

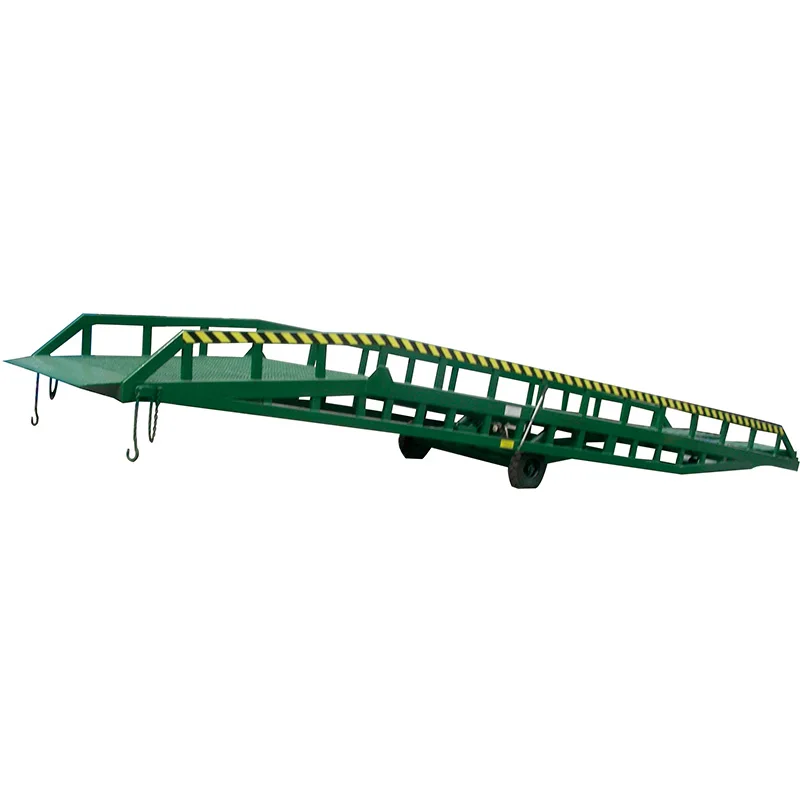

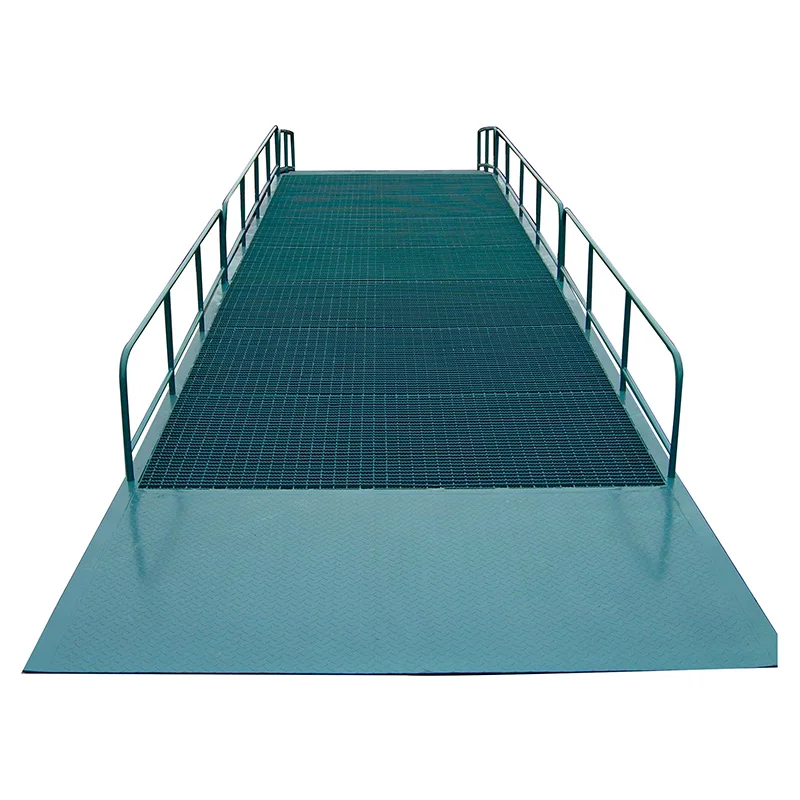

SAMCY Ramp 2 Year Warranty Good performance Better Price Unloading Dock Ramp

Product Overview

Description

Poduct Name		SAMCY Ramp 2 Year Warranty Good performance Better Price Unloading Dock Ramp
Model	Ability	A	B	C	D	E	F	G	H	I	J
SR6T	6T	7500	2200	1000	300	10500	2000	2080	1000	800	1800
SR8T	8T	7500	2300	1000	300	10800	2000	2090	1000	800	1800
SR10T	10T	7500	2400	1000	300	11200	2000	2100	1000	800	1800

Our factory SAMCY is specializing in manufacturing and exporting dock leveler,We have been in the industry 21 years since our setup in 1995.We are proud to offer you our full line dock leveler products:Stationary Dock Leveler,Mobile Hydraulic Dock leveler,Folding Dock Leveler.

The hydraulic dock leveler with hinge lip is a high capacity dock leveler,offing top-of-the line quality and safsty.The safety features of this dock leverler include return to dock position,velocity fuse free-fall protection and a Safe-T-Start maintenance support system.The hydraulic dock leveler is a kind of special mechanism which makes speed loading and unloading a reality.The height adjustment for the yard ramp become very easy with using of the hand hydraulic pump as dynamic and the extemal electric supply is unnecessary.

1)Hydraulic system

   With handle pump,screw the return valve clockwise.Move the handle stick,to lift the ramp slowly.When the return valve is screwed counterclockwise,the hydraulic oil will go back,and the ramp will fall down on its own weight.

2)Heavy-duty moblie chakra

   Moblie wheels adopt solid tyres,need not inflatable,durable,cooperate to brake pad,guarantee the operation safety.

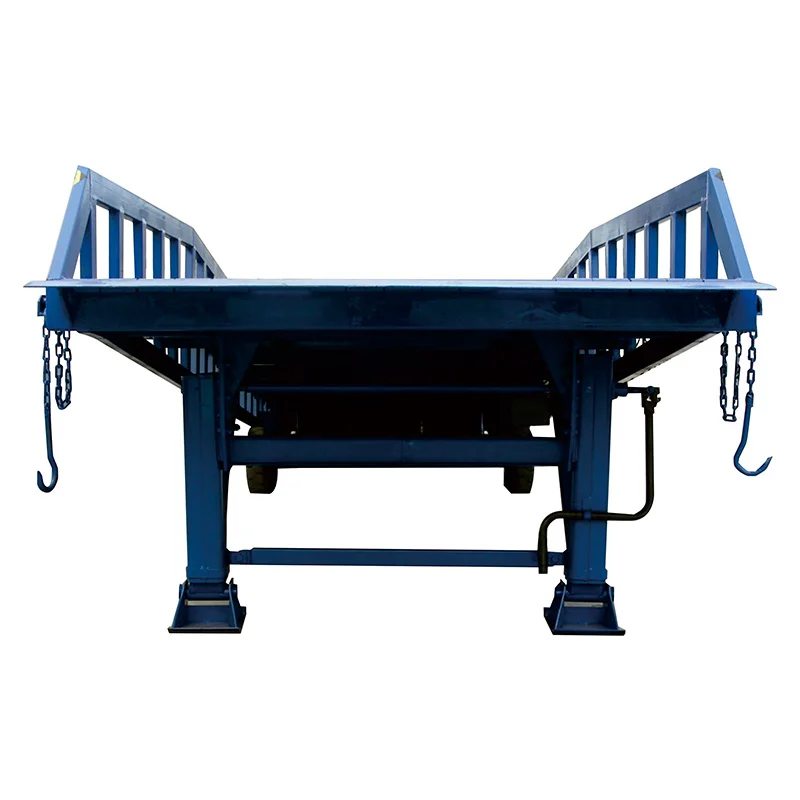

3)Spin adjustable a leg

   Prevend forklift into vehicle gravity concentrate on vehicle tail produce car overturned.Can fully guarantee the operation safety.The different height  to vehicles,suitbale for height adjustment of vehicles.

4)Manual hydraulic elebator system

   Using artificial hydraulic power,don't must exteral electric power can be easily realized climbing height adjustment.

5)Fold-down transition board

   The tail and transition plate and forklift folding hook can be convenient moblie cllimbing.

6)Hinge transition

   Adjustable length of cable chains used to hook vehicles,make cllimbing and vehicles,even shift,always close together joint.

7)Bridge body structure

   Bridge body strength,high bearing capacity bridge by high strength manganese steel body skeleton into truss add structure:compound high strength,the characterisitics of large carrying capacity.

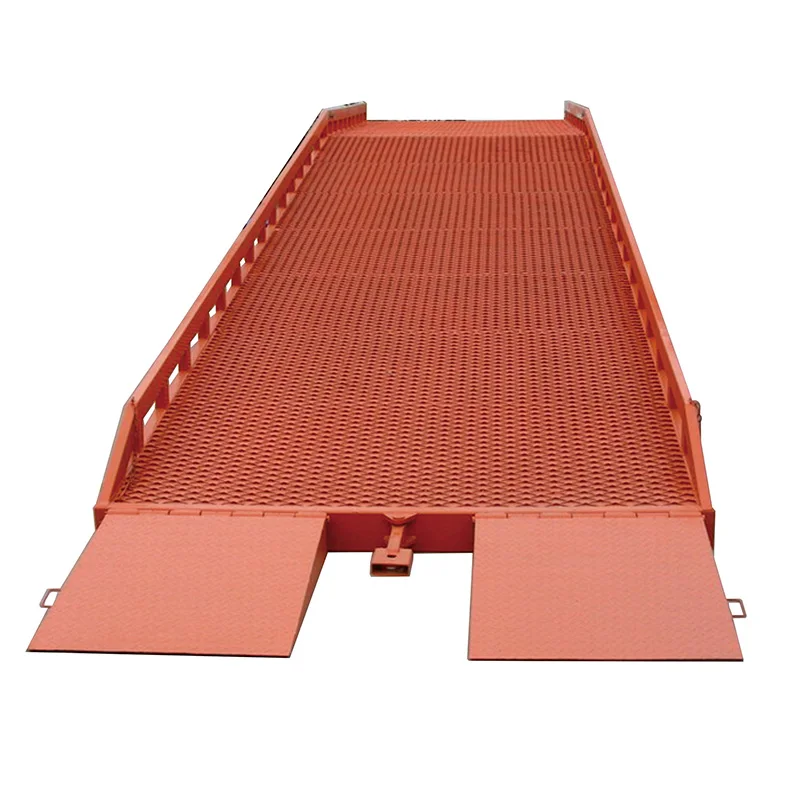

8)Antiskid steel nets

   Laying a layer above the bridge body slippery anilox steel plates,Mesh is distorted and hollow out,not only improved the reliability and work can prevent grease,dier and ice accumulation.

9)Safety crack-proof valve

    In addition to the relief valve,in order to prevent the tubing rupture,occur because of the accident,hydraulic systems of decline set in pipeline rupture types,the valve,when oil will automatically lock





Trade Terms	EXW, FOB, CFR, CIF or others
MOQ	1 Set
Port	Shanghai Port, Ningbo Port or others
Shipment	Ocean or Air transportation, International Express
Payment Terms	LC D/A D/P T/T Western Union Money Gram
Payment Condition	30% before Prodution, 70% after Delivery Upon BL
Supply Capacity	10,000 Sets per Year
Delivery Time	40 days after confirming the order
Service	OEM/ODM
