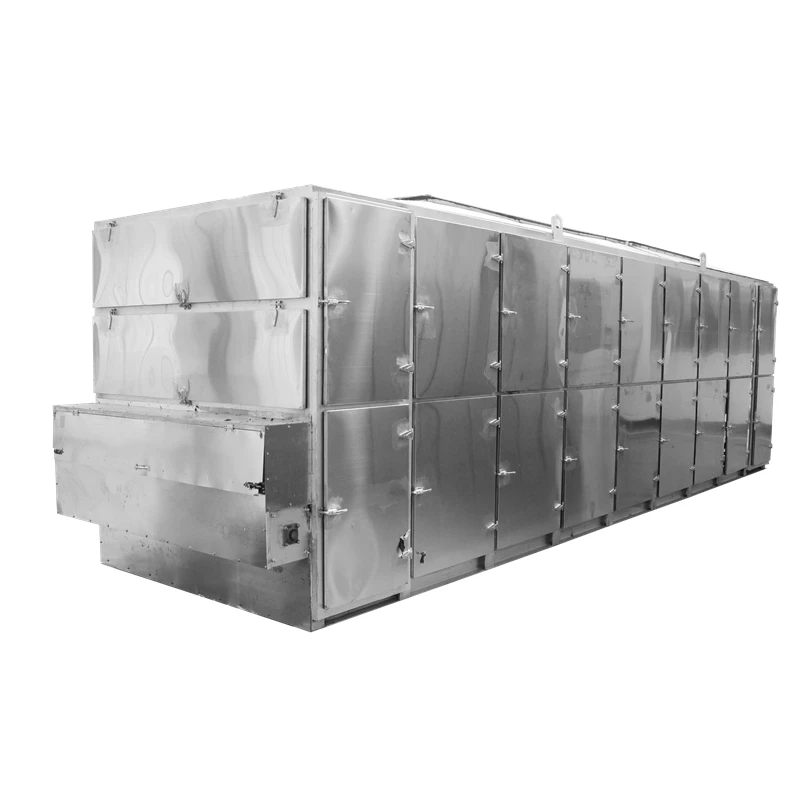

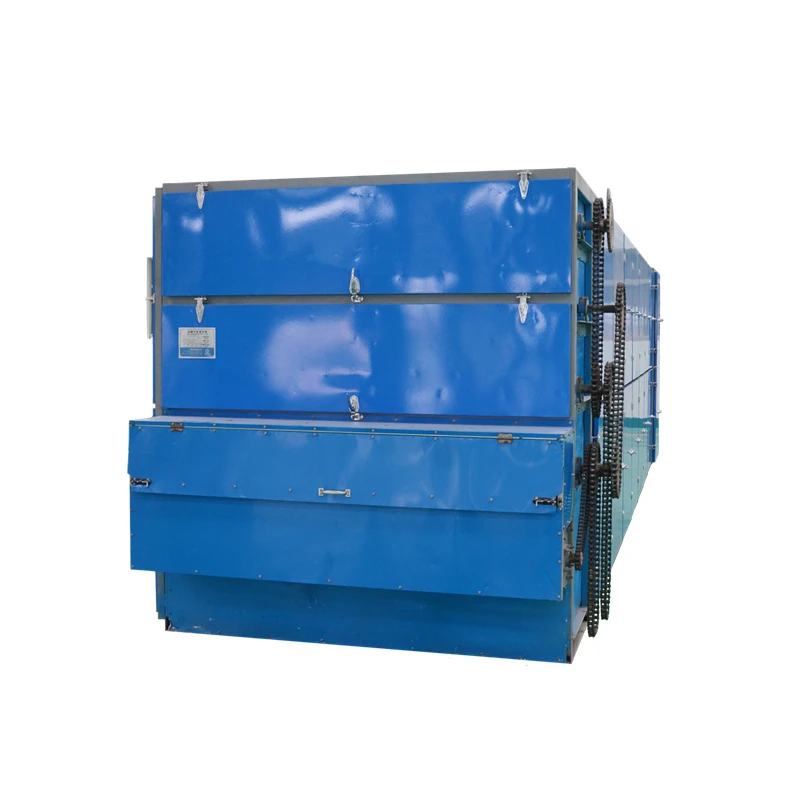

Professional manufacturer of chilli dryer food drying dehydration machine
Product Description
chilli dryer mainly used to dry flowers, leaves, stems,seeds etc..
It is the best choice for low temperature drying. It have high medical value.Our hemp drying machine is most popular in the united state,Canada, bulgaria etc.
Normally the input moisture: 80-85%, the output moisture: 8-10%.
Component of chilli dryer

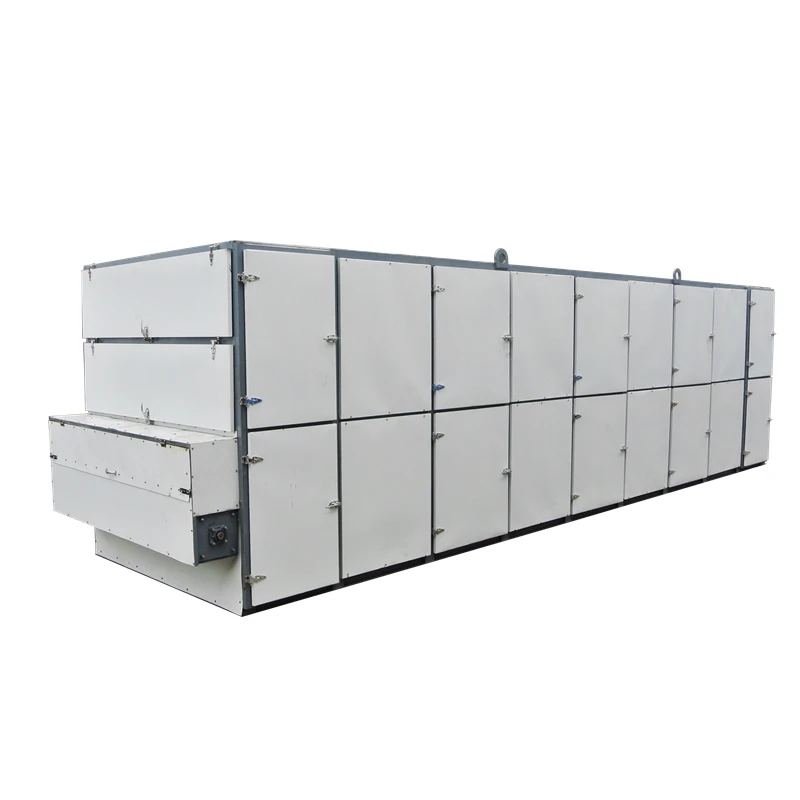

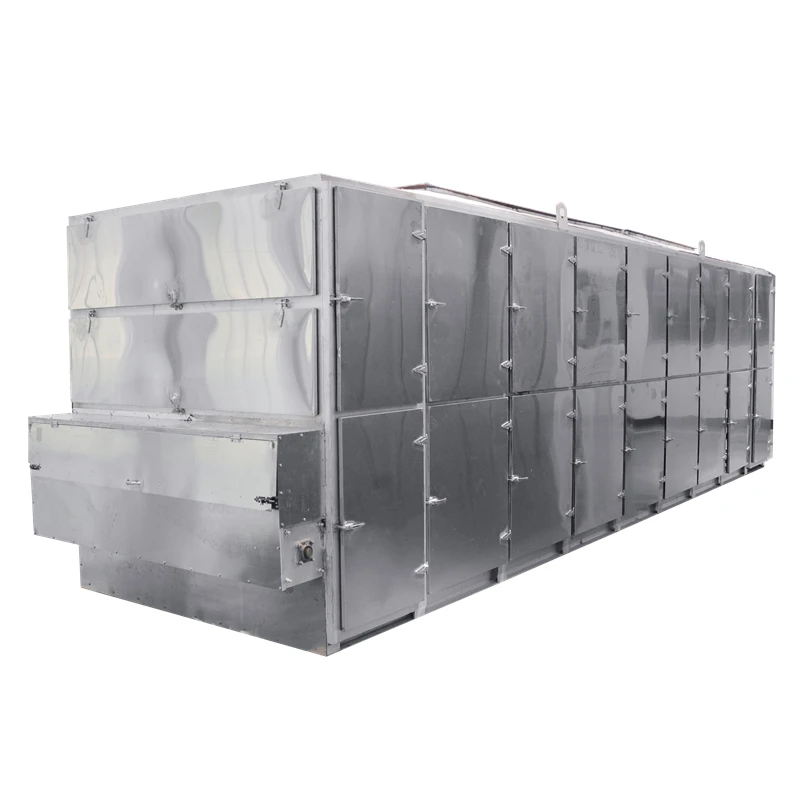

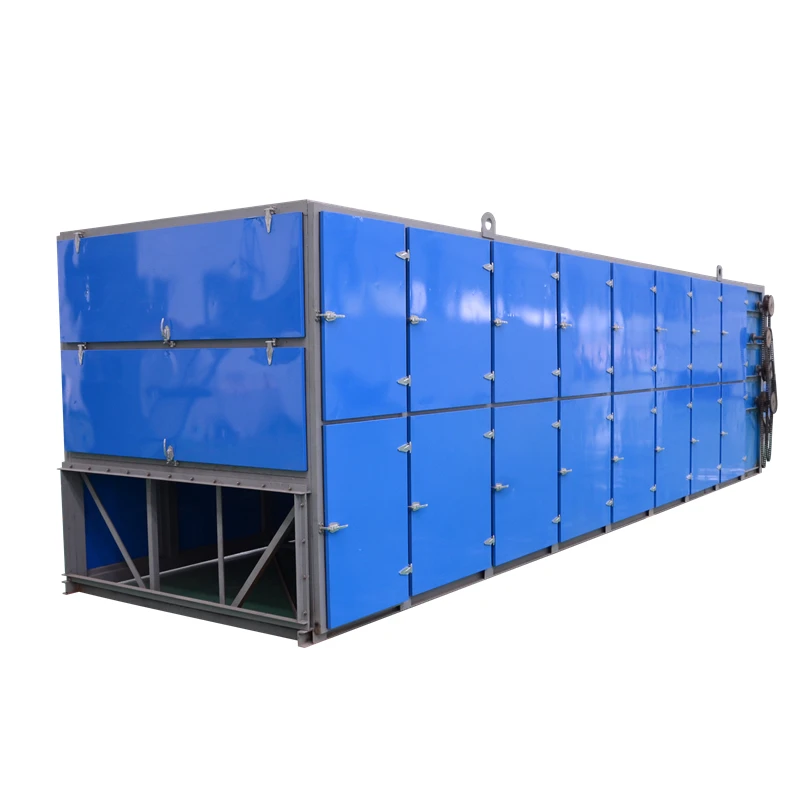

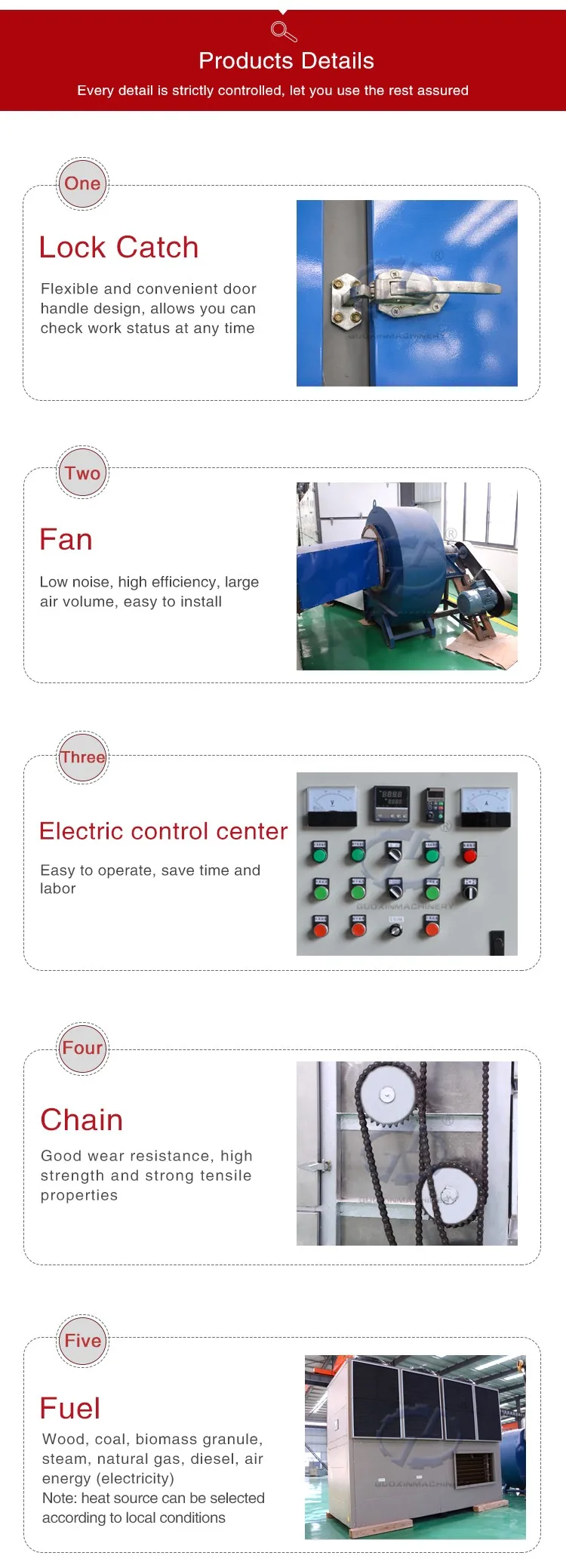

Guoxin chilli dryer is consists of the drying box, Feeding and discharging device, heat resource,electric control cabinet,draft fan and other devices.
According to different fuel,you can choose heat pump(electric), Steam boiler, heat exchange furnace(coal, wood chips,biomass,gas, oil etc) as heat resource.
chilli dryer working principle

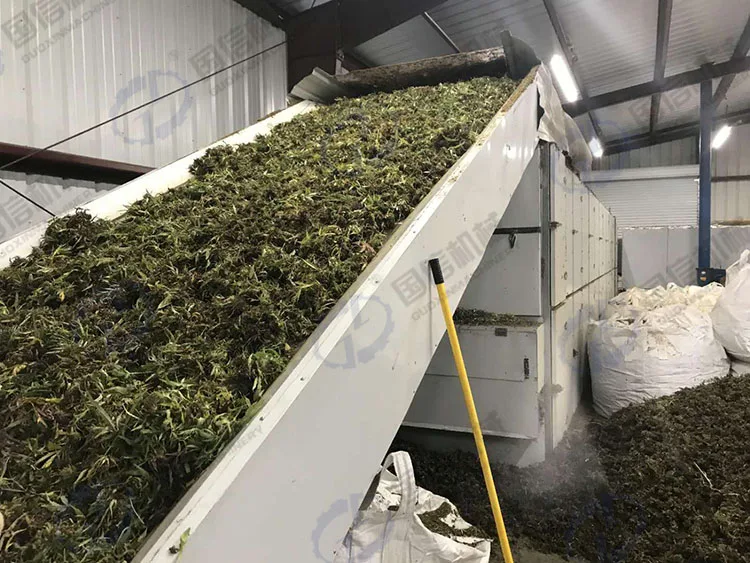

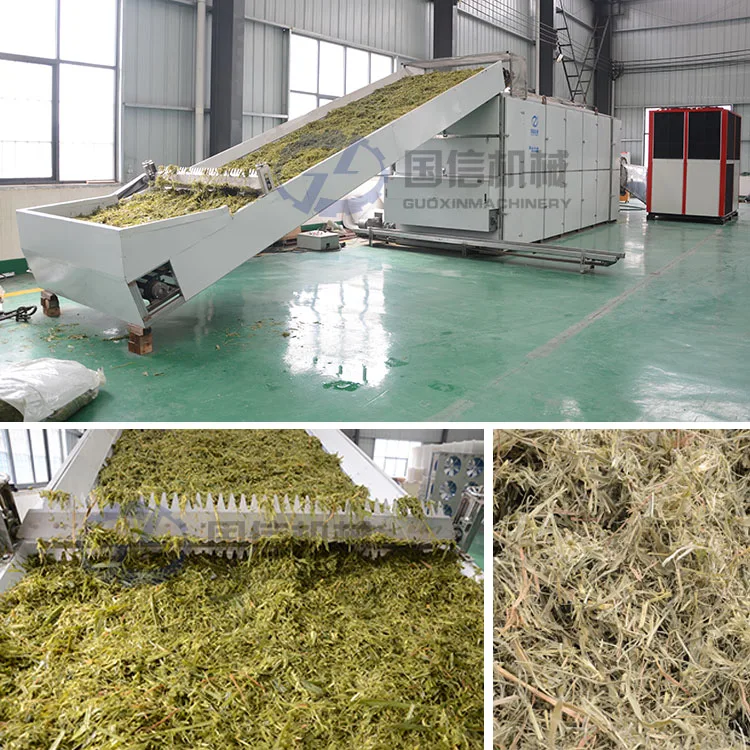

Put the fresh material on feeding device, The material through the homogenizer was spread evenly and entered from the top of the dryer;

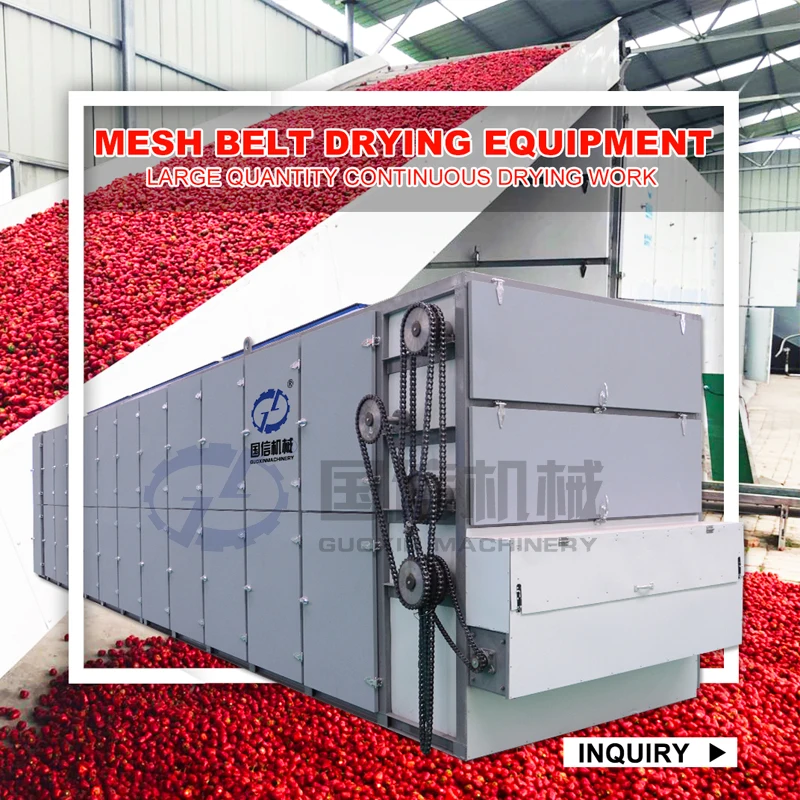

The material is transported by multi-layer mesh belt from top layer to bottom layer in the oven;
At the same time,the resource produce heat and come into the oven from the bottom;
After heat exchange, the moisture is evaporated from the top, and the material is discharged from the outlet after drying.
Technical parameters of chilli dryer
model
drying area
Maximum evaporation
Drying cycle(h)
Host power(kw)
heat source
Remarks
GX-1.5*6m
29 sq.m.
300kg/h
0.5-5
1.1
Heat exchanger, steam boiler, heat pump, etc.
We can customize it as your required
GX-2*8m
54 sq.m.
430kg/h
0.5-5
1.5
GX-2*9m
60 sq.m.
500kg/h
0.5-5
1.5
GX-2*10m
68 sq.m.
560kg/h
0.5-5
2.2
GX-2*11m
75 sq.m.
620kg/h
0.5-5
3
GX-2*12m
83 sq.m.
680kg/h
0.5-5
3
Advantage of chilli dryer
The drying machine with fully automatic feeding and discharging;
Fast drying system,the drying machine not only according to heat to dry, but also according to strong air.
Drying machine with movable door, easy to clean.
More durable, corrosion resistant;
The temperature and speed of the dryer can control by control panel.
Packaging & Shipping
For chilli dryer,Packaged with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation.
Then, we will choose the most convenient and economic way to delivey goods. Besides, if our customer have specific demand with delivey, we can make it.
Our Services
Pre-sale services:
Act as a good advisor and assistant of clients; enable them to get rich and competitive from the returns of their investment. 1) Select suitable equipment model. 2) Design and manufacture products according to clients’ special requirements. 3) Train technical personnel for clients. 4) Professional suggestion for customer.
Services during the sale:
Respect clients; devote ourselves to improving the total value of clients. 1)take photos(including raw material, semi-products, final products, and loading products) 1) Pre-check and accept products ahead of delivery. 2) Prepare all clearance documents, so that the customer clearance smoothly.
After-sale services:
Provide considerate services to minimize clients’ worries. 1) Provide civil engineering drawings of the equipment. 2) Free training(including installation,maintenace) to every customer. 3) Install and debug the equipment, ensure the dryer running smoothly. 4) Examine the equipment regularly. 5) Take initiative to eliminate the troubles rapidly at site. 6) Distribute the guarantee fittings door-to-door. 7) Provide technical exchange and support.

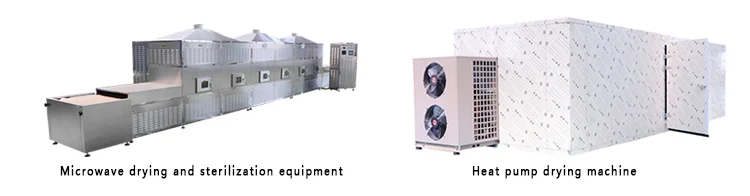

We can also provide you the following equipment:
Company Information
Guoxin machinery factory is located in gongyi zhengzhou city ,henan province,we have 15 years experience in drying field,the machine have exported to more than 30 countries and regions.
We are professional in mesh belt dryer,microwave dryer,heat-pump drying machine,rotary dryer and other auxiliary equipment, like cleaning,peeling,slicing and packing machine. All of our products are approved CE quality inspection certificates.
FAQ
1) How is the quality of your chilli dryer?
Our all products are certificated with CE quality inspection. Also manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
2) What guarantee do you provide?
If the quality is not consistent with the description as we said or promised before you place order, we promise you 100% refund.And we now support Alibaba Trade assurance which can protect your money safe,if we don't deliver on time,and the quality is not good after you receive,we gurantee 100% refund.
3) How about price?
We have our own factory and can give you the competitive price. Besides, we have a policy that " for saving time and absolutely honest business attitude, we quote as low as possible, discount can be given according to quantity".
