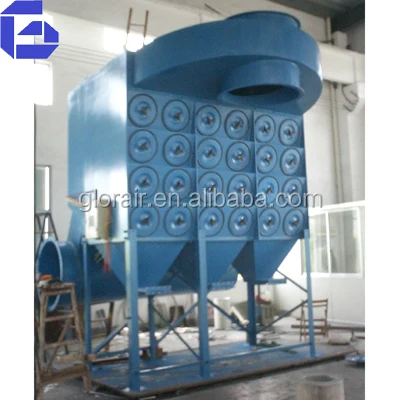

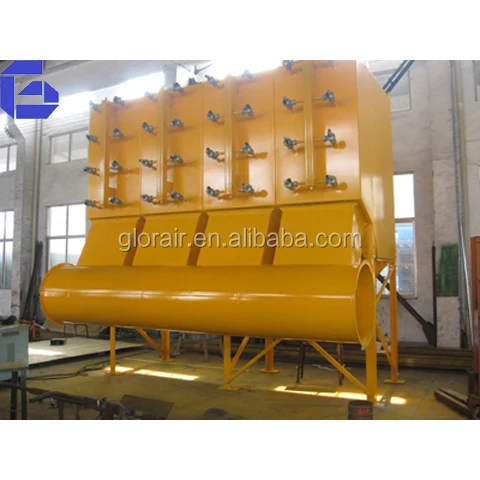

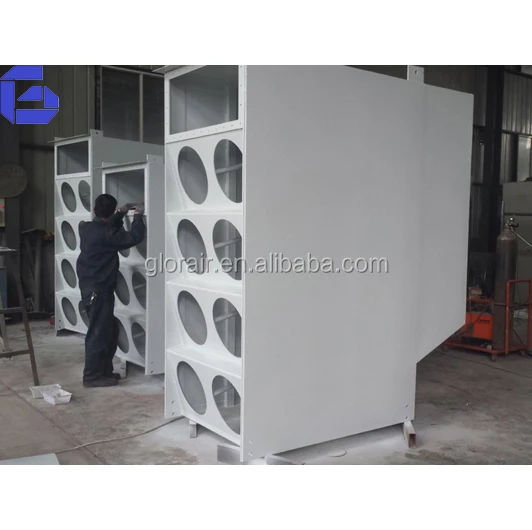

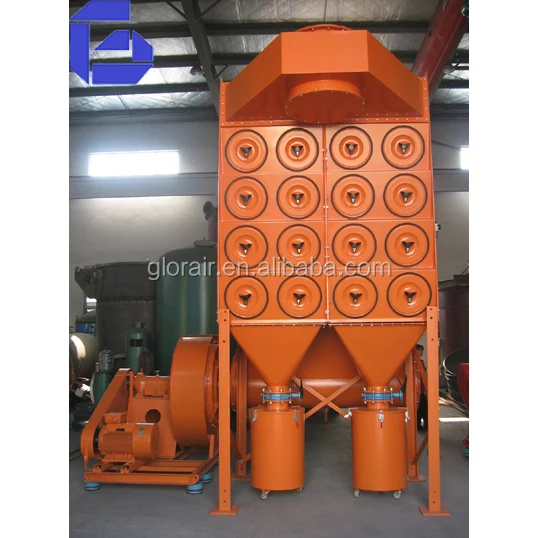

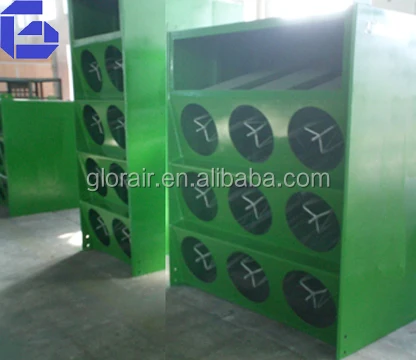

Glorair Self Clean Abrasive Blast Dust Collector, Industrial Dust Filtration System Air Pollution Control Equipment

Product Overview

Description

Glorair Self Clean Abrasive Blast Dust Collector, Industrial Automatic Clean Air Pollution Control Equipment



Product Description:

Horizontal cartridge dust collectors use gravity and downward airflow to achieve self-clean and reduce pressure across the cartridge filters. They collect airborne contaminants from industrial processes varying from welding and metal working to chemical and pharmaceutical processing. The units can be used in almost every manufacturing processes and efficiently control pollution levels. They are economical, simple install and maintenance. They are especially suitable for fine and low dust loading applications.

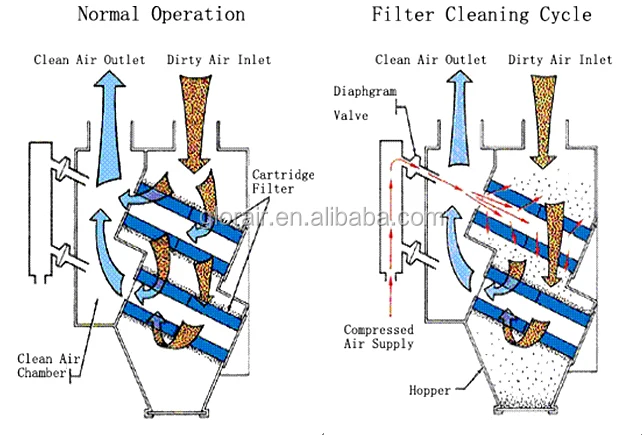

Working Theory

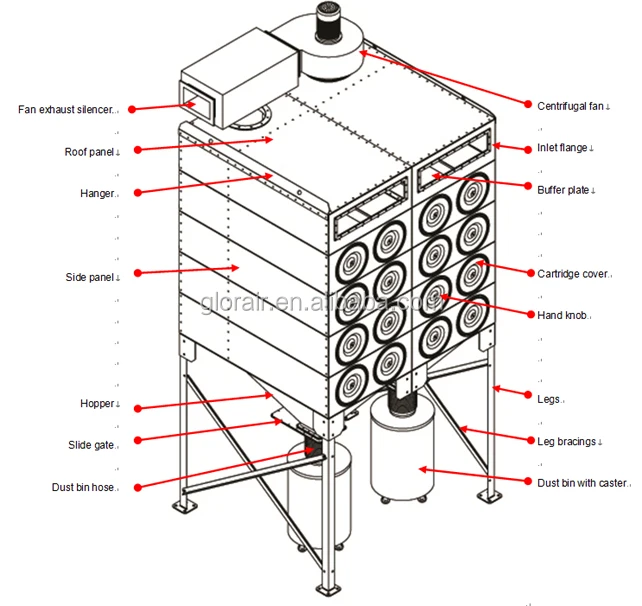

Basic Components



Product Features:

Modular structure makes quick manufacturing and assembly

Most of the components installed and tested in factory before delivery

Compact structure can effectively save the site space

Various cartridge filters for various dust collections

Cartridge filters have longest life and highest filter efficiency

Special designed venture and supersonic nozzle improve the cleaning, increase the filter life significantly

Very simple and clean for cartridge change-out



Typical Applications:

Abrasive blasting, Shot blast, Welding fume, Laser cutting, Plasma cutting, Food, Pharmaceutical, Chemical, Mineral, Cement, Plastic, Ceramics, Active carbon, Carbon black



Advanced Design



Download brochure and see more photos for products, please visit our website:

//www.glorair.com/



Specifications:

Model	Cartridge Number	Filter Area*	Airflow**
X 2-4	4 PCS	92 M2	4000 CMH
X 2-8	8 PCS	184 M2	8000 CMH
X 2-12	12 PCS	276 M2	12000 CMH
X 2-16	16 PCS	368 M2	16000 CMH
X 2-24	24 PCS	552 M2	24000 CMH
X 2-36	36 PCS	828 M2	36000 CMH
X 3-6	6 PCS	138 M2	6000 CMH
X 3-12	12 PCS	276 M2	12000 CMH
X 3-24	24 PCS	552 M2	24000 CMH
X 3-36	36 PCS	826 M2	36000 CMH
X 3-48	48 PCS	1104 M2	48000 CMH
X 3-60	60 PCS	1380 M2	60000 CMH
X 3-72	72 PCS	1656 M2	72000 CMH
X 4-16	16 PCS	368 M2	16000 CMH
X 4-32	32 PCS	736 M2	32000 CMH
X 4-48	48 PCS	1104 M2	48000 CMH
X 4-64	64 PCS	1472 M2	64000 CMH
X 4-80	80 PCS	1840 M2	80000 CMH
X 4-96	96 PCS	2208 M2	96000 CMH
X 4-112	112 PCS	2576 M2	112000 CMH
X 4-128	128 PCS	2944 M2	128000 CMH

*Filter area for cellulose cartridge filters; ** Airflow for typical working conditions; Pls contact us for more technical information.

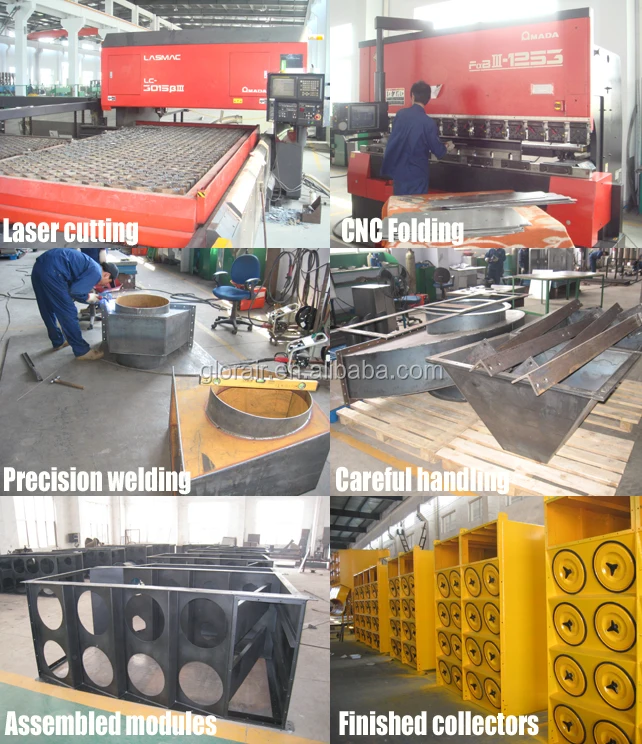

Workshop & Facilities



Cooperation Customers
